YDW211 Perimeter Gaskets Weatherstrip Profiles Modern Sliding Door
Perimeter Gaskets
- AVAILABLE FINISHES: A, C, BL, DB, G, PB, LB, PW
- WIDTH: 1/4” (6.4 mm)
- PROFILE HEIGHT: 7/8” (22.2 mm)
- TOTAL HEIGHT WITH INSERT: 1-1/8” (28.6 mm)
- Warranty：1 Year
Certificate:
- UL
- Overview
- Recommended Products

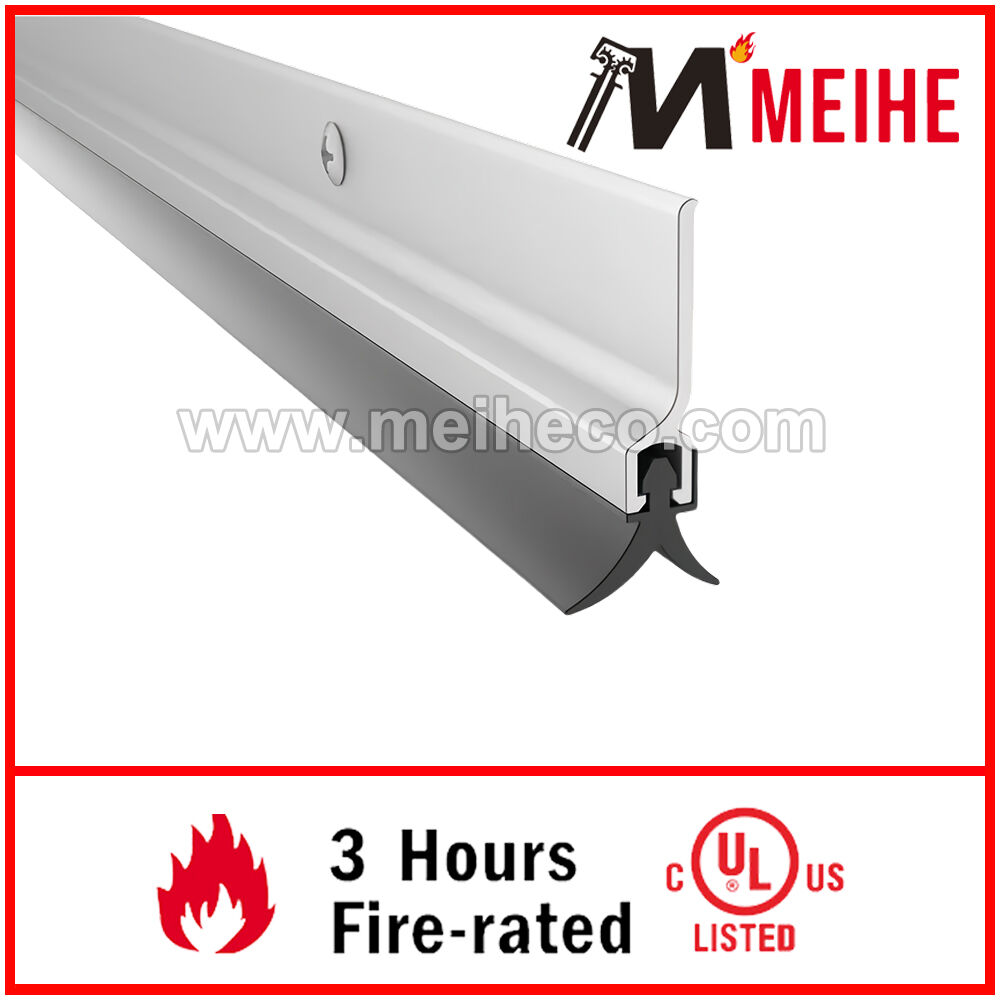

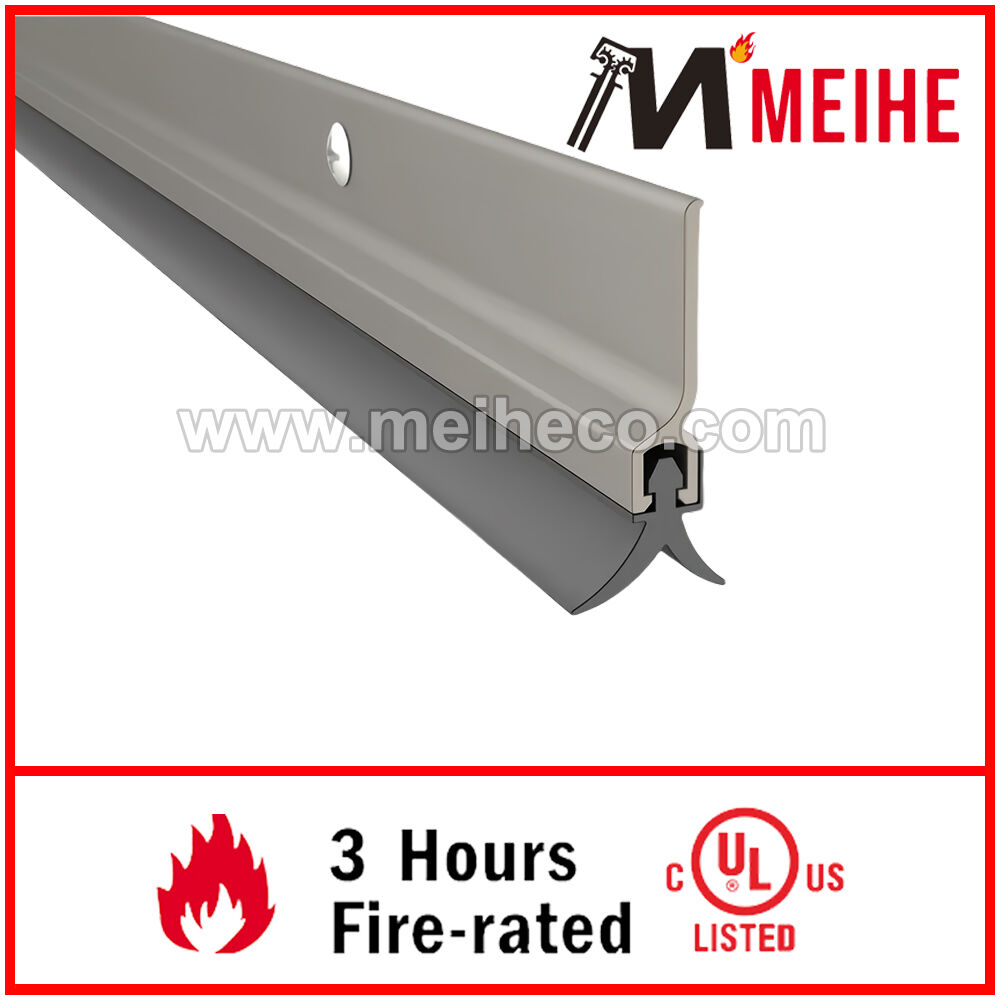

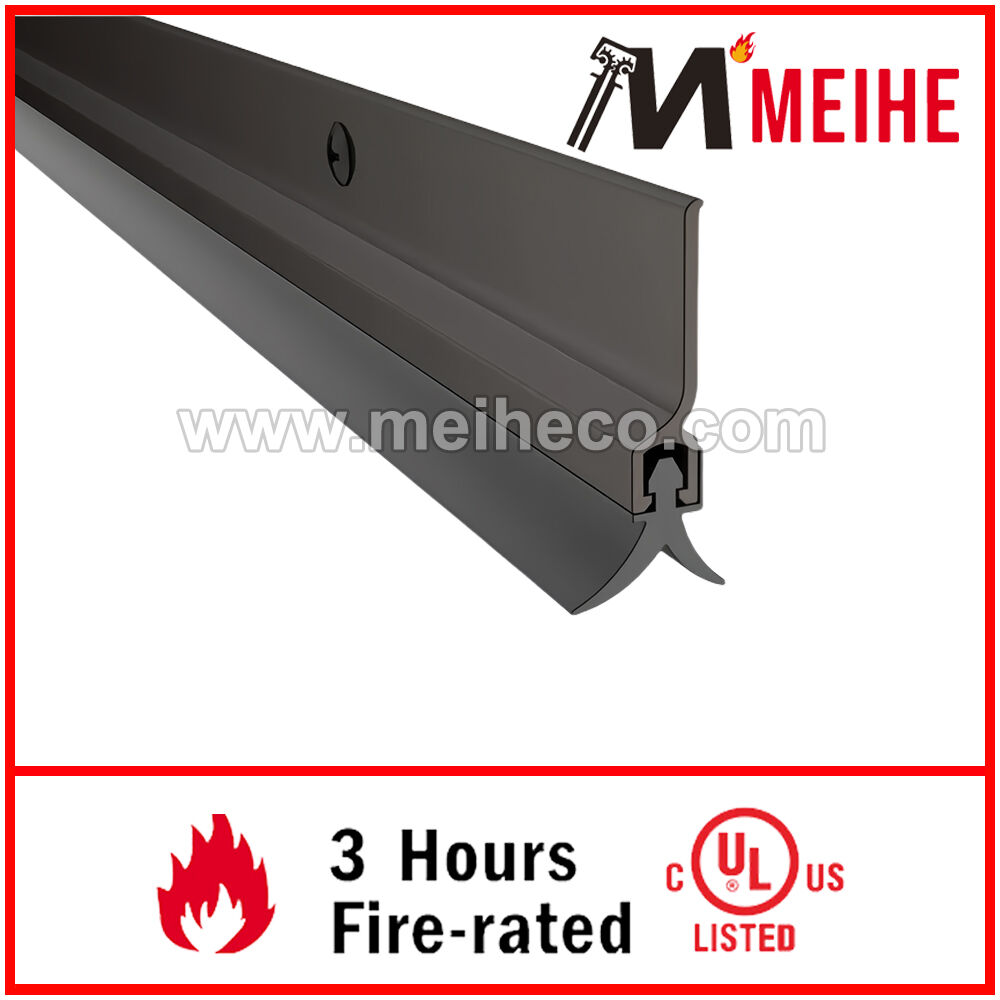

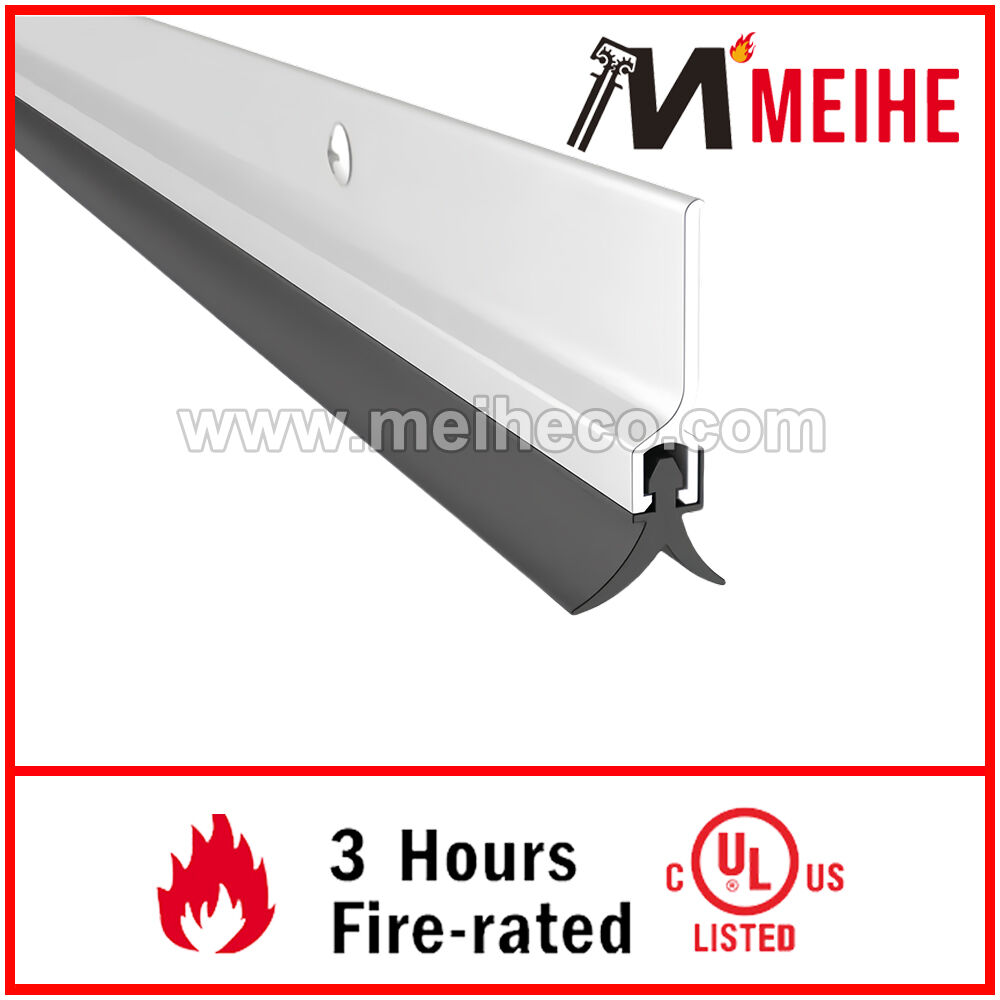

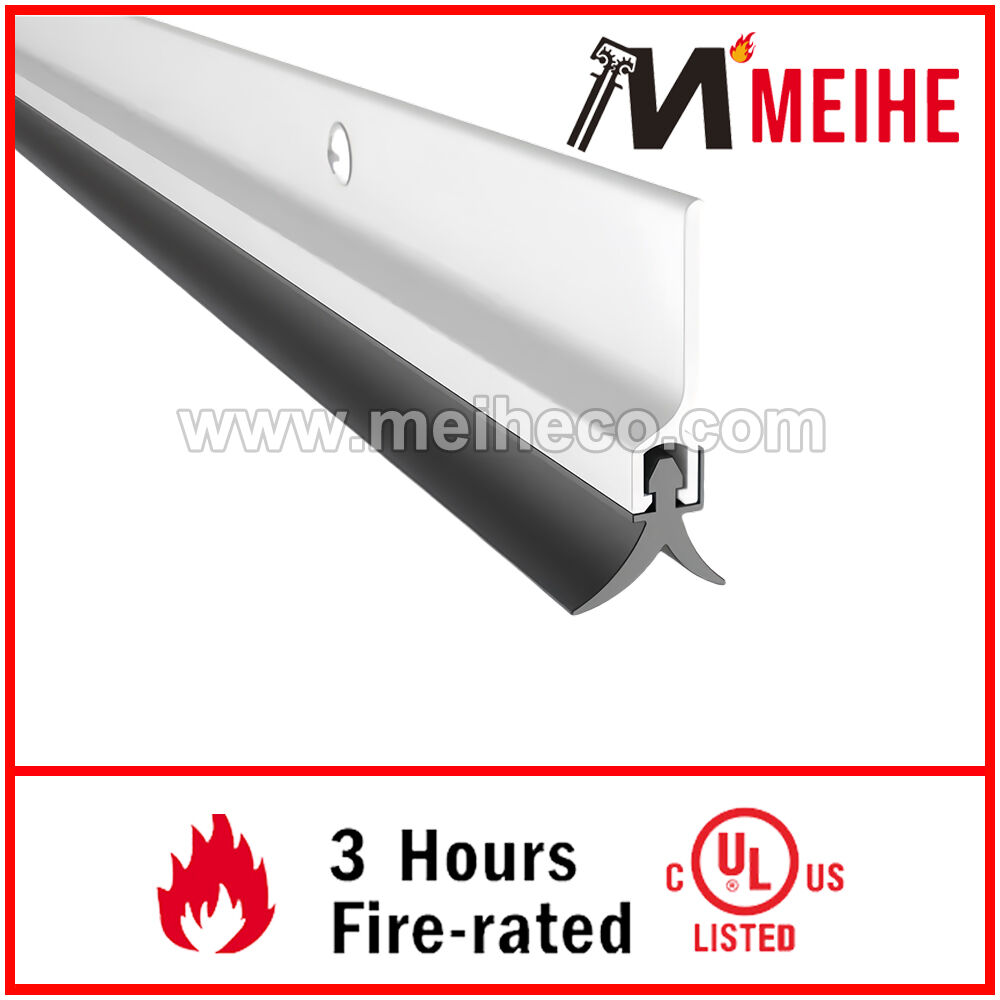

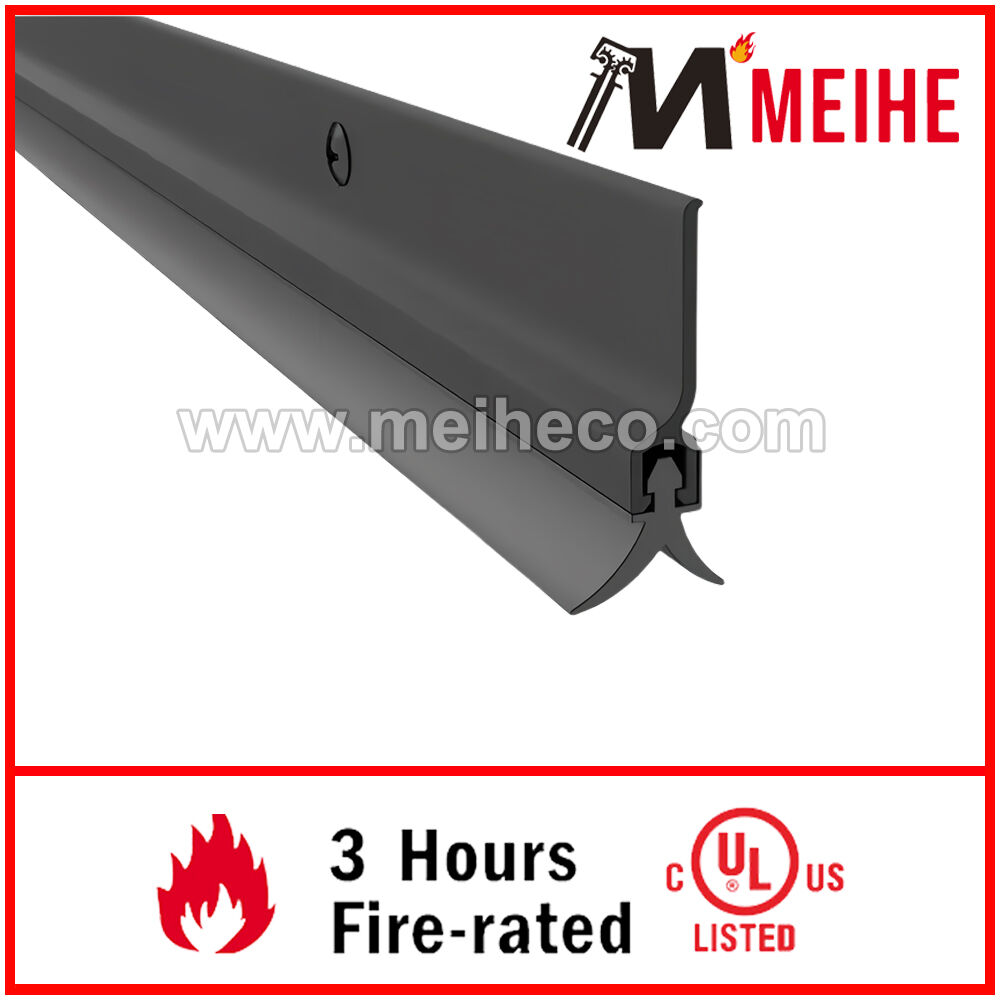

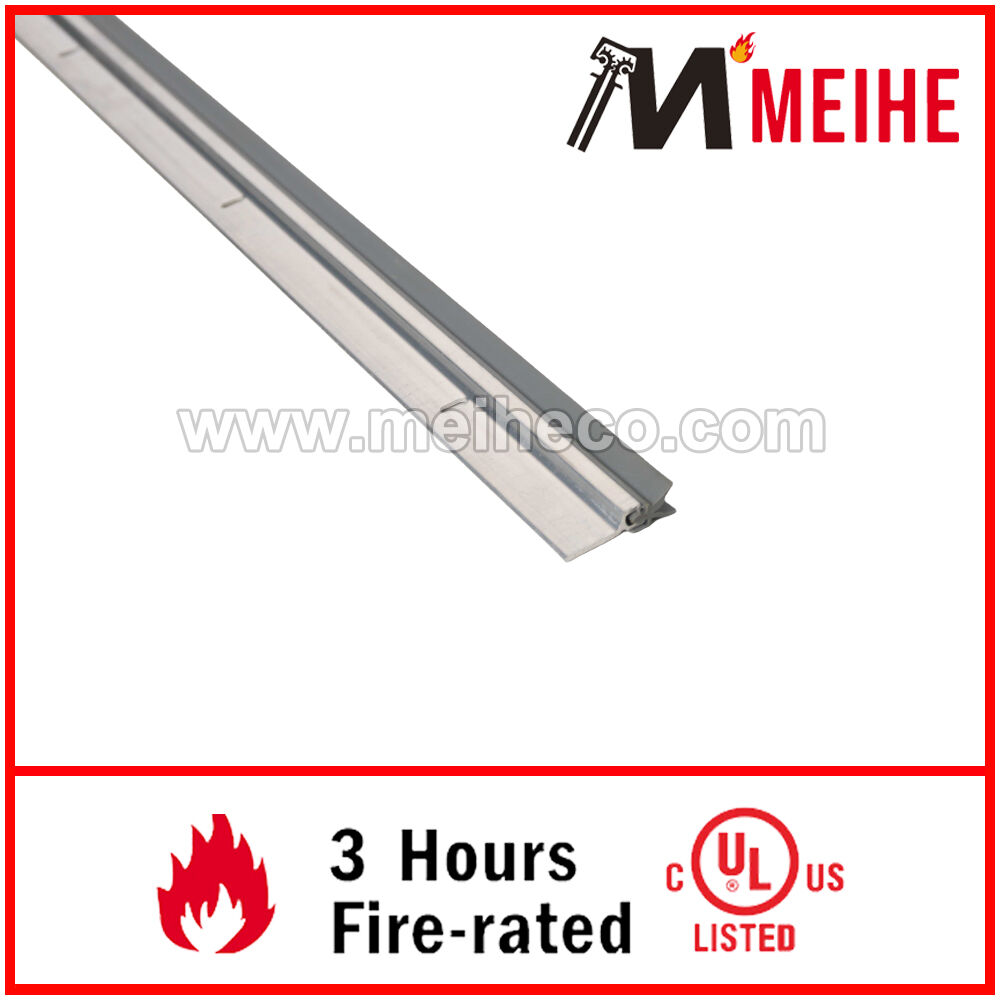

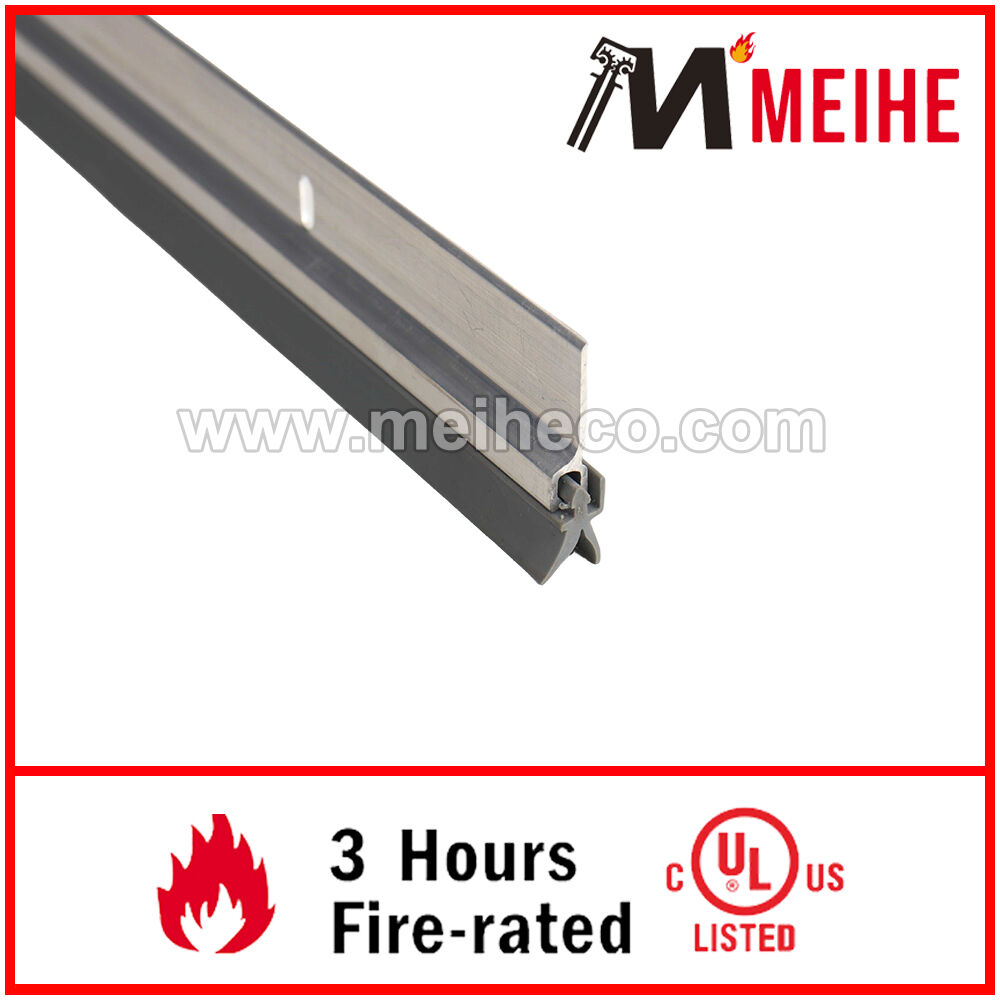

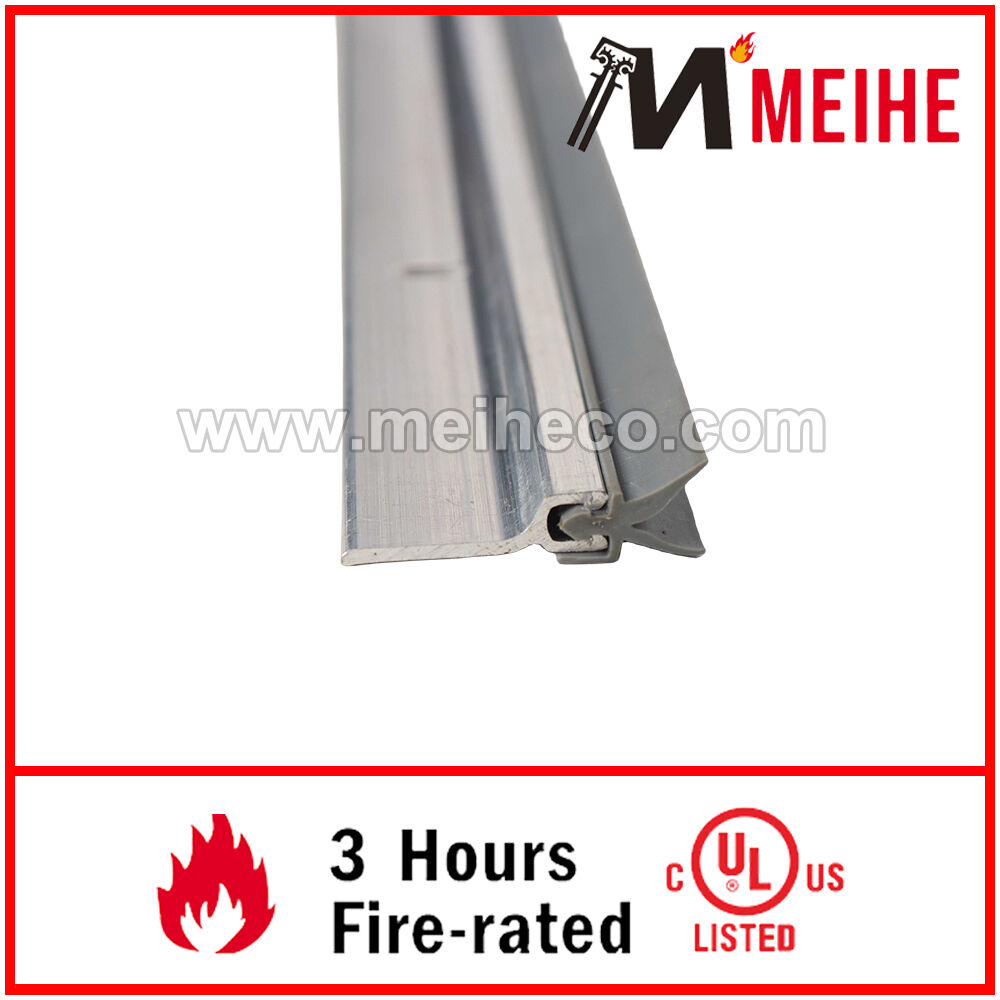

This aluminum casing and rubber seal can be applied as a door gasket or meeting stile. Its 0.25" rubber Fin will create a seal that will prevent infiltration of water, dust, drafts, fire, smoke and air. Available in many finishes that are guaranteed to blend unobtrusively into your door, and with various rubber seals.

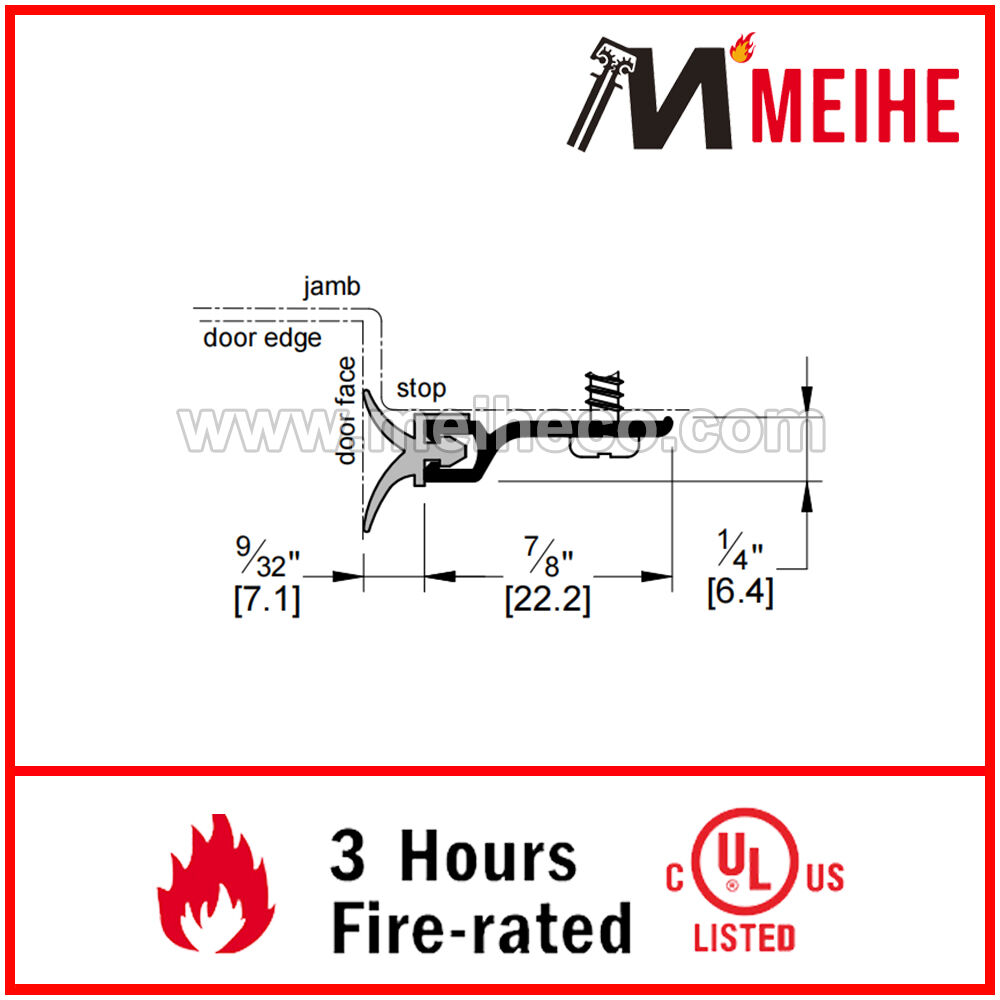

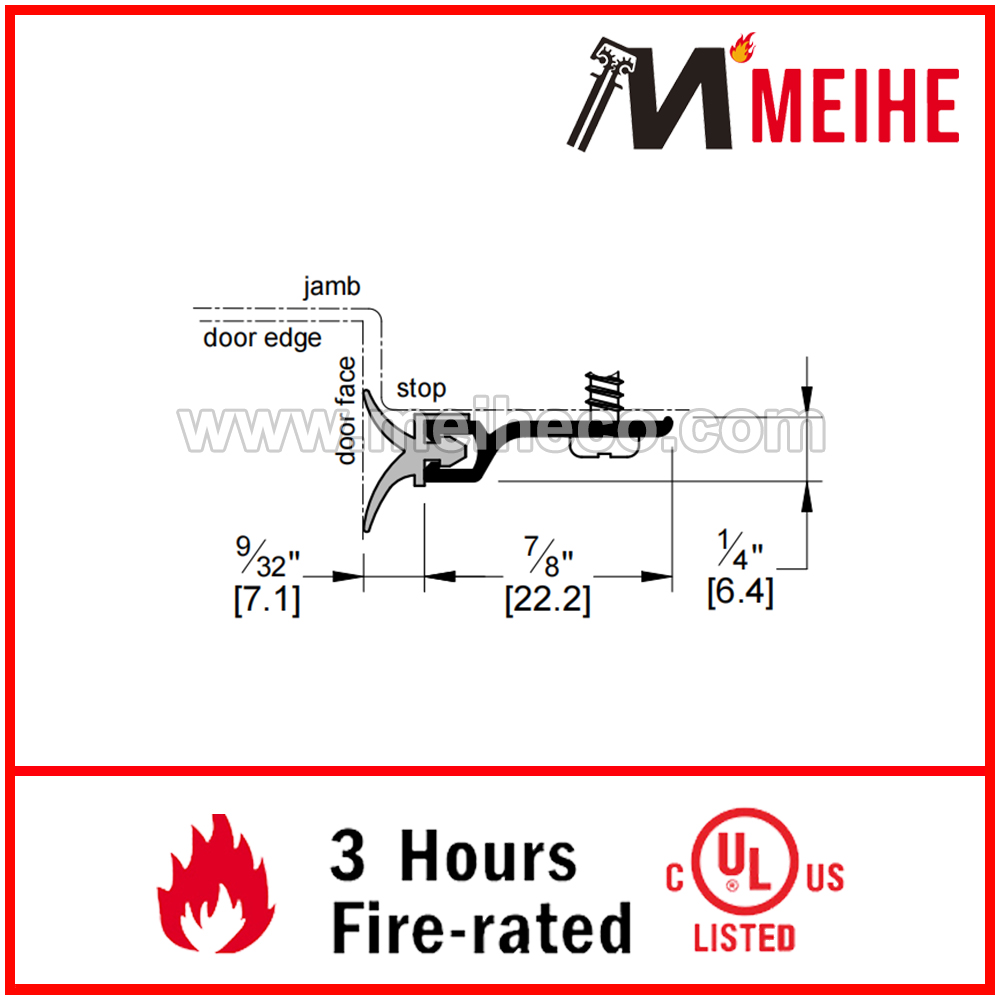

Door Gasket: Applied around the perimeter of the door. The aluminum retainer is surface applied to the stop of the door. When closed, the door compresses the seal to form a solid barrier. It is designed for gaps of 1/16" but can seal up to 1/4".
Feature:
- Fire, smoke and air infiltration rated
- Vinyl material is rated for low VOC Emissions
- Slotted holes for easy adjustment
- Door gasket or meeting stile application
| Type | Weatherstrip/Standard Perimeter Gasketing |
| Material | 6063-T5 Aluminum Alloy and Vinyl/Silicone Insert |
| Mounting | Surface Mounted |
| Lengths | Standard 36",48",36x84",48x84"; Custom Cut to Size, Up to 185" |
| Total Width | 1-1/8" (28.6 mm) |
| Height | 1/4" (6.4 mm) |
| Finishes |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) PW - (Panited White) |
| Installation | Drill holes are provided |
| Certificate | Fire Rated - UL 10B/ UL 10C |
