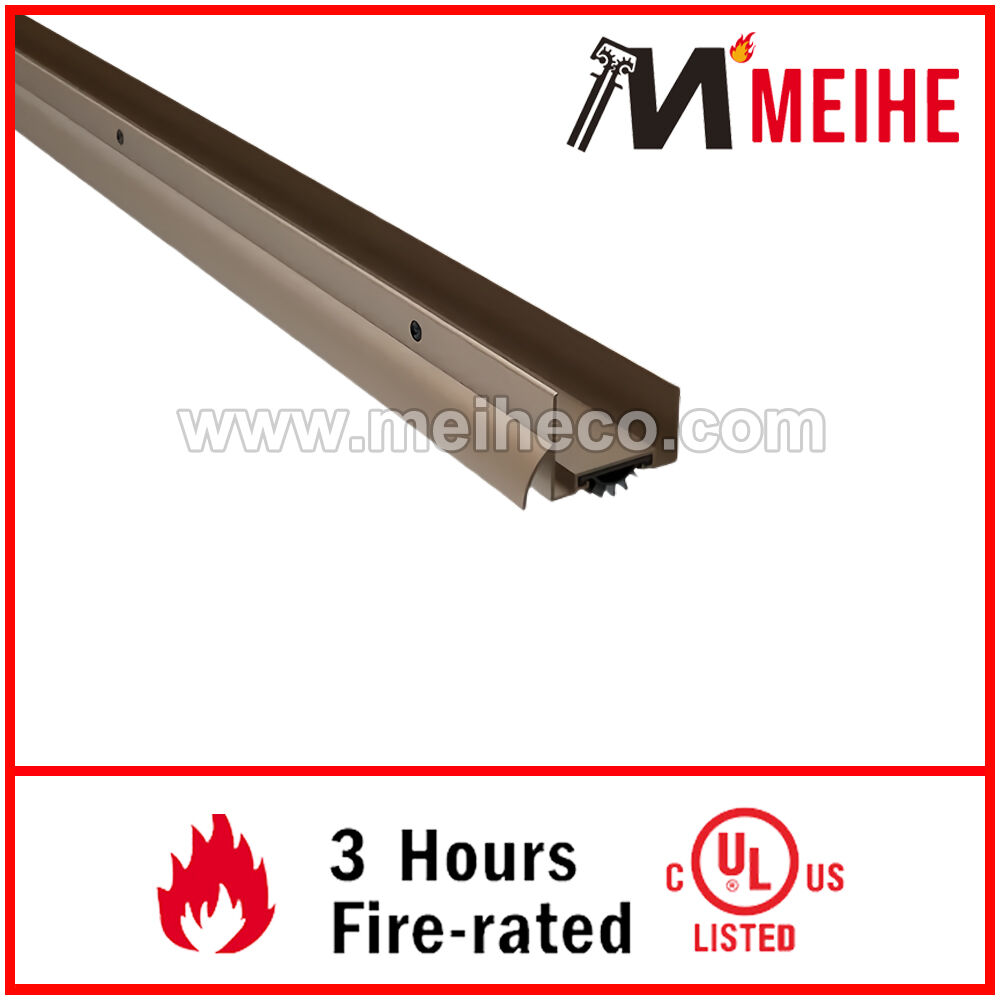

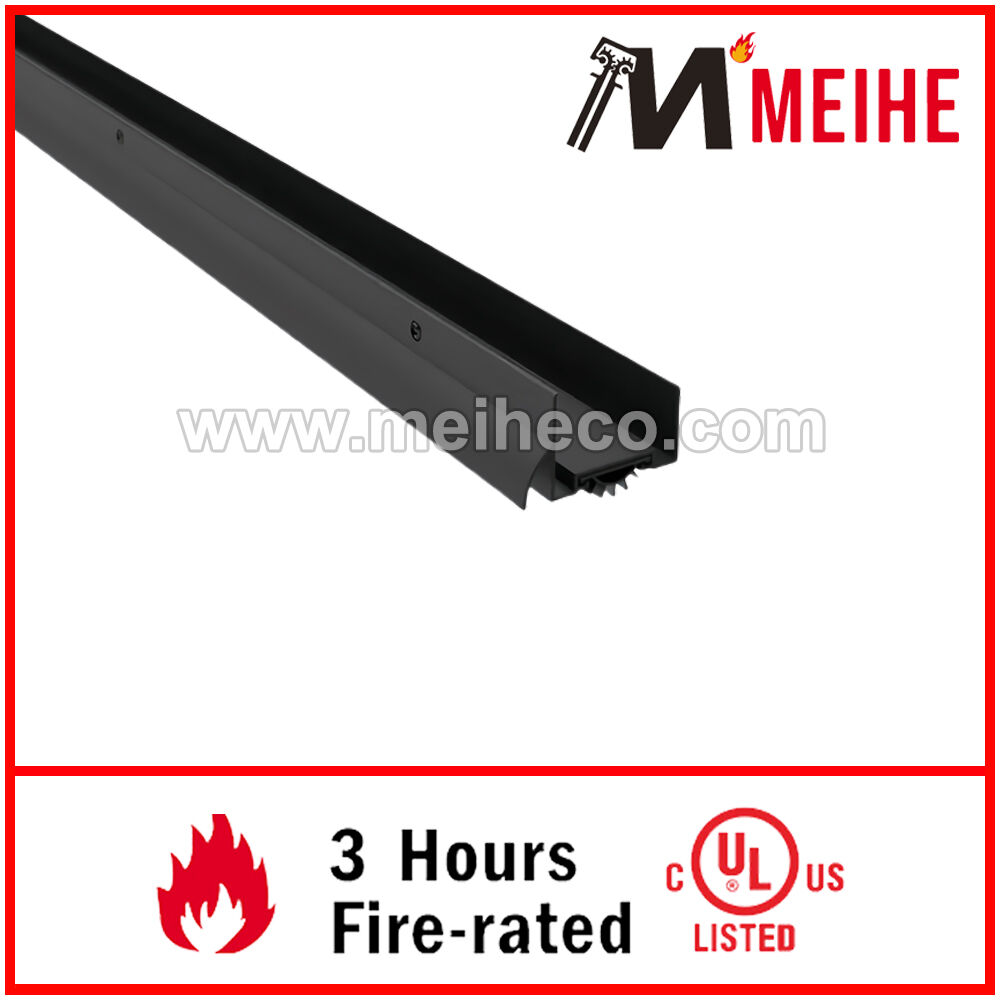

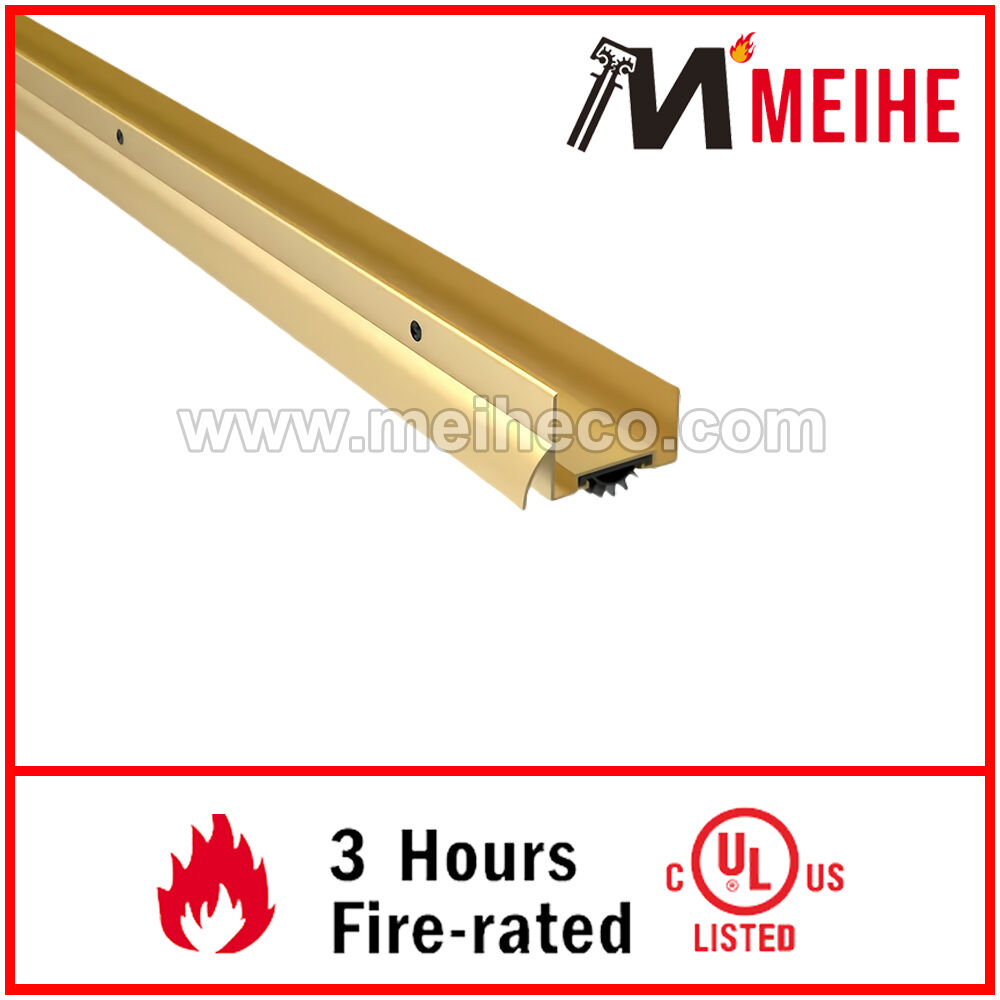

YDS107 Modern Design Aluminum Door Shoes with Vinyl Insert U-Type Closet Door Shoe Storage Seals Low Price Hardware Made China
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

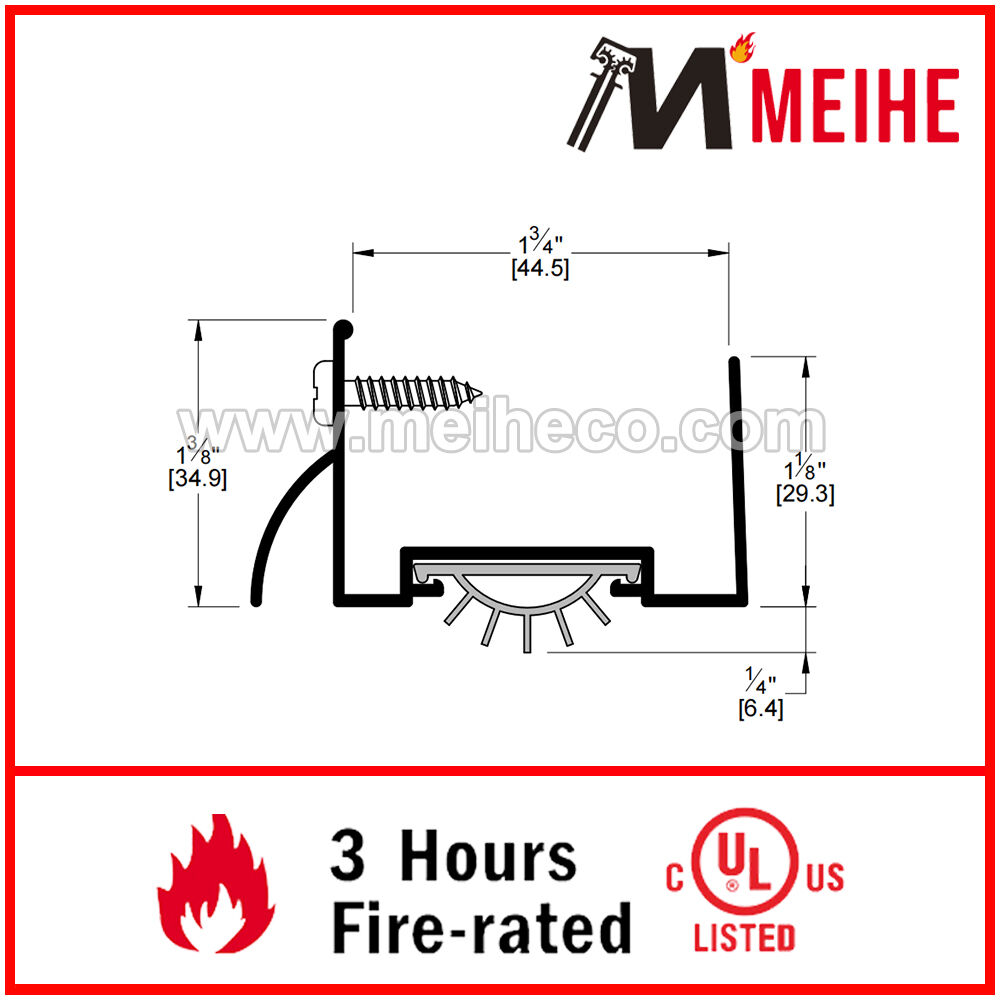

- Width: 1-3/4” (44.4 mm)
- Height: 1-9/16” (39.7 mm)
- Function:Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products
This door shoe is ideal for protecting the bottom of doors from abuse and sealing the door gap up to 0.25". The design is made specifically for 1.75" hollow metal doors with a channel on the bottom. It is fire, smoke, air infiltration and sound rated and has a rain drip design which deflects water and prevents seepage. Can also be rated for low VOC Emissions, see note below. Available in various finishes, two inserts and is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
1/2" Height |
Total Height |
1-9/16" Height |
Additional Dimensions |
Door seal is 1-3/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #2221_V; NGP #355EVX17
|
