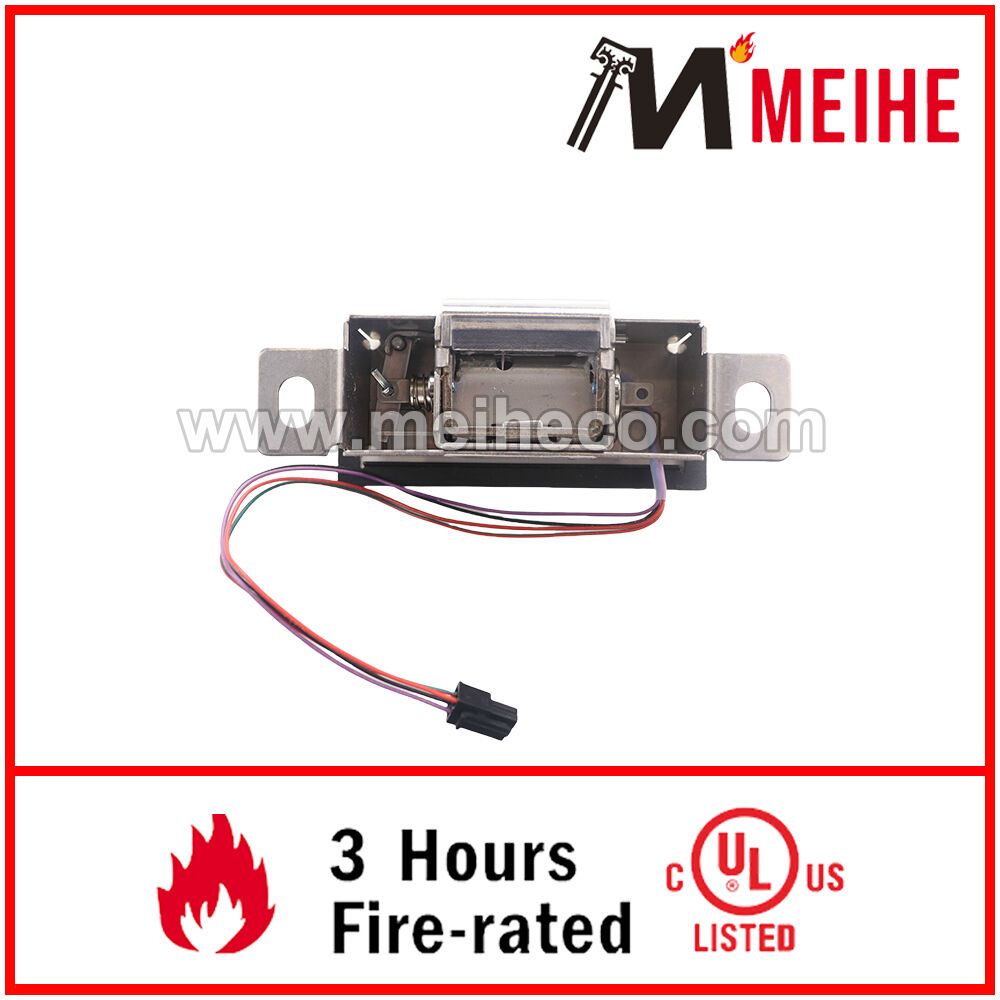

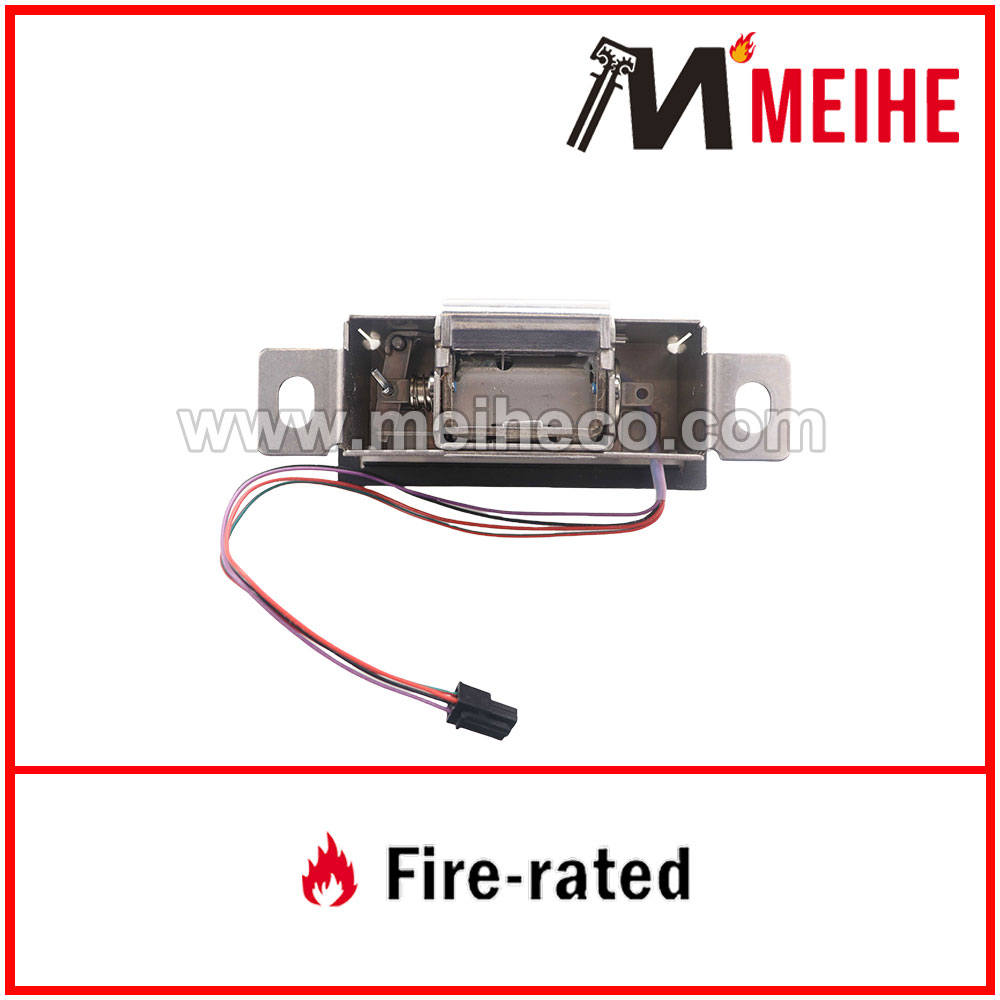

Compact ES008 Series Electric Strike Lock Cylinders Easily Adjustable Opening

Compact ES008 Series Electric Strike Lock Cylinders Easily Adjustable Opening

Electric Strike

-Material：Stainless Steel
-Voltage：12VDC
-OEM：Available

Overview
Recommended Products

Electric strikes are one of several kinds of electrically operated locking devices used to secure both inside and outside doors. Electro mechanical by nature, they provide a cost-effective way to control foot traffic from one side of a door to the other.

The ES008 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Voltage	DC 12V/DC 24V
Suitable for	Wooden doors, Metal doors, PVC doors

Application
- Adjustability : Horizontal
- Surface Mounting : Cutting required
- Frame Material : Metal|Wood
- Shim Type : NA
- Latchbolt Accommodation : Up to 5/8"

Electrical
- Voltage : 12/24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Monitoring

Strength & Durability
- Endurance (cycles) : 1,000,000
- Dynamic Strength (ft-lbs) : 70
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
- Grade : Grade 1

General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Exit Device|Cylindrical Lock

Weights & Dimensions
- Strike Body Depth (in) : 1-11/16"
- Strike Body Height (in) : 4-87/100"
- Strike Body Width (in) : 1-1/4"
