YDS102 Modern Design Aluminum L-Type Closet Door Shoe Storage Seal with Gray Vinyl Insert Made in China Hardware
Door Shoes

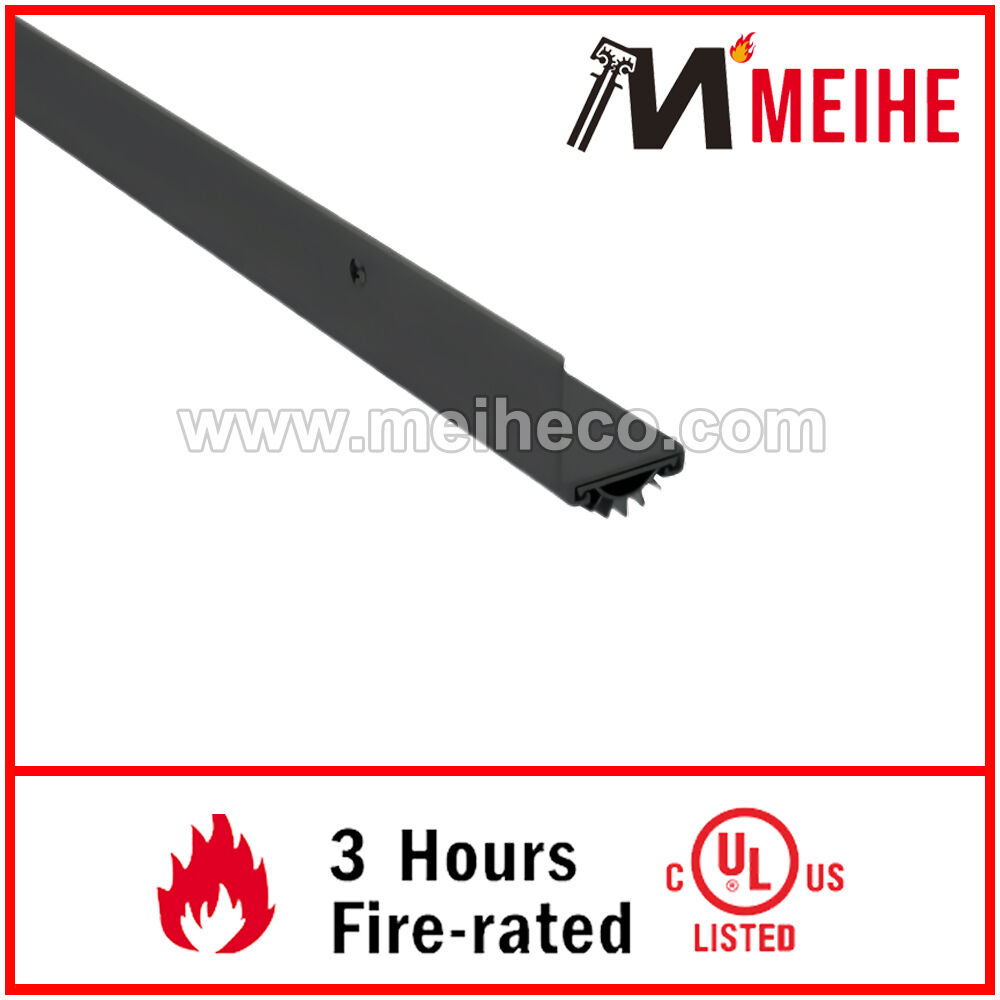

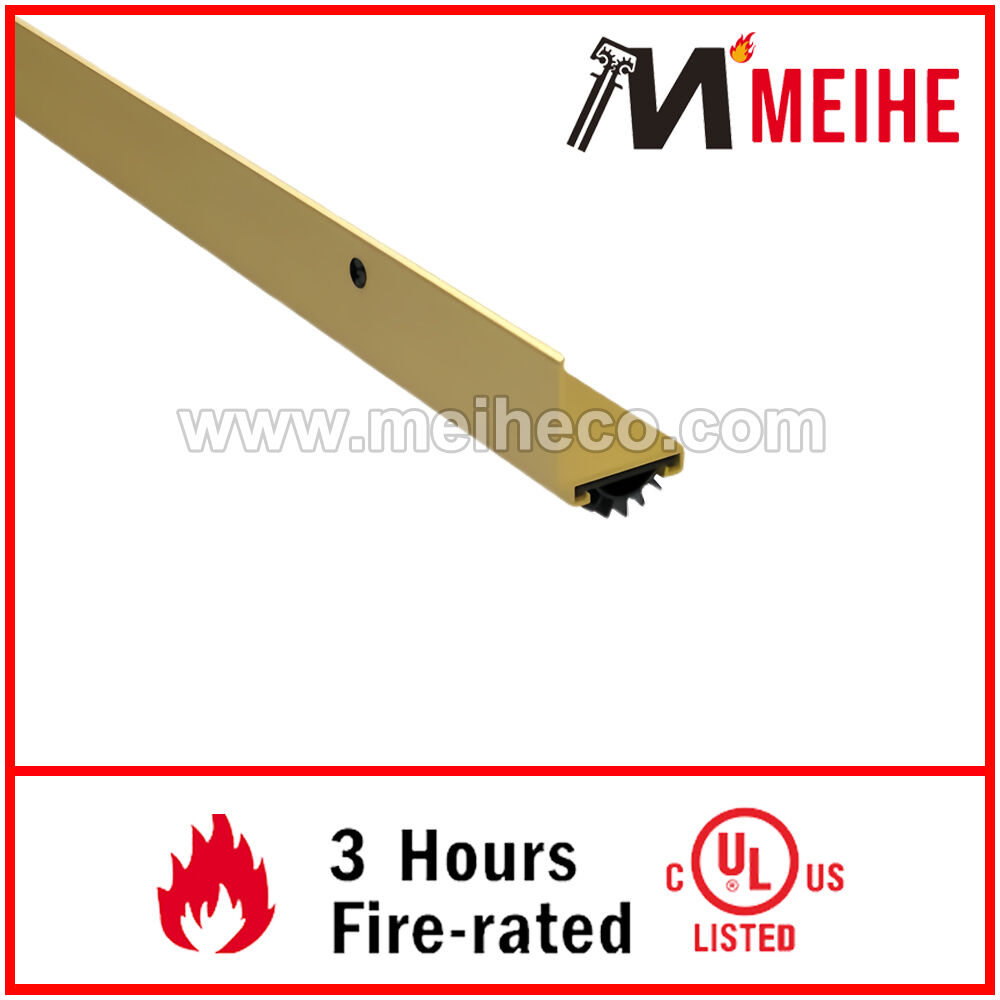

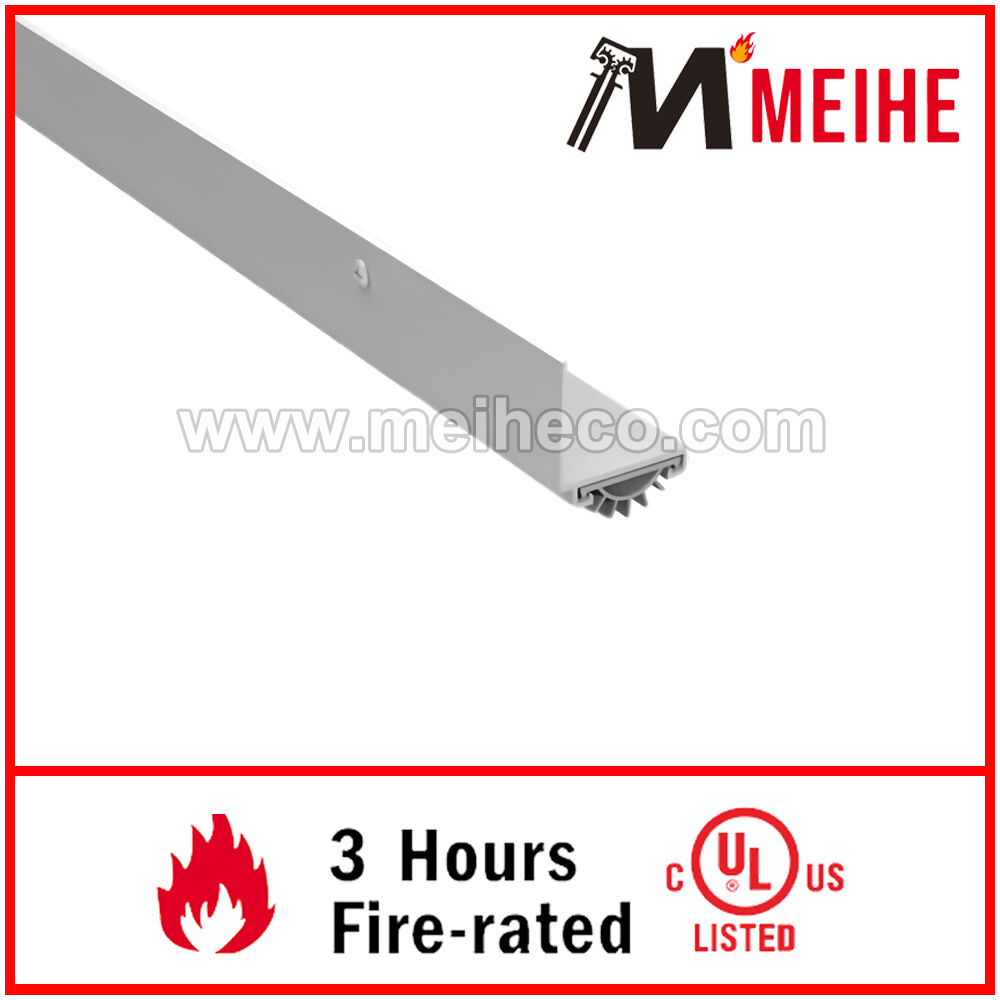

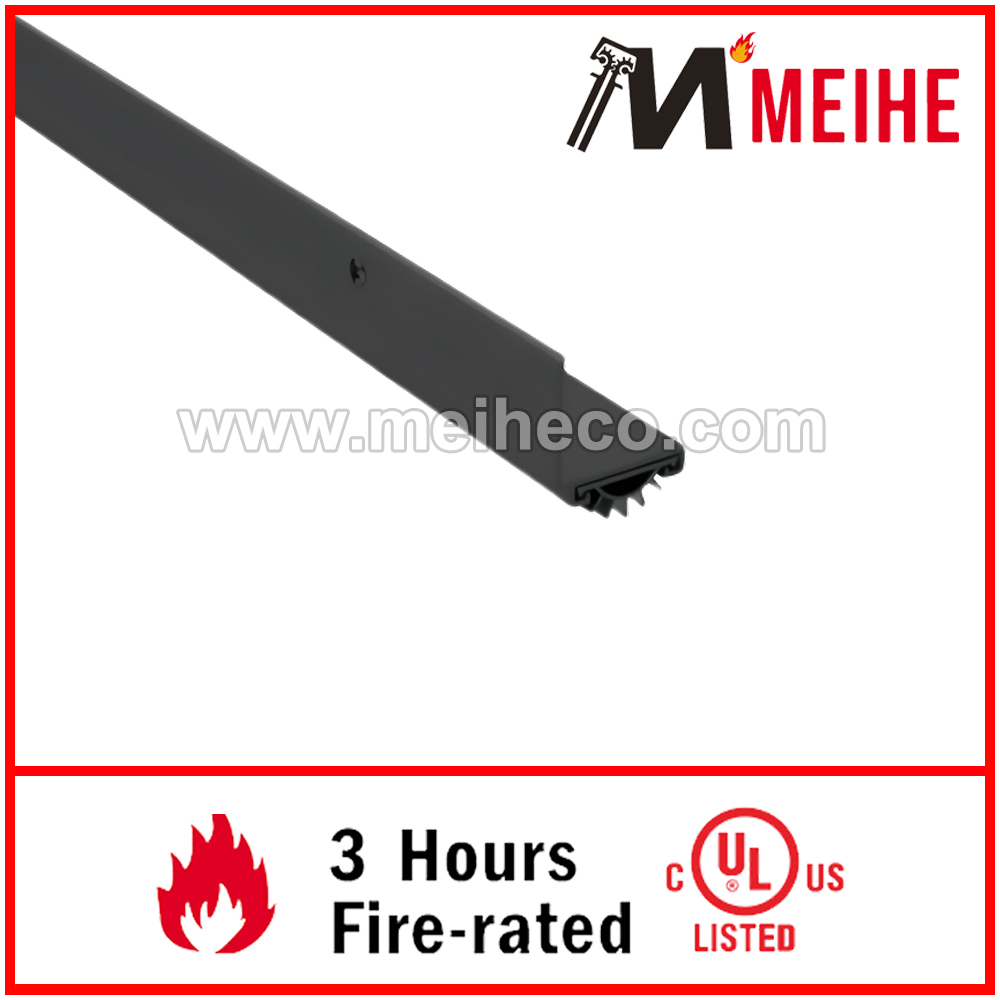

- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 3/10” (7.6 mm)
- Height: 2-1/8” (54.0 mm)
- Function：Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products
This door sweep can be used to seal up to a 1-1/8" the gap between the door and threshold or to the floor surface. It is fitted with a Vinyl extrusion. Its fire and smoke rated and can be rated for low VOC Emission. Available in choice of aluminum finishes and is custom cut to size.

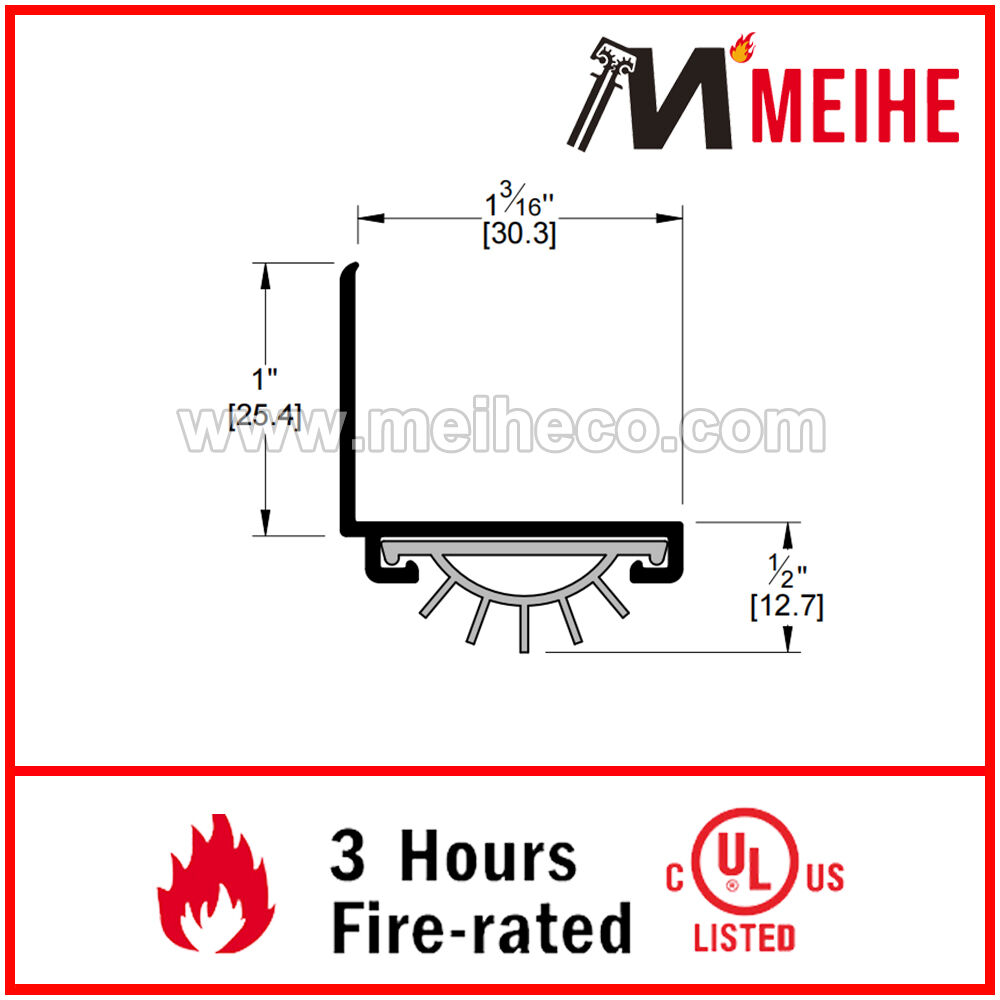

This door bottom is surface mounted to the face of a door. It is used to seal a door to a threshold or the floor surface. The 3/10" aluminum channel is fitted with a Vinyl extrusion that can seal gaps up to 1-1/8".
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
1/2" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 1-1/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #211_V; NGP #313V |
