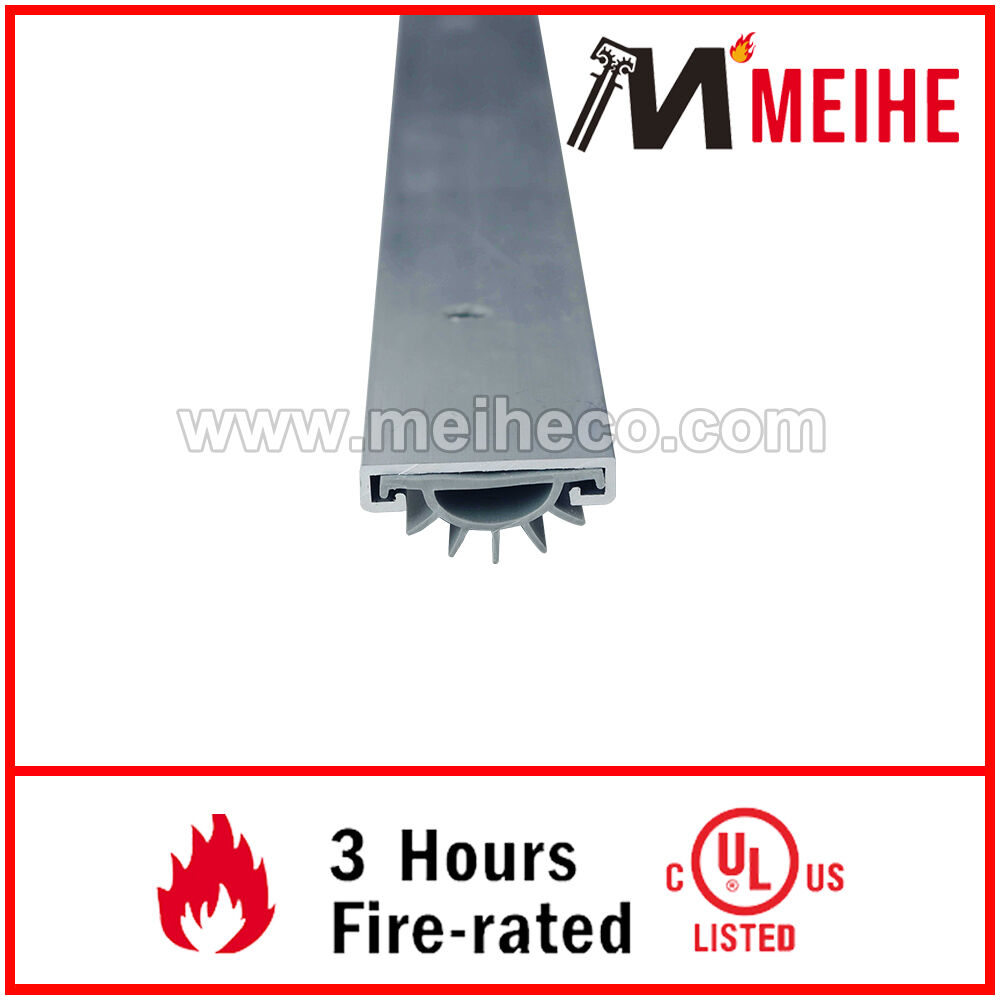

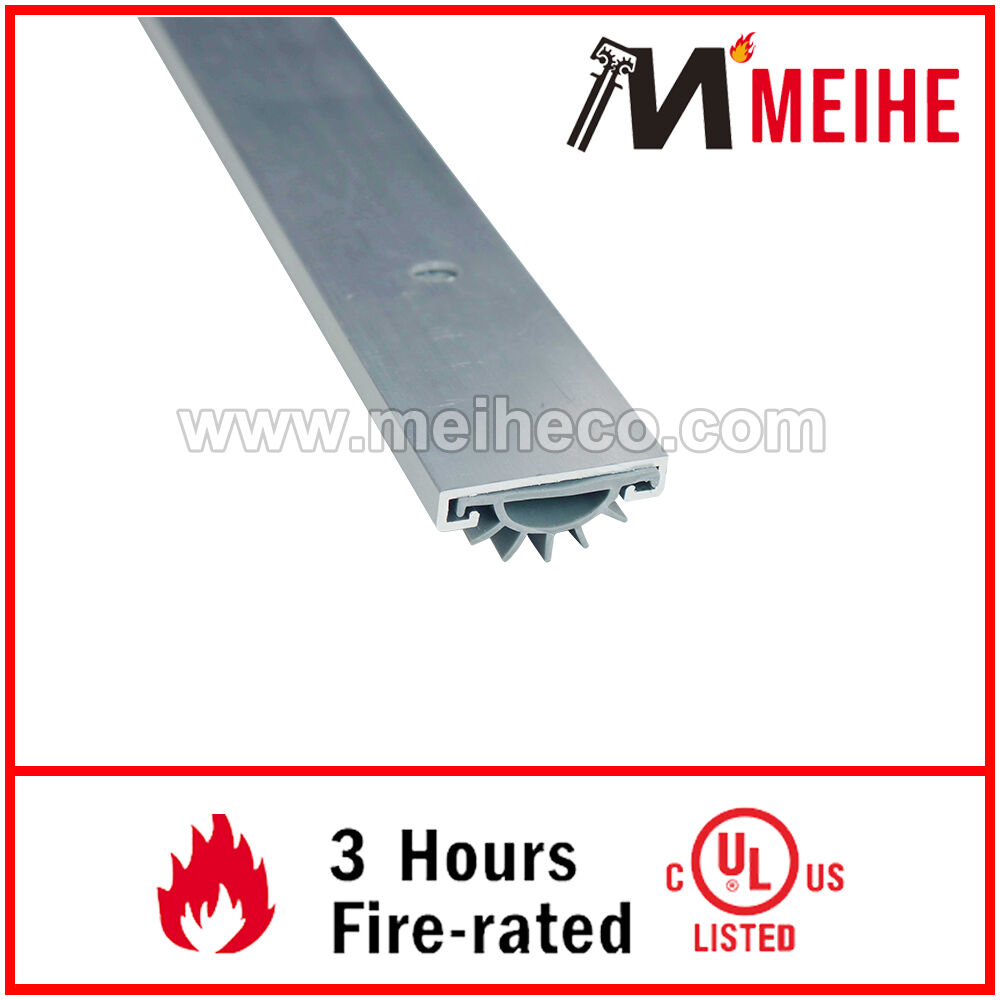

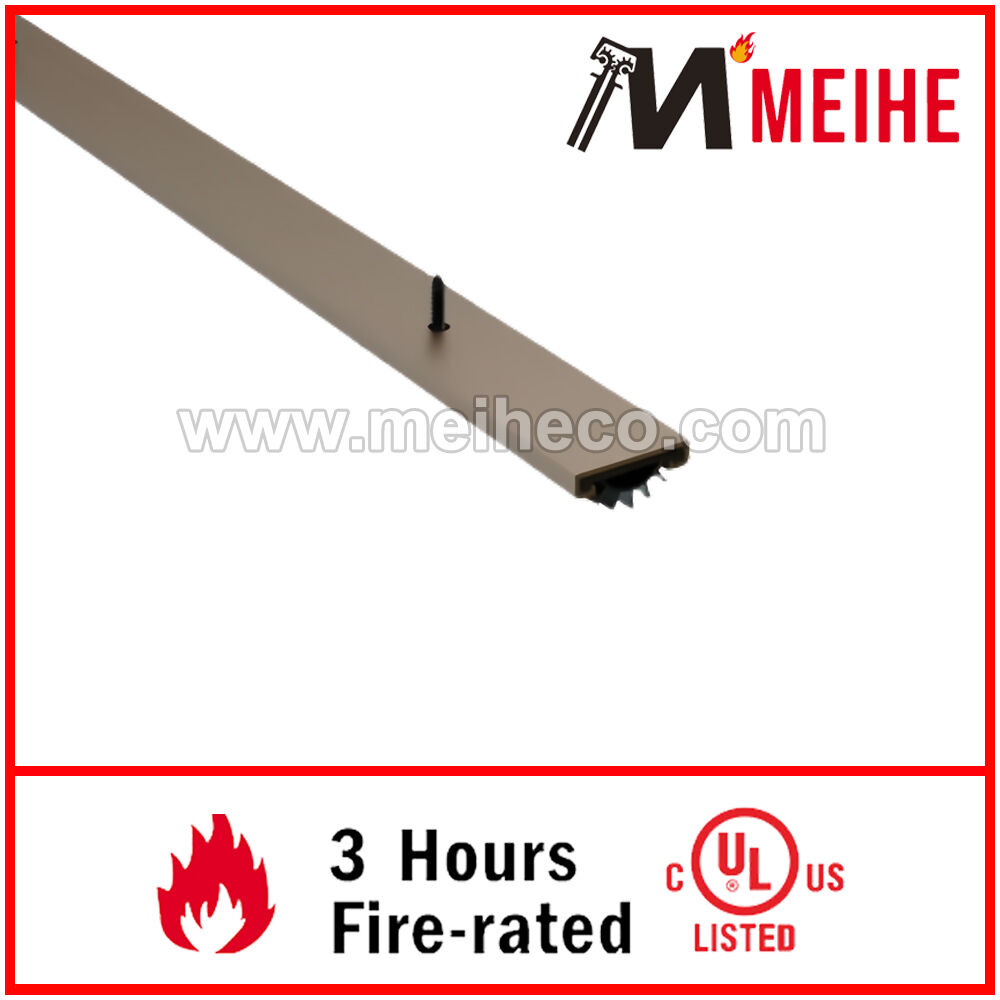

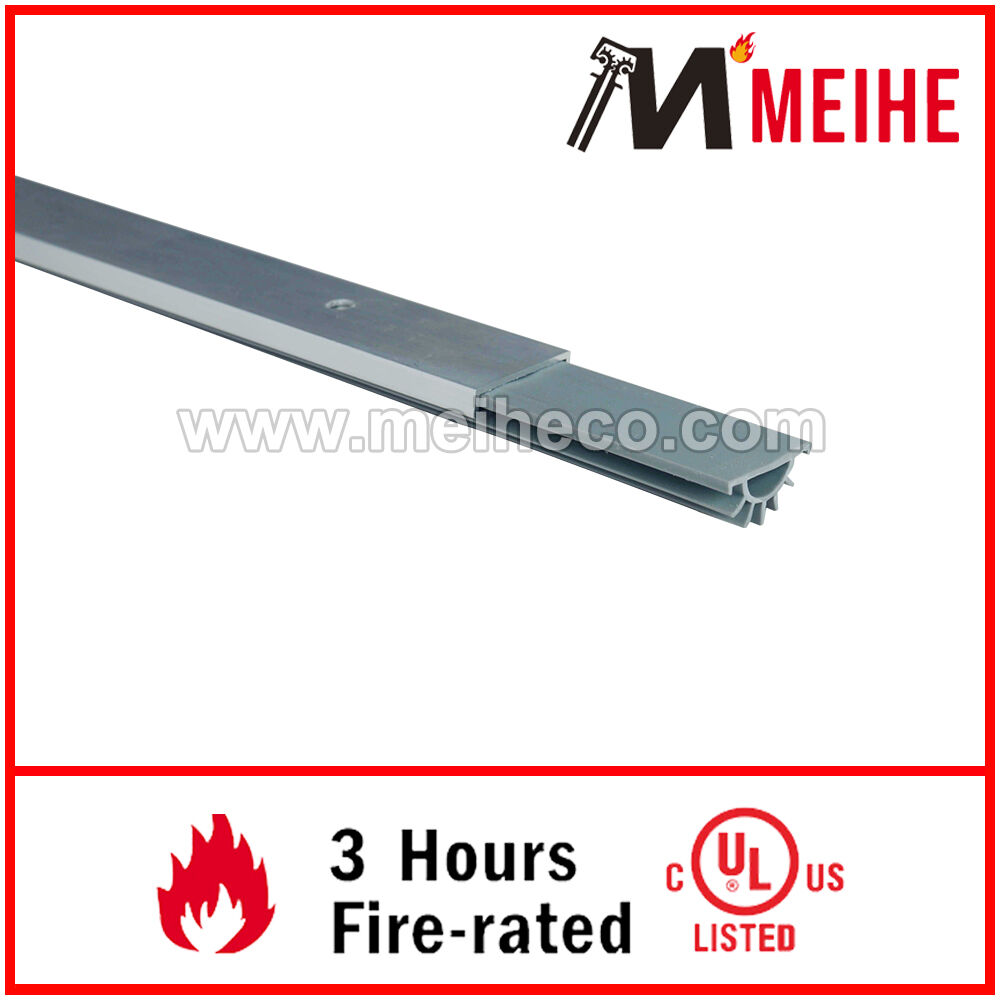

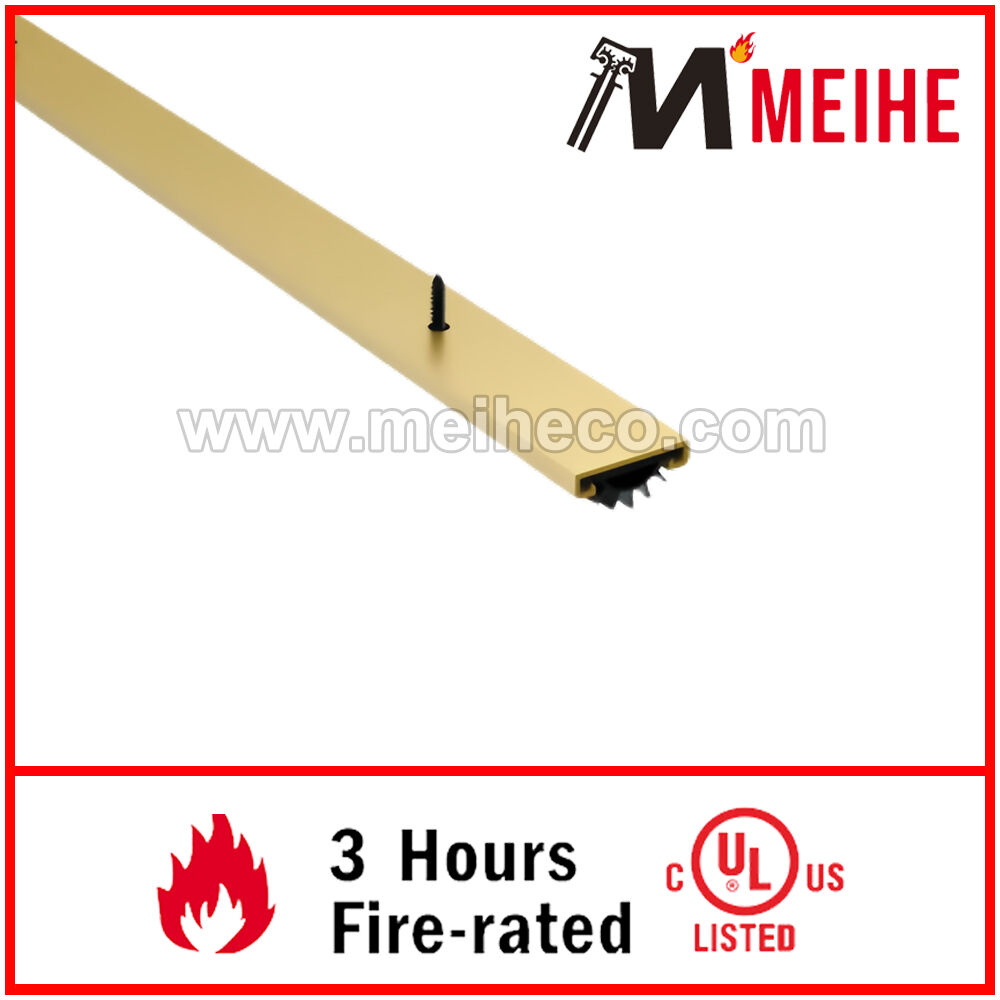

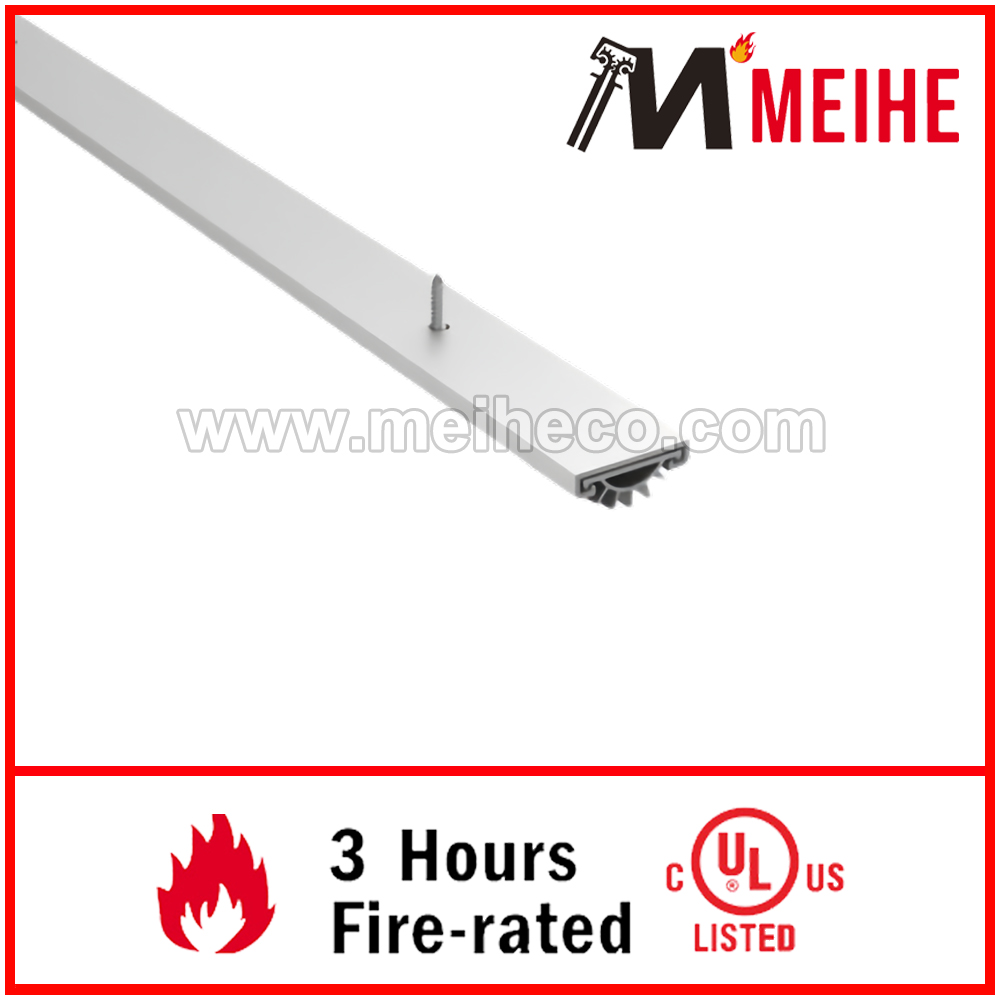

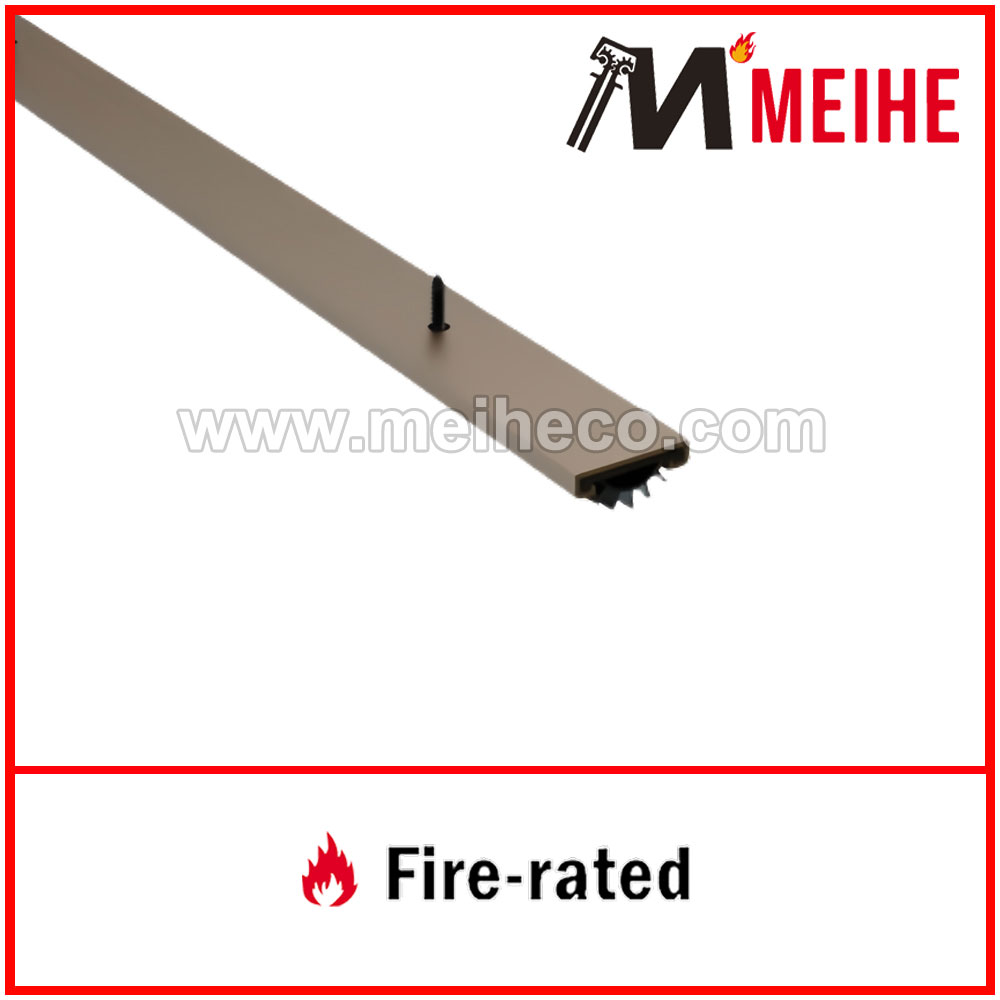

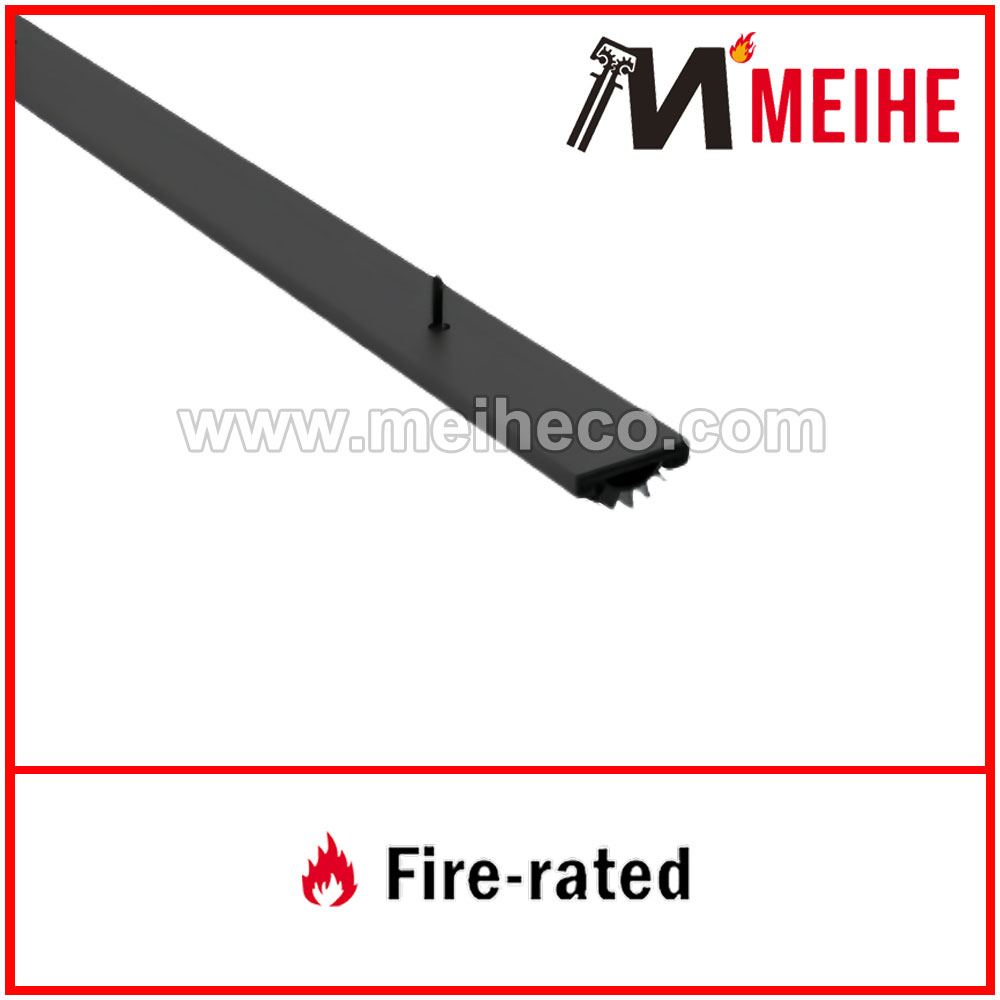

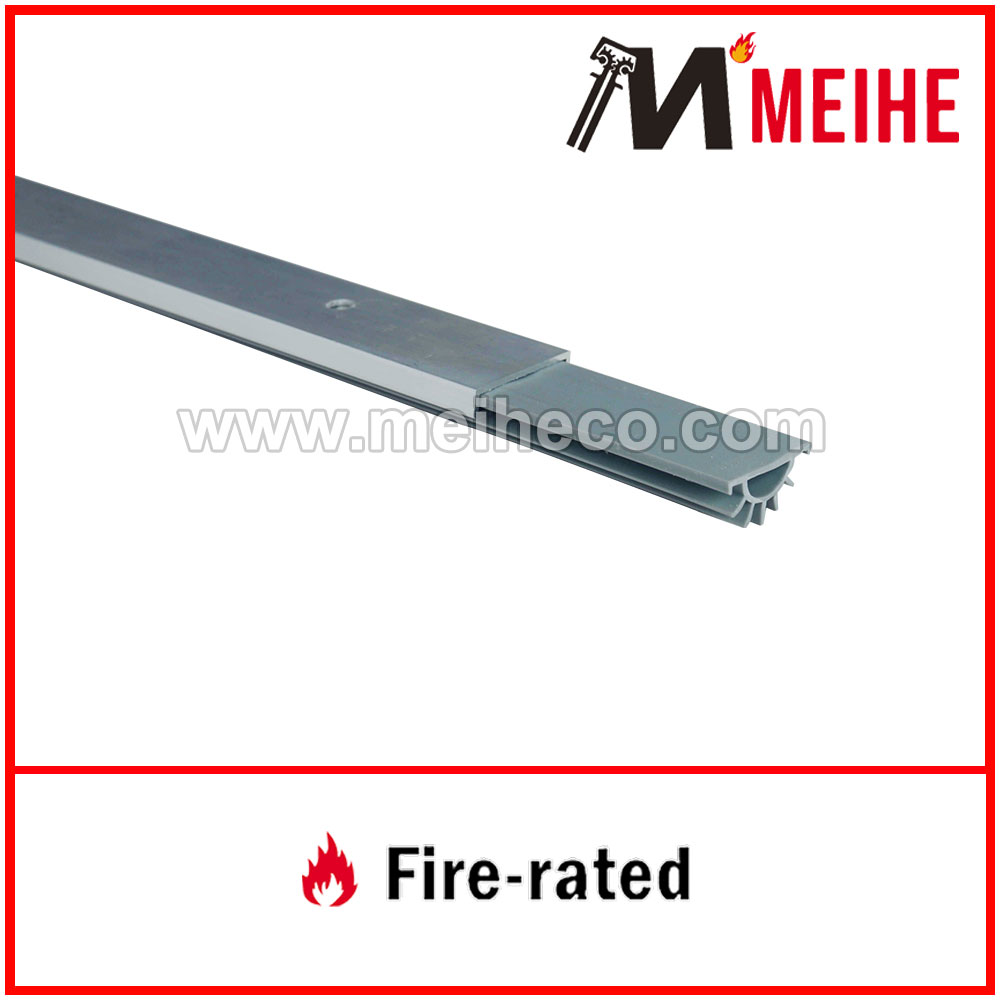

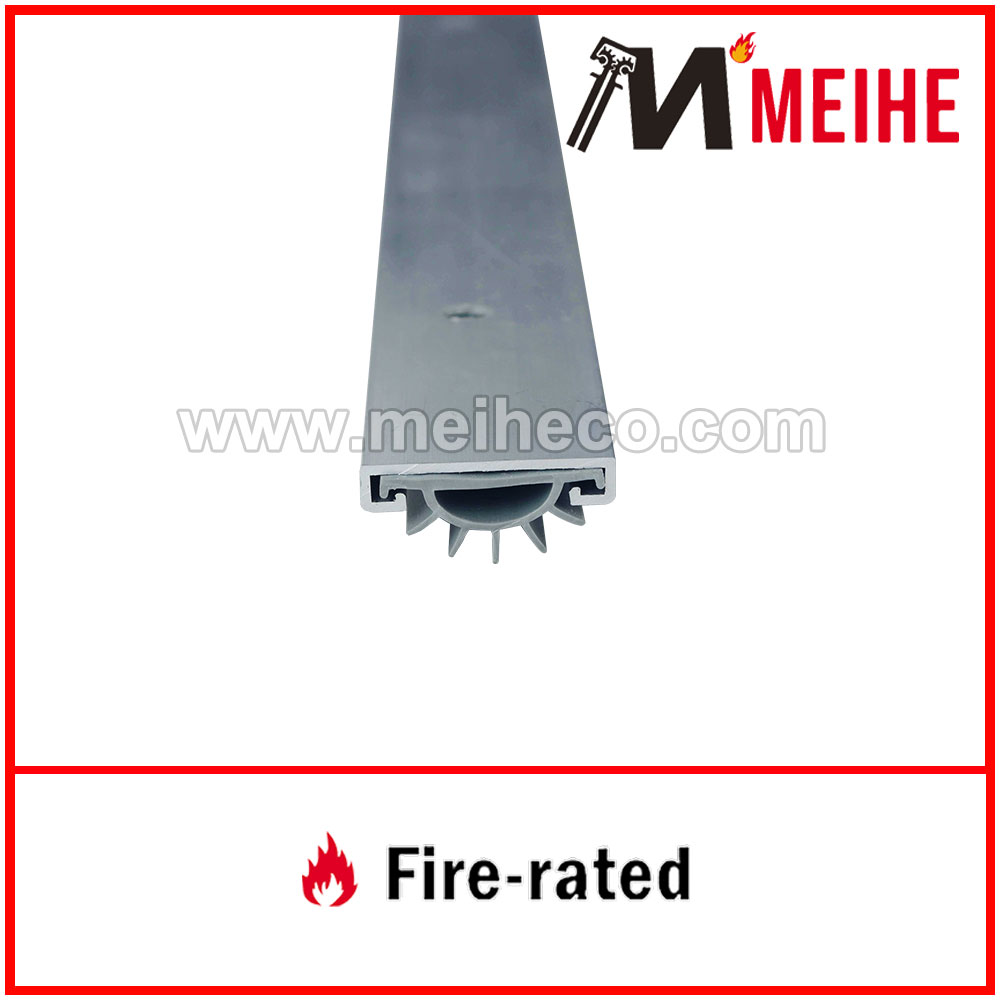

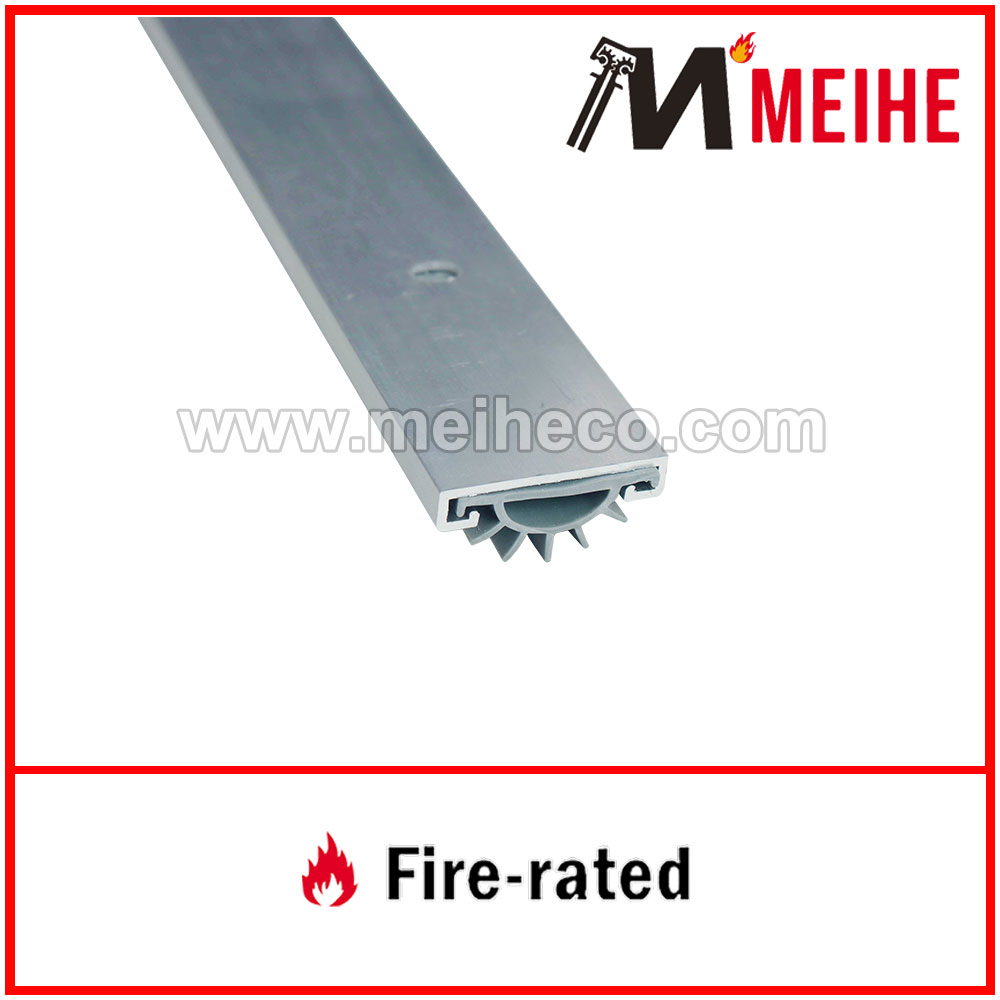

YDS115 Modern Straight Type Door Shoe Door Bottom Sweep for Privacy and Light Prevention
Door Shoes

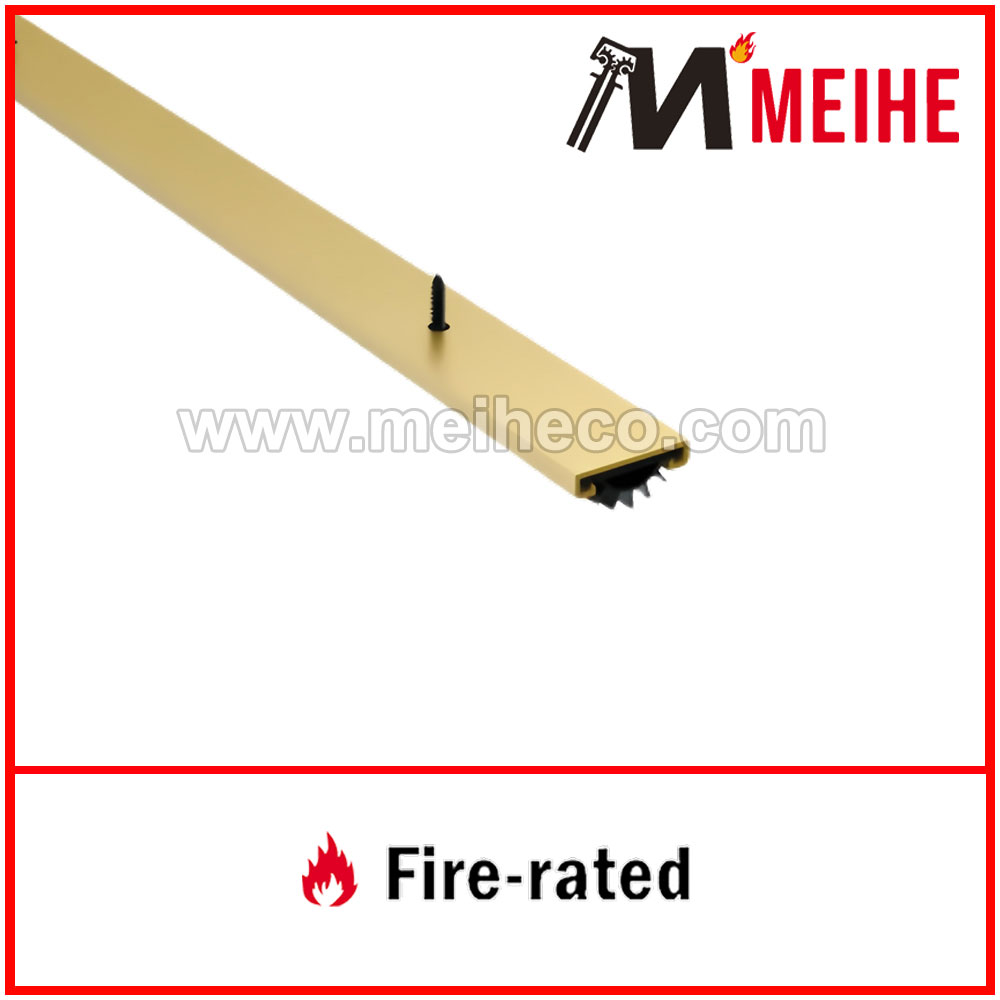

- Available Finishes: A, C, BL, DB, G, PB, LB, PW

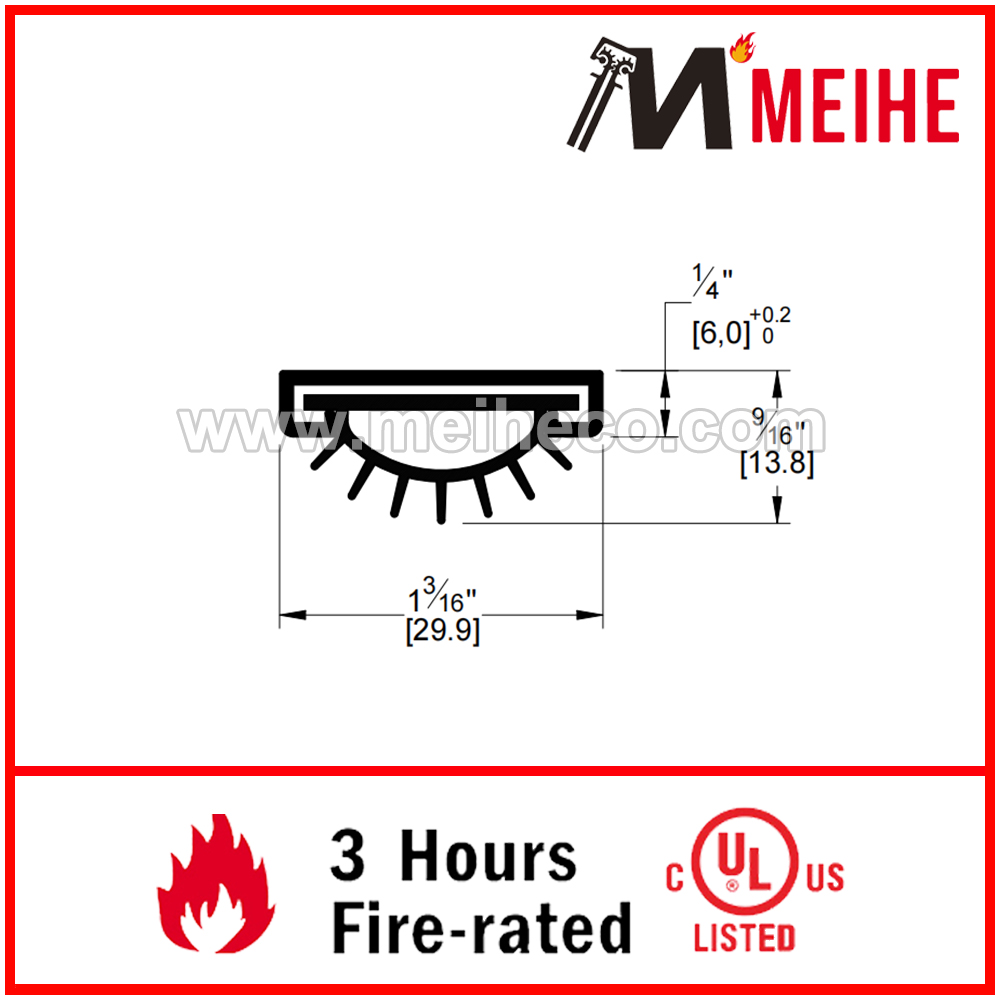

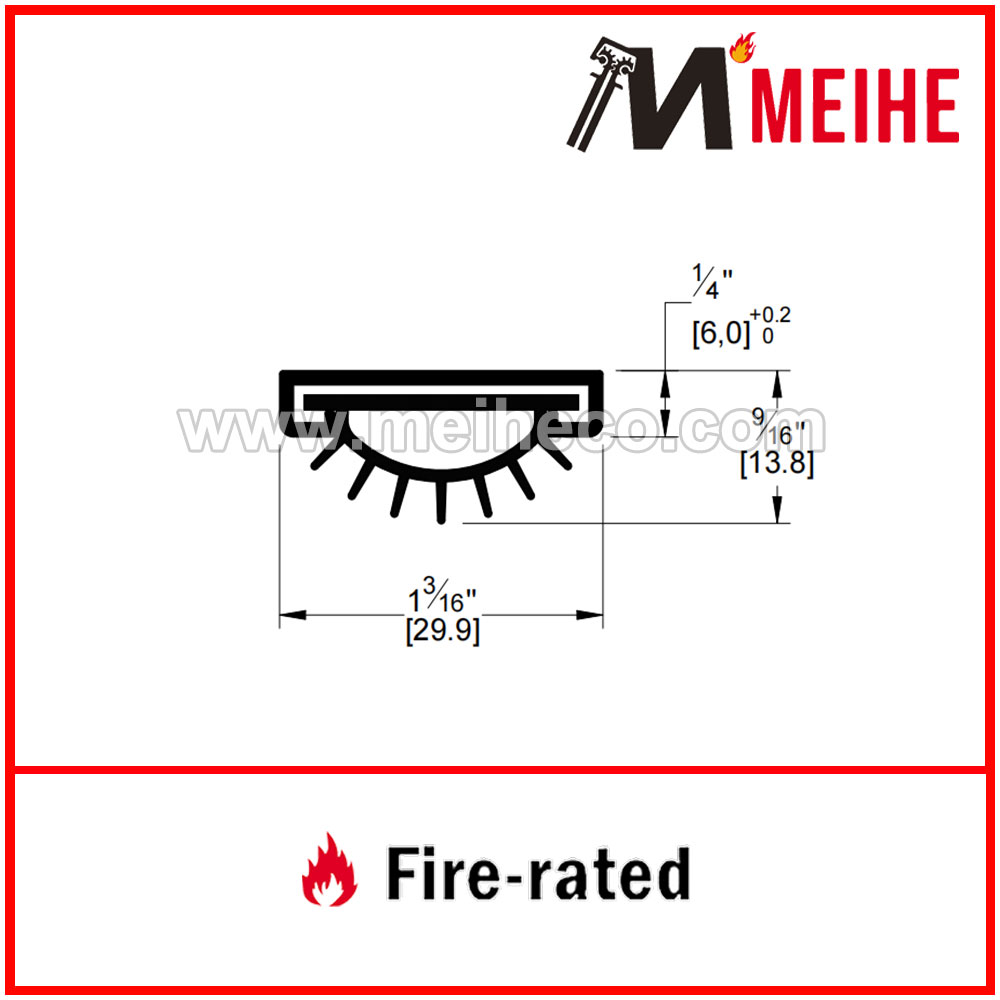

- Width: 1-3/16” (29.8 mm)
- Height: 1/2” (12.7mm)
- Overview
- Recommended Products
The YDS115 Door Shoe is perfect for situations requiring airflow under the door while maintaining privacy and preventing light leakage. It provides a solid seal and can be used on doors of varying widths. The door shoe is fitted with your choice of Vinyl seals. It is designed to prevent light, moisture, drafts, air, sound, smoke, and fire from infiltrating the gap under doors.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Recommended Compression |
1/16" |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #234_V; NGP #312V
|
