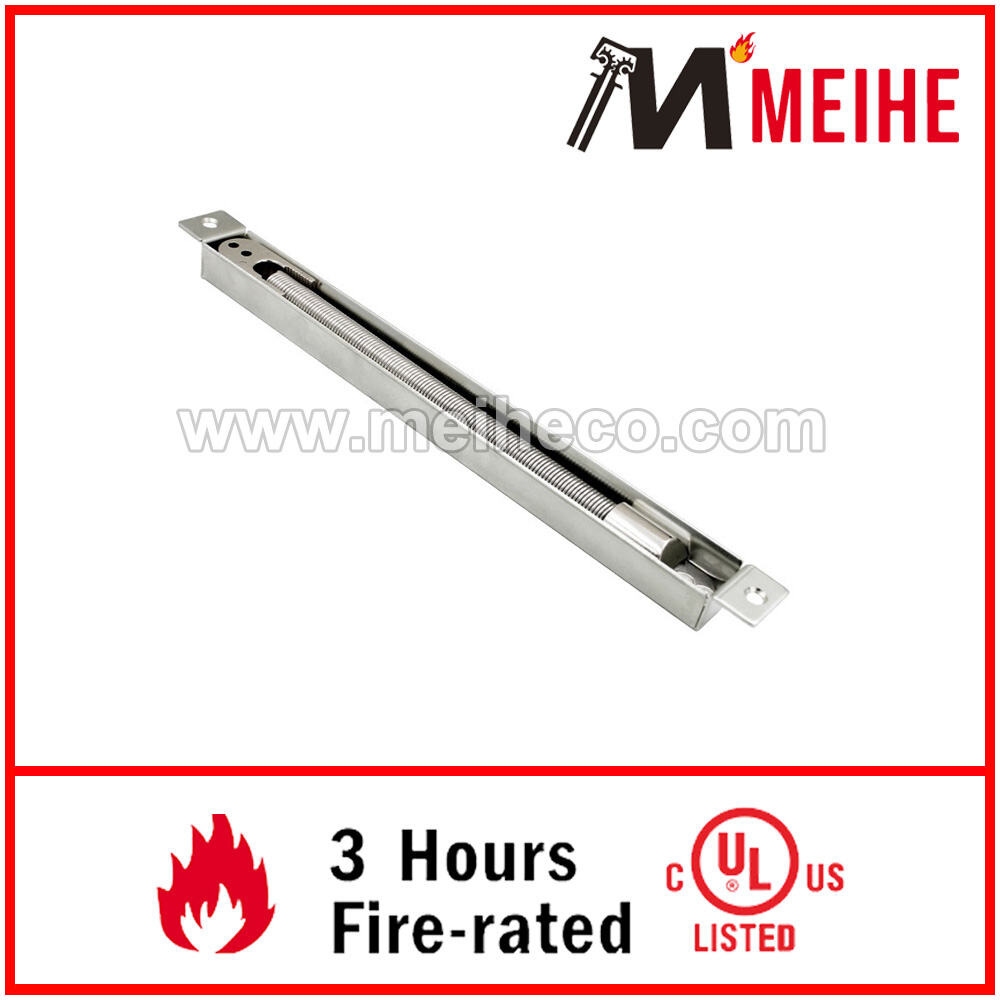

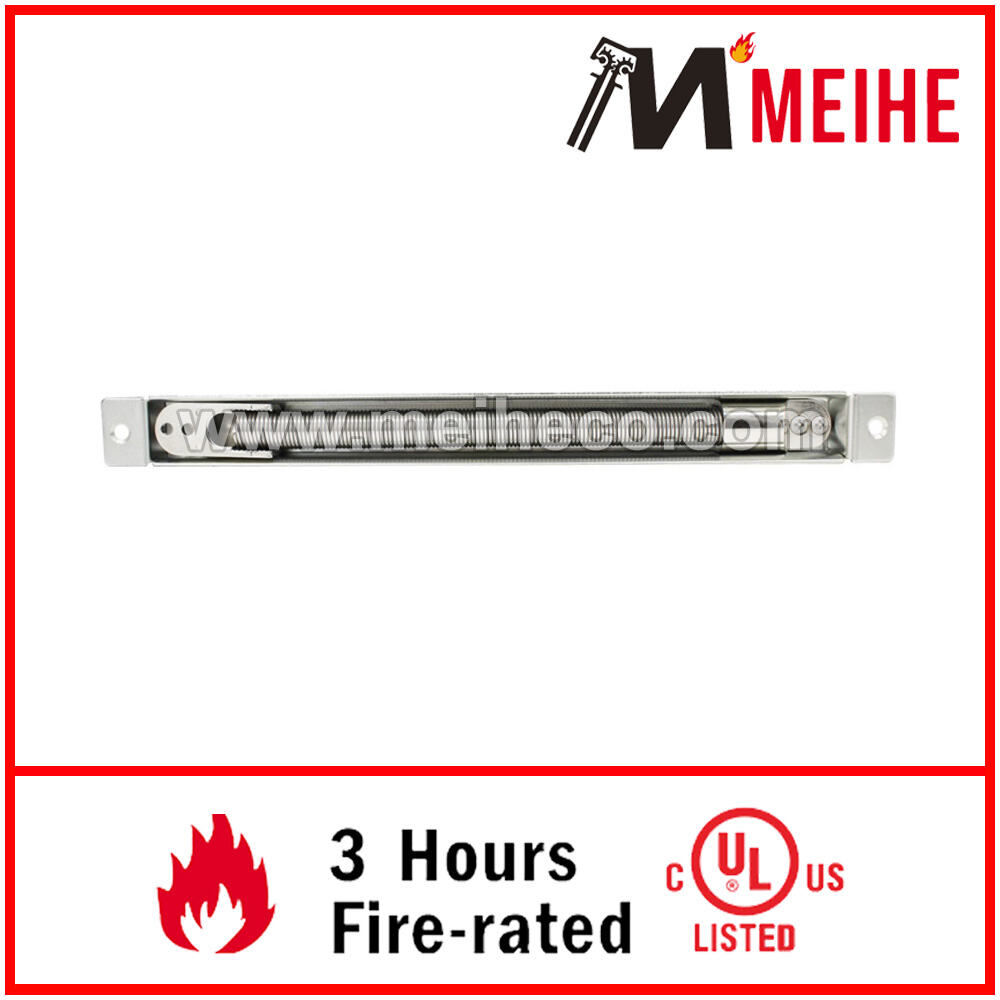

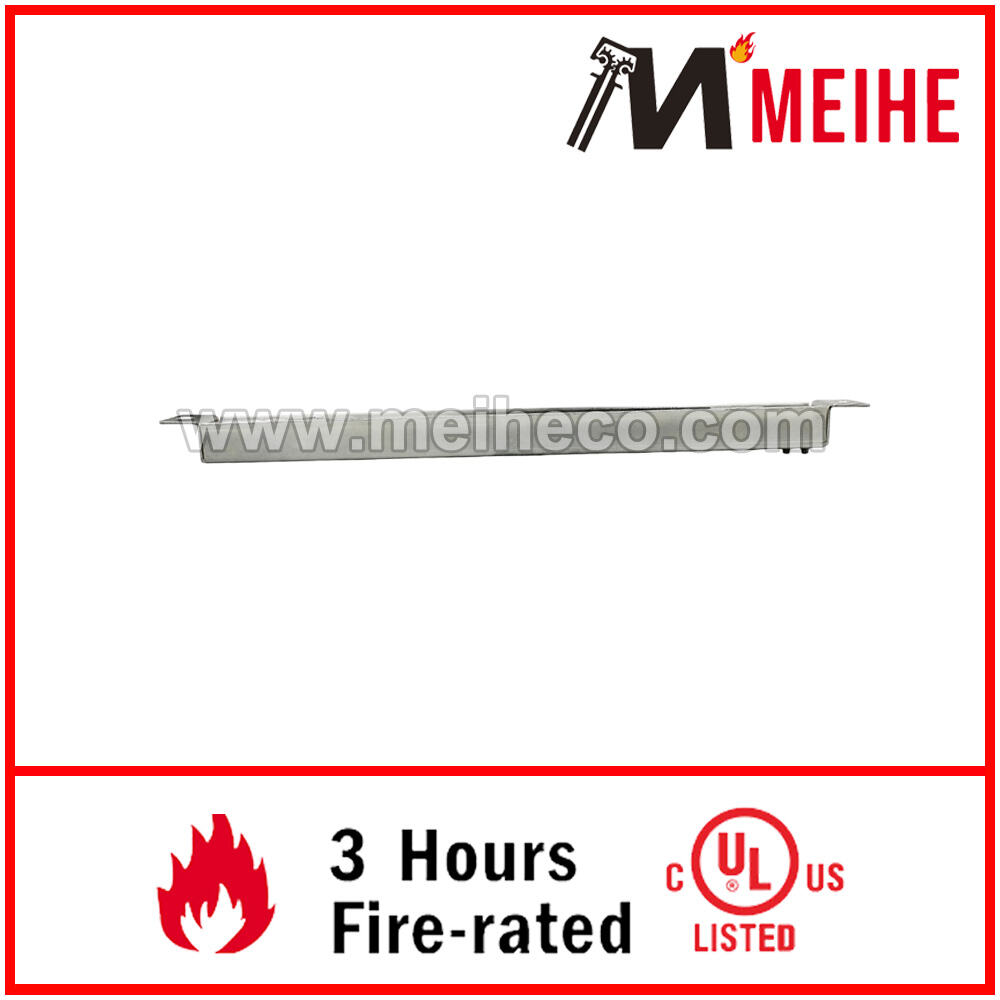

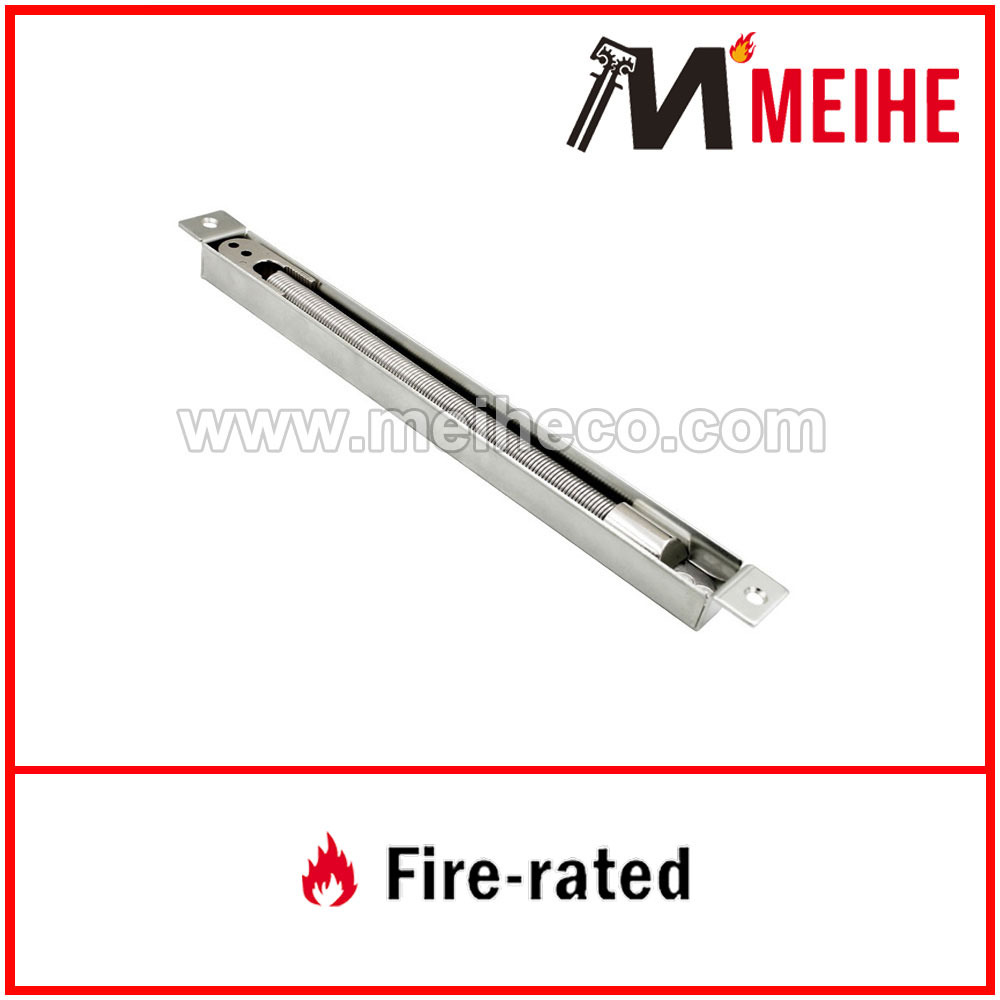

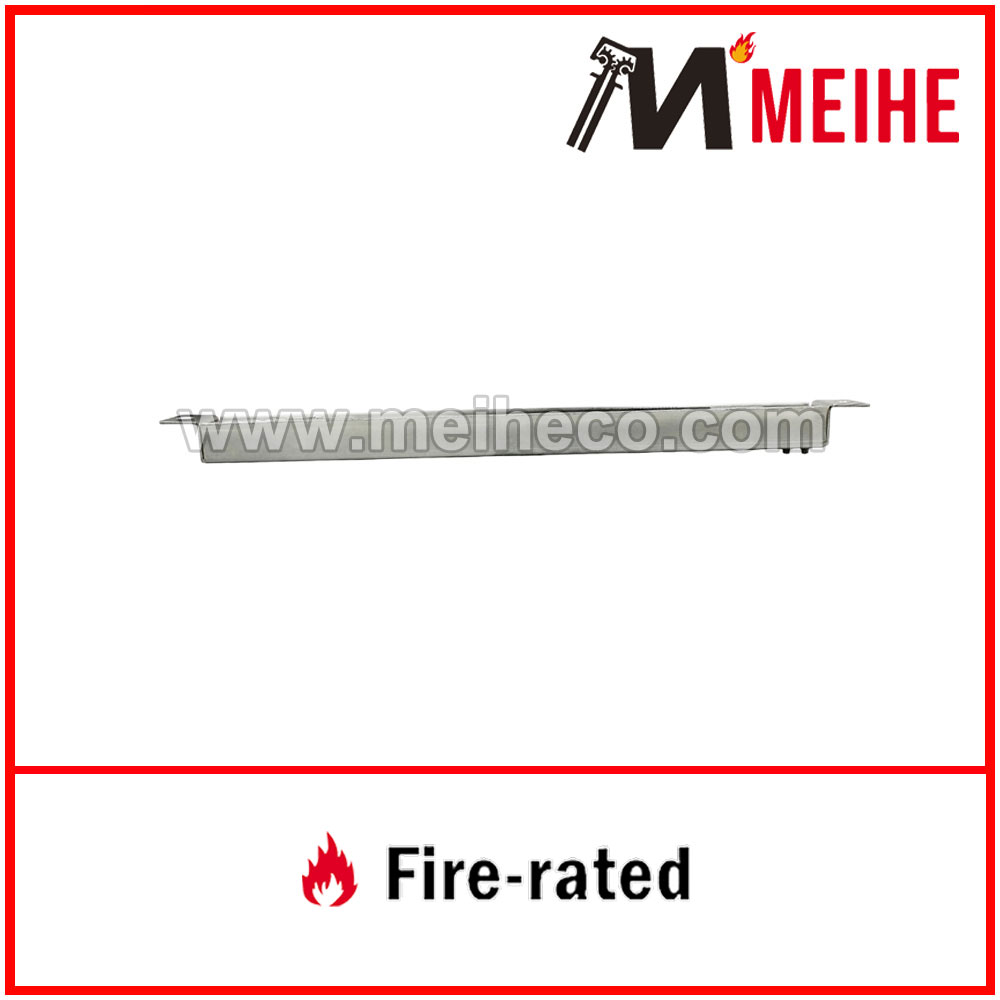

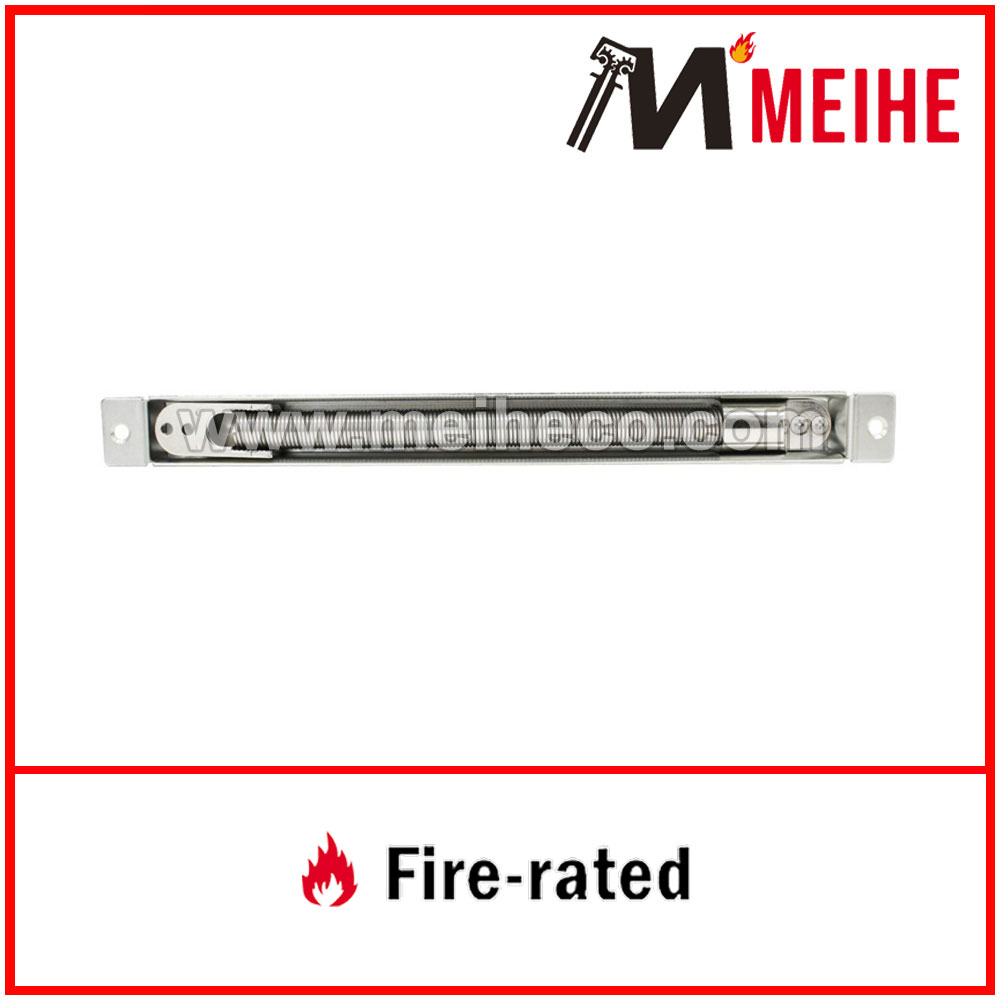

PT-5 Concealed Mortise Mount Power Transfer Loop Industrial Style Security Door Controls Stainless Steel Electrical Accessories
Power Transfer
- Security Door Controls Electrical Accessories
- Warranty：1 Year
- Material：Stainless Steel
- Usage：Door
- Overview
- Recommended Products
Used when installing electrified locks or exit devices, power transfer loops provide a simple and economical means of running wires for power and/or data transfer between the frame and the door. Surface mounted power transfer loops are designed for cost-effective power transfer and ease of installation .Whereas concealed mortise power transfer loops are designed for cost-effective power transfer and tamper-resistance. Surface and concealed mortise mount power transfer loops provide a means of running wires from the frame to doors equipped with electric locks and exit devices.
SPECIFICATIONS: |
Conduit: Steel Flexible |

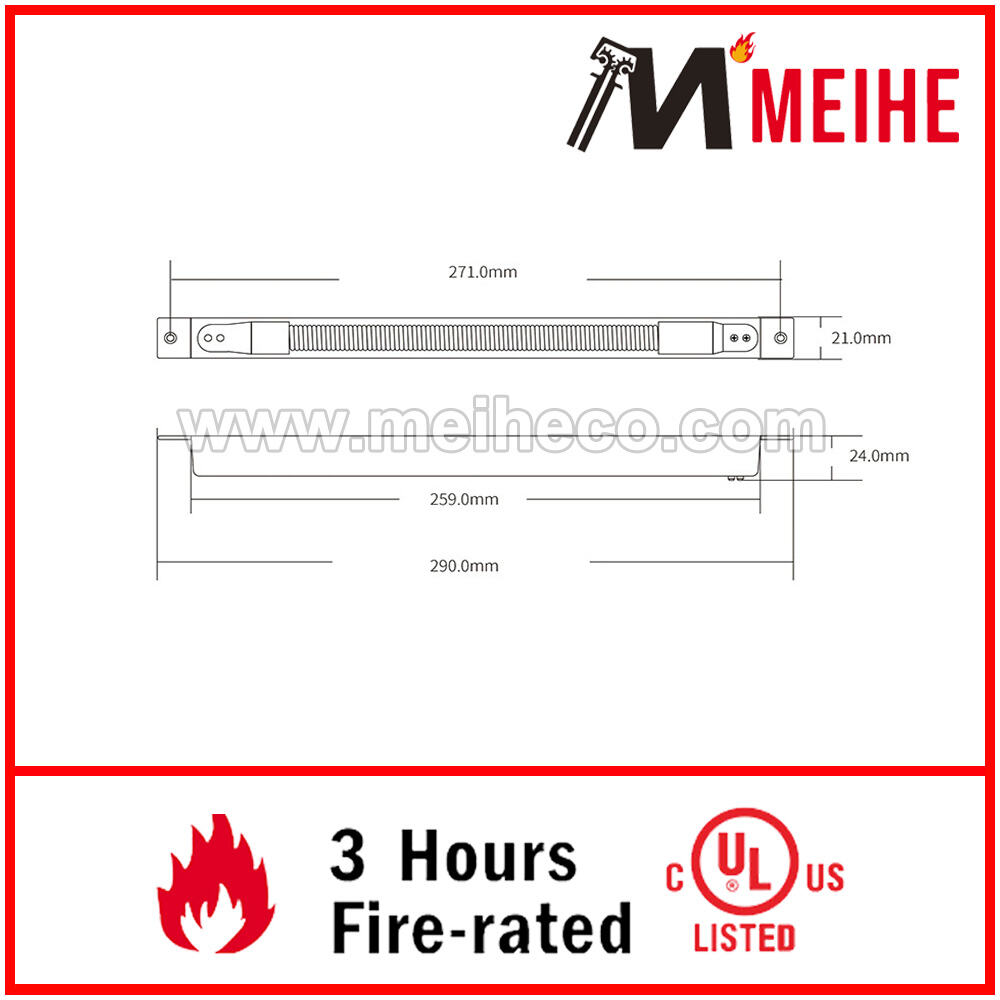

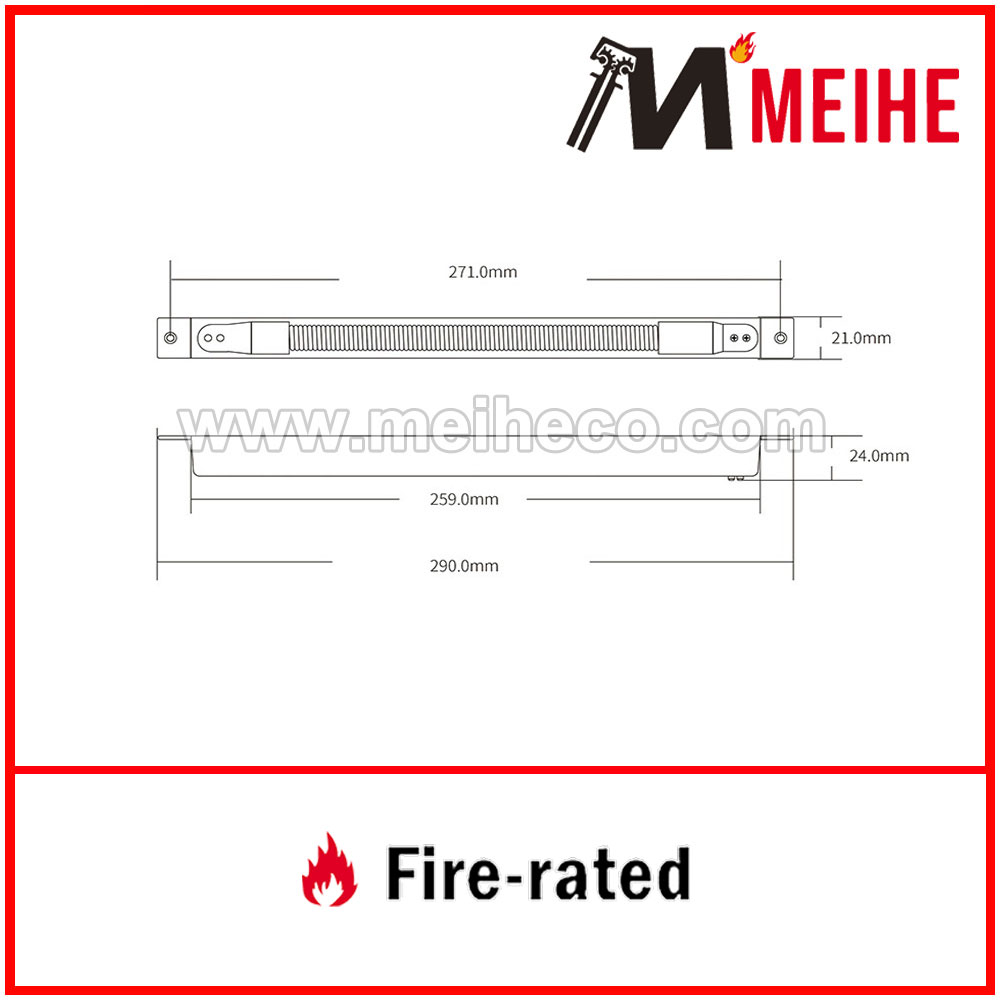

Dimension: 270mm x 21mm |
Interior Diameter (ID): 1/4" |
Door Opening: Up to 180° |
End Caps: Aluminum Box |
