YDB202 Modern Design Door Brush Seal 36\" Draught Excluder Door Sweep
Brush Weatherstripping
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

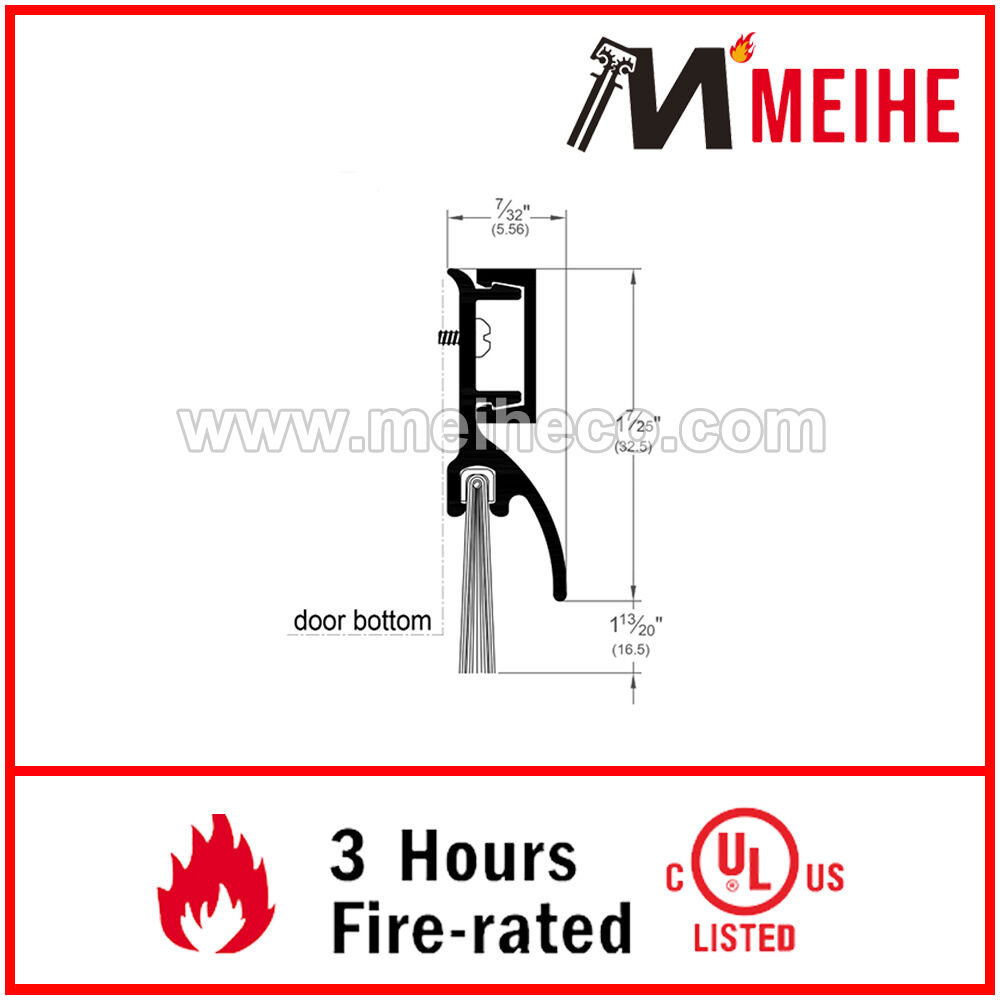

- Width: 7/32” (5.6 mm)
- Profile Height: 1-7/25” (32.5 mm)
- Height Including Brush: 1-93/100” (49.0 mm)
- Certificate：Fire Rated - UL 10B/10C
- Overview
- Recommended Products
This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 1.28" H, while brush portion has a height of 0.65". For aesthetics, we added a custom cover to hide the screws. Available in options of anodized finishes and is custom cut to size.
Door Brush Retainer Material |
Aluminum |
Temperature Range |
Seals remain flexible between -40° F and over 400° F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Nylon Brush Seal |
Mounting |
Surface Mounted |
Brush Height |
13/20" Height |
Total Height |
1-23/25" Height |
Additional Dimensions |
Door seal is 7/32" thick |
Length |
Standard 36",48";Custom Cut to Size |
Finish |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill Holes Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C
|
