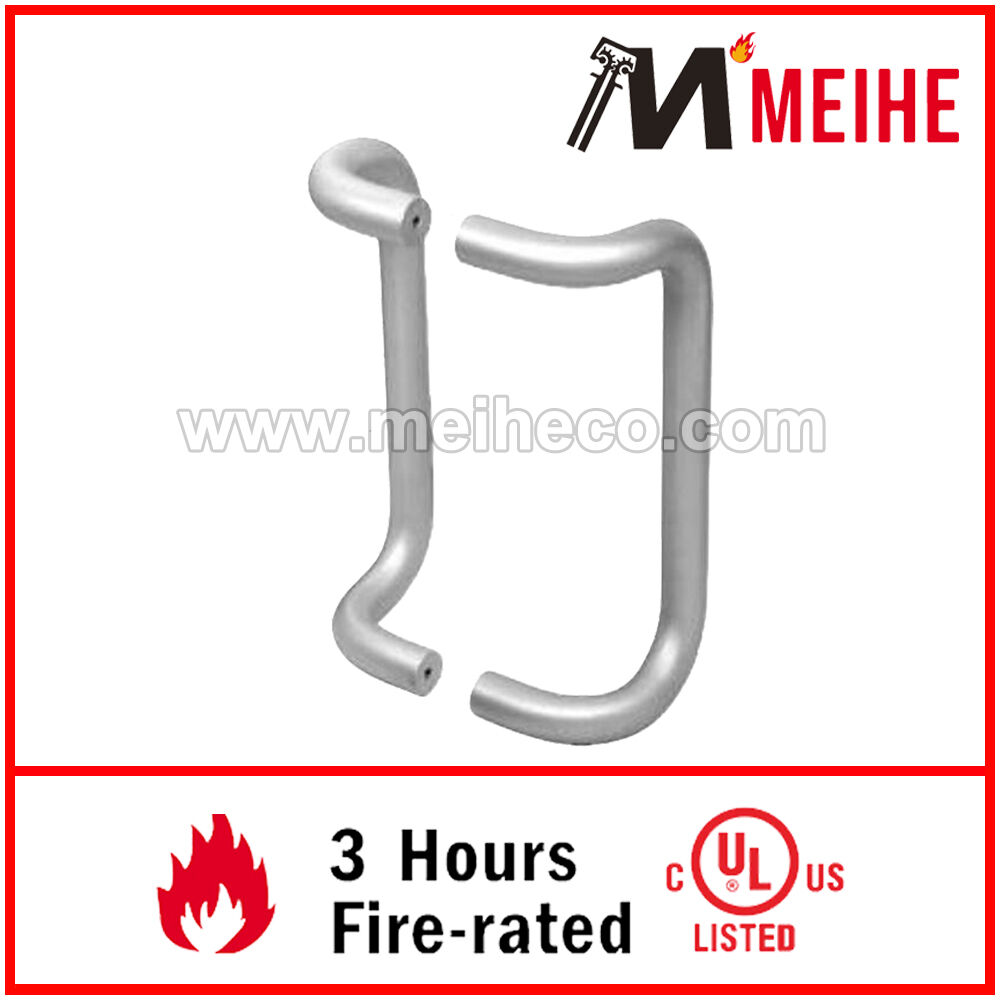

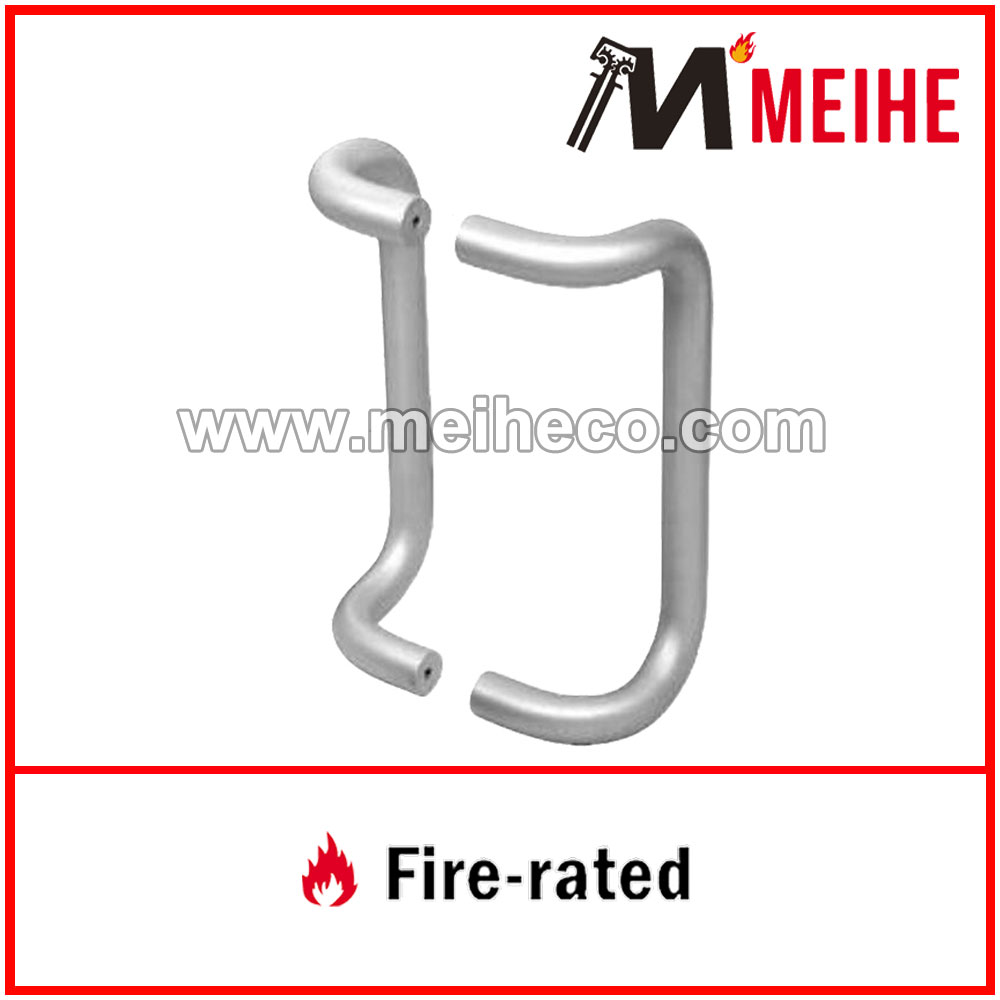

PH2174 Aluminum Solid Pull Handles
Offset Pull Handles Back-To-Back
-1" Diameter Solid Aluminum Round
- Available Dimension: 8",9",10",12" and Specific
- Feature：Easy installation
- Certification：ISO9001
- Overview
- Recommended Products
Features

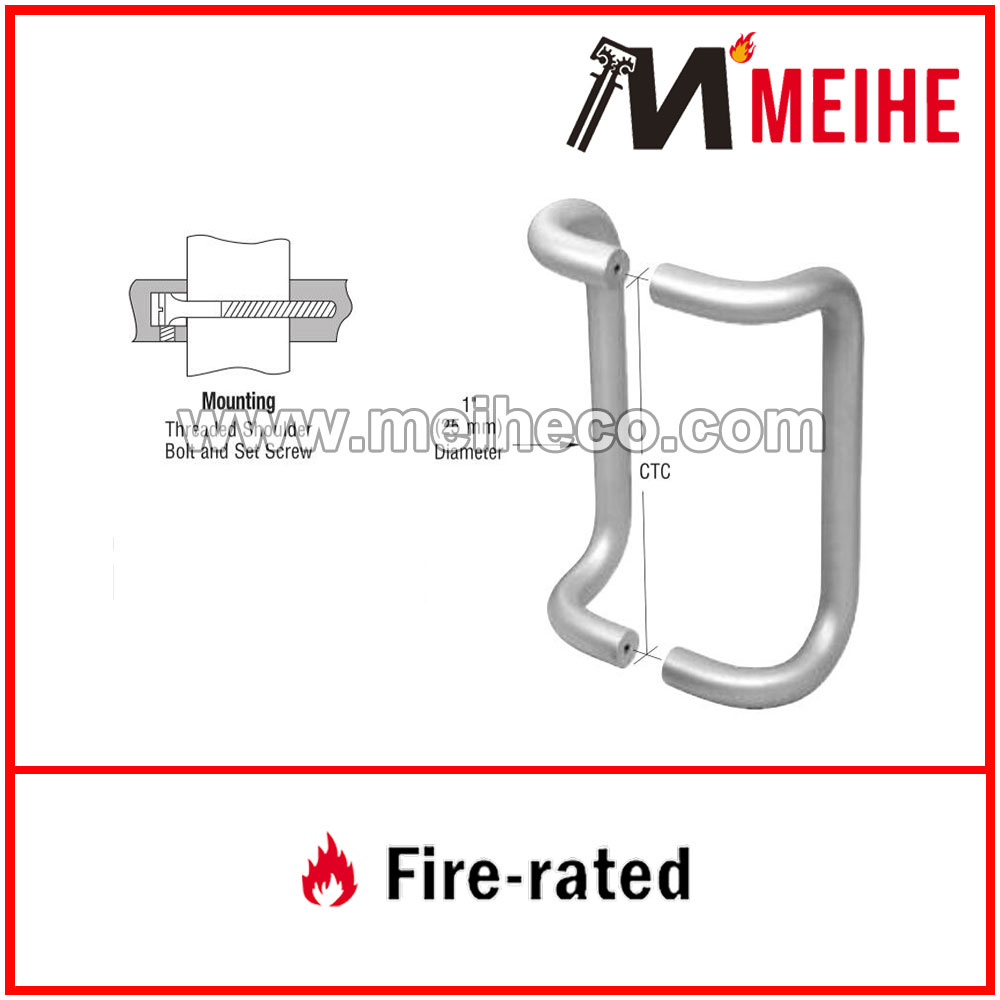

- Standard 8",9", 10", or 12" Center To Center Offset Pull Handles Available, Customization available
- For Use On 1-3/4" Thick Commercial Aluminum Storefront Doors
- Offset Pull Handle Features 1-1/2" Offset Clearance, 2-1/2" Projection.
- Mounting Hardware Included
- 1" Diameter Solid Aluminum
Finishes
- Standard Finished - Stocked:

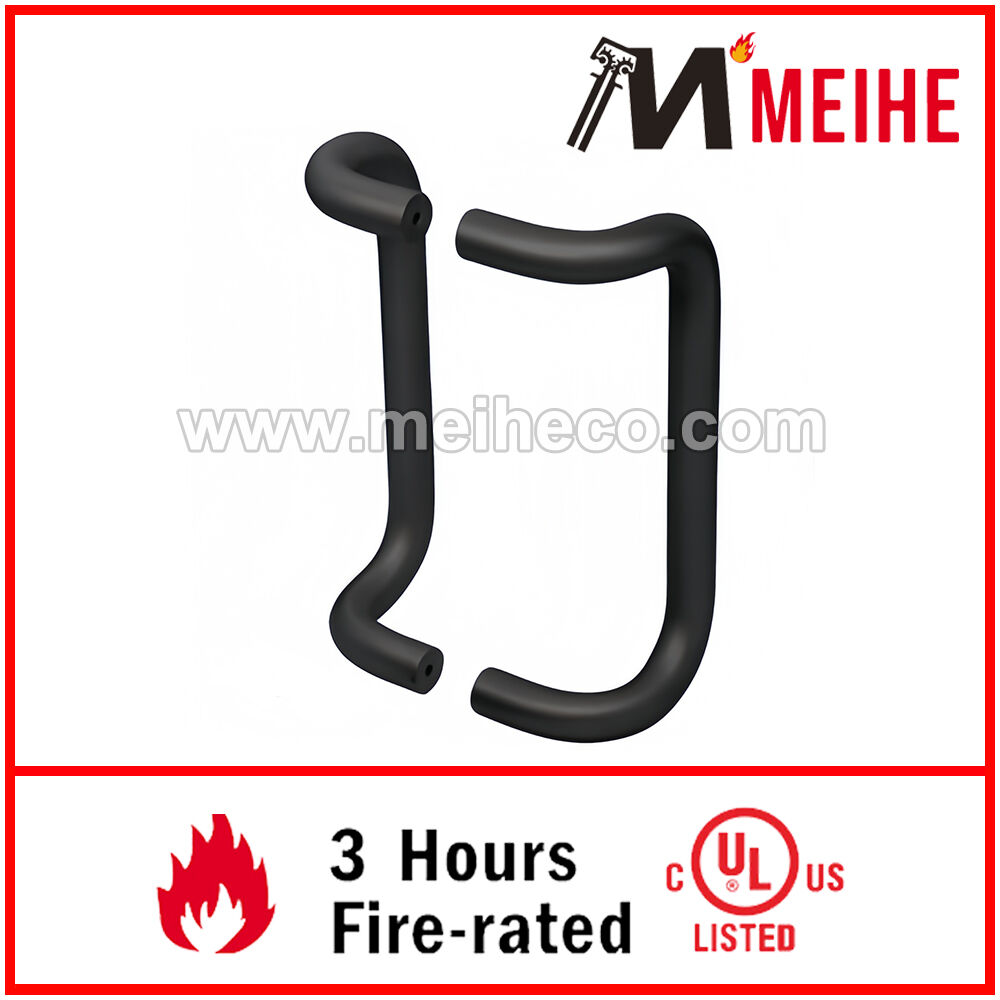

C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:

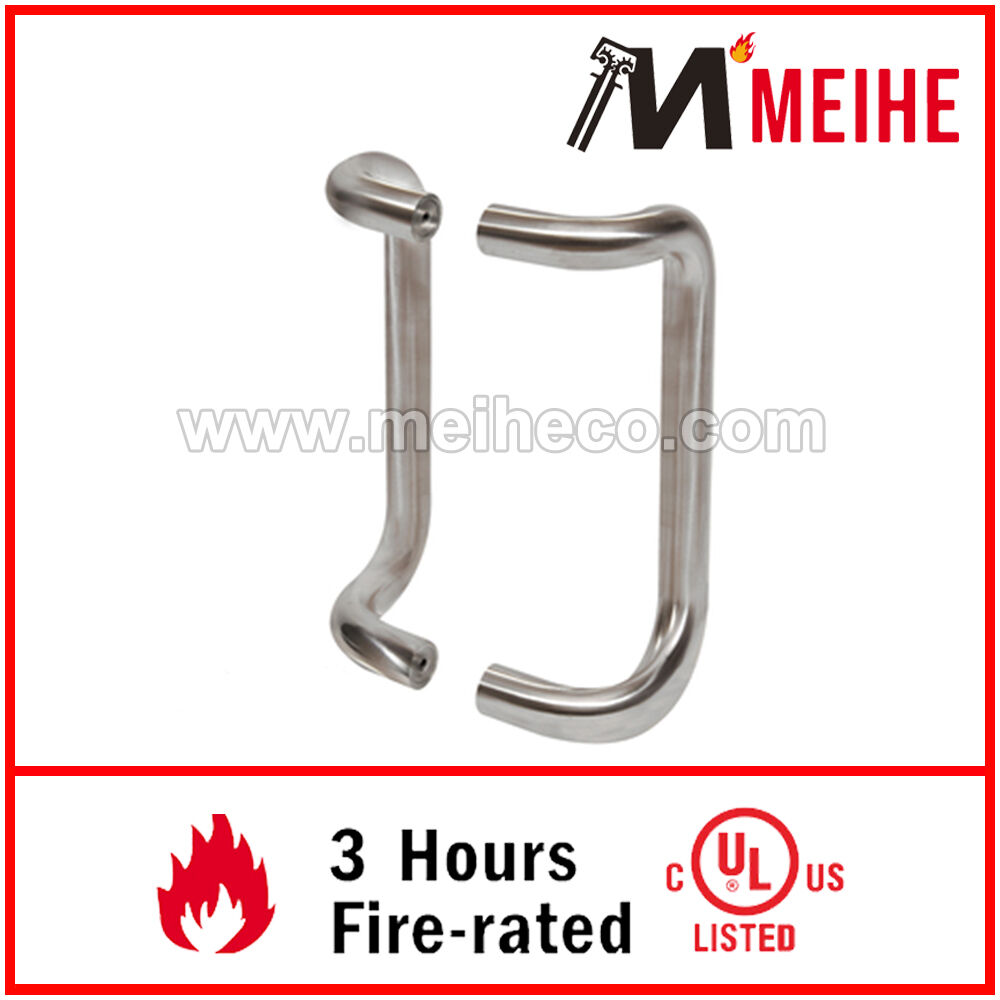

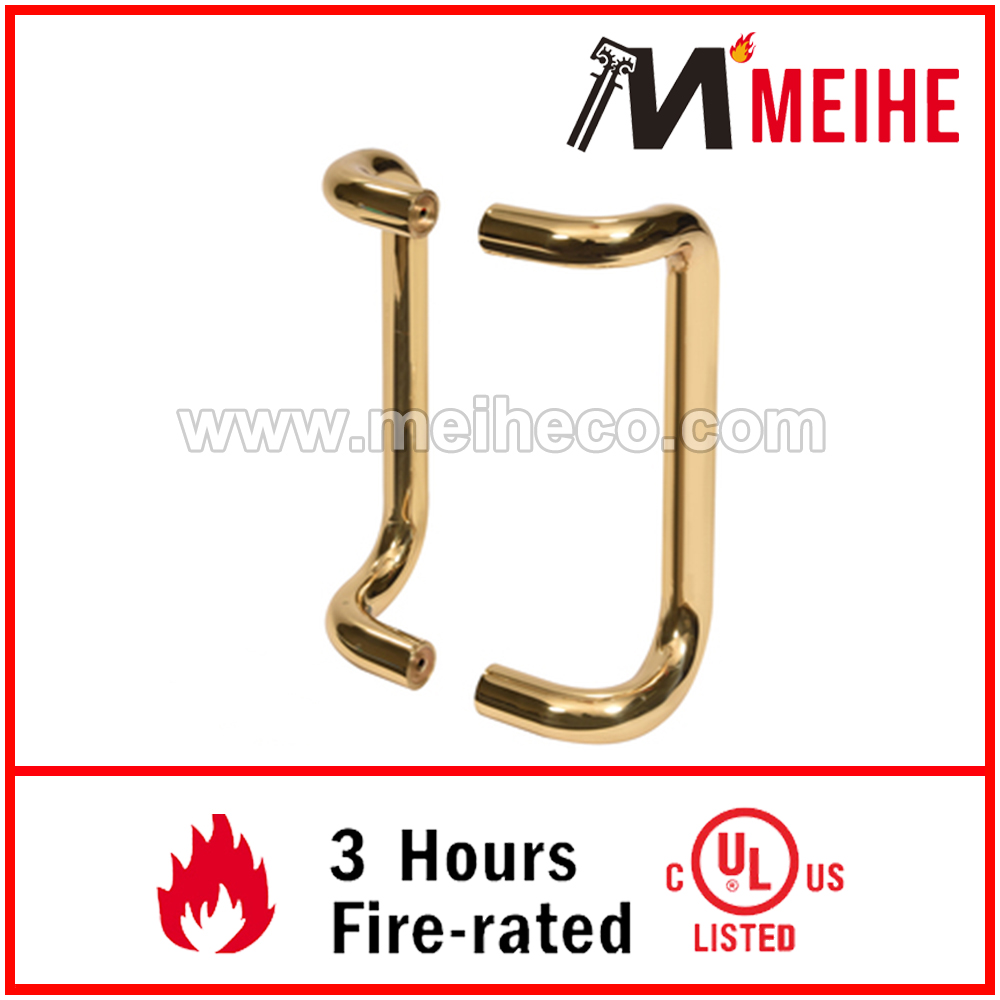

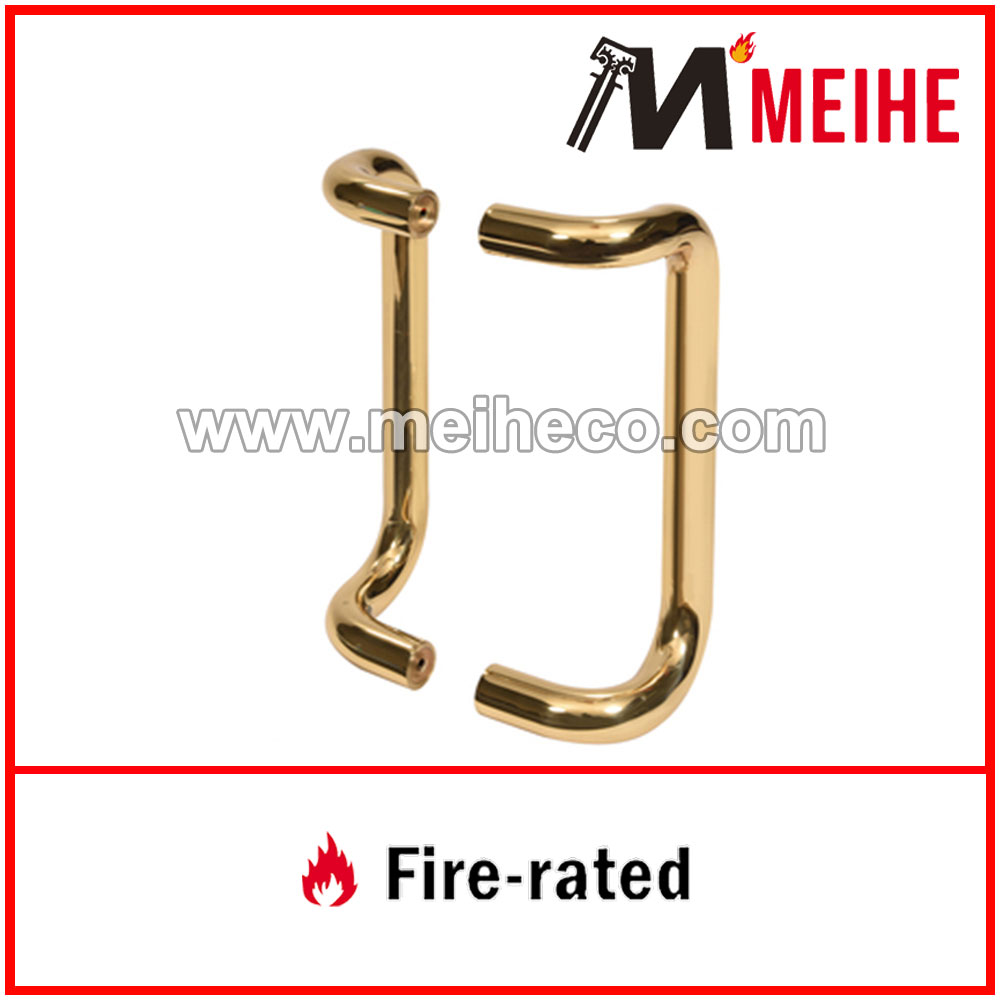

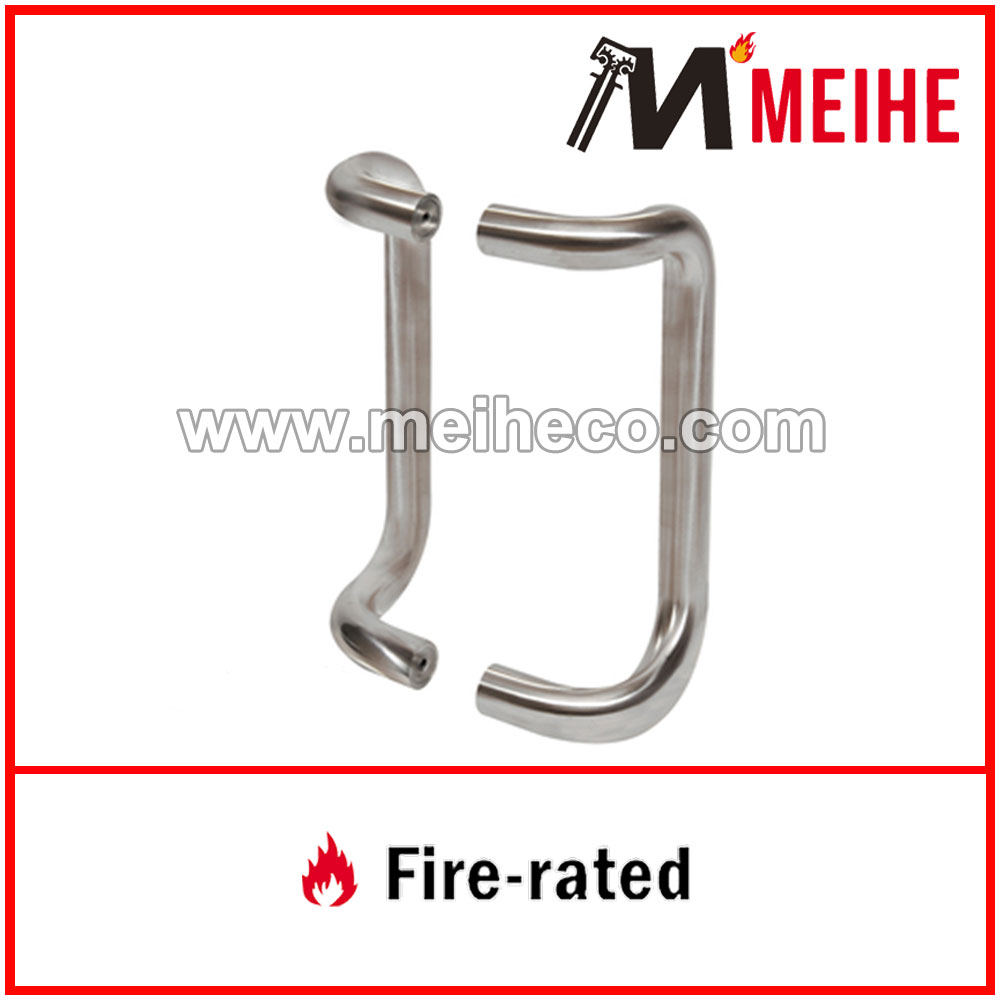

G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
|
Clear Aluminum Anodized Meihe P.N. |
Dark Bronze Anodized Meihe P.N. |
Size |
| PH2174C-8" | PH2174D-8" | 8"(203 mm) |
| PH2174C-9" | PH2174D-9" | 9"(229 mm) |
| PH2174C-10" | PH2174D-10" | 10" (254 mm) |
| PH2174C-12" | PH2174D-12" | 12" (305 mm) |
