ES010 Stainless Steel Surface Mounted Electric Strike Works with Rim Exit Devices up to a 3/4" Throw Latchbolt
Spu:
1601758537187
- Overview
- Recommended Products

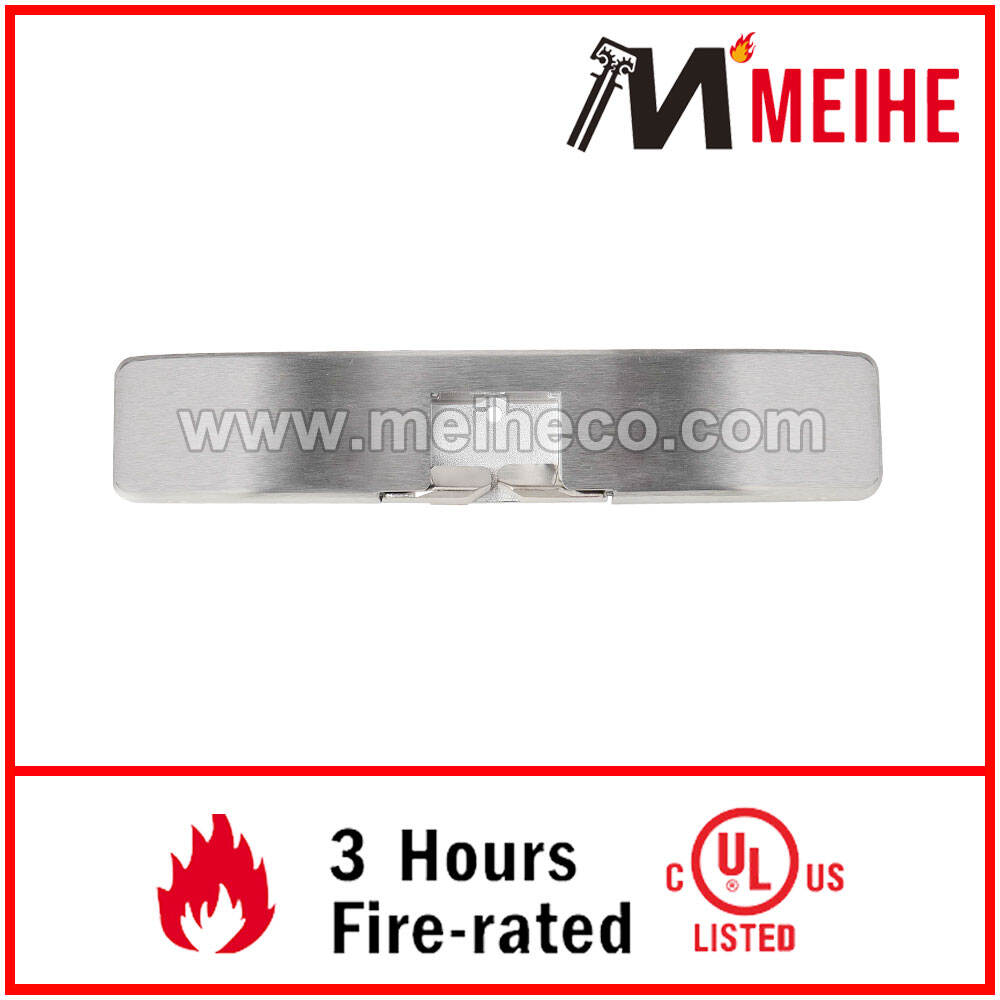

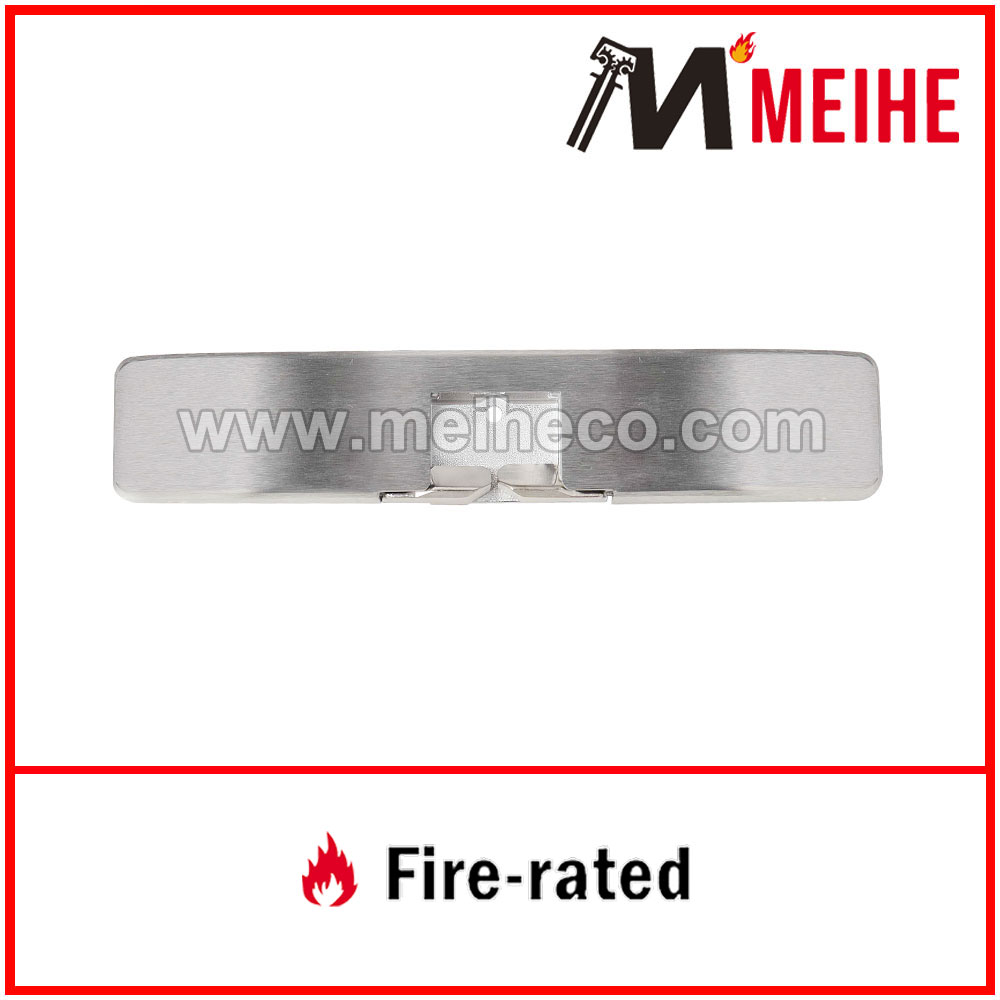

The ES010 Electric Strike is a windstorm resistant, surface mounted electric strike designed to accommodate rim exit devices with a 3/4” throw Pullman latchbolt. All components are completely encased within its 3/4” thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. It is field selectable for fail secure or fail safe operation, and for 12 or 24 VDC.
Features |
124L x 43W x 32H(mm) |
|
• Installs in metal or wood frames (wood screws not included) |
500kg |
|

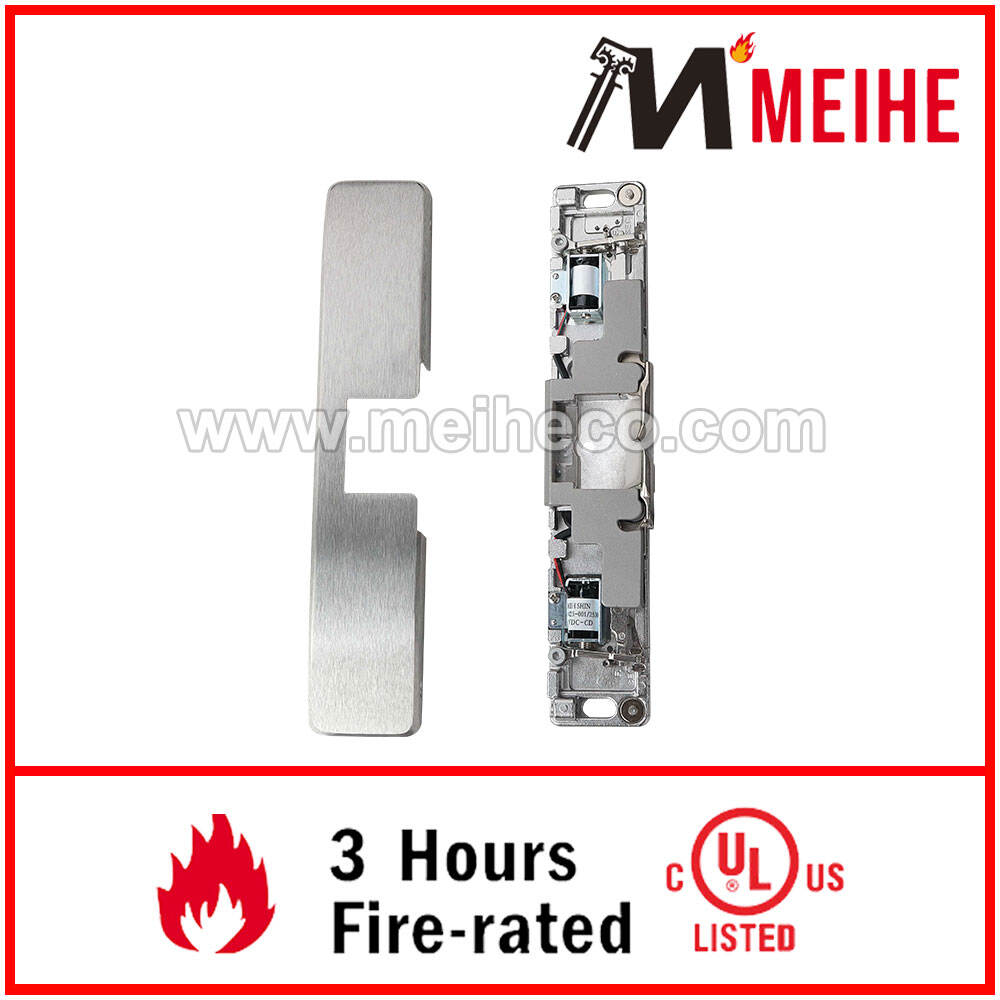

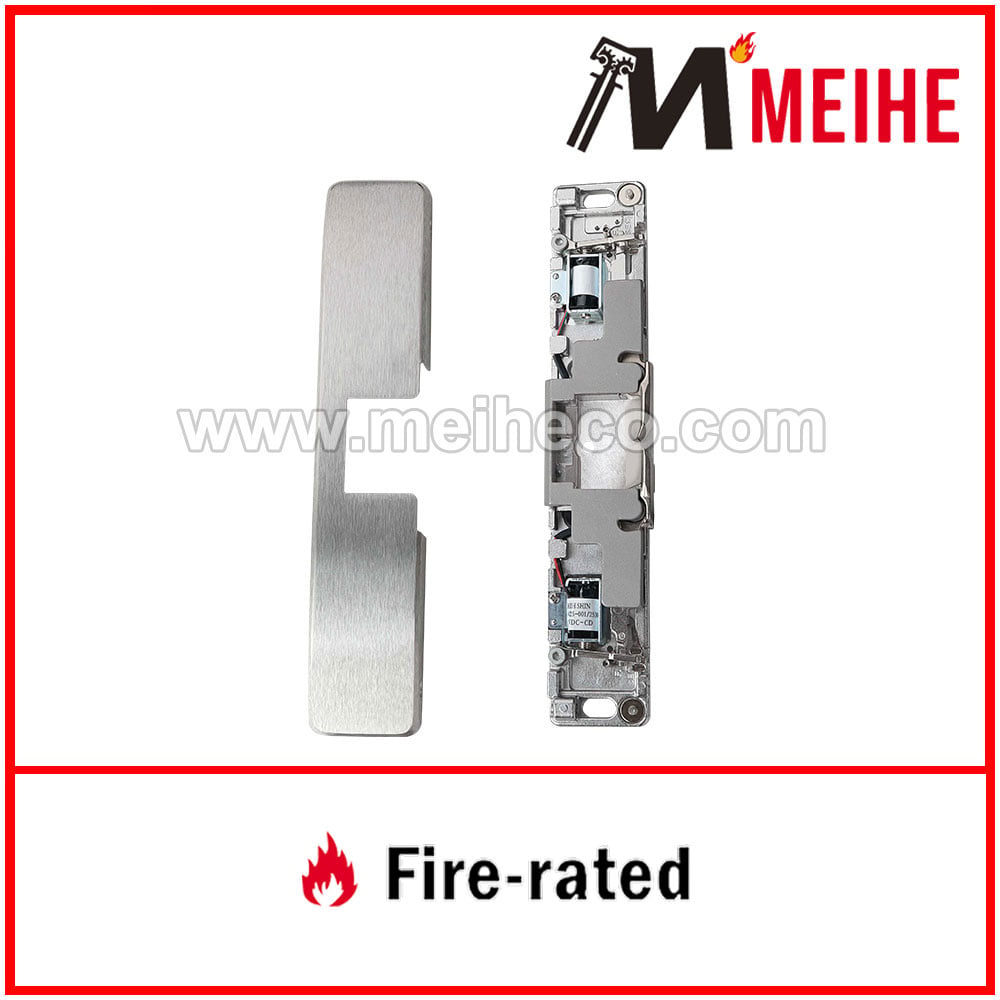

• Separate base and decorative cover for easy adjustments |
DC 12V/DC 24V |
|
• Stainless steel construction |
12V/320mA(±10%)；24V/160mA(±10%) |
|
• Tamper resistant |
Built-out MOV |
|
• Static strength 2,000 lbs |
Door status Output,NO/NC/COM |
|
• Dynamic strength 120 ft-lbs |
||
• Endurance 1,000,000 cycles |
||
• Field selectable fail safe/fail secure |
||
• Horizontal adjustability |
||
• Non-handed |
||
• Internally mounted solenoid |
||
•Accommodates up to 3/4” Pullman latch |
||
