YHG005 Continuous Geared Hinges Concealed Leaf
Concealed Leaf Continuous Geared Hinges
Application:
- Lead lined model for hospital x-ray room doors with double row of screws to straddle lead (specify "LL")
- Door edge protection lip
- Frame and door leaf alignment ribs for proper hinge and door location

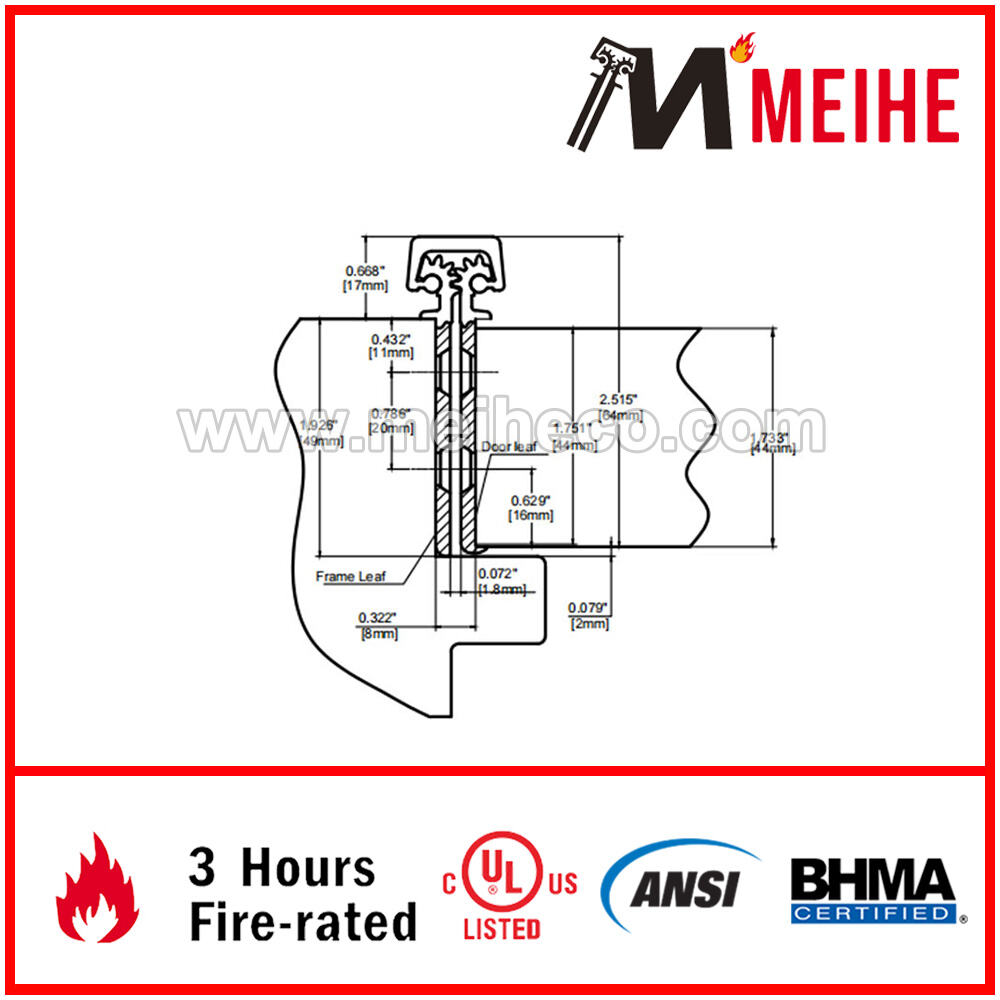

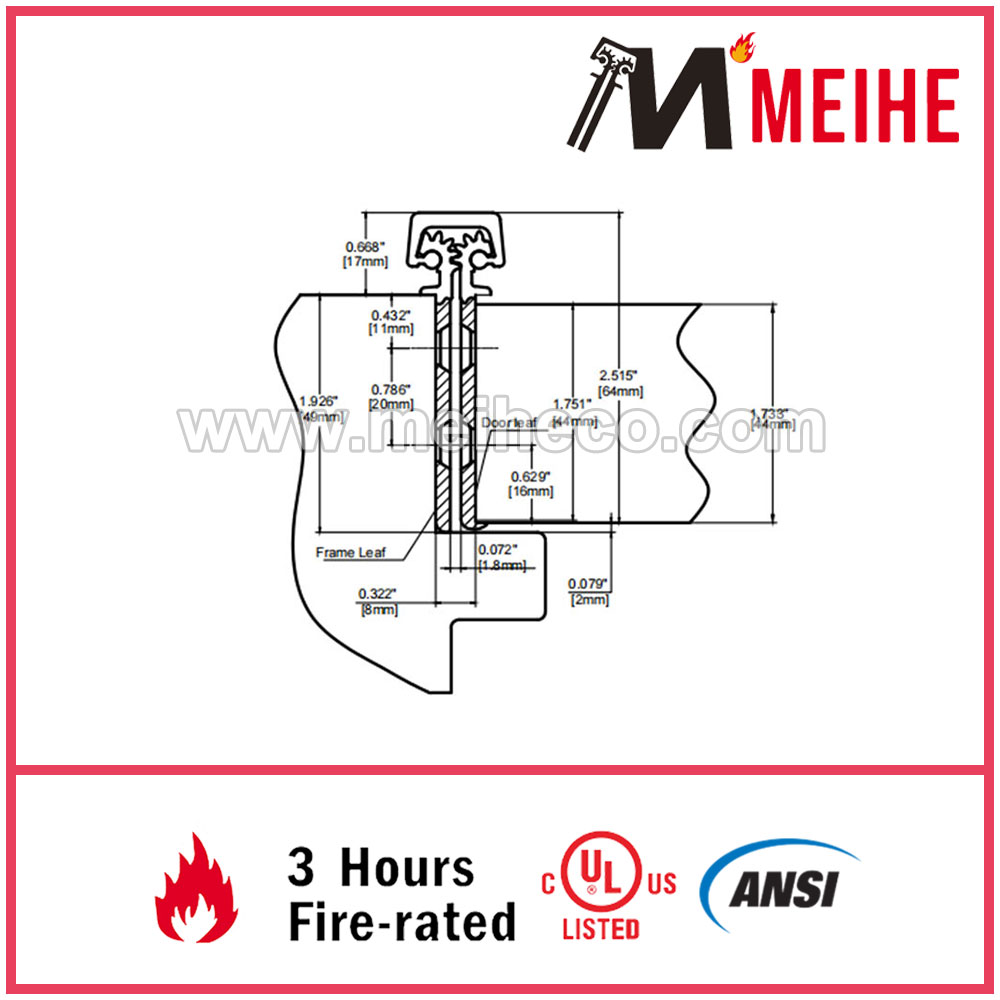

- 3/32" (2 mm) inset
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Hole Count (Door) | Hole Count (Jamb) |
| 83 | 2108 | 19 | 19 |
| 95 | 2413 | 20 | 20 |
| 119 | 3023 | 23 | 23 |
Clearance:
- 5/16" (8 mm) hinge side
- Plus standard lockside clearance
Fasteners:
- #12-24 X 11/16" Flat Head Self-Drill Screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
Length Options:
- 83" & 95" & 119" & Custom
Door Reinforcement:
- None needed to 200 lbs
- Use 16 gauge channel over 200 lbs
Frame Reinforcement:
- None needed to 200 lbs
- Use 16 gauge channel over 200 lbs
Fire Rating:
- Up to 3 Hours metal and 90minute wood composite.
Special Features:
- For renovation with new door and / or frames
- No mortising of doors or frame required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
Options:
- Hospital Tip
- Electrified Modual
