YHG008 Continuous Hinges Concealed Leaf For Heavy-Duty Applications
Concealed Leaf Continuous Geared Hinges
- Feature：Easy installation
- Warranty：1 Year
- Size：83"/95"/119"/Customized
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Hole Count (Door) | Hole Count (Jamb) |
| 83 | 2108 | 19 | 19 |
| 95 | 2413 | 20 | 20 |
| 119 | 3023 | 23 | 23 |

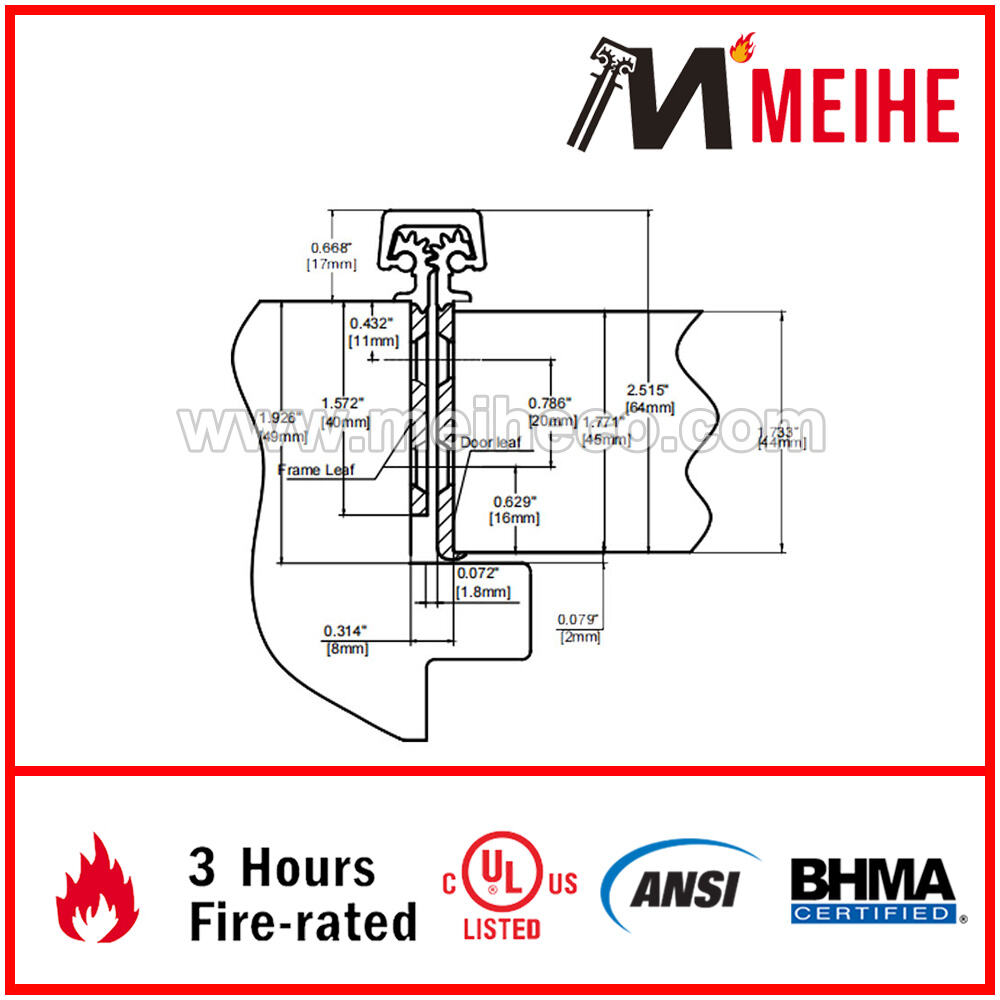

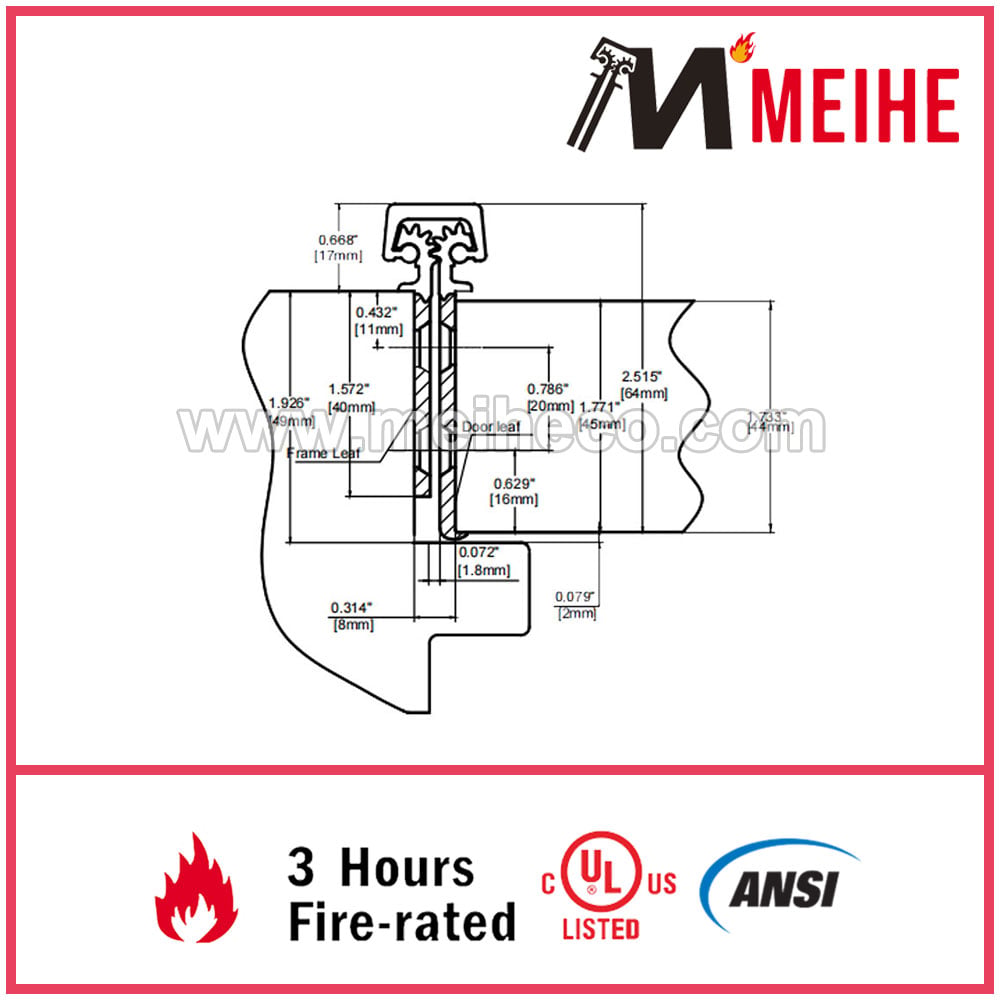

Clearance:
- 5/16" (8 mm) hinge side plus standard lockside clearance
Fasteners:
- Dril-Kwik screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
Length Options:
- 83" & 95"& 119" & Custom
Door Reinforcement:
- None required
Frame Reinforcement:
- None required to 200 lbs.
- Heavier weight use 16-gauge channel.
Fire Rating:
- Up to 3-hour metal and 90 minute wood composite
Special Features:
- Frame alignment rib for proper hinge and door location
- Door edge protection lip
Options:
- Hospital Tip
- Electrified Modual
