YDS601 Door Seals Door Bottom Door Sweeps Aluminum Casing with Nylon Brushes
Brush Weatherstripping
- Certificate：Fire Rated - UL 10B/10C
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

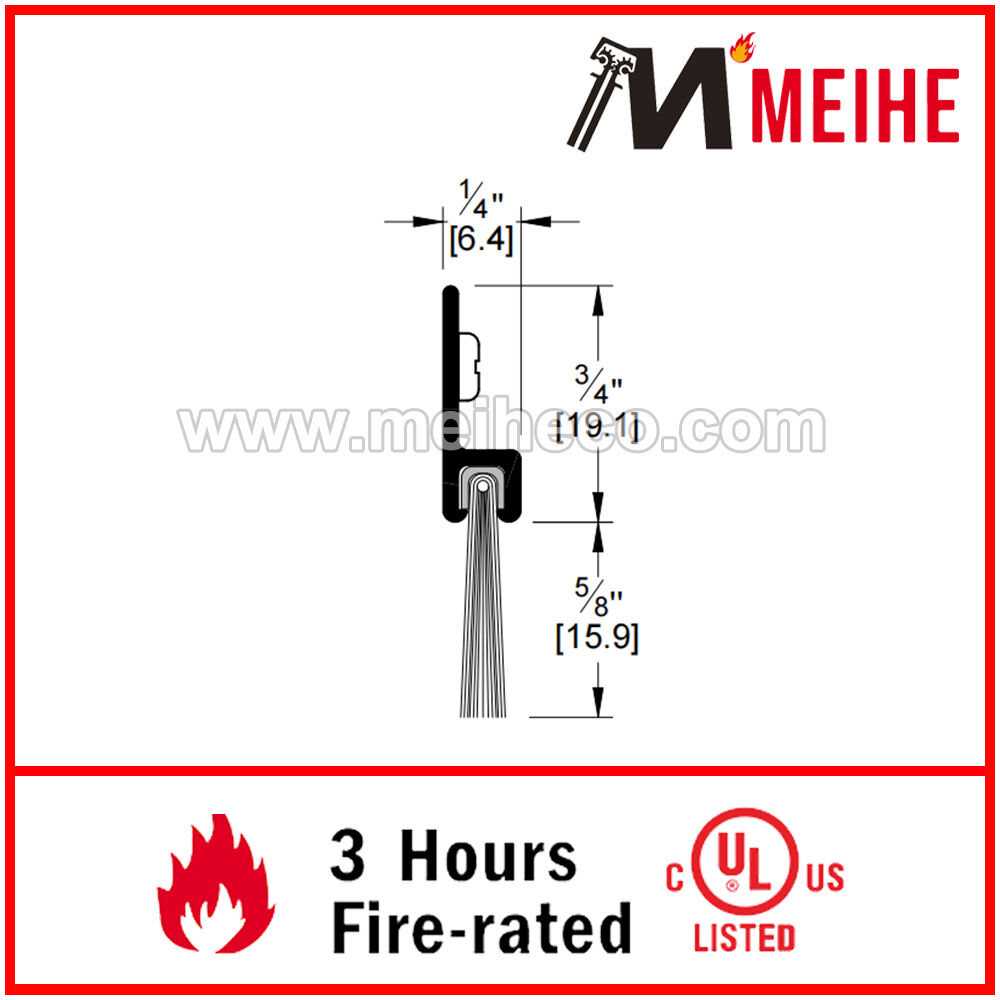

- Width: 1/4” (6.4 mm)
- Profile Height: 3/4” (19.1 mm)
- Height Including Brush: 1-3/8” (35.0 mm)
- Overview
- Recommended Products

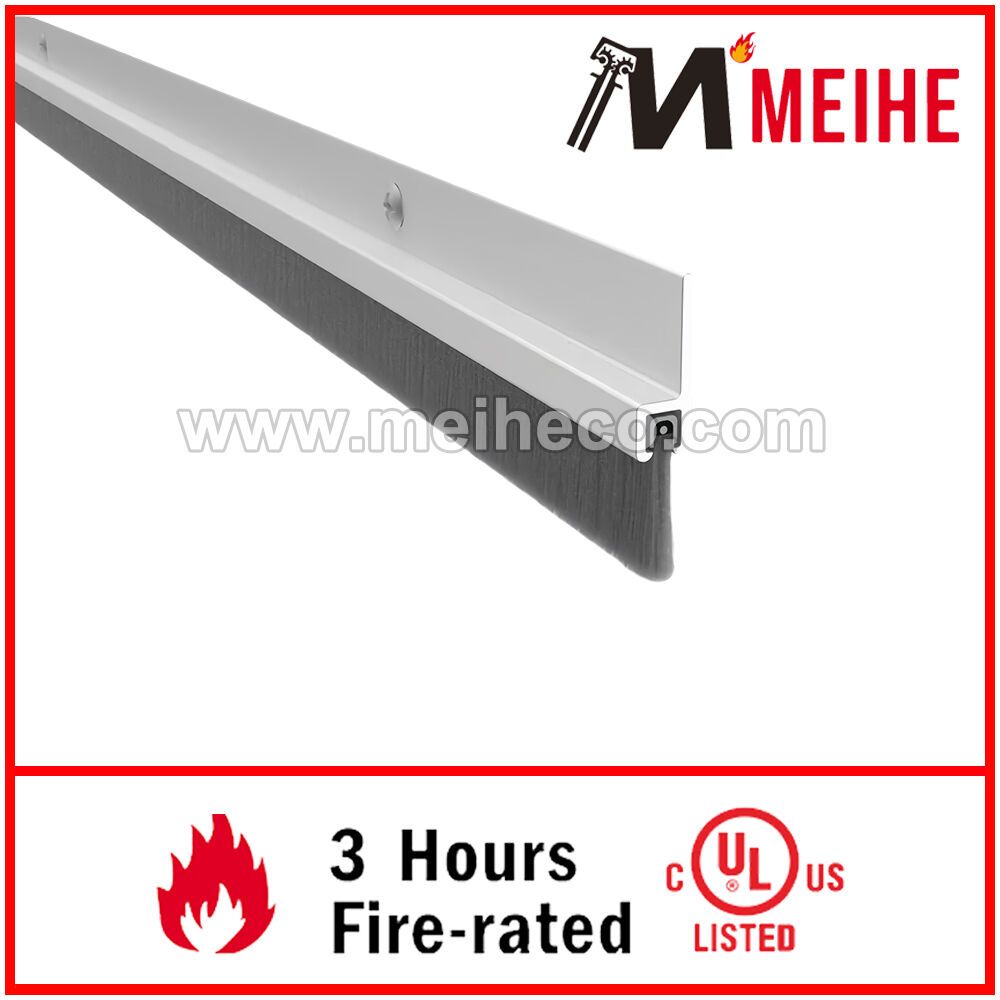

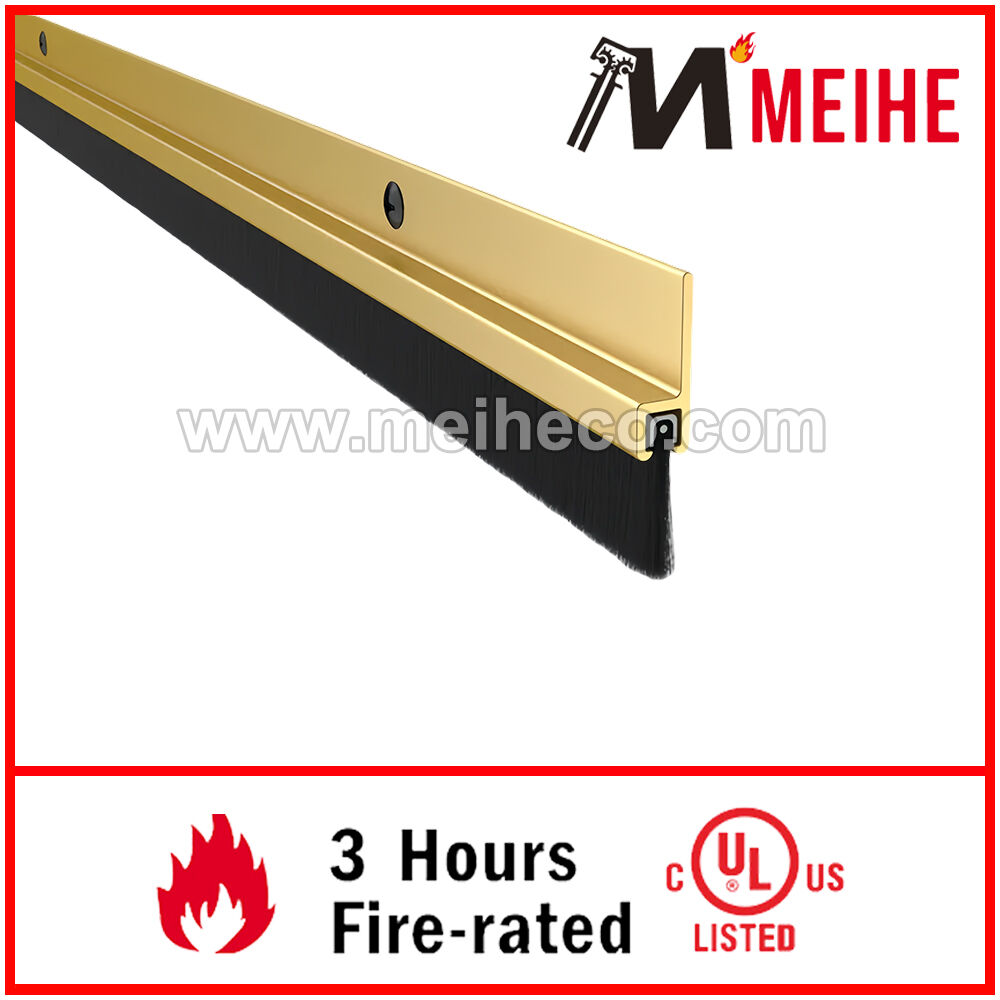

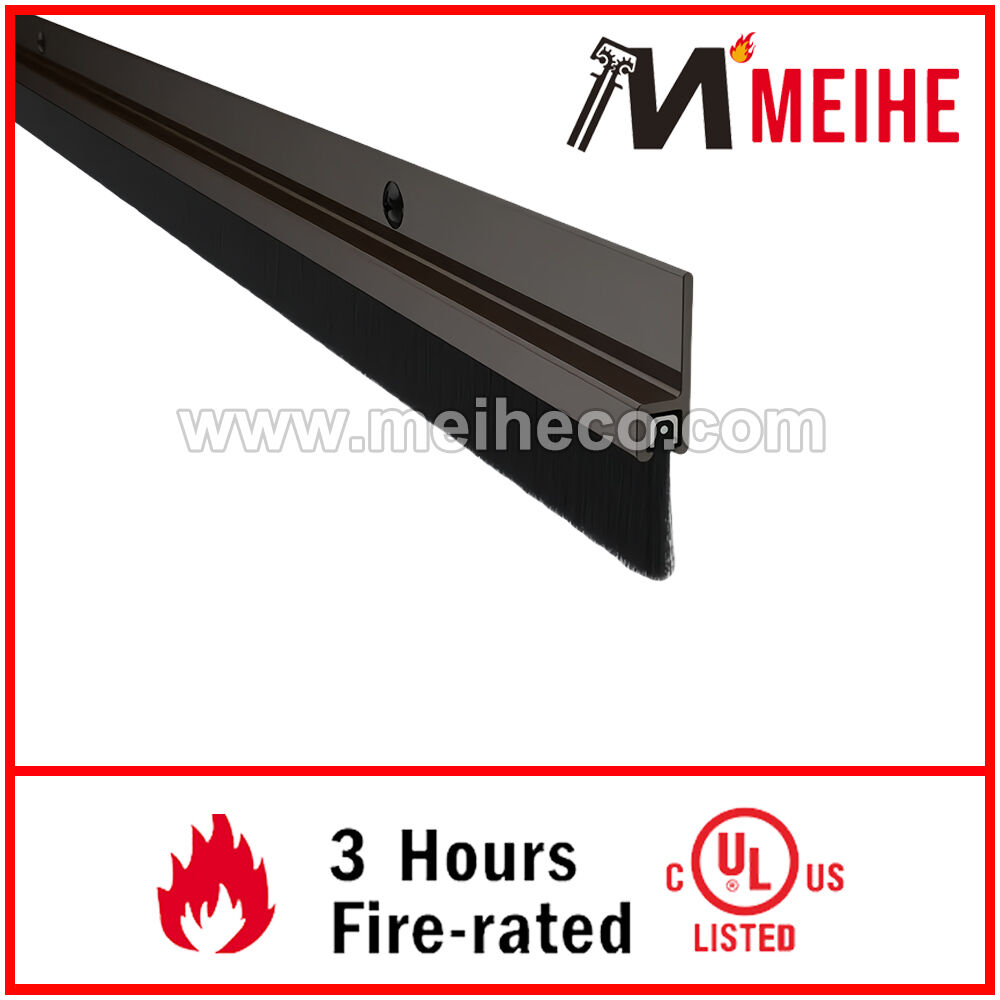

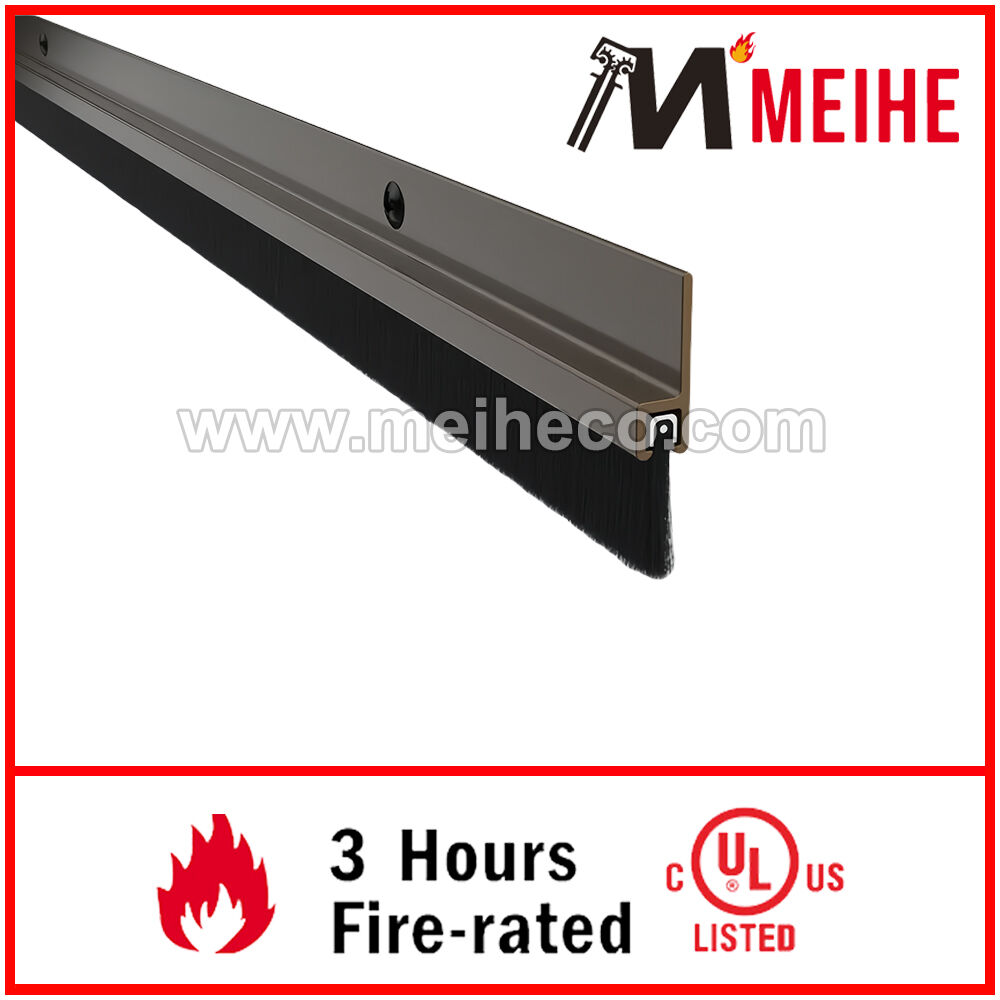

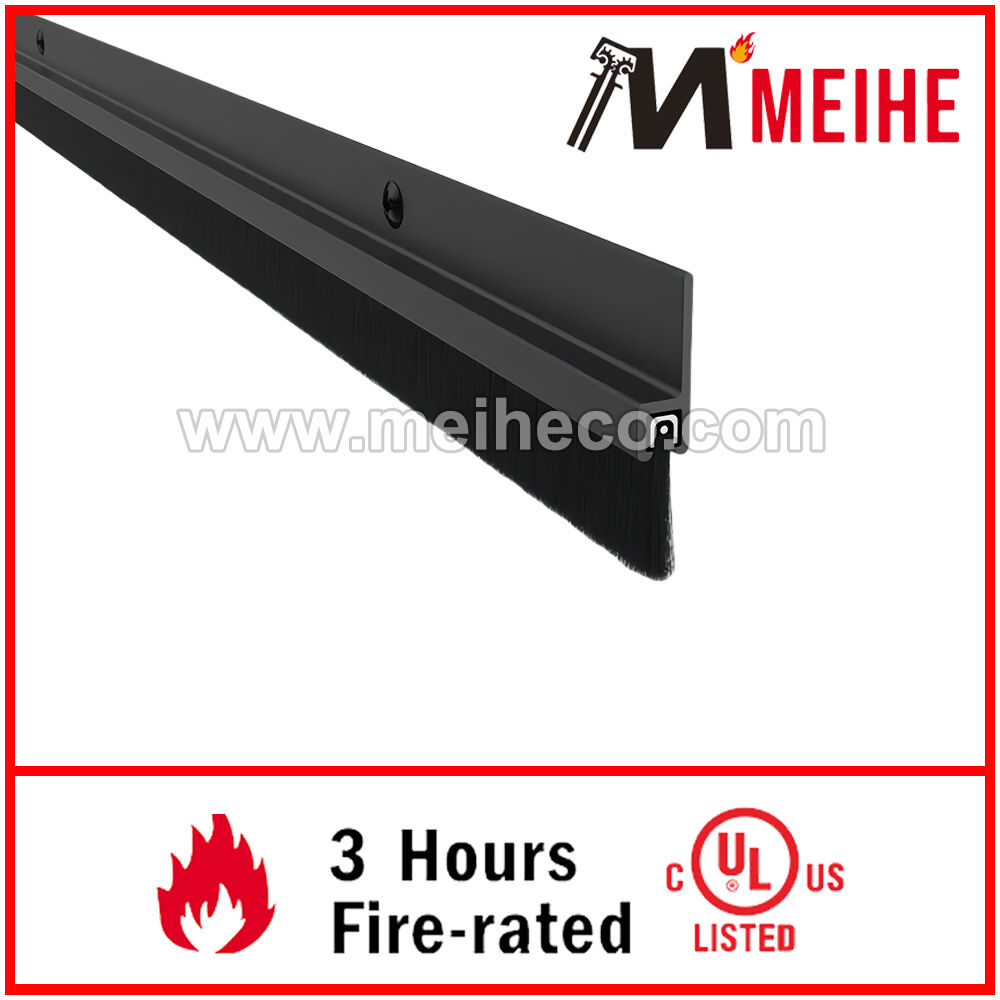

This Door Sweep is fitted with a row of densely compressed nylon filaments to seal the gap under and around doors. The brush is highly flexible and conforms well to surface irregularities. Casing measures 0.75" H, while brush portion has a height of 0.625".Available in options of anodized finishes and is custom cut to size.
Door Brush Retainer Material |
Aluminum |
Temperature Range |
Seals remain flexible between -40° F and over 400° F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Nylon Brush Seal |
Mounting |
Surface Mounted |
Seal Height |
5/8" Height |
Total Height |
1-3/8" Height |
Additional Dimensions |
Door seal is 1/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Finish |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill Holes Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #18061CNB; NGP #B 606 |
