YHG003 Continuous Geared Hinges Easy Installation

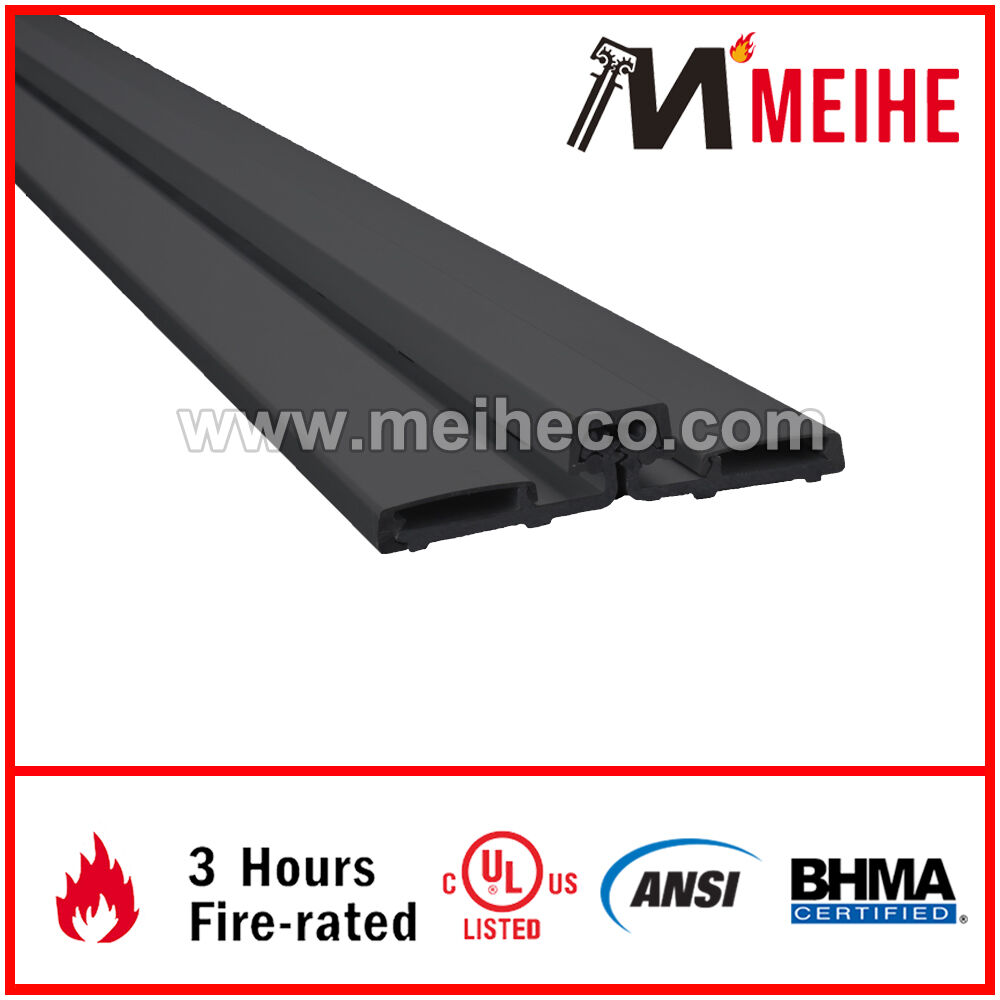

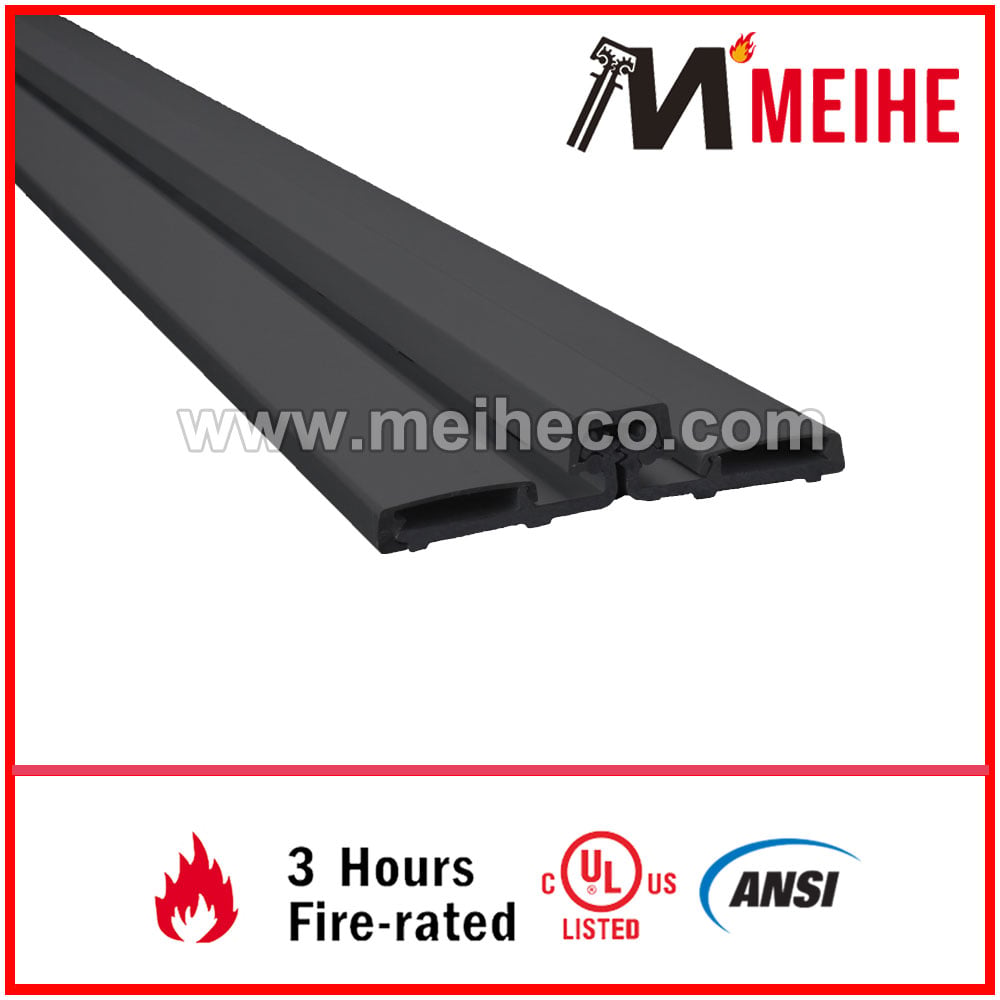

Full Surface Continuous Geared Hinges
Application:
- Bi-fold applications
- Security moldings
- Warranty：1 Year
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Sex Bolts (Door) | Screws (Jamb) |
| 83 | 2108 | 16 | 38 |
| 95 | 2413 | 20 | 38 |
| 119 | 3023 | 24 | 46 |
Clearance:

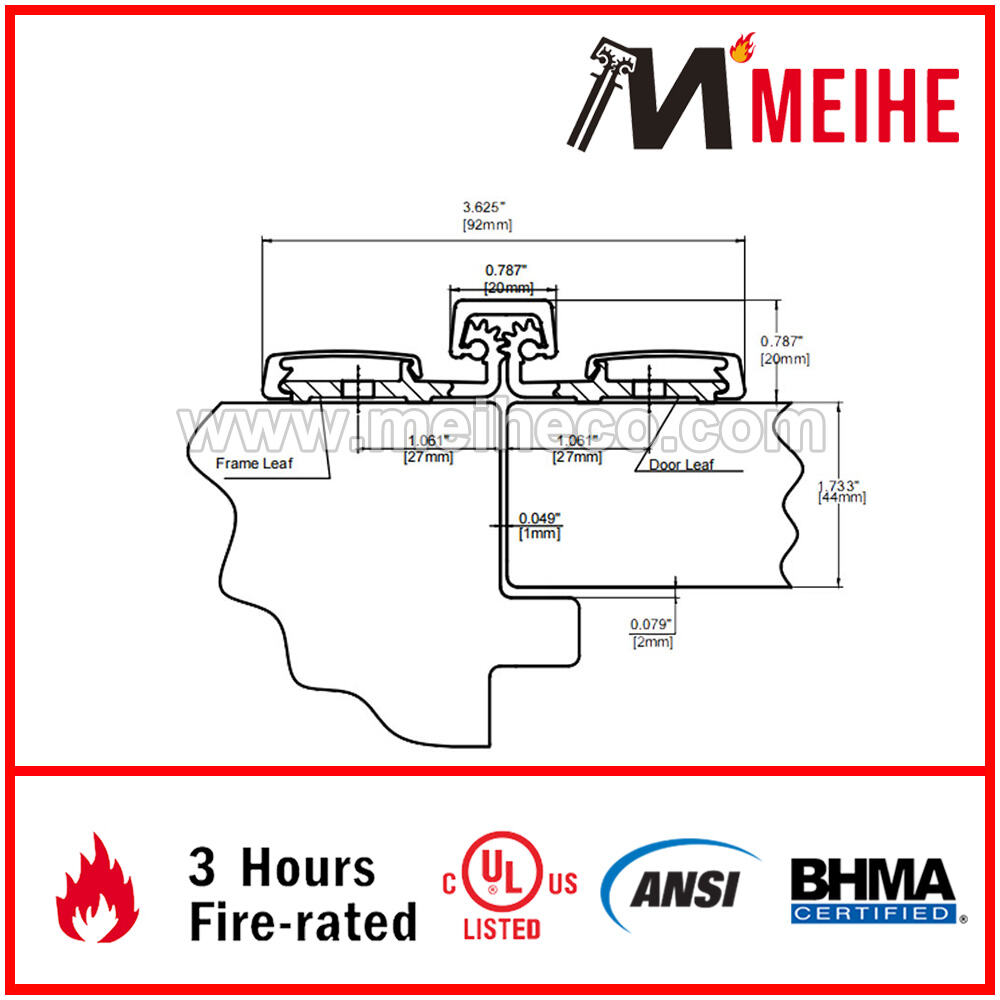

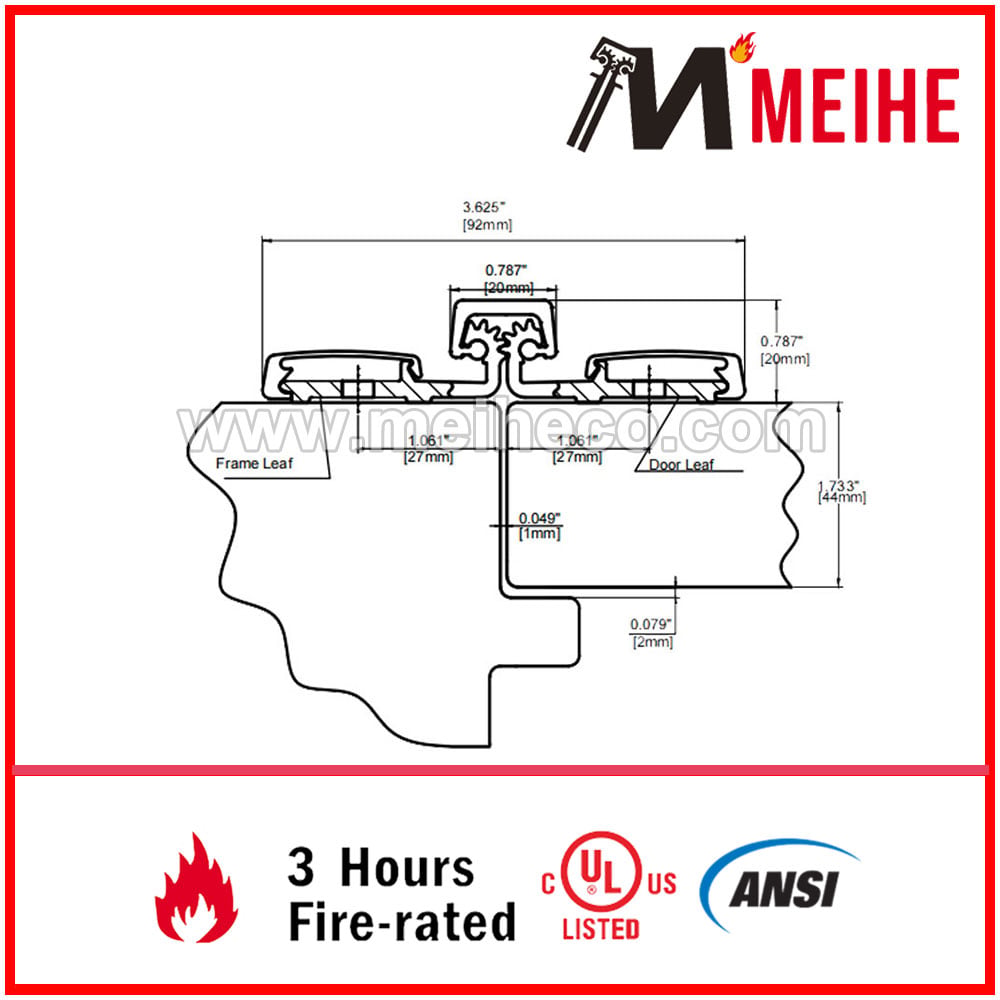

- 1/32" (1 mm) minimum recommended between doors
- Plus standard lockside clearance
- Refer to Door and Frame Dimensioning in the General Information section for further details
Fasteners:
- 1/4-20 x 1-1/4" Sexbolt (Screw Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & P
B: Polished Chrome Anodized
Length Options:
- 83" & 95" & 119" & Cutsom
Door Reinforcement:
- None needed
Frame Reinforcement:
- None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
Fire Rating:
- Up to 3-hour metal and 90 minute wood composite
Special Features:
- Replacement for existing doors and frames
- 7/8" minimum frame
- 1/16" inset
Options:
- Hospital Tip
- Electrified Modual
