YDT316 Saddle Threshold Plate Panic Latching Front
Flat Saddle Thresholds
- Available Finishes: A, C, D

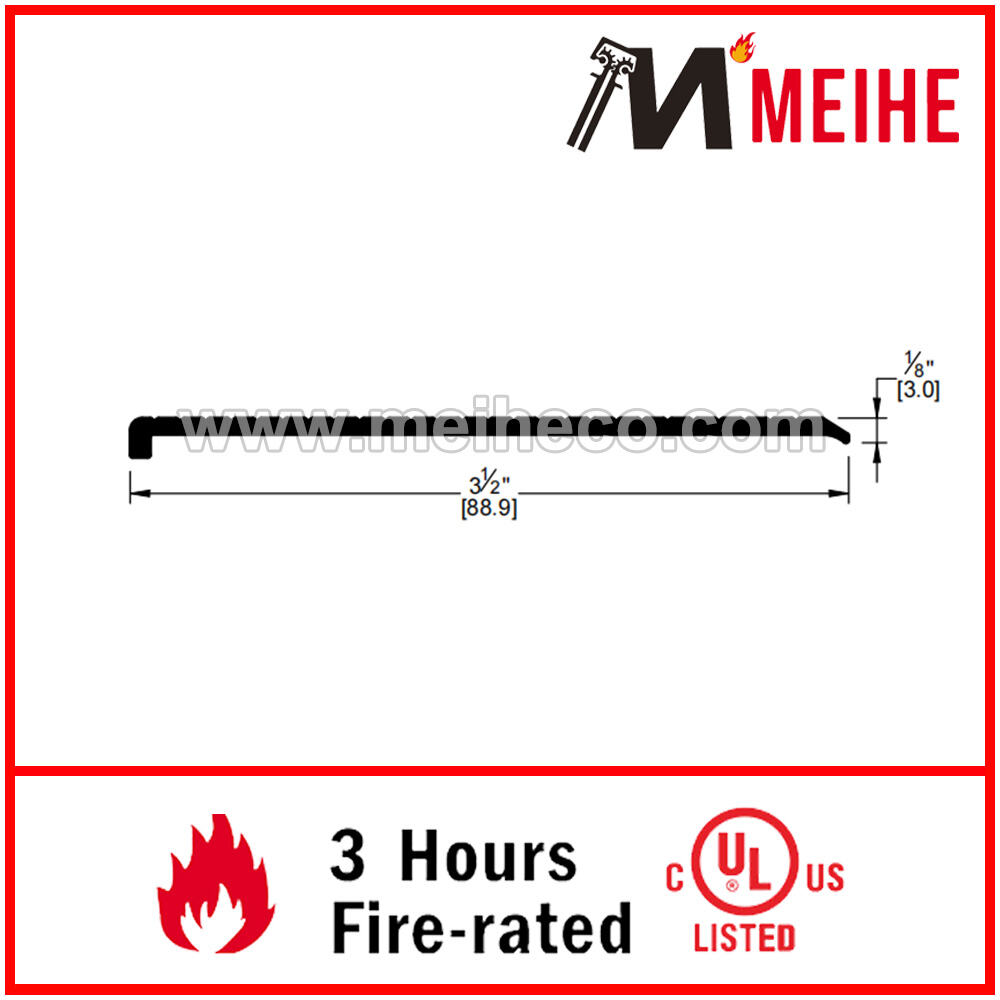

- Width: 3-1/2” (88.9 mm)
- Height: 1/8” (3.2 mm)
- Warranty:1 Year
Certificate:
- UL
- Overview
- Recommended Products

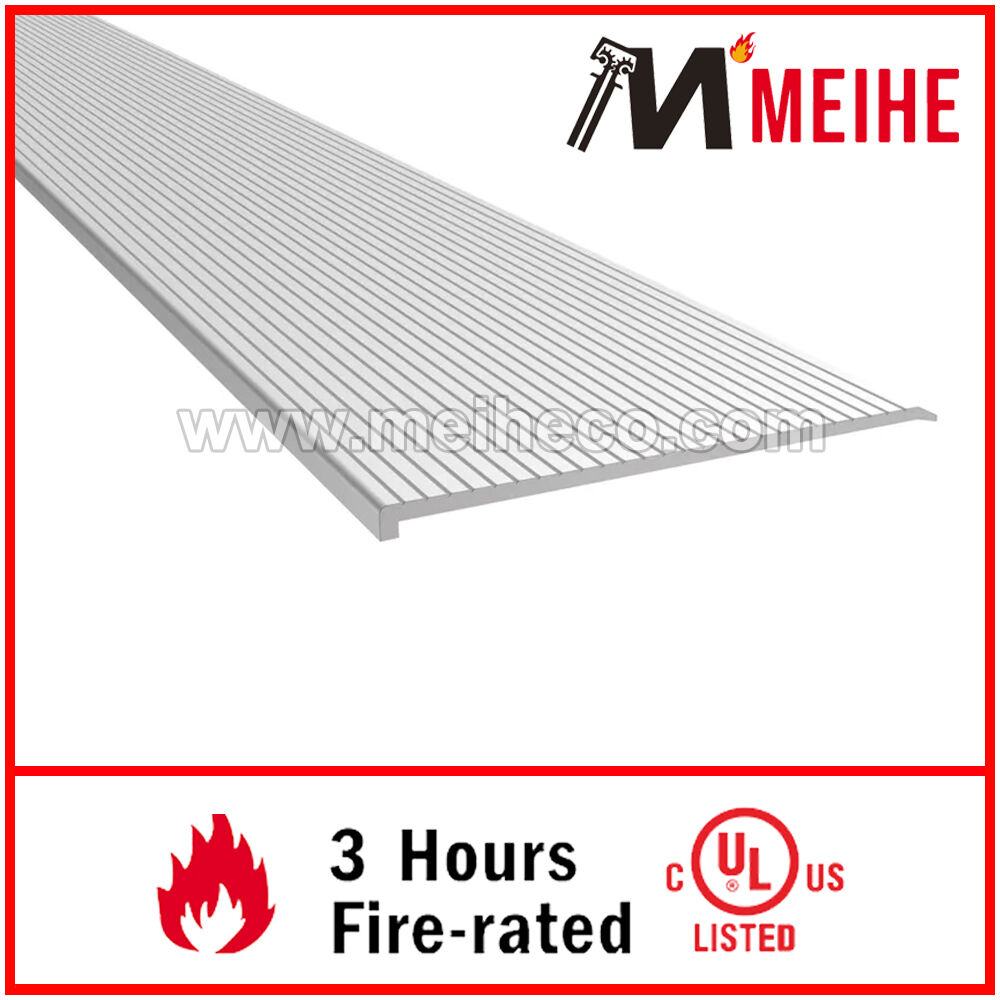

This grooved Sill Nosing extends just over the stair's edge to provide an attractive, finished appearance while covering defects in the sub-sill. Available in bronze mill finish, aluminum mill finish, and dark bronze anodized. Custom-cut to size.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Threshold Type | Sill Nosing Threshold |
| Overall Width | 3-1/2" Width |
| Length | Standard 36", 48"; Custom Cut to Size |
| Certificate | Fire Rated - UL 10B/10C |
