C 1006 Modern Design Dark Bronze Anodized Patio Door Surface with Clamp Latch for Hotel Applications
Sliding Door Handle
-Material: Aluminum
-Finish: Anodized
-Color: Black

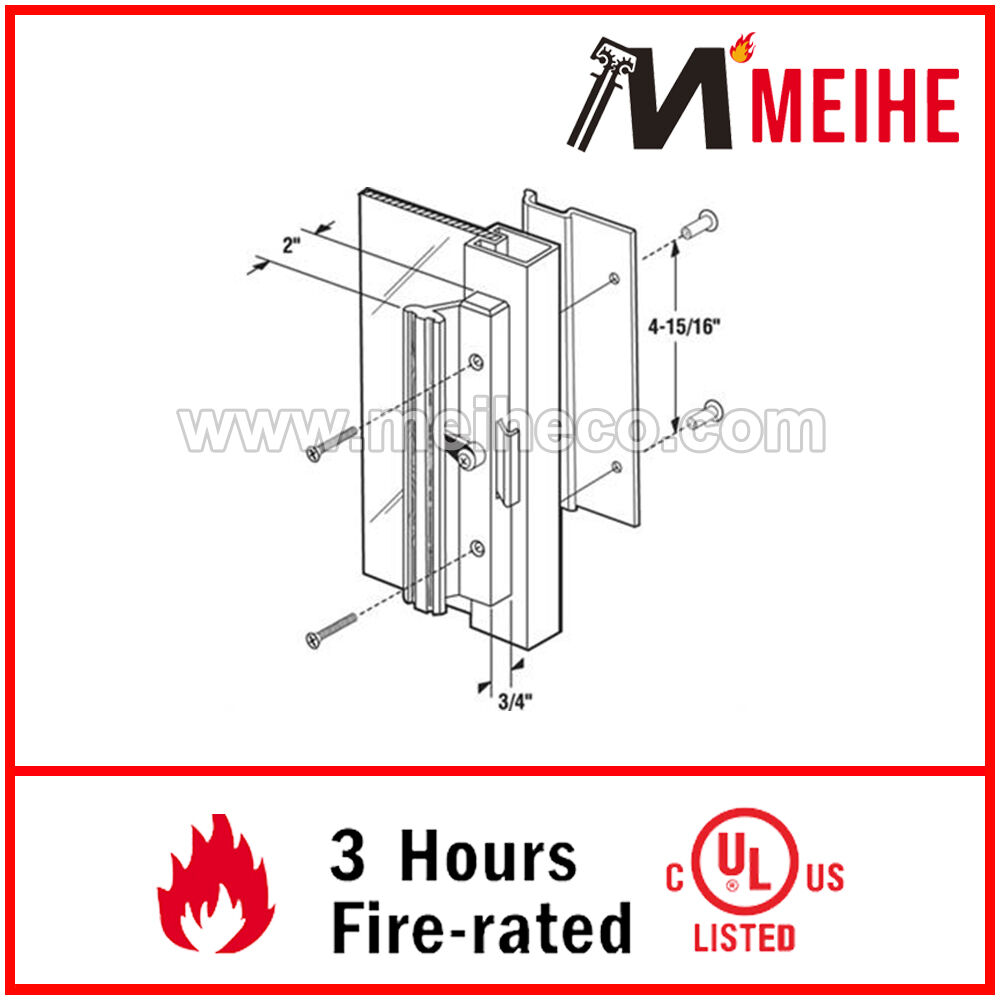

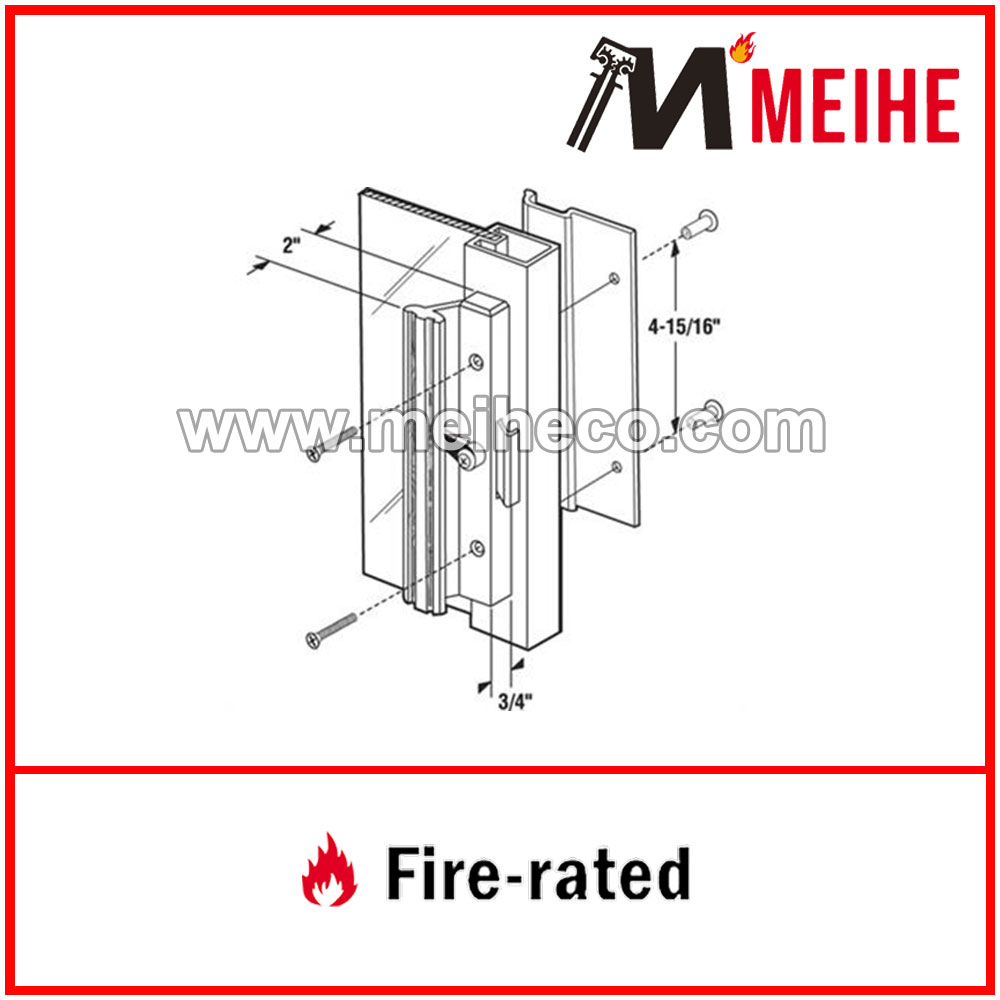

-Hole Center to Center: 4-15/16"
-Latch Style: Clamp Style
-Handle Type: Surface Mounted
-Warranty：1 Year
- Overview
- Recommended Products

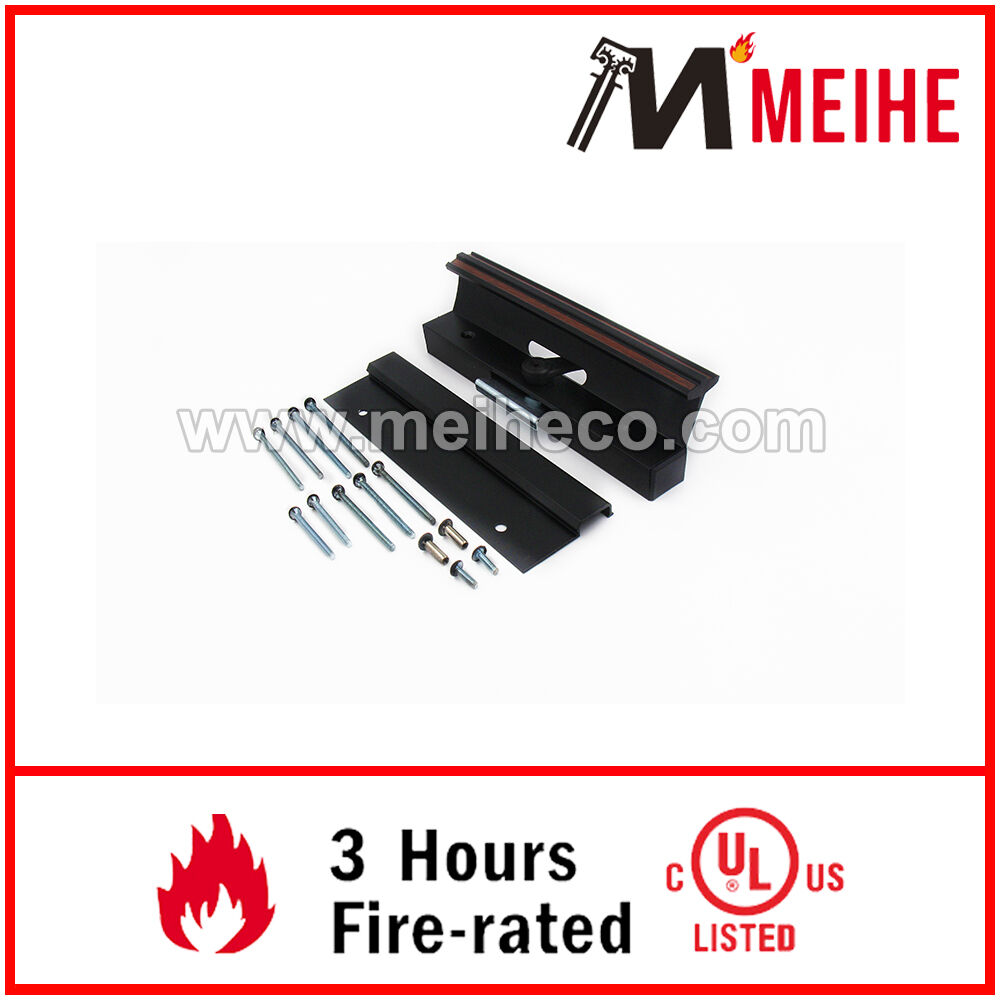

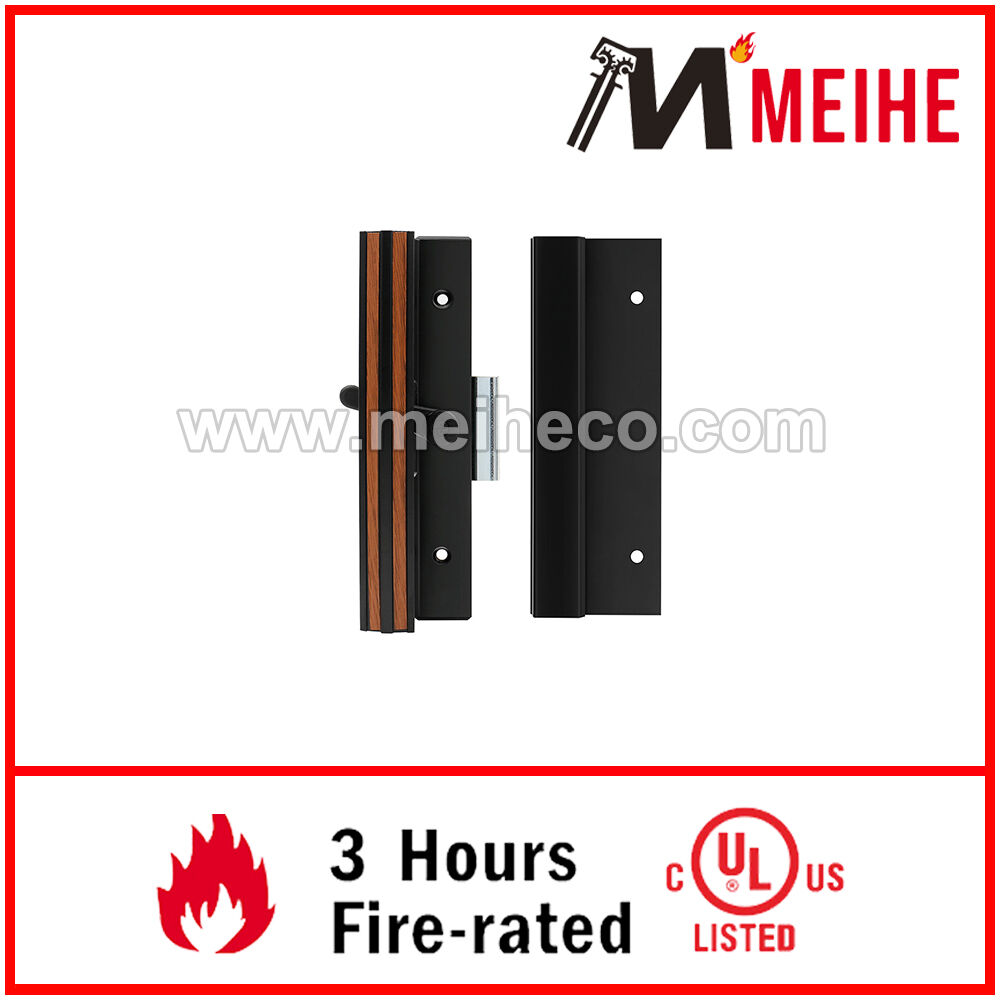

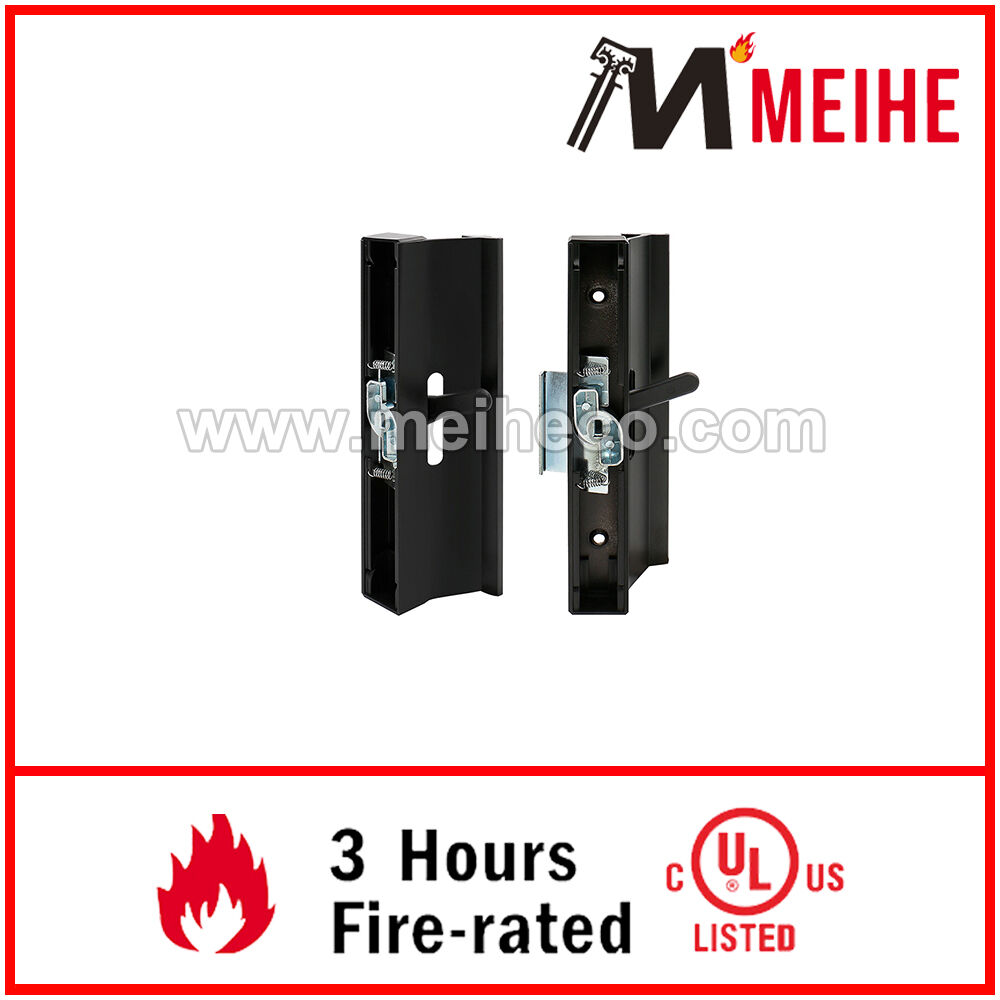

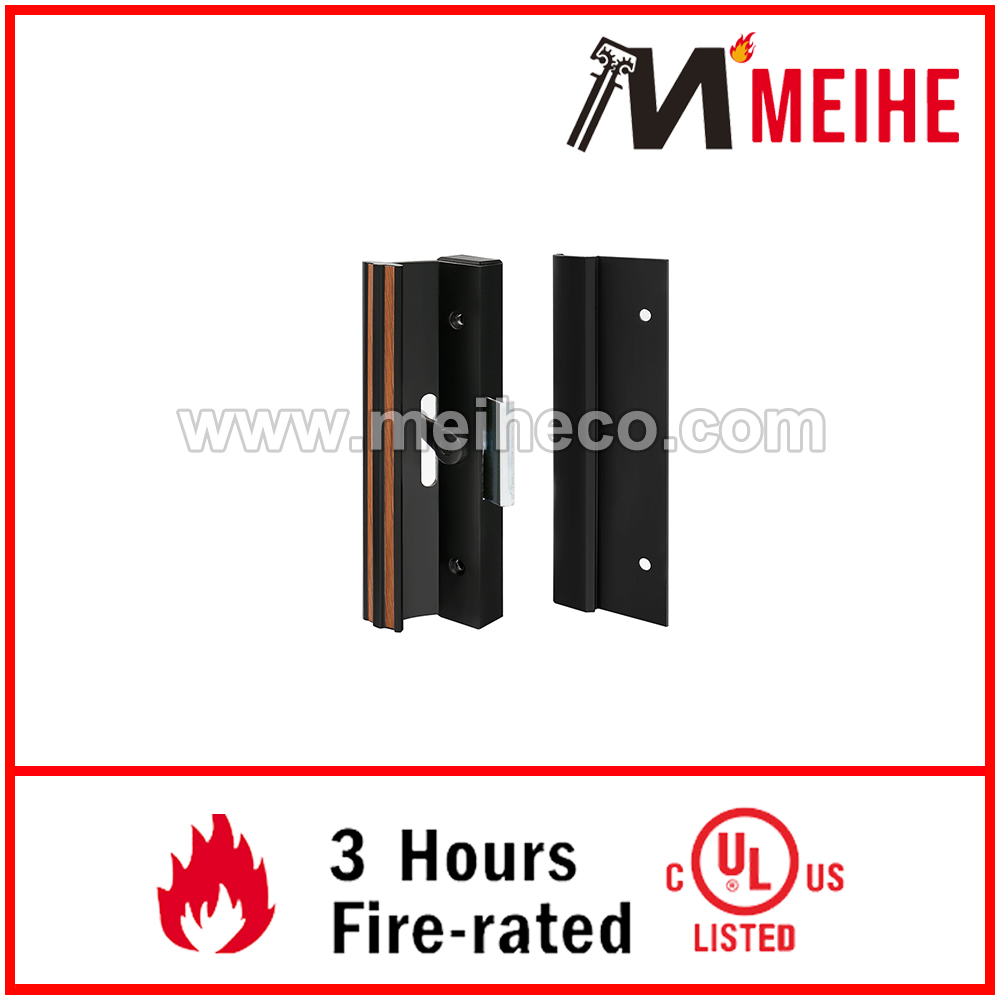

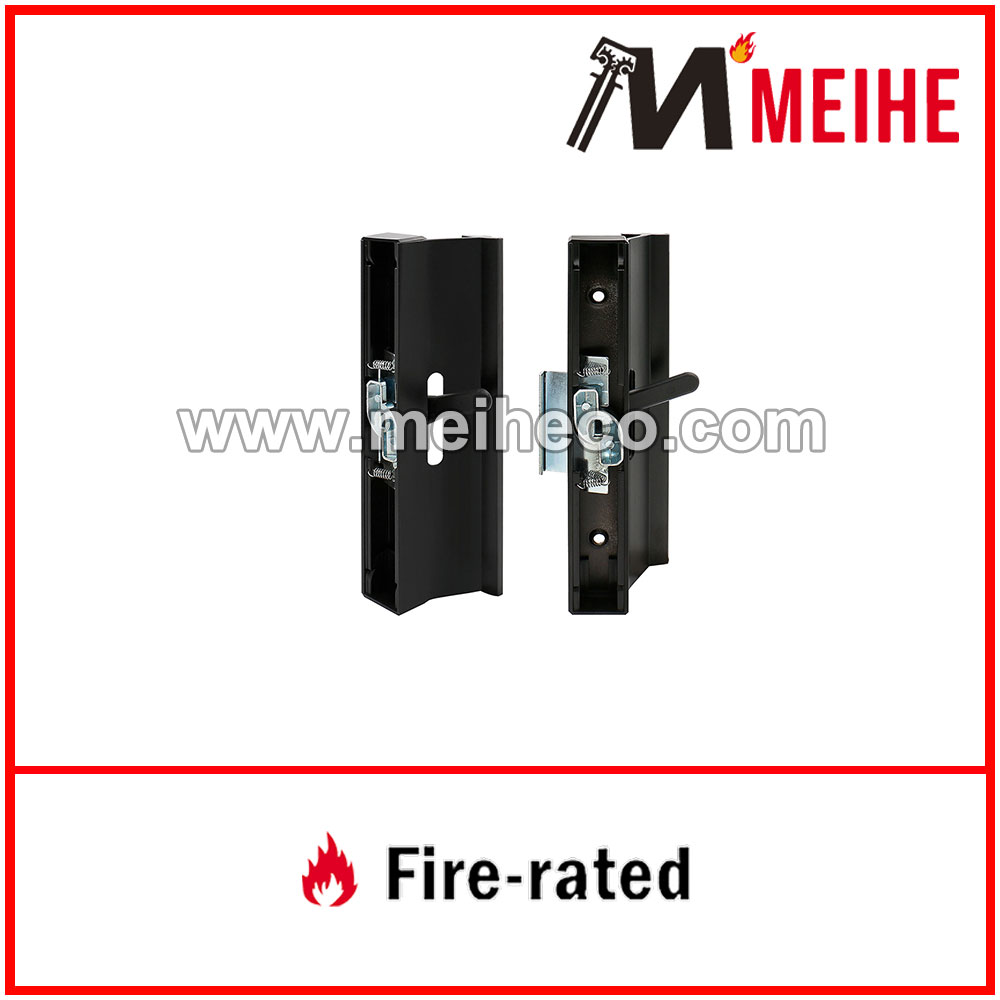

This Black patio door handle is a surface with clamp latch style. Often found on older style patio doors, it is mounted on the door's inside frame and the clamp latch latches onto an extrusion (astragal) on the jamb. It has 2 inch handle height extruded aluminum inside handle. The clamp has a 1/4 inch profile and 1/2 inch projection when in locked position. The outside handle is a Mill Finish low profile non-keyed handle. To key this unit order the E 2071 lock cylinder.
- Inside Handle is Black Extruded Aluminum.
- Inside Handle Height is 2 inches
- Outside Handle is Black Extruded Aluminum
- 4-15/16 inch mounting holes
- Non-Handed
- Non-Keyed (see E 2071 to key this unit)
- Clamp latch has a 1/4 inch profile and 1/2 inch projection
- Used by many Patio Door Manufacturers
