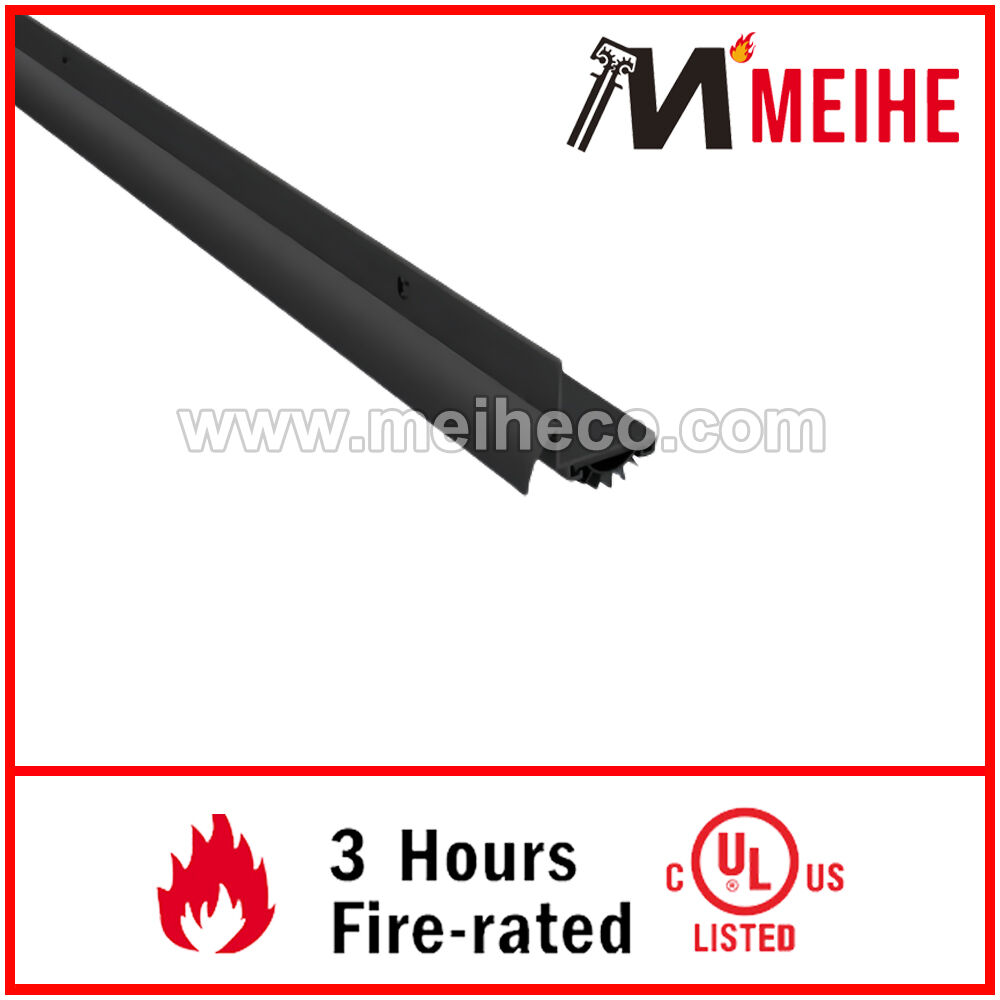

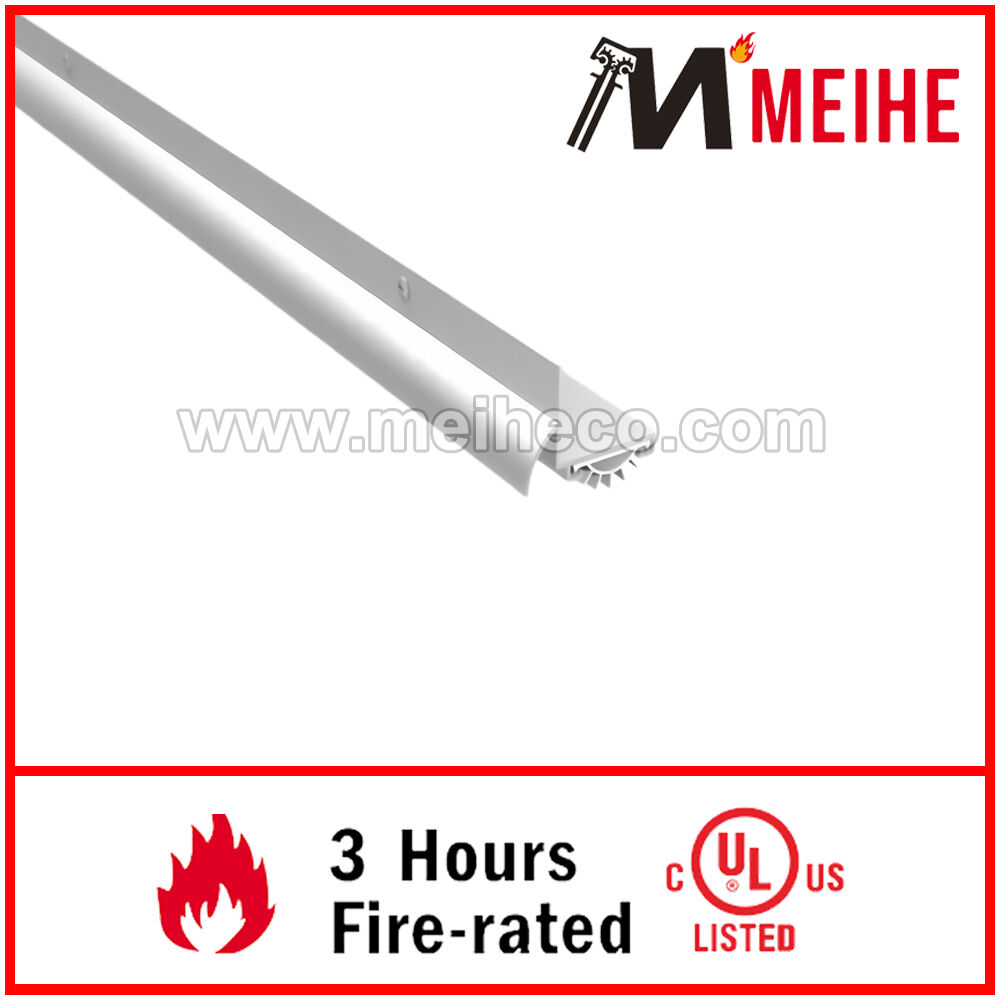

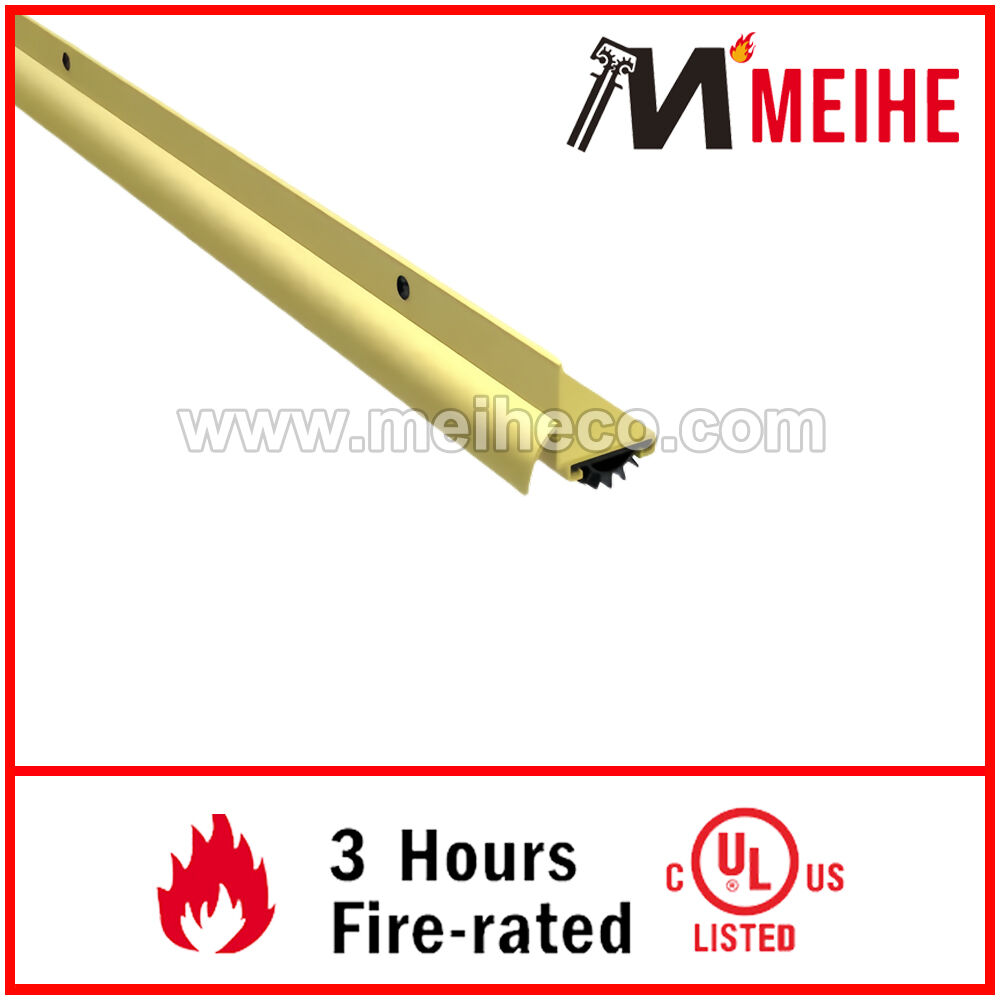

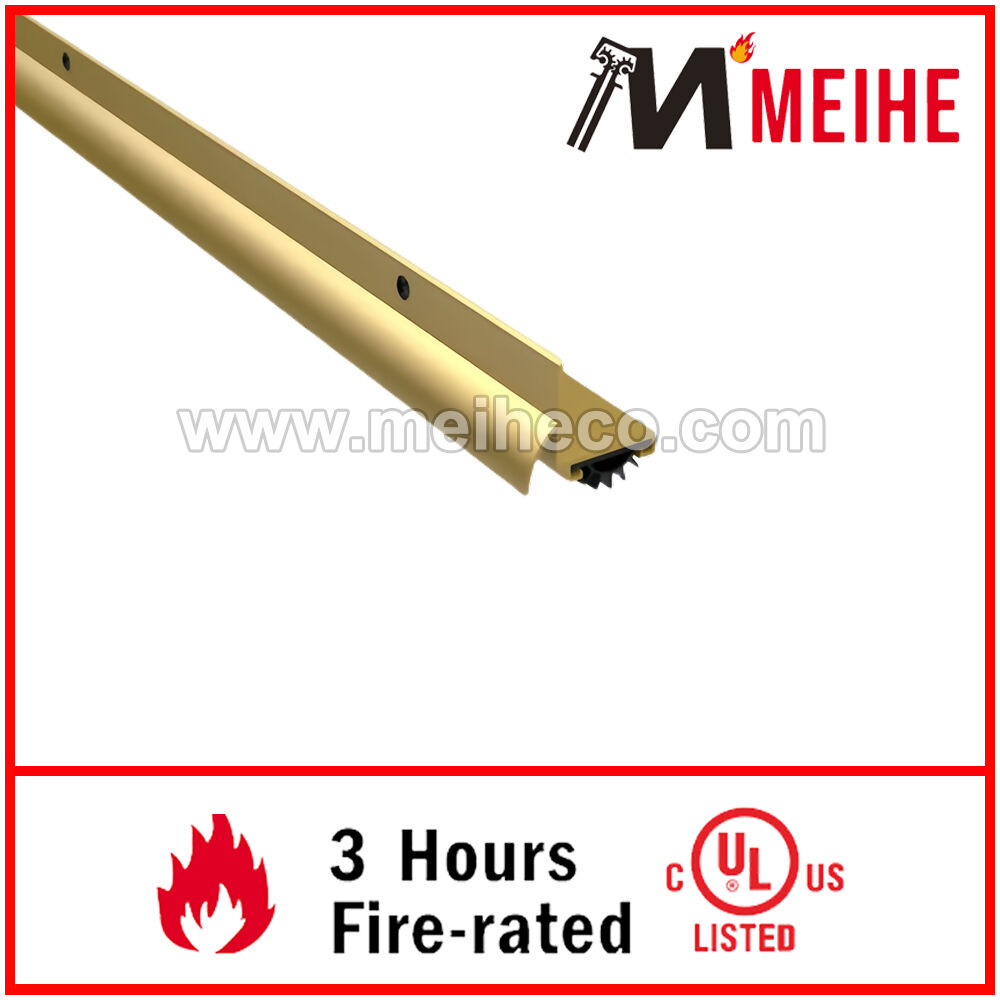

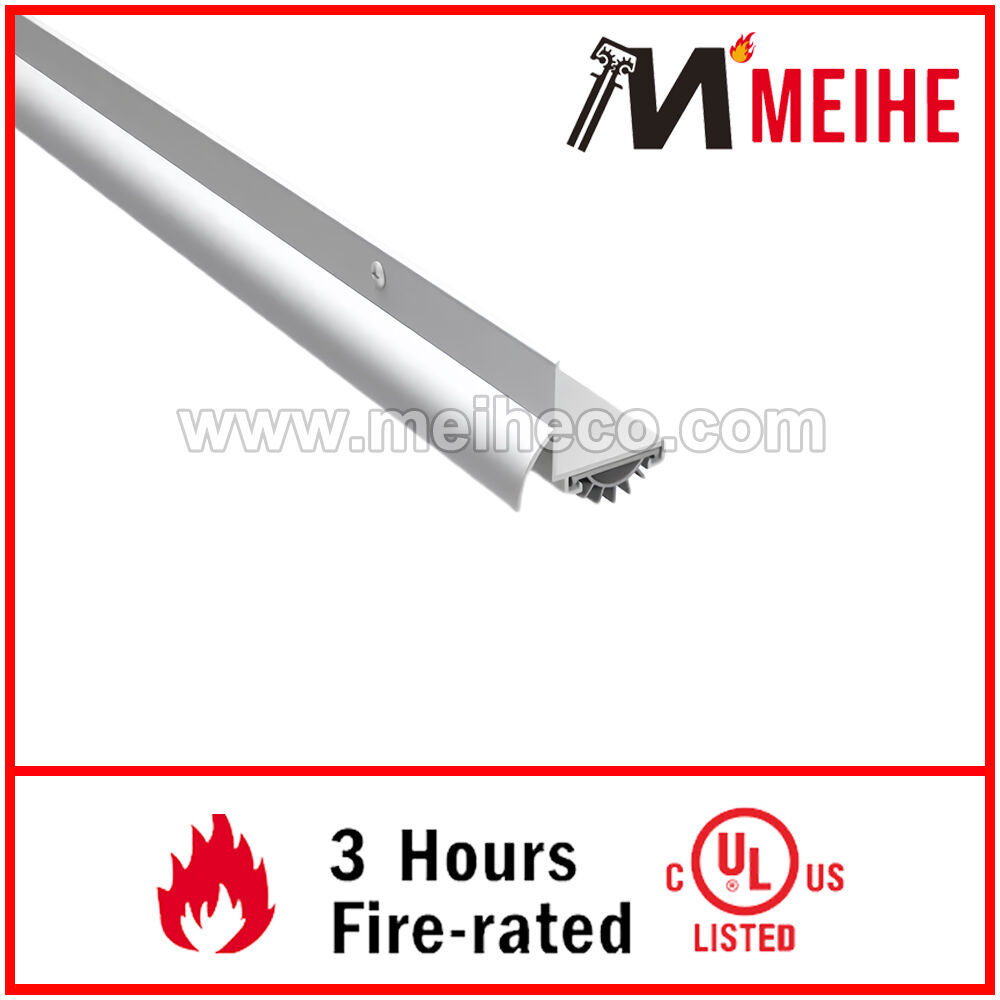

YDS105 Modern Design Aluminum 'L' Shape Door Bottom Smooth Finish Door Shoes with Drip Rail Weather Seals for Effective Wiping
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 7/16” (11.5 mm)
- Height: 1-9/16” (39.7 mm)
- Function：Dustproof Insectproof Soundproof
- Feature：Easy installation
Certificate:
- UL
- Overview
- Recommended Products
This door bottom sweep is a great addition to seal exterior doors, or to protect the edges of interior doors. The high quality aluminum casing has a Rain Drip Cap which deflects water to prevents seepage through the gap under doors and protect the door from abuse. It is fitted with a Vinyl or PemkoPrene Seal which reduces infiltration of fire, smoke drafts, moisture, air and dust.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |

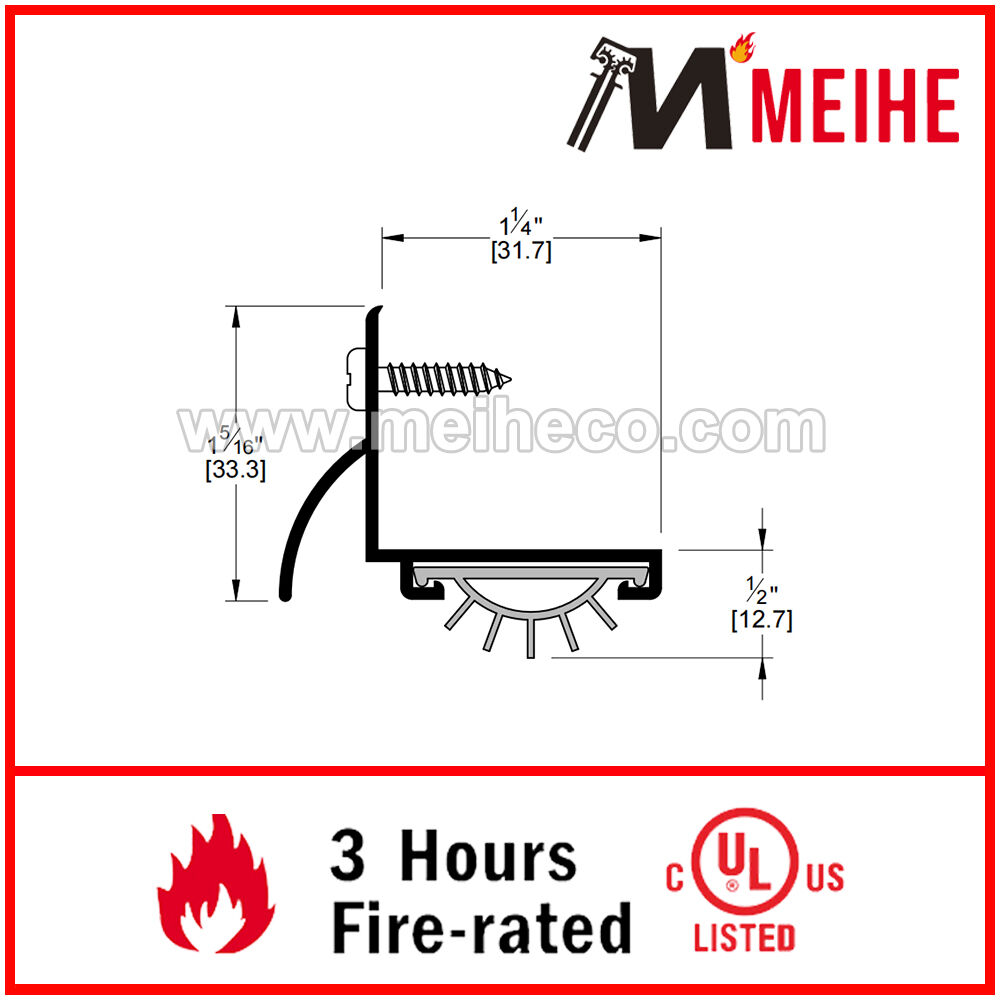

Seal Height |
1/2" Height |
Total Height |
1-13/16" Height |
Additional Dimensions |
Door seal is 1-1/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #210_V; NGP #318V
|
