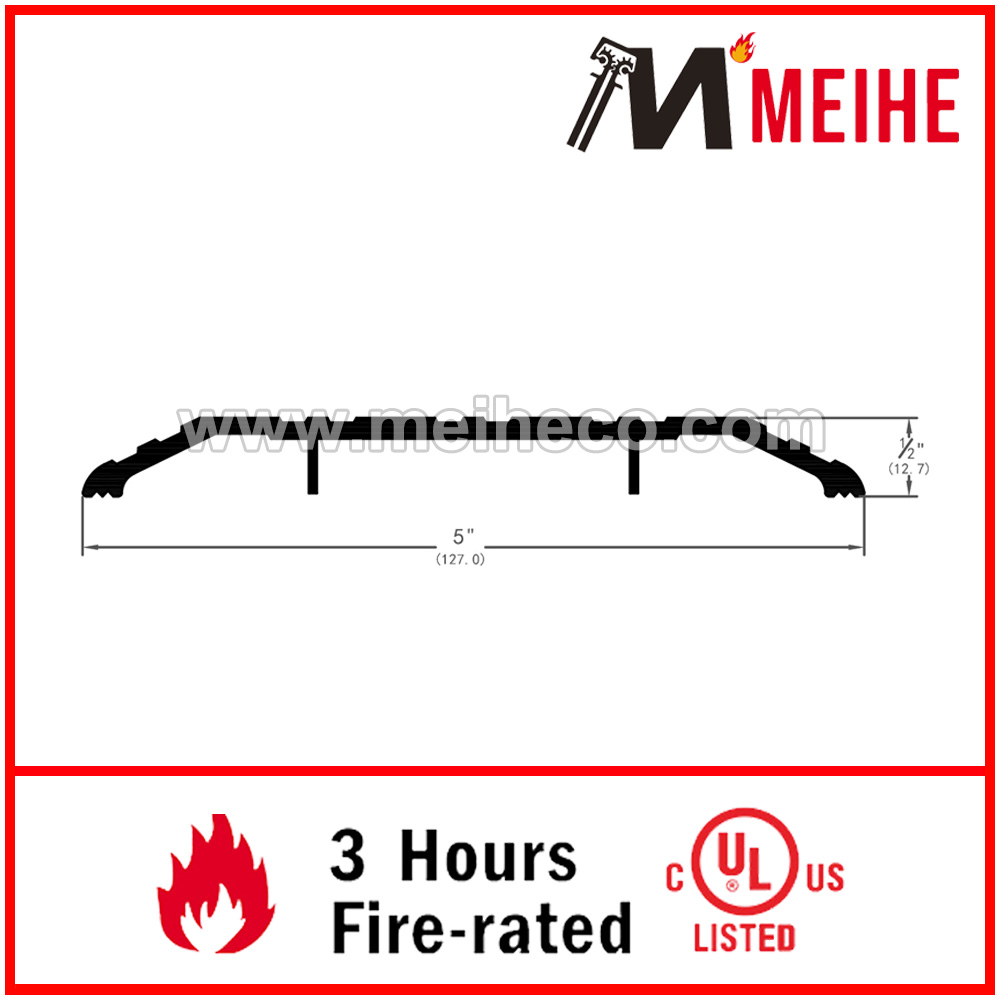

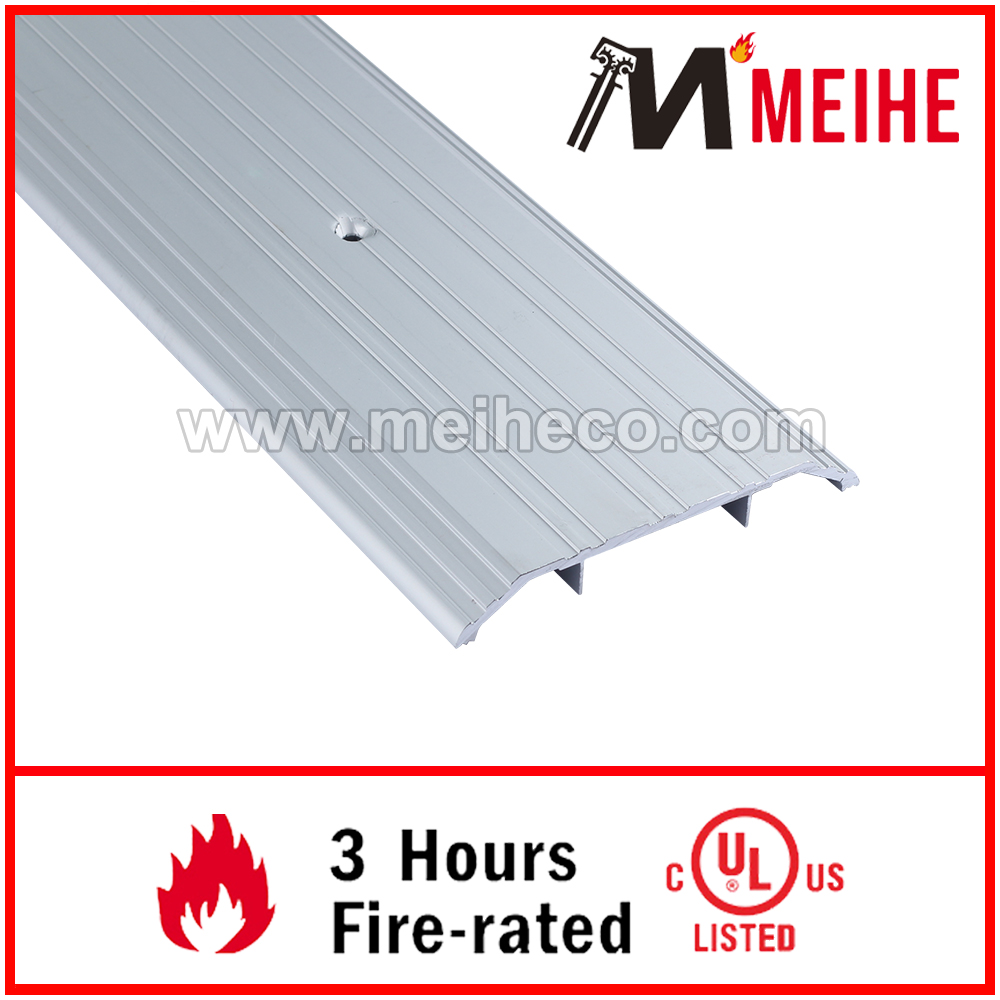

YDT309 Saddle Threshold Fluted Top Aluminum Door
Flat Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB
- Width: 5” (127 mm)
- Height: 1/2” (12.7 mm)
- Warranty:1 Year
Certificate:
- UL
- Overview
- Recommended Products
This fire rated doorway threshold is crafted from high quality thick metal that will not buckle over time. It is ADA Compliant with a width of 5" and height of 0.5" inches. Available in many different finishes and is custom cut to size.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Flat Saddle Design | Smooth Top Design |
| Threshold Type | Flat Utility Threshold |
| Overall Height | 0.5" Height |
| Overall Width | 5" Width |
| Required Door Clearance | 0.625" Height |
| Length | Standard 36", 48"; Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
