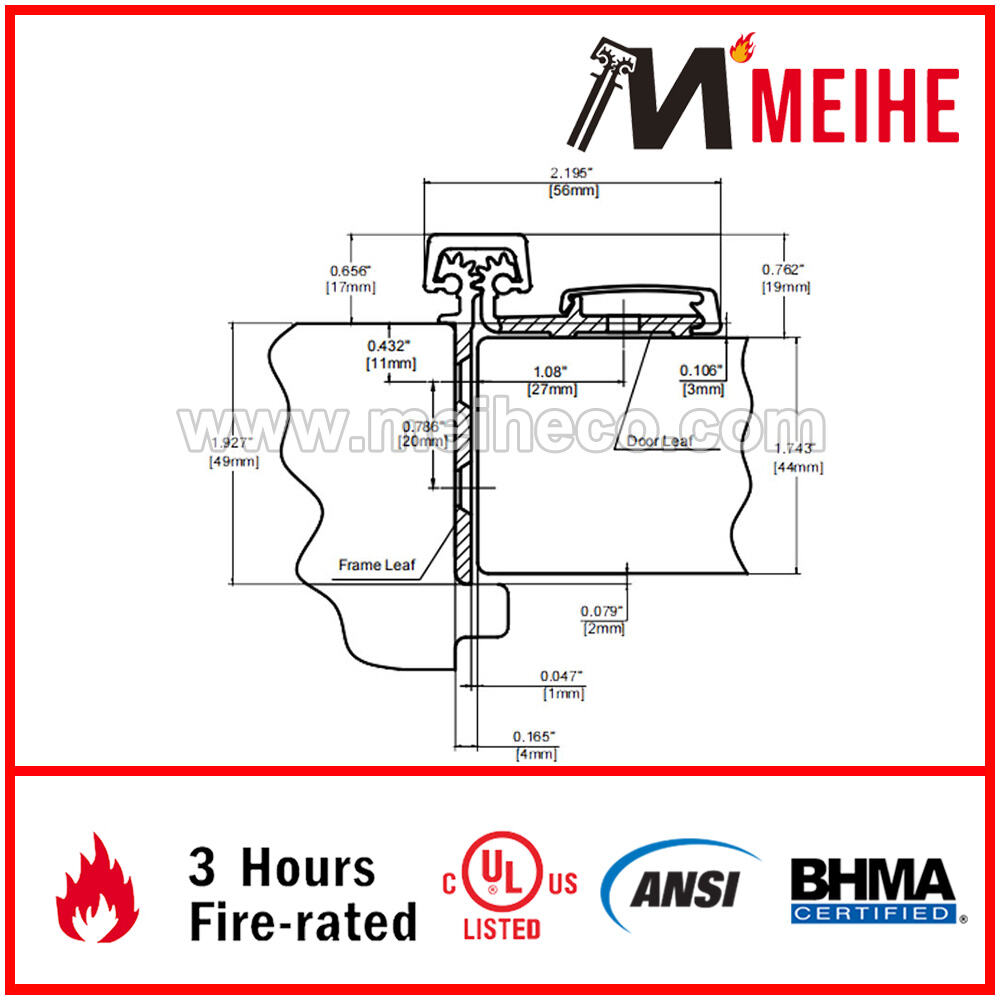

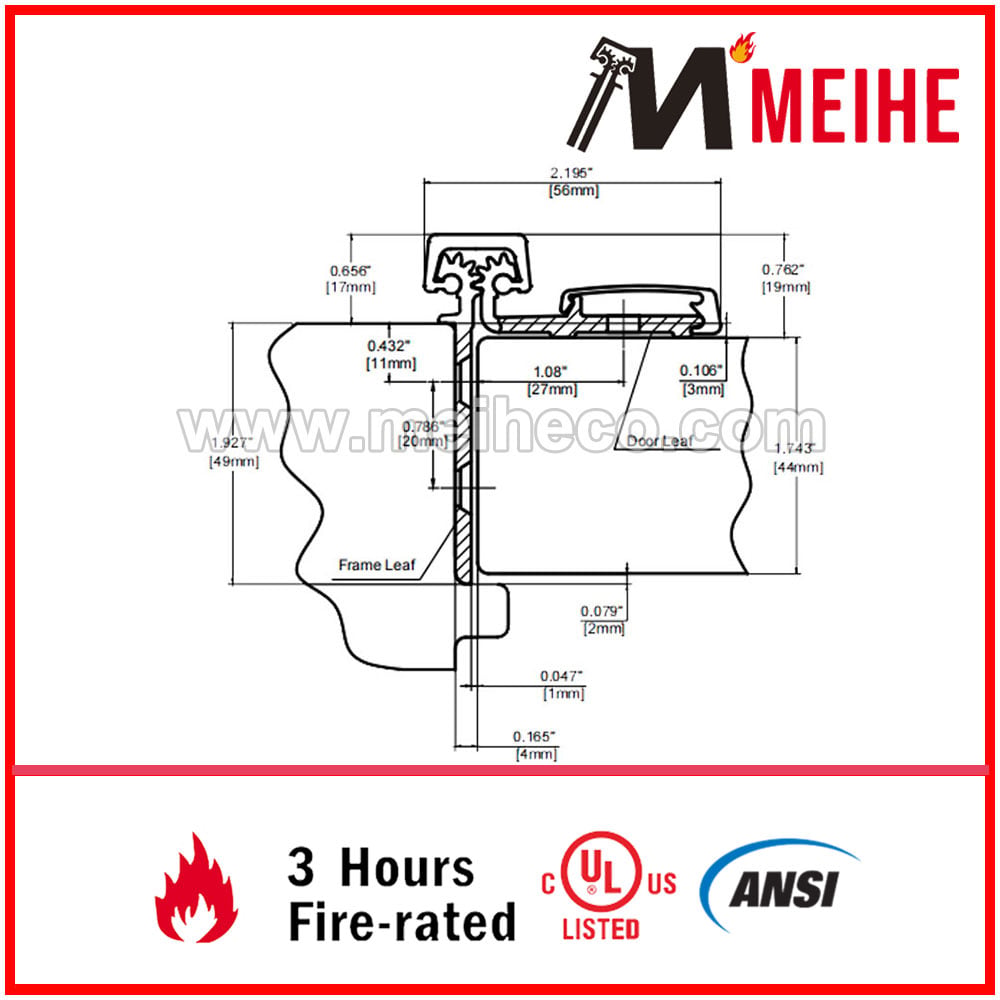

YHG007 Continuous Geared Aluminum Hinges
Half Surface Continuous Geared Hinges
Application:
- Frame leaf alignment rib for proper hinge location
- Security moldings
- 1/8" (3 mm) inset
- Size:83"/95"/119"/Customized
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Sex Bolts(Door) | Pan Head (Door) | Screws (Jamb) |
| 83 | 2108 | 8 | 19 | 19 |
| 95 | 2413 | 10 | 19 | 20 |
| 119 | 3023 | 12 | 23 | 23 |
Clearance:
- 5/32" (4 mm) minimum recommended hinge side
- Plus standard lockside clearance
Fasteners:
- 1/4-20 x 1-1/4" Sexbolt (Screw Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
Length Options:
- 83" & 95" & 119" & Custom
Door Reinforcement:
- None required
Frame Reinforcement:
- None required to 200 lbs.
- Heavier weight use 16-gauge channel.
Fire Rating:
- Up to 3-hour metal and 90 minute wood composite
Special Features:
- For renovation with new door and / or frames
- No mortising of doors or frame required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
Options:
- Hospital Tip
- Electrified Modual
