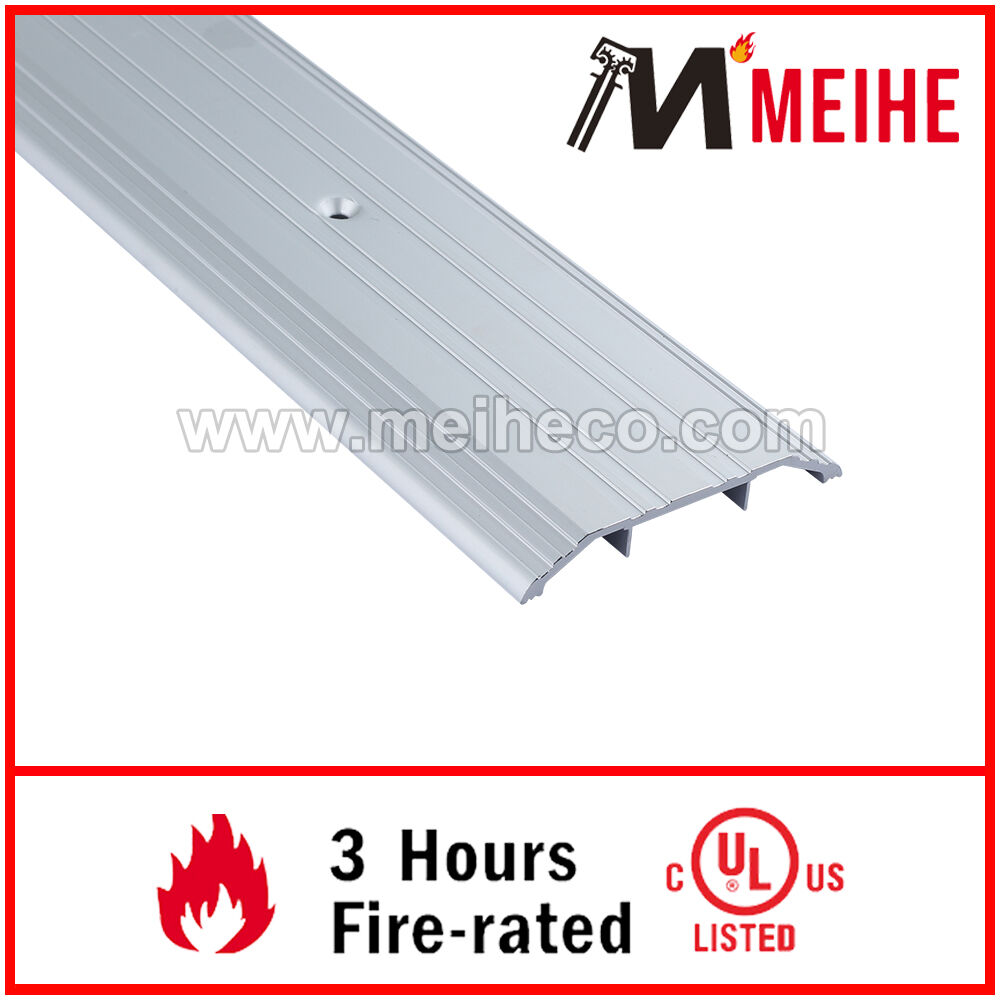

YDT308 Floor Door Saddle Threshold Strip Anodized Aluminium
Flat Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB

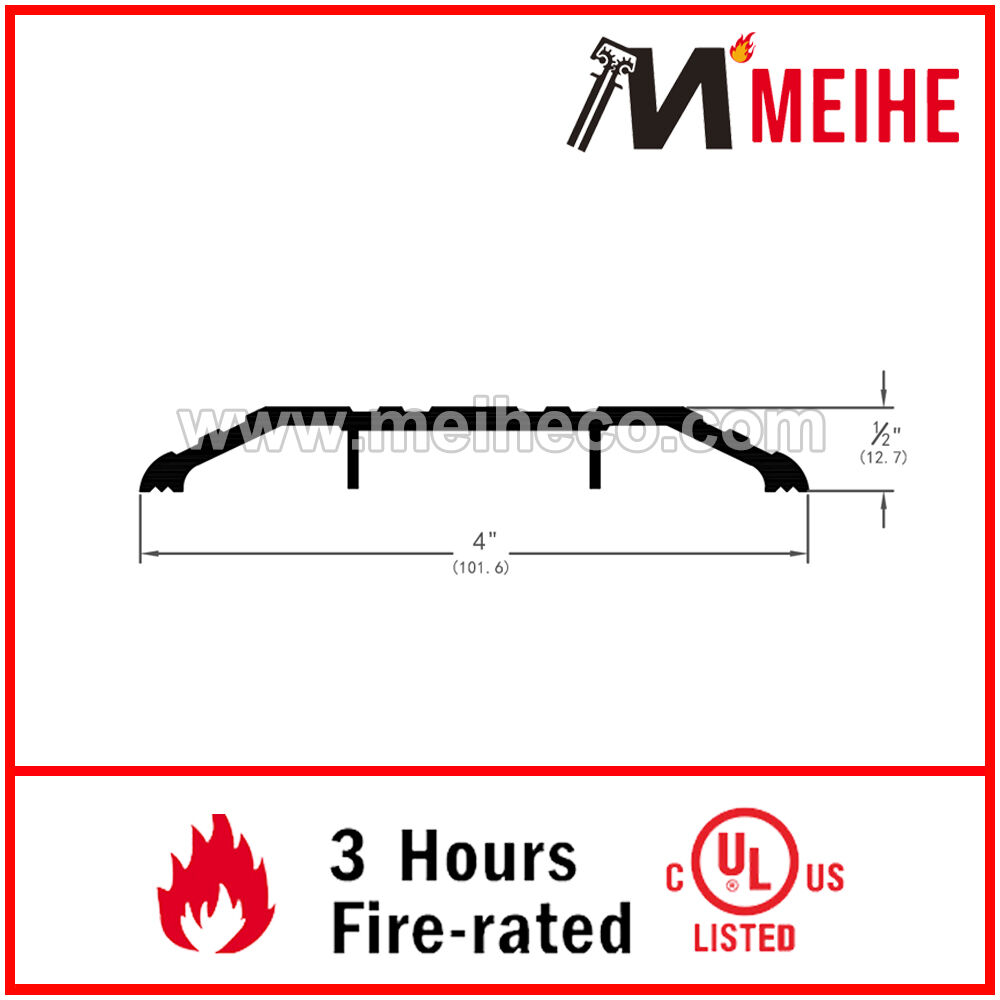

- Width: 4” (101.6 mm)
- Height: 1/2” (12.7 mm)
- Warranty:1 Year
Certificate:
- UL
- Overview
- Recommended Products
This ADA compliant and fire rated 4" Saddle Threshold is extruded from high quality aluminum, providing long lasting superior performance. It has a height of 0.5" and aids in insulating a room as well as creates smooth transition between two floor surfaces.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Flat Saddle Design | Fluted (Grooved) Design |
| Threshold Type | Flat Utility Threshold |
| Overall Height | 0.5" Height |
| Overall Width | 4" Width |
| Required Door Clearance | 0.625" Height |
| Length | Standard 36", 48";Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
