YDS101 Modern Aluminum Elevator Door Shoes 1-3/4 36\" Wrap-around Door Bottom Vinyl Seal Modern Design Door Window Accessories
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 1/4” (6.4 mm)
- Height: 1-13/16” (45.8 mm)
- Function：Dustproof Insectproof Soundproof
- Feature：Easy installation
Certificate:
- UL
- Overview
- Recommended Products

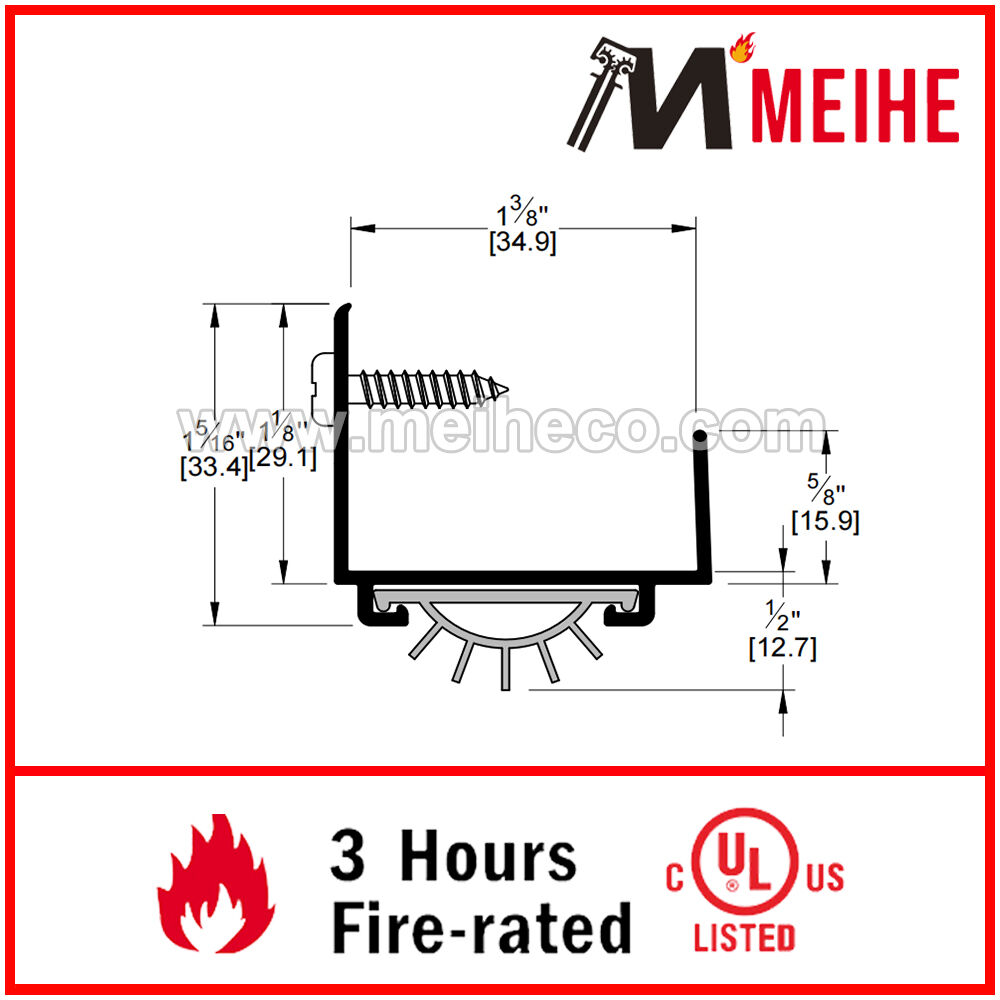

This door bottom, with a 1.25" sleek anodized aluminum casing, is fitted with a 9/16" thick sponge neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface to seal small gaps of approximately 9/16". Available in anodized aluminum and is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
1/2" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 1-3/8" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #220_V
|
