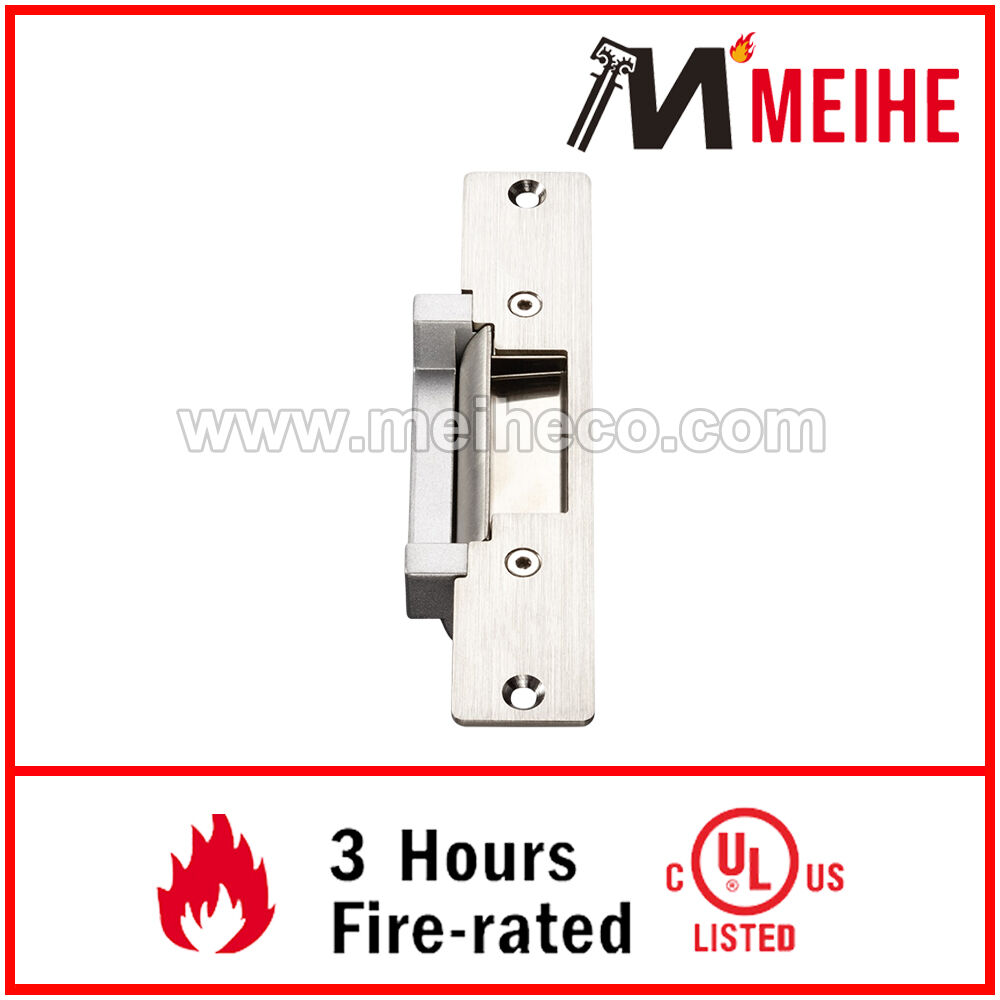

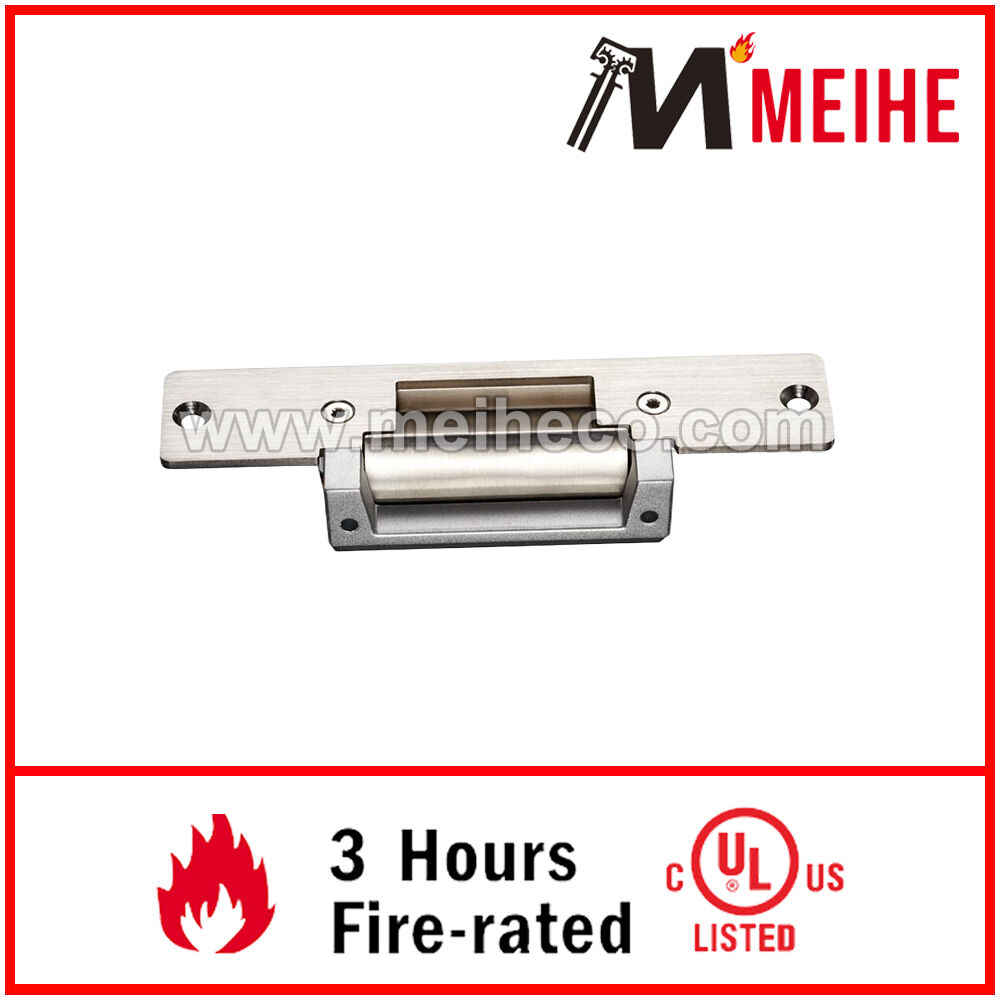

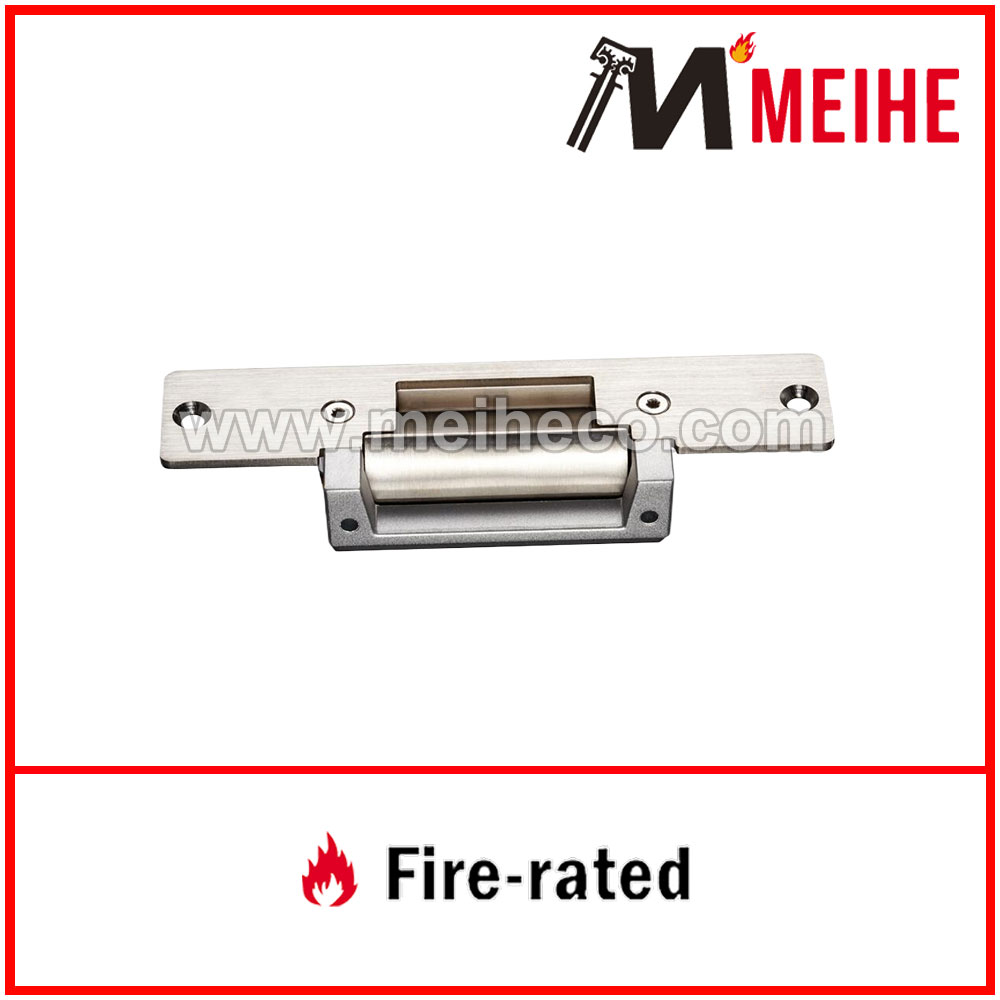

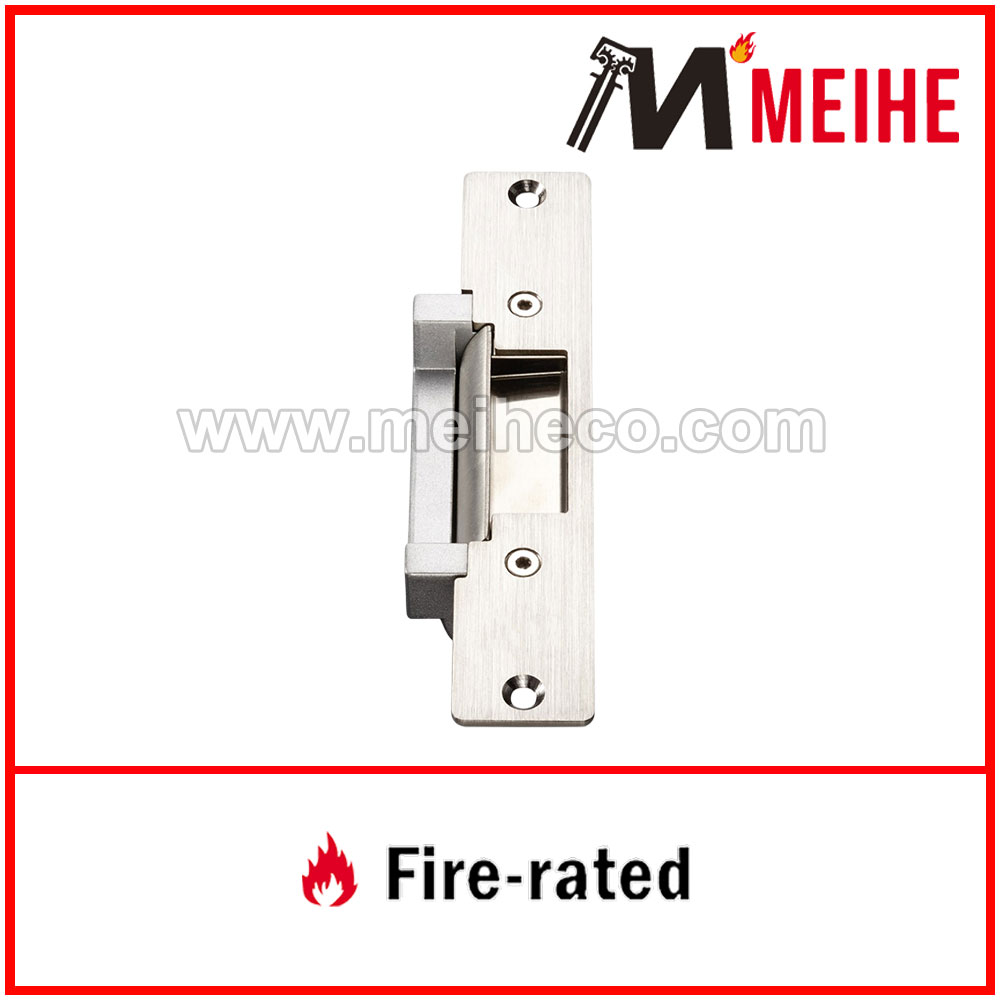

ES003 American Heavy-Duty Fail-Secure Door Lock Long Type for Swinging Door with Electric Strike High Performance Lock Cylinders
Electric Strikes
- Material：Stainless Steel
- OEM：Available
- Voltage：12VDC/24VDC
- Overview
- Recommended Products
Electric strikes are one of several kinds of electrically operated locking devices used to secure both inside and outside doors. Electro mechanical by nature, they provide a cost-effective way to control foot traffic from one side of a door to the other.

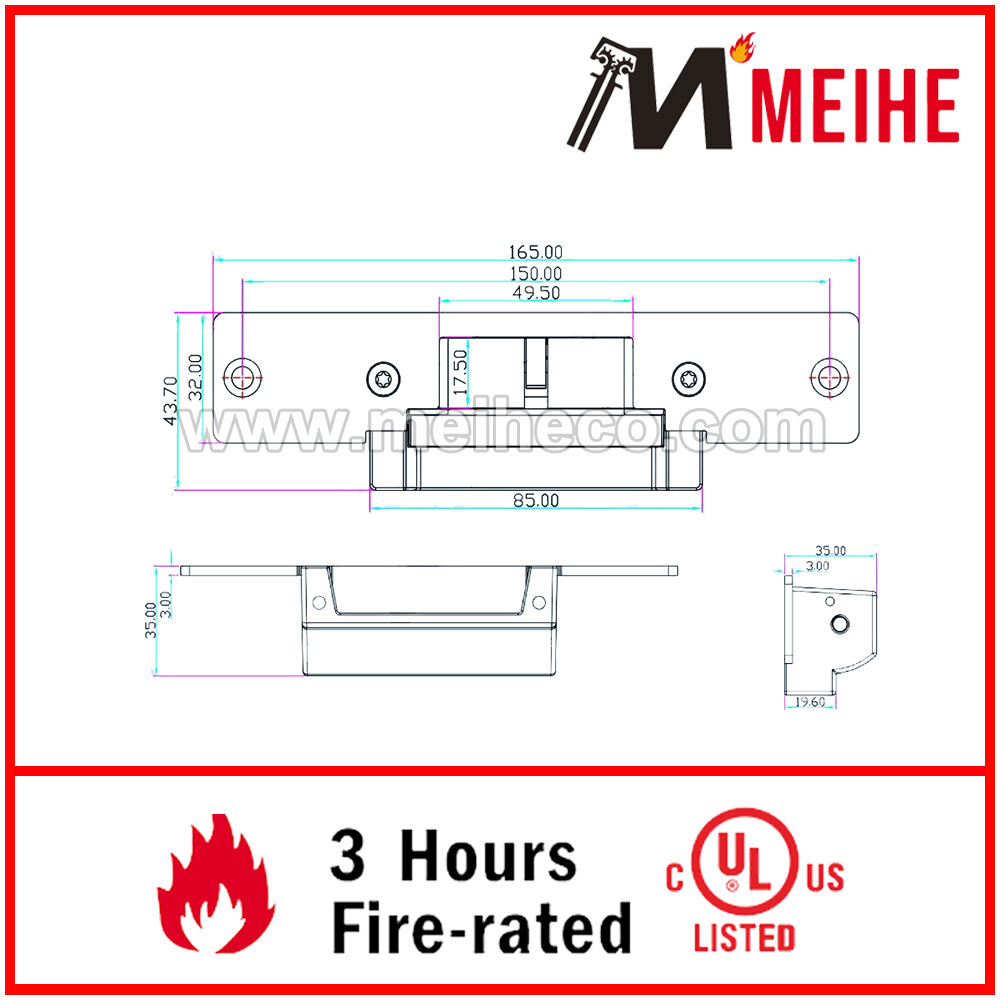

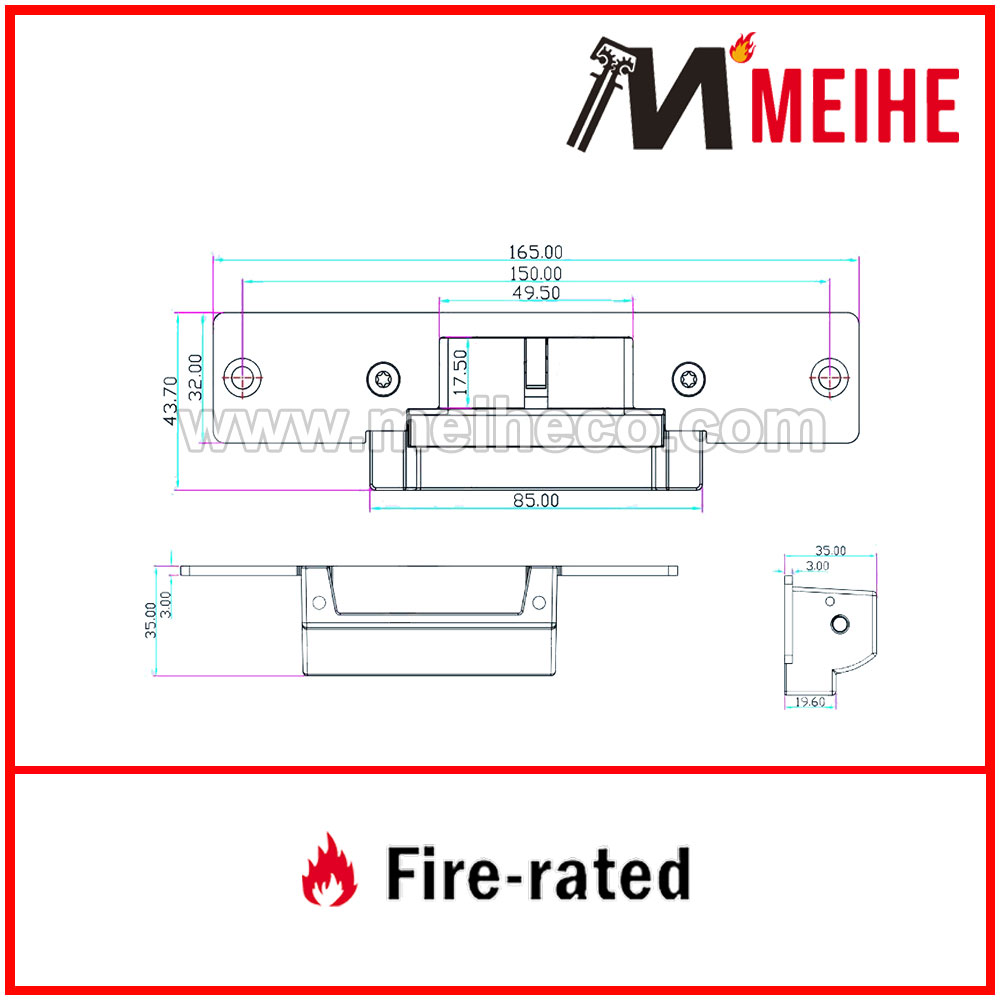

Lock Size |
165L x 43.7W x 35H(mm) |
Holiding Force |
500kg |
Voltage |
DC 12V/DC 24V |
Current |
12V/320mA(±10%)；24V/160mA(±10%) |
Function |
Built-out MOV |
Surface Temp |
Within +20℃ |
Face Plate Housing |
Painted Steel |
Suitable for |
Wooden doors, Metal doors, PVC doors |
