YDS609 Modern Design Seal Brush Strip Aluminum Door Under-Door Brush
Brush Weatherstripping
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

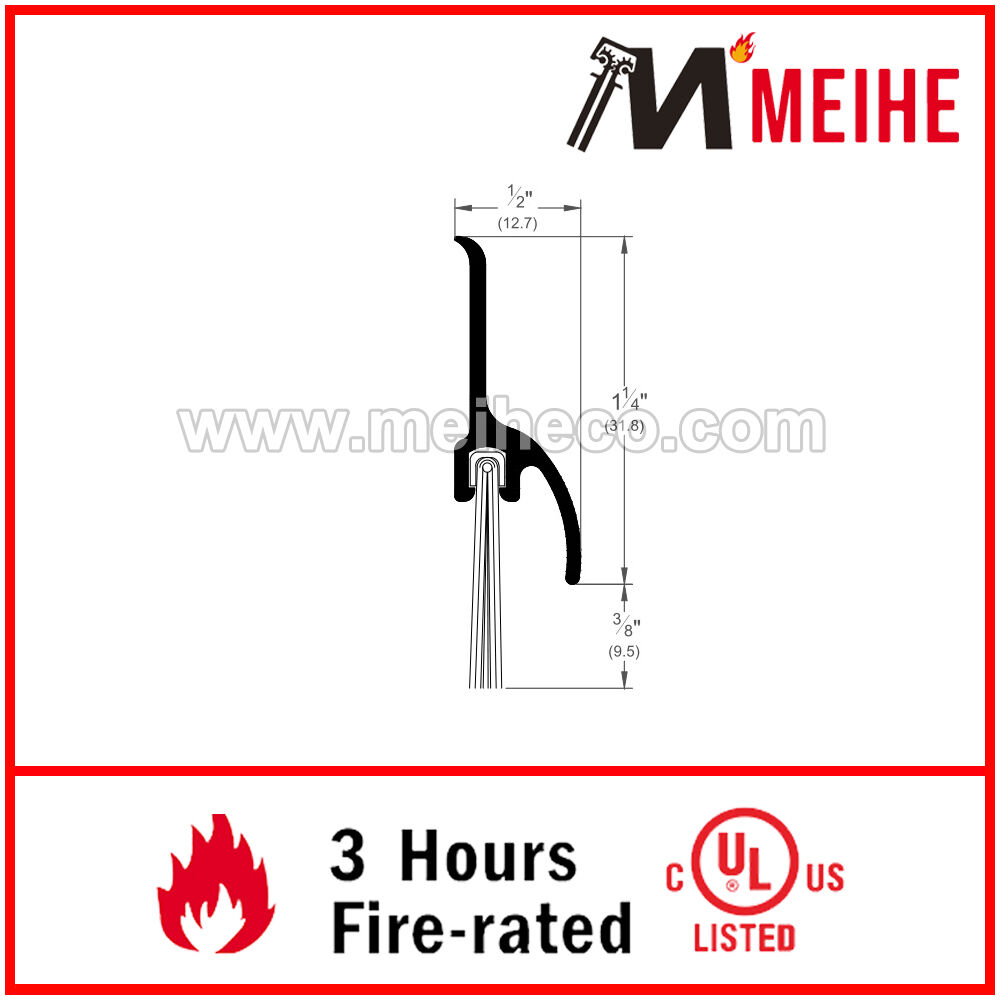

- Width: 1/2” (12.7 mm)
- Profile Height: 1-1/4” (31.8 mm)
- Height Including Brush: 1-5/8” (41.3 mm)
- Certificate：UL Certified
- Overview
- Recommended Products
This door bottom sweep is great for the outdoors. The high quality aluminum casing has a rain drip design which deflects water and prevents seepages through the gap under doors. It has a nylon brush seal which reduces infiltration of drafts, moisture, air and dust. Available in many finishes and is custom cut to size.
Door Brush Retainer Material |
Aluminum |
Temperature Range |
Seals remain flexible between -40° F and over 400° F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Nylon Brush Seal |
Mounting |
Surface Mounted |
Seal Height |
3/8" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 1/2" thick |
Length |
Standard 36",48";Custom Cut to Size |
Finish |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill Holes Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #3452CNB; NGP #C627 |
