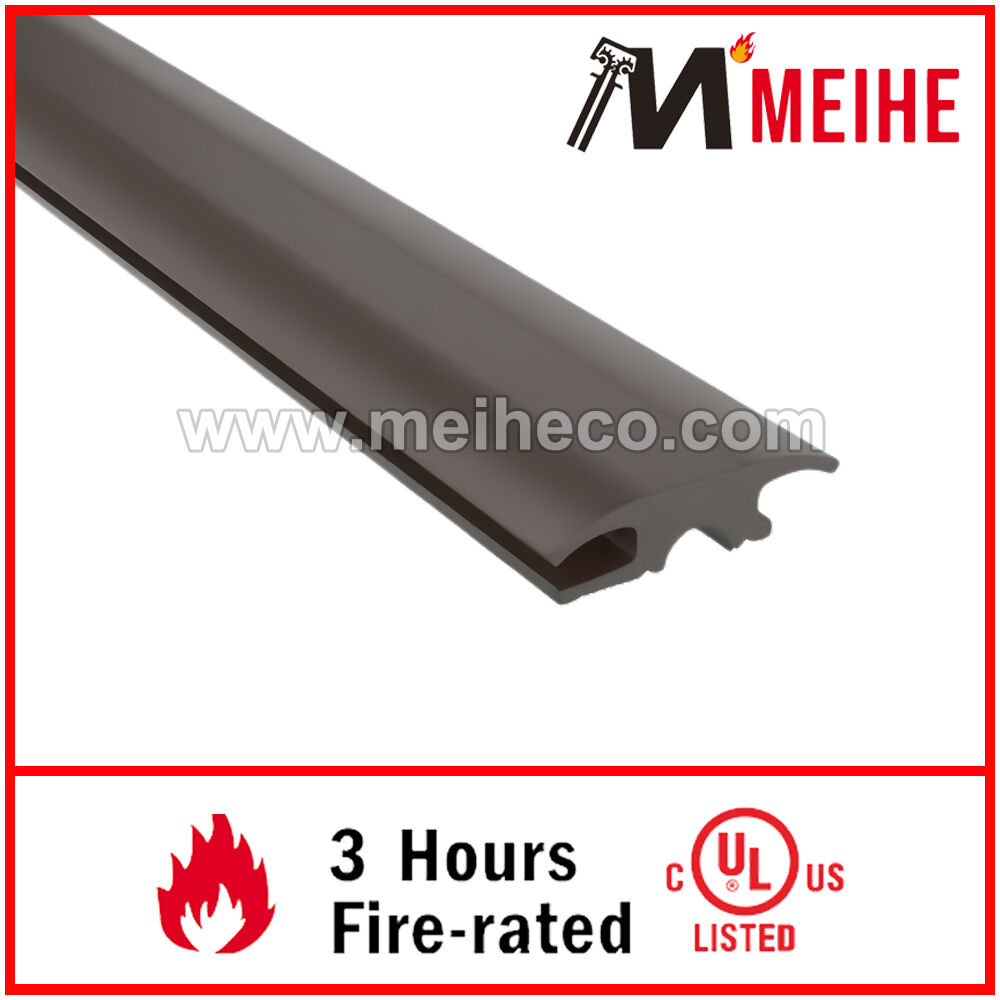

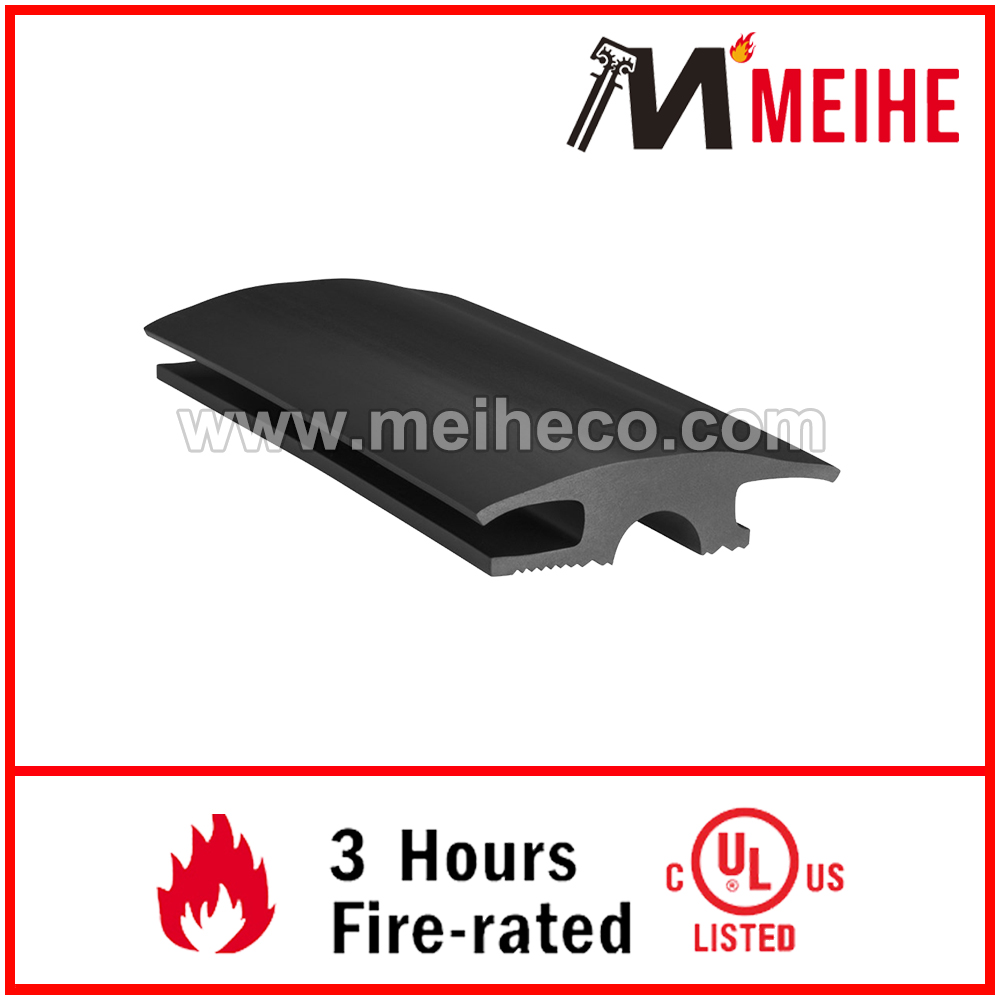

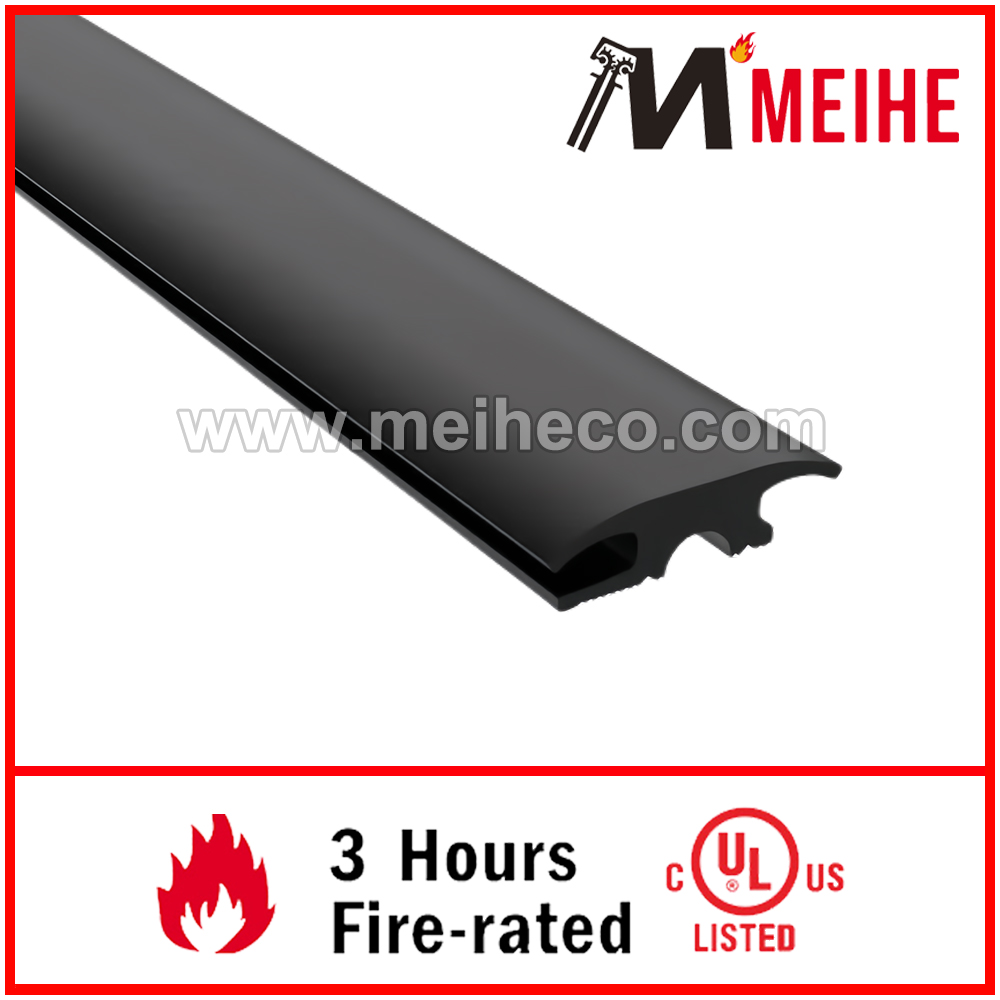

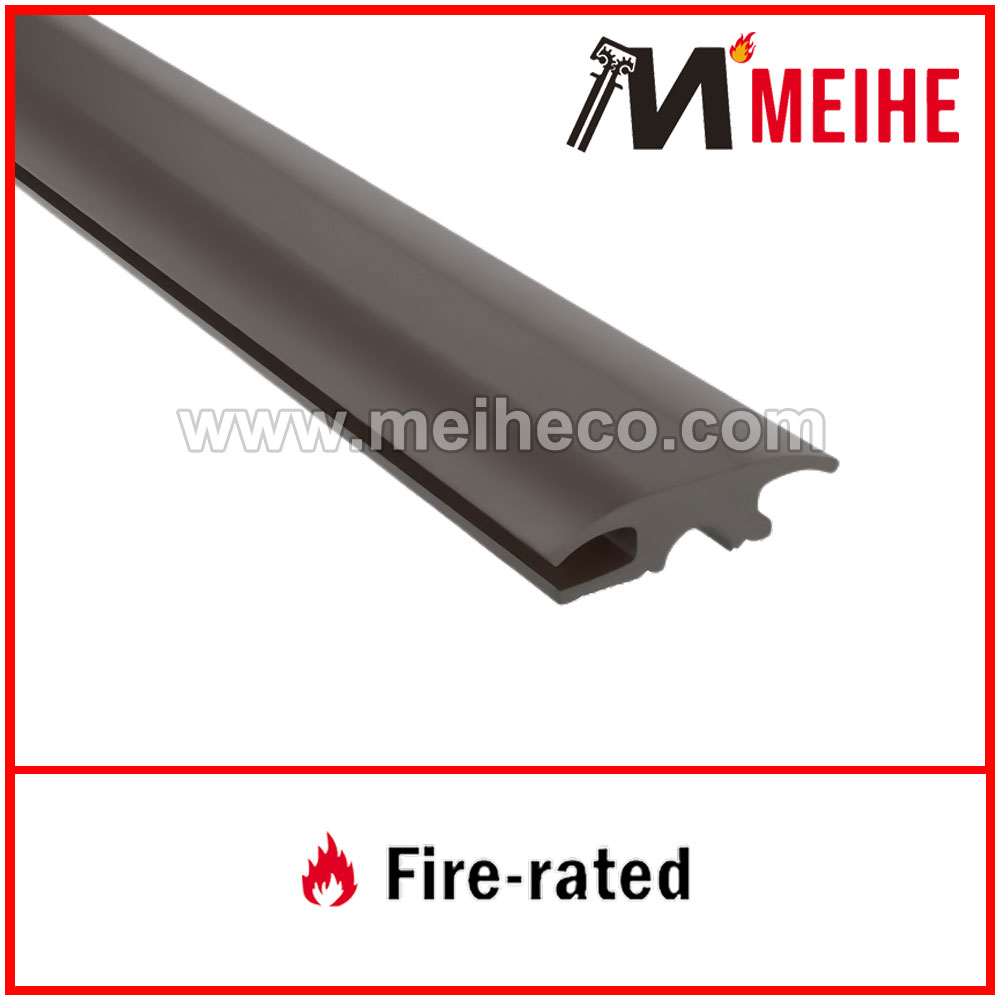

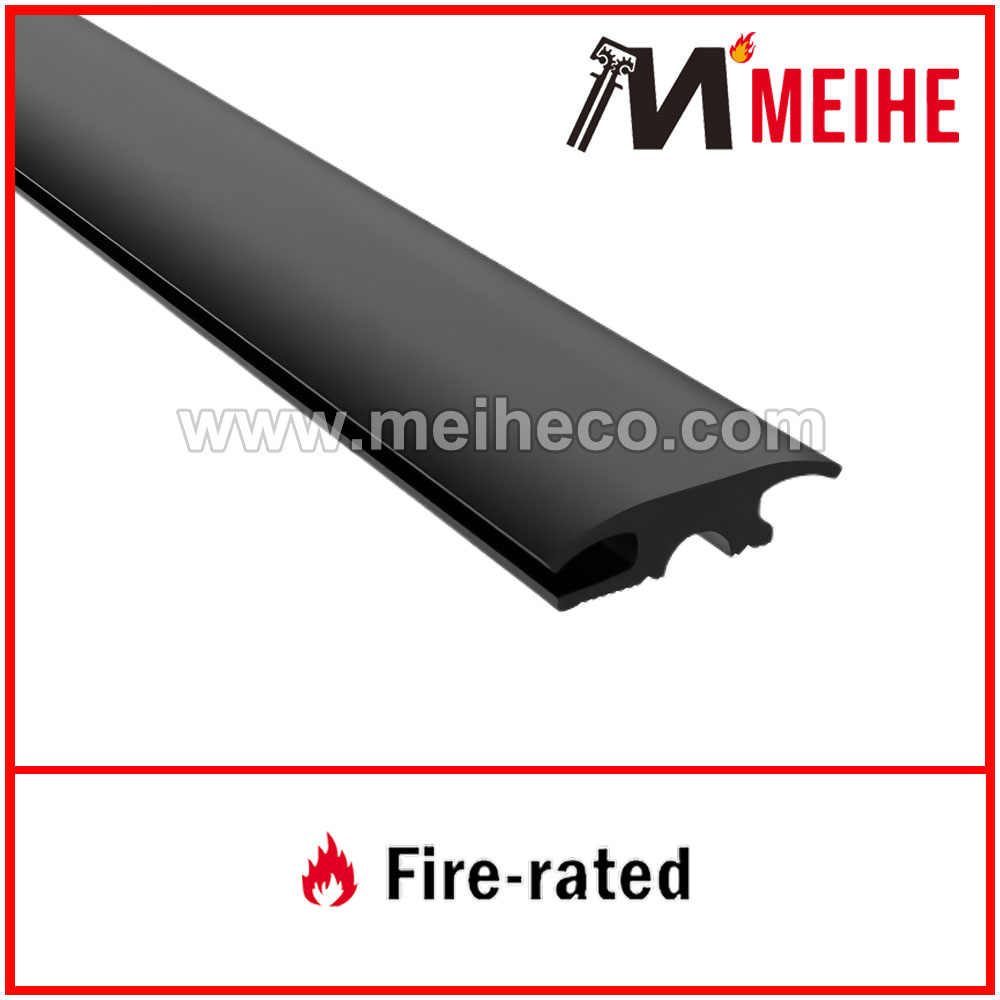

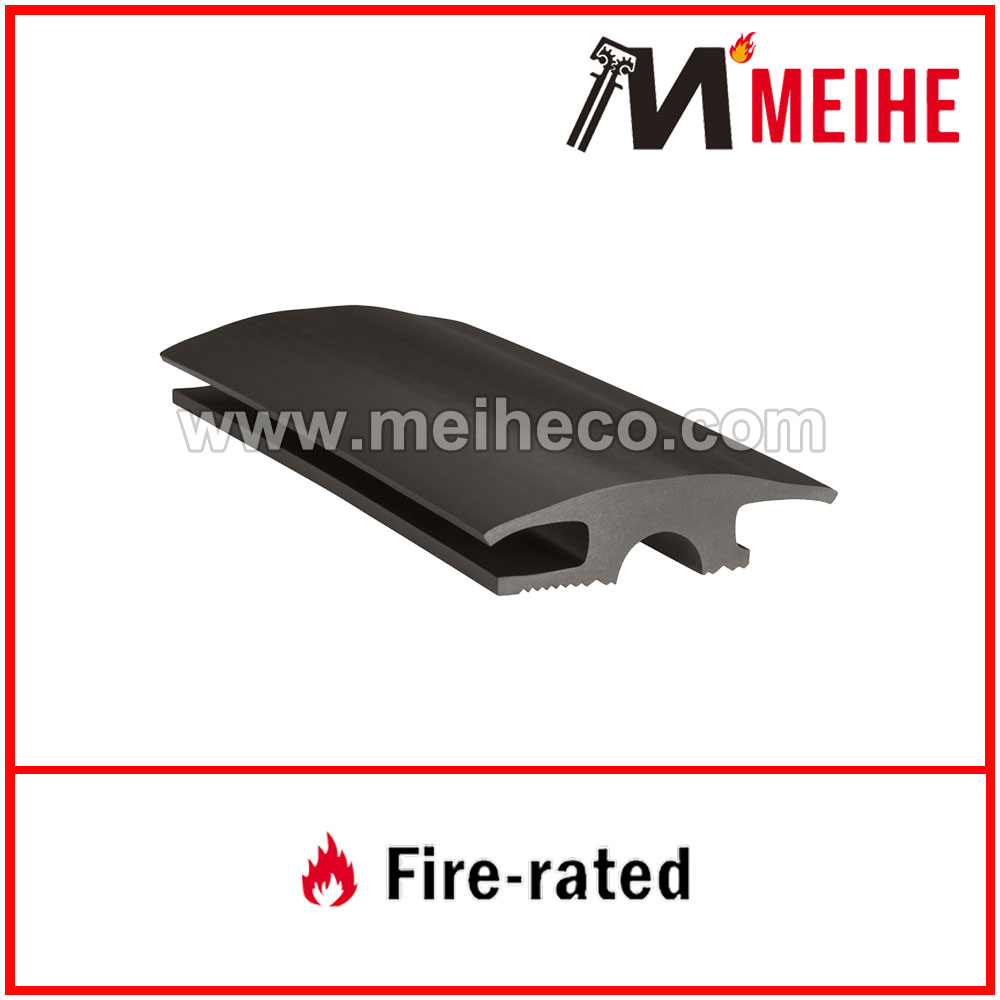

EV2325 Threshold PVC Vinyl Door For Outdoor Front Door Application
Hospitality(Vinyl) Thresholds
- Available Finishes: BL, D

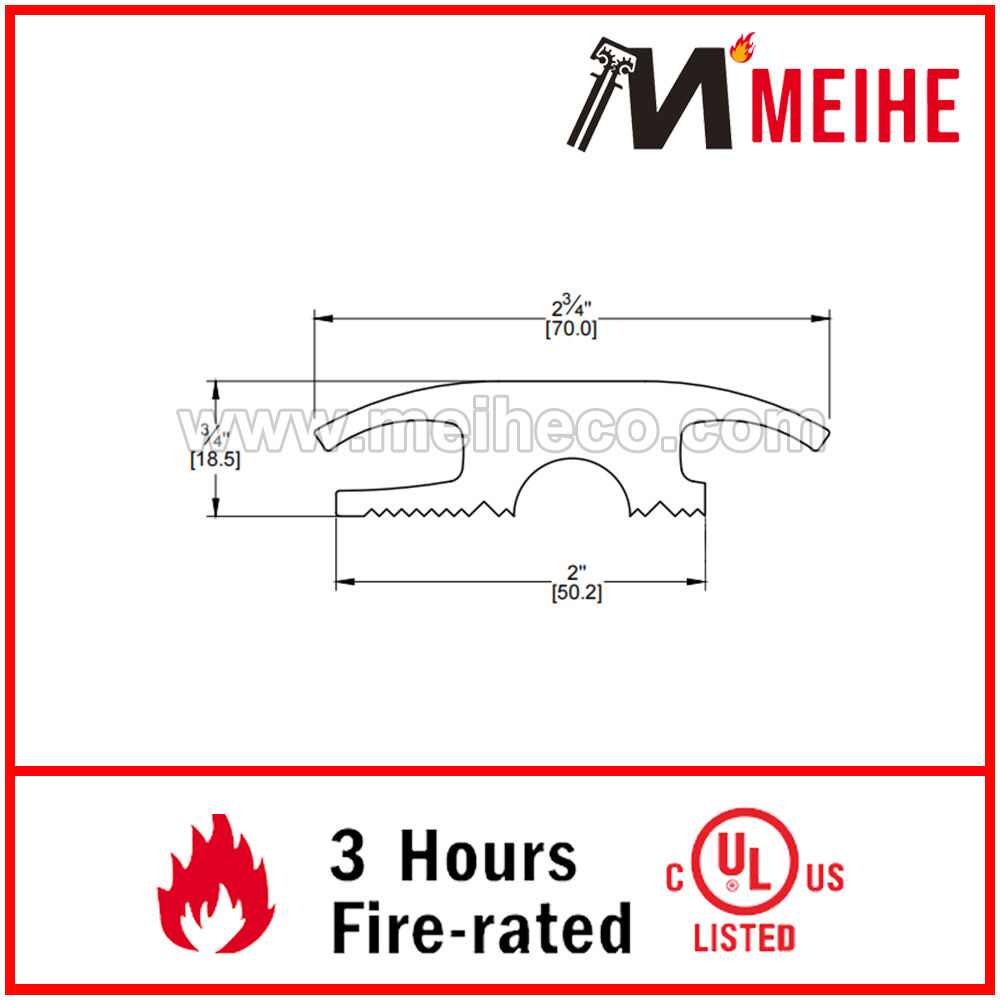

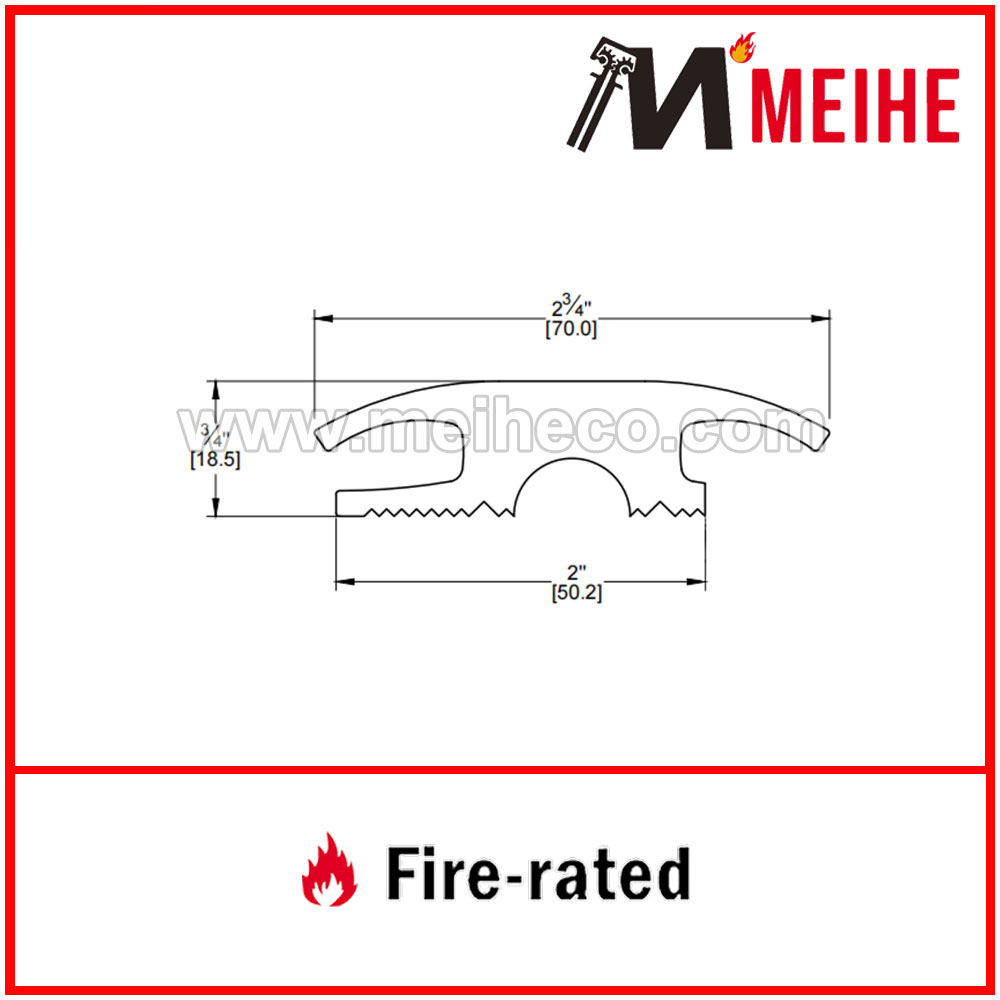

- Width: 2-4/5” (71.2 mm)
- Height: 3/4” (19.1 mm)
- Warranty:1 Year
- Certificate:UL Certified
- Overview
- Recommended Products
* The EV2325 threshold creates an ideal transition where carpet meets another tile beneath an interior door.
* Ideal for use in any high-traffic commercial installation, such as hotels and offices.
* Available lengths: 36", 48" and 73".
* Available in black (BL) and dark brown (D).
* Note: Adhesives underneath the threshold could add as much as 1/32" to 1/16" of height and should be considered when calculating the needed clearance.
| Type | Vinyl |
| Finish | Black/Dark Bronze |
| Flat Saddle Design | Smooth Top Design |
| Threshold Type | Carpet Divider / Seam Binding |
| Overall Height | 0.75" Height |
| Overall Width | 2-4/5" Width |
| Required Door Clearance | 0.75" Height |
| Length | Standard 36", 48", 73" |
| Certificate | Fire Rated - UL 10B/10C |
| Installation | Drilling holes and Fasteners are provided |
| Cross Reference | PEMKO #EV2325; NGP #402 |
