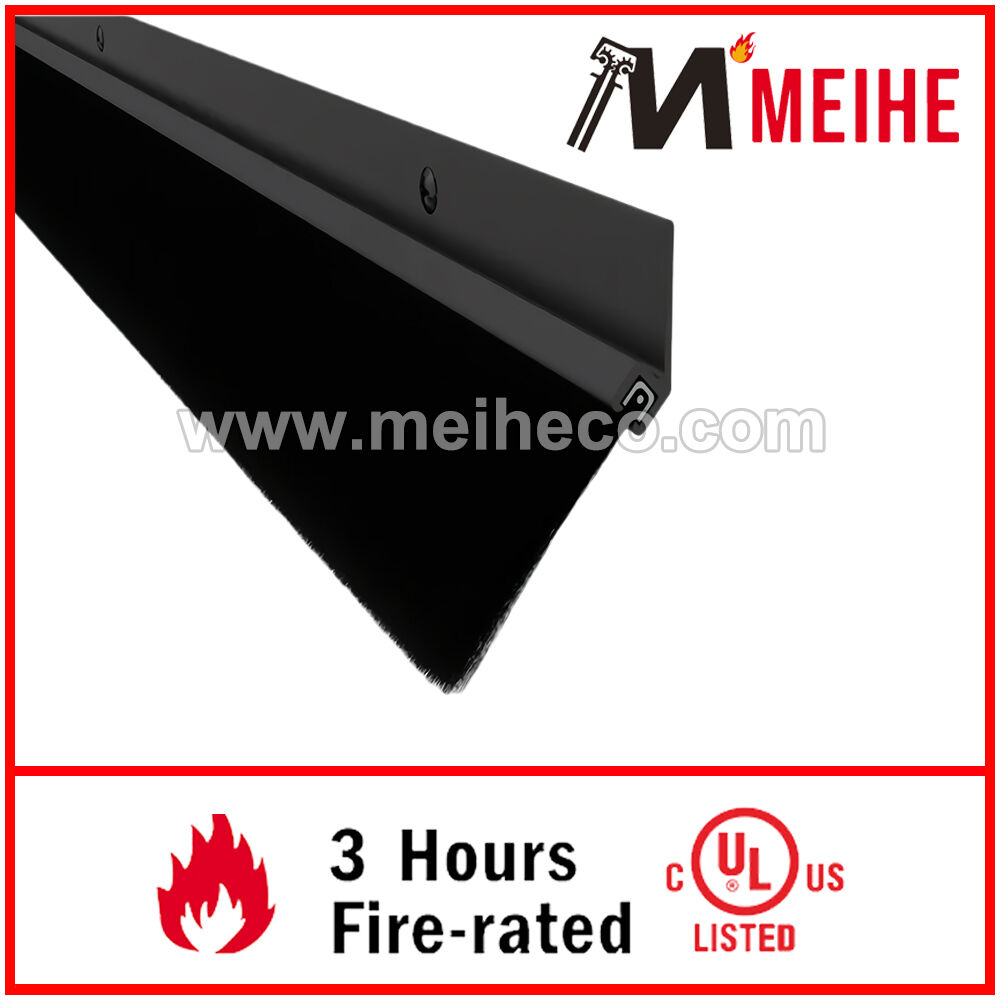

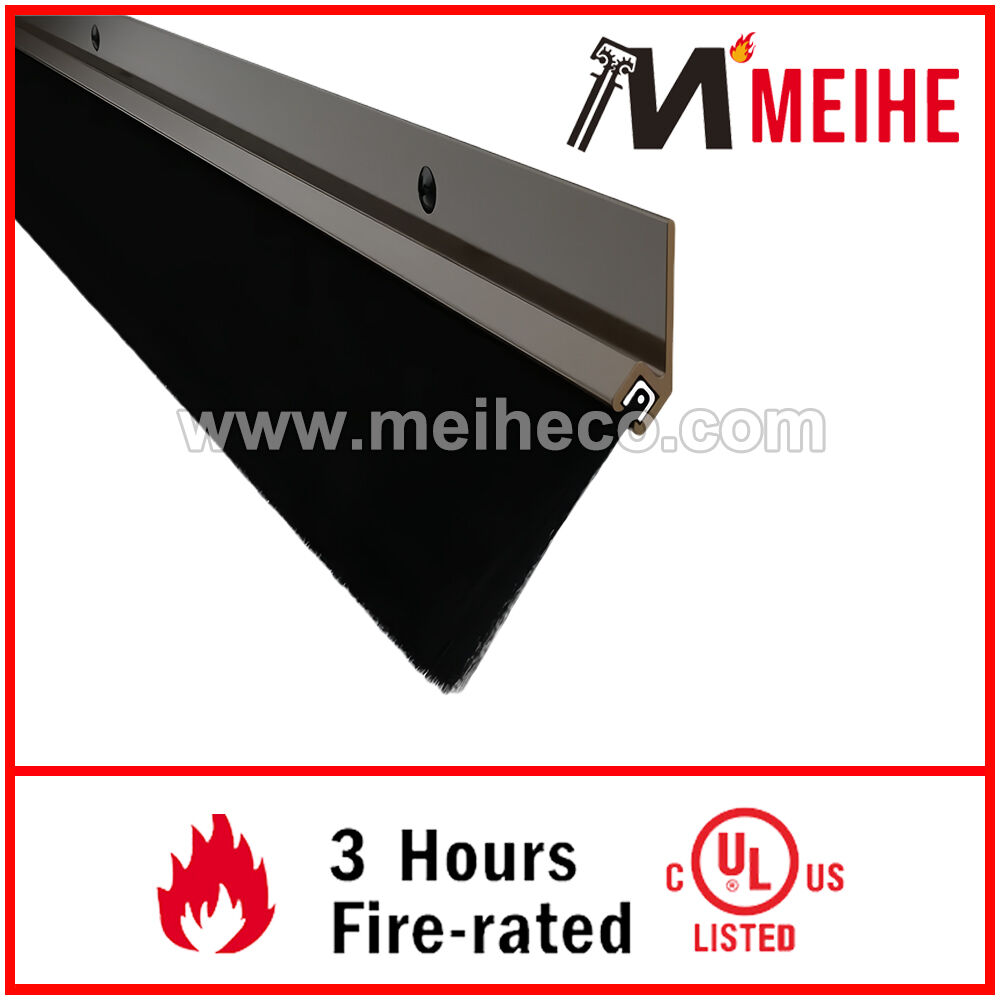

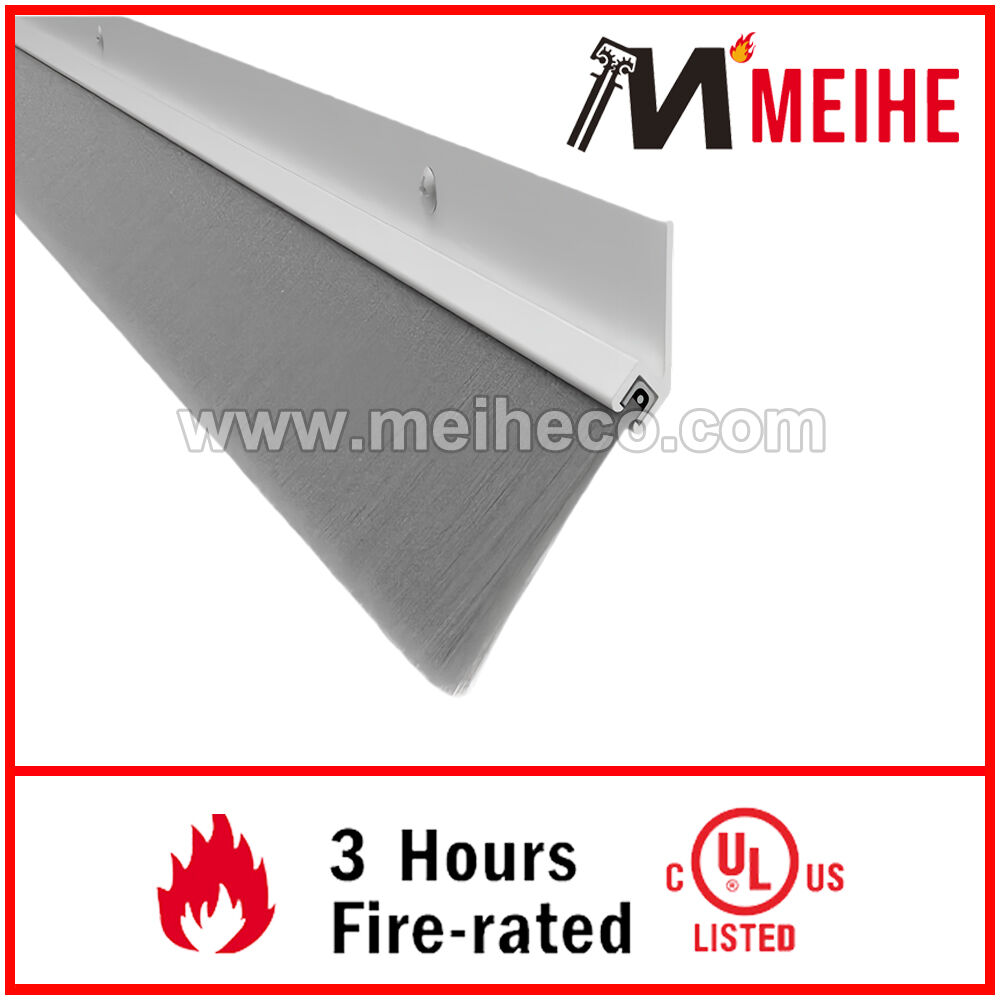

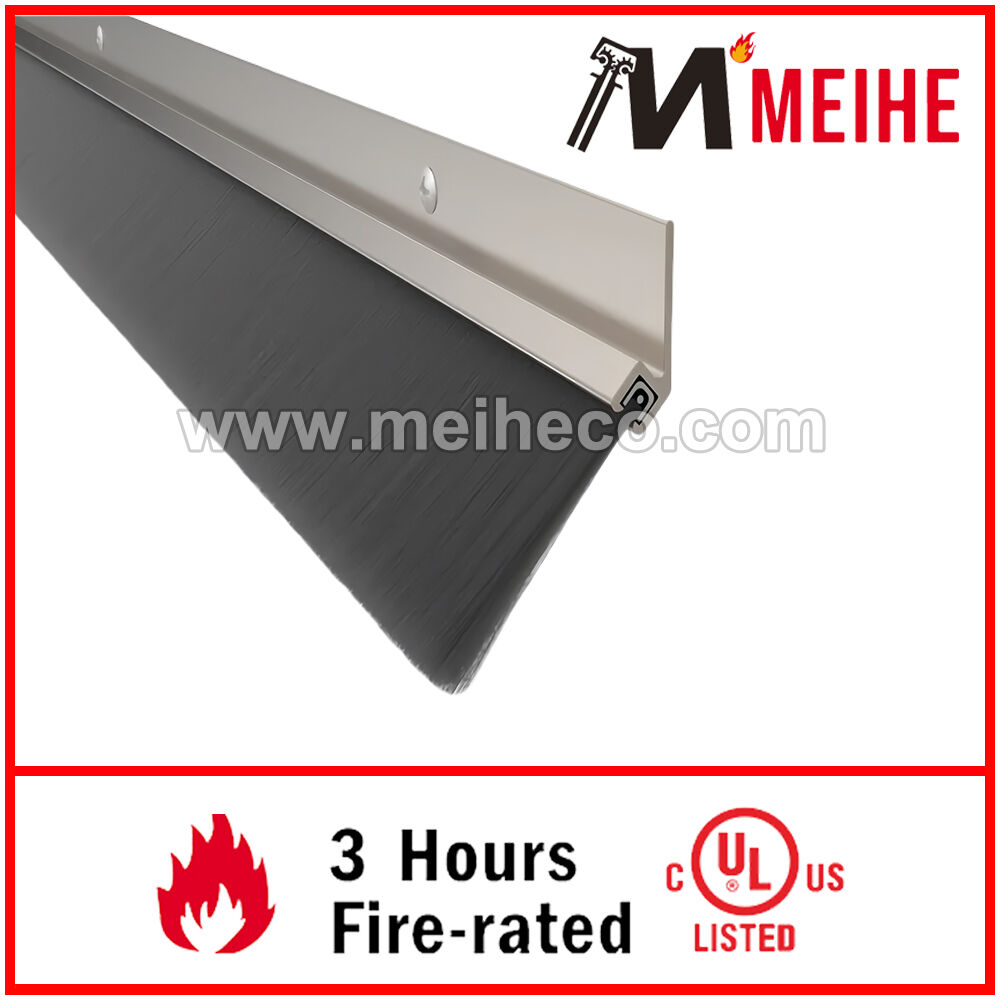

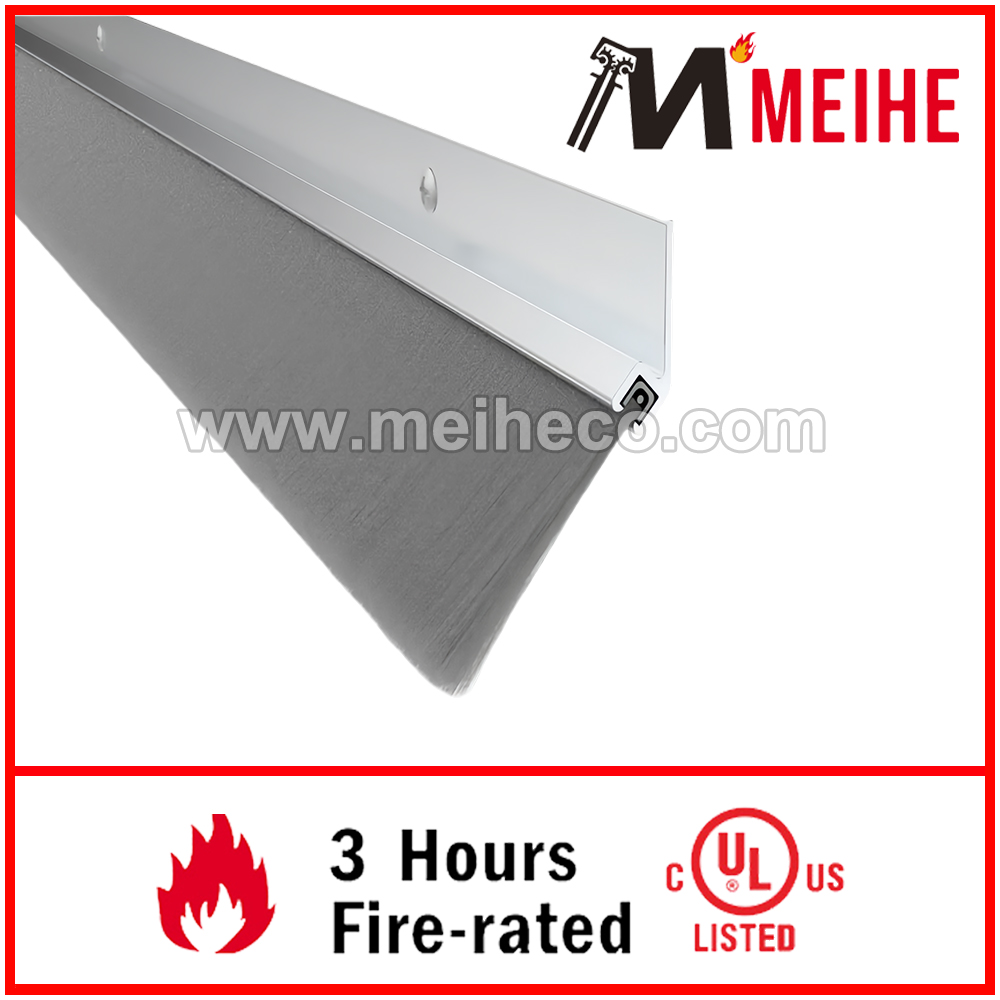

YDS605 Aluminum Interior Door Bottom Seal Sweeps Metal Seal Brush Door Aluminum Brushes
Brush Weatherstripping
- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 5/16” (7.9 mm)
- Profile Height: 3/4” (19.1 mm)
- Height Including Brush: 1-3/16” (30.2 mm)
- Certificate：UL Certified
- Overview
- Recommended Products
This Door Gasket and Door Bottom Sweep is supplied with an 45° angled flange which provides the best contact between the seal and the floor surface or door jamb. It has a high quality 0.6875" brush seal which can seal up to 0.375” gaps and greatly reduce infiltration of light, air, wind, rain, and snow; prevents heat loss; and controls the penetration of smoke and fumes. Available in various aluminum finishes and is custom cut to size.
Door Brush Retainer Material |
Aluminum |
Temperature Range |
Seals remain flexible between -40° F and over 400° F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Nylon Brush Seal |
Mounting |
Surface Mounted |
Seal Height |
11/16" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 3/8" thick |
Length |
Standard 36",48";Custom Cut to Size |
Finish |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill Holes Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #45100CNB; NGP #D620 |
