YDS110 Modern Design Aluminum Flat Anodized 'U' Shape Door Bottom Elevator Parts Brush Flat Anodized Finish 'U' Shape Door Shoes
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 13/64” (5.1 mm)
- Height: 1-21/32” (42.1 mm)
- Function;Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products

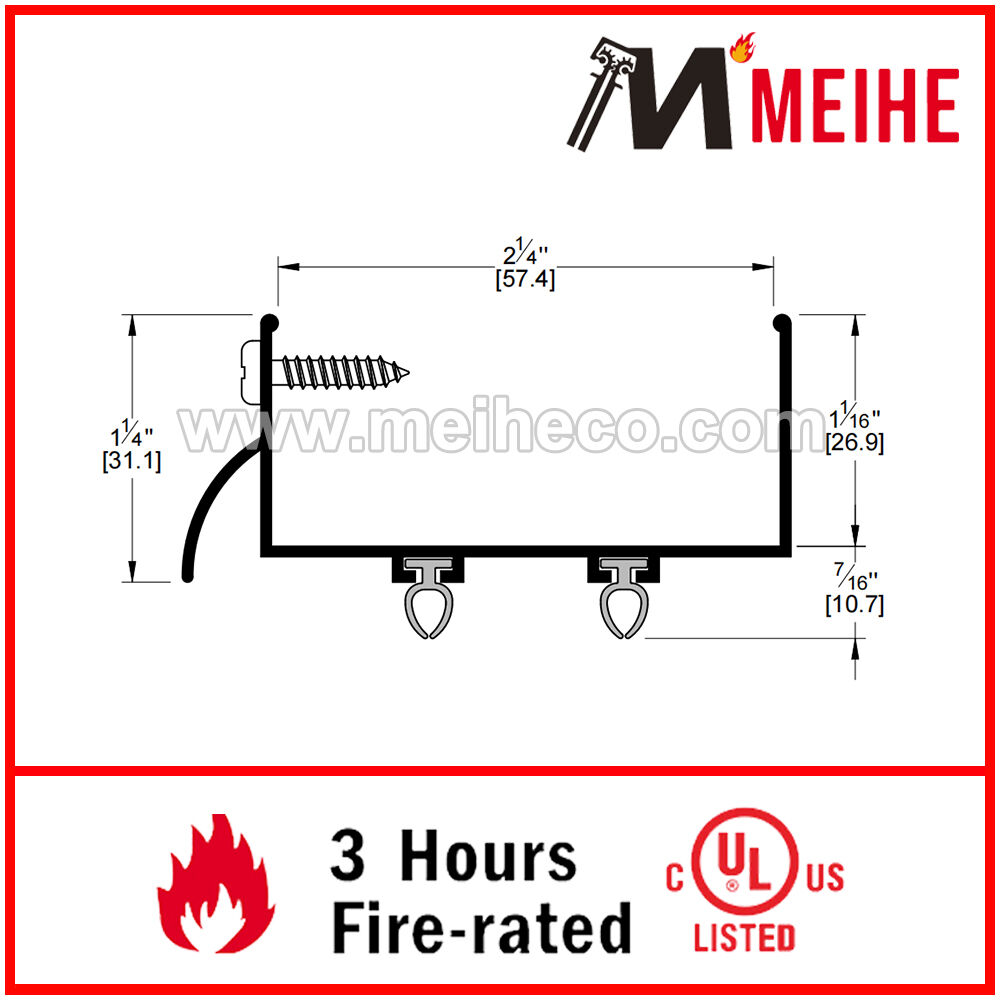

This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Bronze and various anodized aluminum variations. It is custom cut to size.
Retainer Material
|
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
3/8" Height |
Total Height |
1-1/2" Height |
Additional Dimensions |
Door seal is 2-1/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #2580M-1; |
