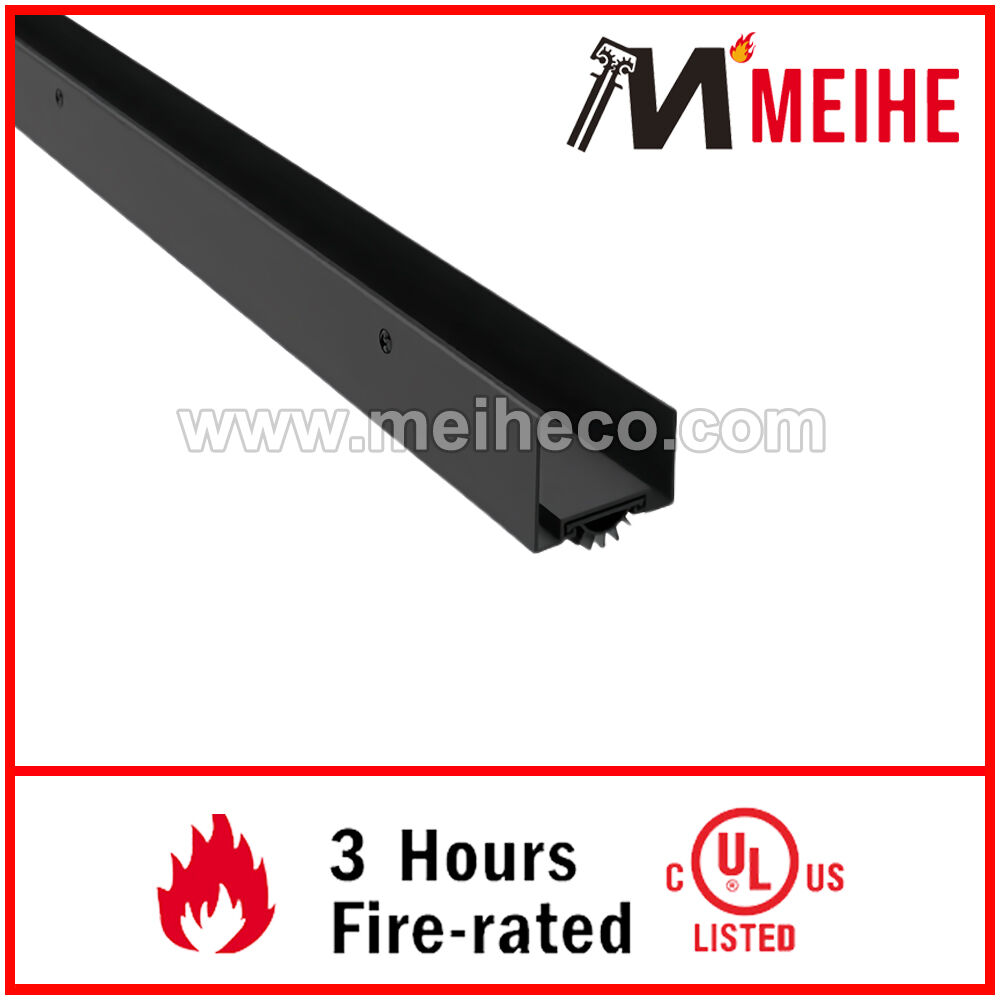

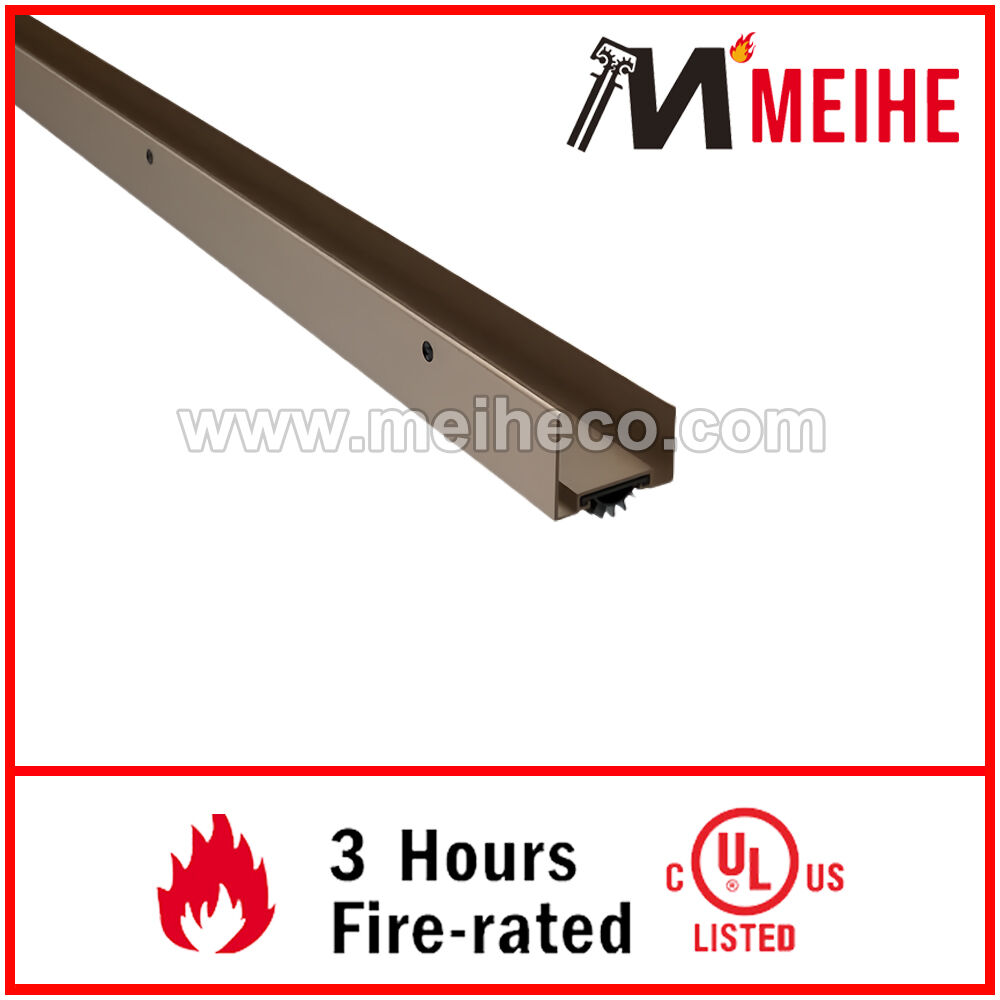

YDS108 Modern Design Aluminum U-Shaped Closet Door Bottom Shoe Seal with Gray Vinyl Insert
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

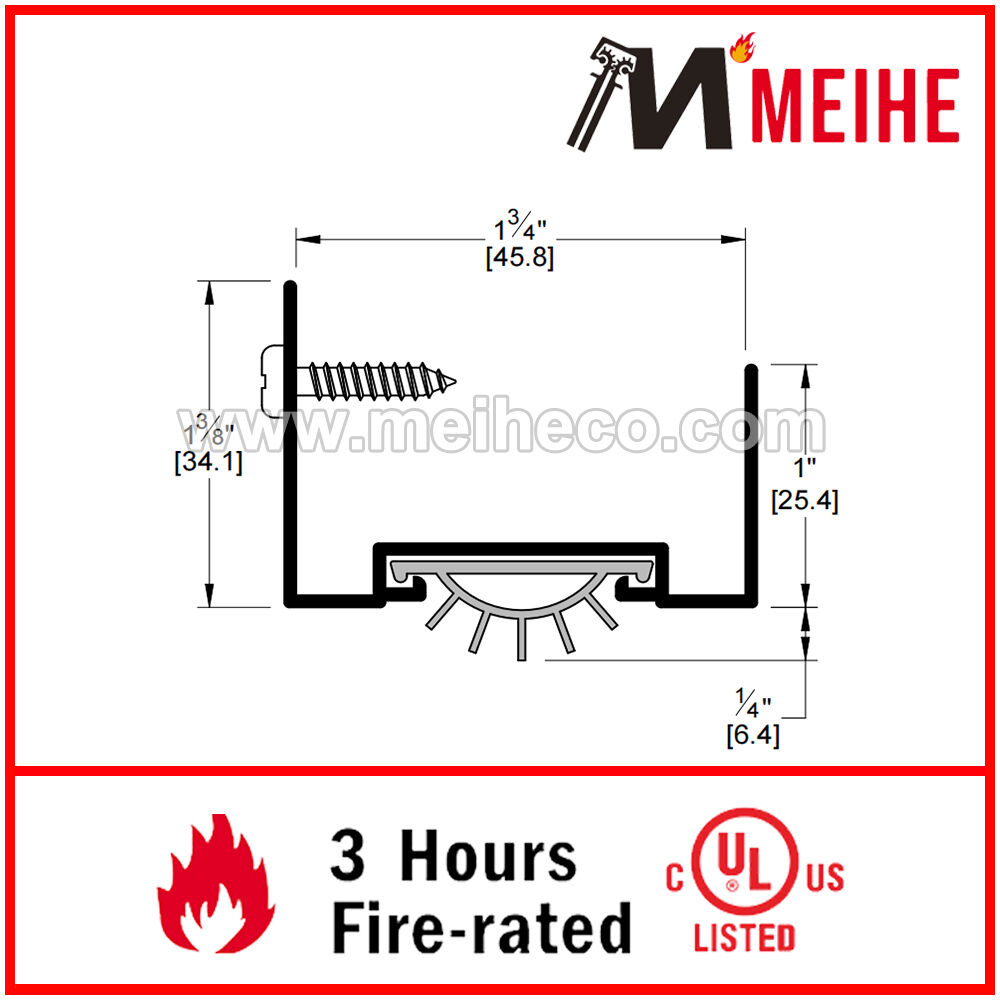

- Width: 1-3/4” (44.5 mm)
- Height: 1-5/8” (41.3 mm)
- Function:Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products
A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This product is Australian Design. Ideal for residential and light commercial applications such as motels and retirement villages.
Can be used in conjunction with Meihe threshold plates.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
1/2" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 1-3/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #222_V; NGP #35EV
|
