YDT302 Thresholds Flat Saddle Heavy Duty Commercial Door
Flat Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB

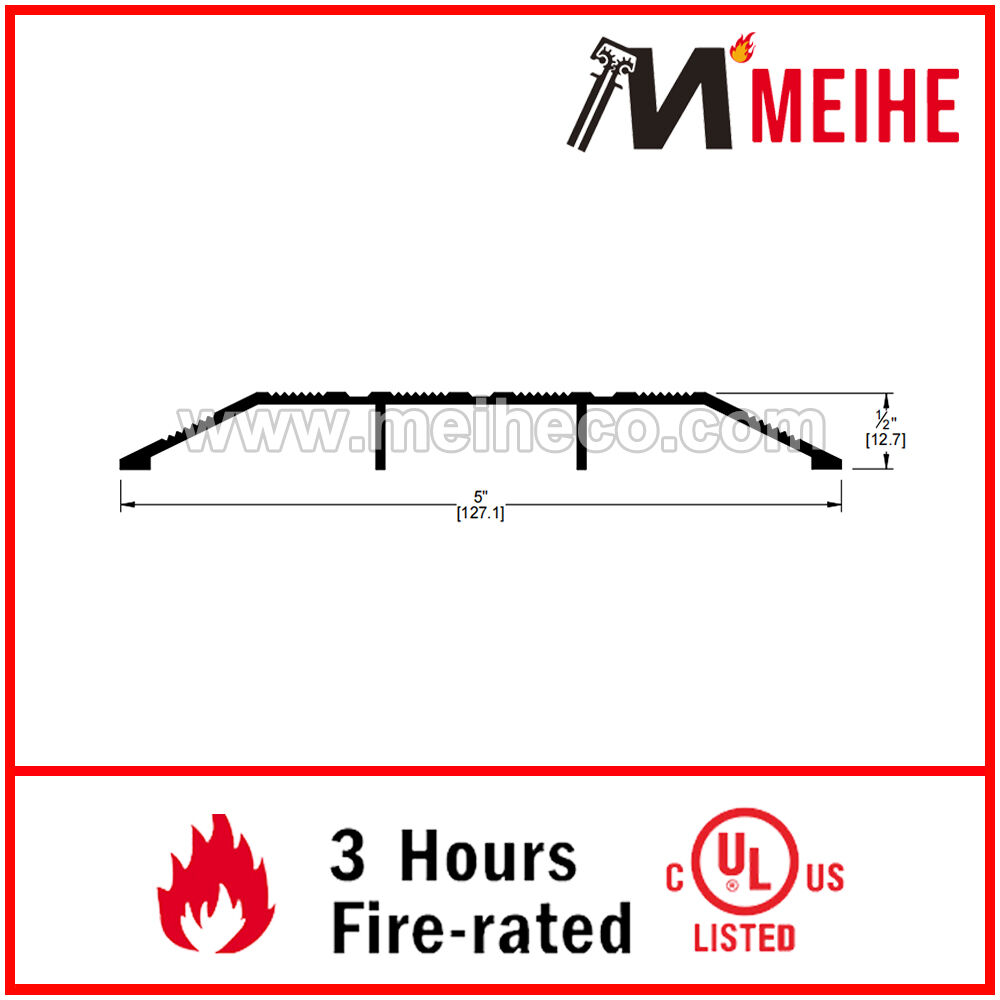

- Width: 5” (127 mm)
- Height: 1/2” (12.7 mm)
- Warranty：1 Year
Certificate:
- UL
- Overview
- Recommended Products

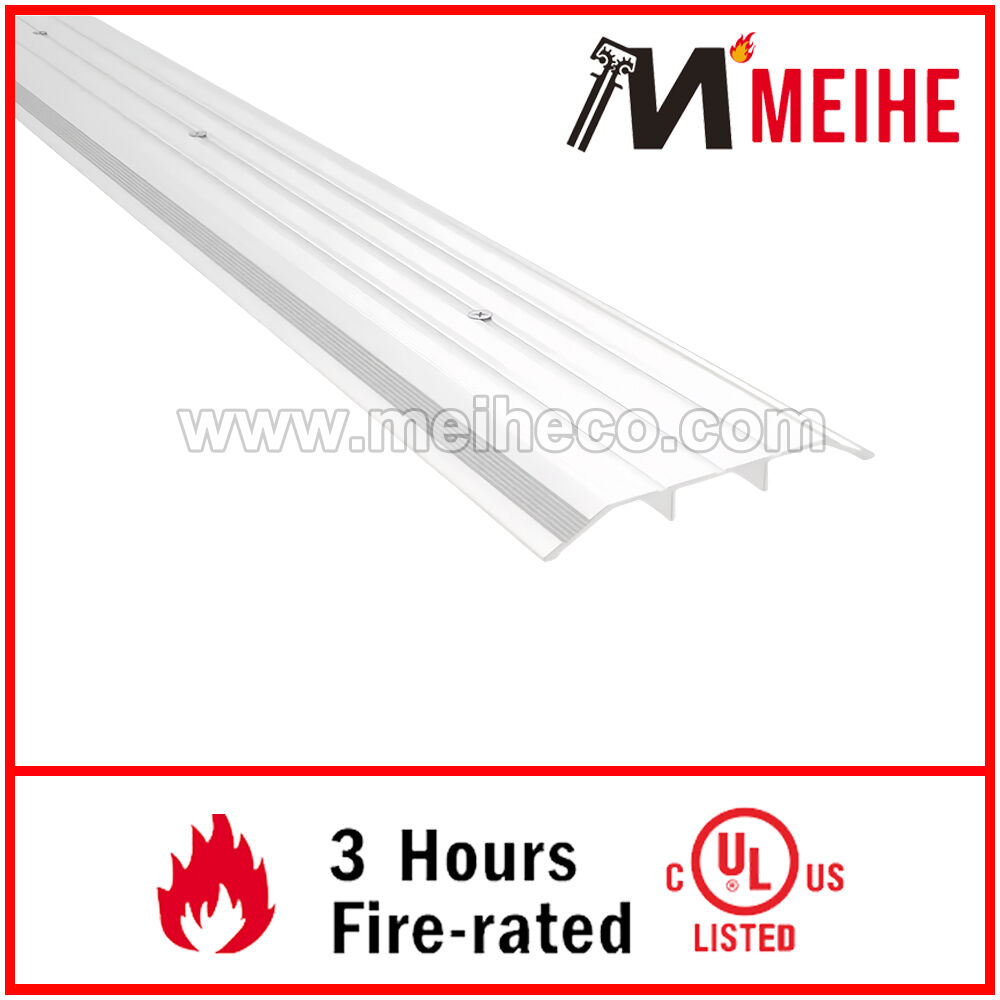

This ADA compliant 5" wide Saddle Threshold is extruded from high quality aluminum, providing long lasting superior performance. It has a height clearance of 0.5" which aids in insulating a room and creates a smooth transition between two floor surfaces. Available in two aluminum variations and length is custom cut to size.
Acoustic & smoke containment: Threshold plates provide a firm effective sealing surface for threshold / drop seals to rest against, to help ensure the best possible smoke and acoustic seal.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Flat Saddle Design | Fluted (Grooved) Design |
| Threshold Type | Flat Utility Threshold |
| Overall Height | 0.5" Height |
| Overall Width | 5" Width |
| Required Door Clearance | 0.625" Height |
| Length | Standard 36", 48"; Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
