YDW601 Modern Colonial Style Aluminum Door Locking Astragals with Slide Bolt Durable Feature for Inswing Door
Residential Locking Astragals
- Available Finishes: C, BL, DB, G, PB, LB
- Certificate：ISO9001
- Feature：Durable
- Design Style：Modern
- Overview
- Recommended Products

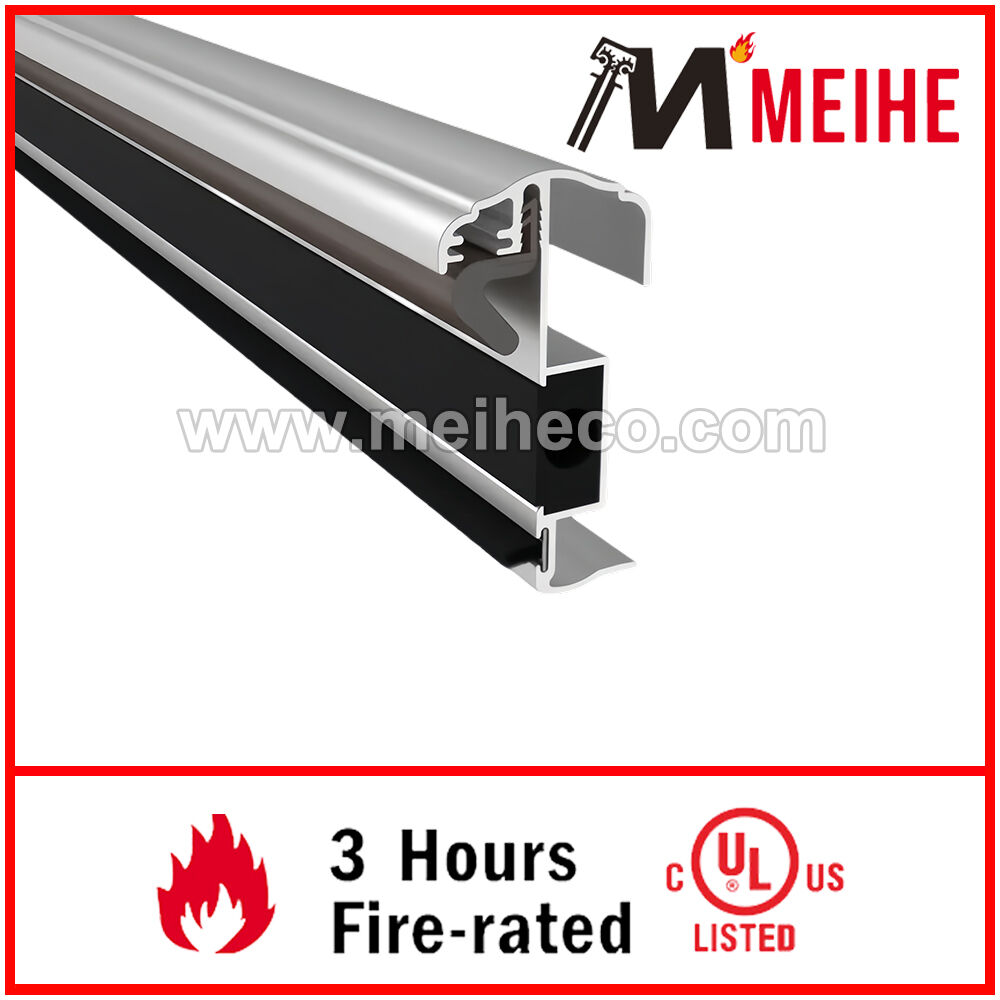

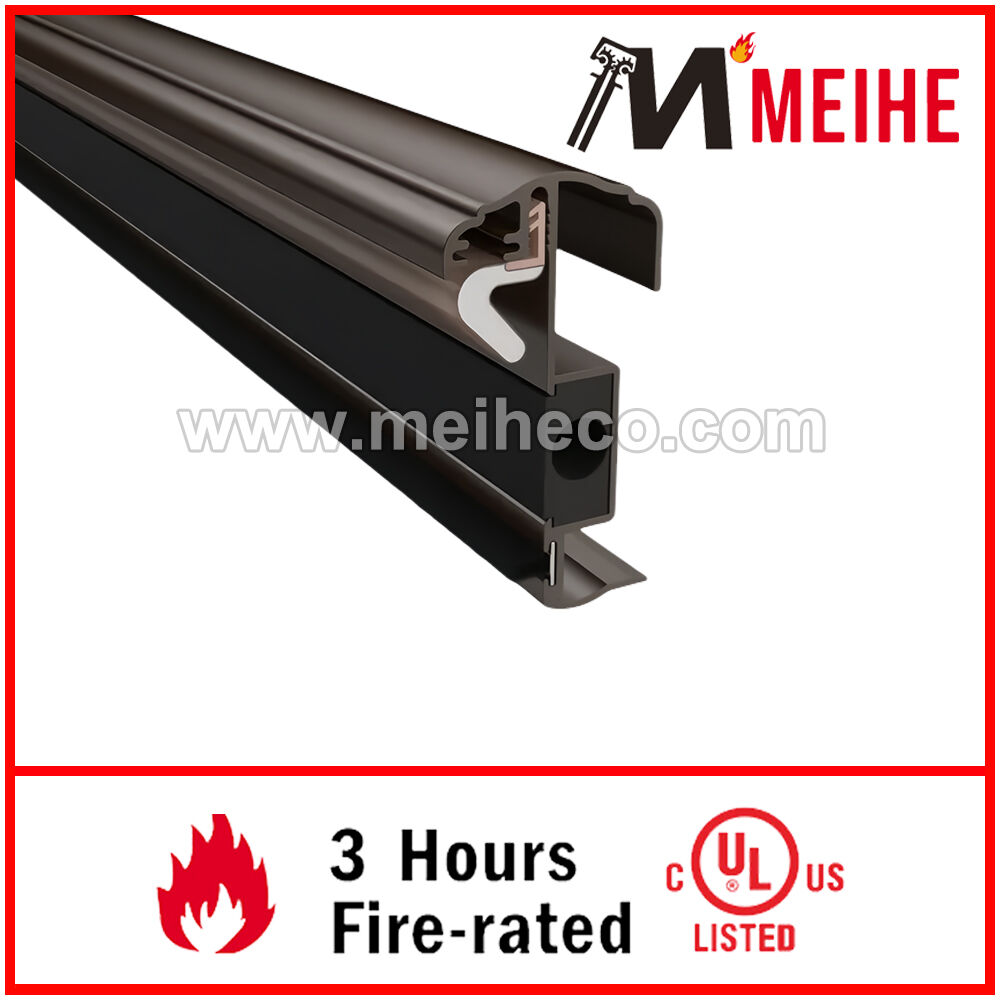

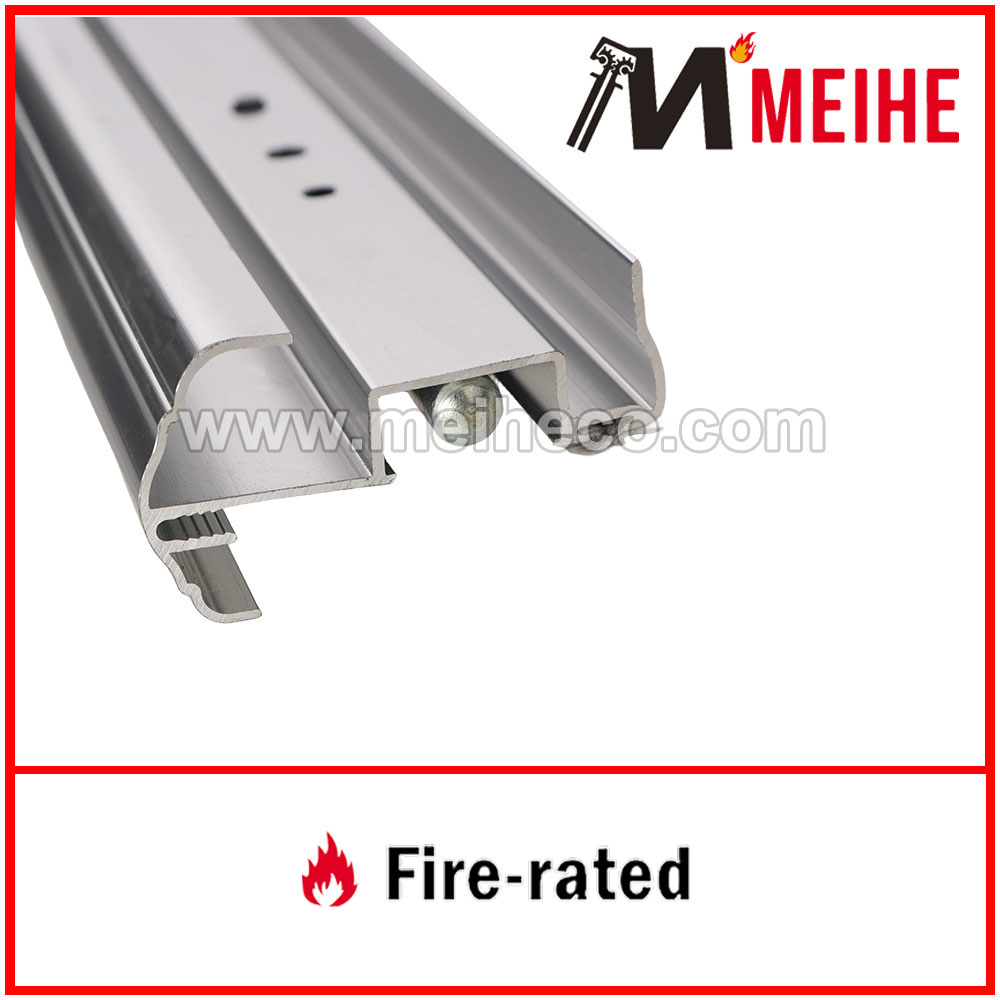

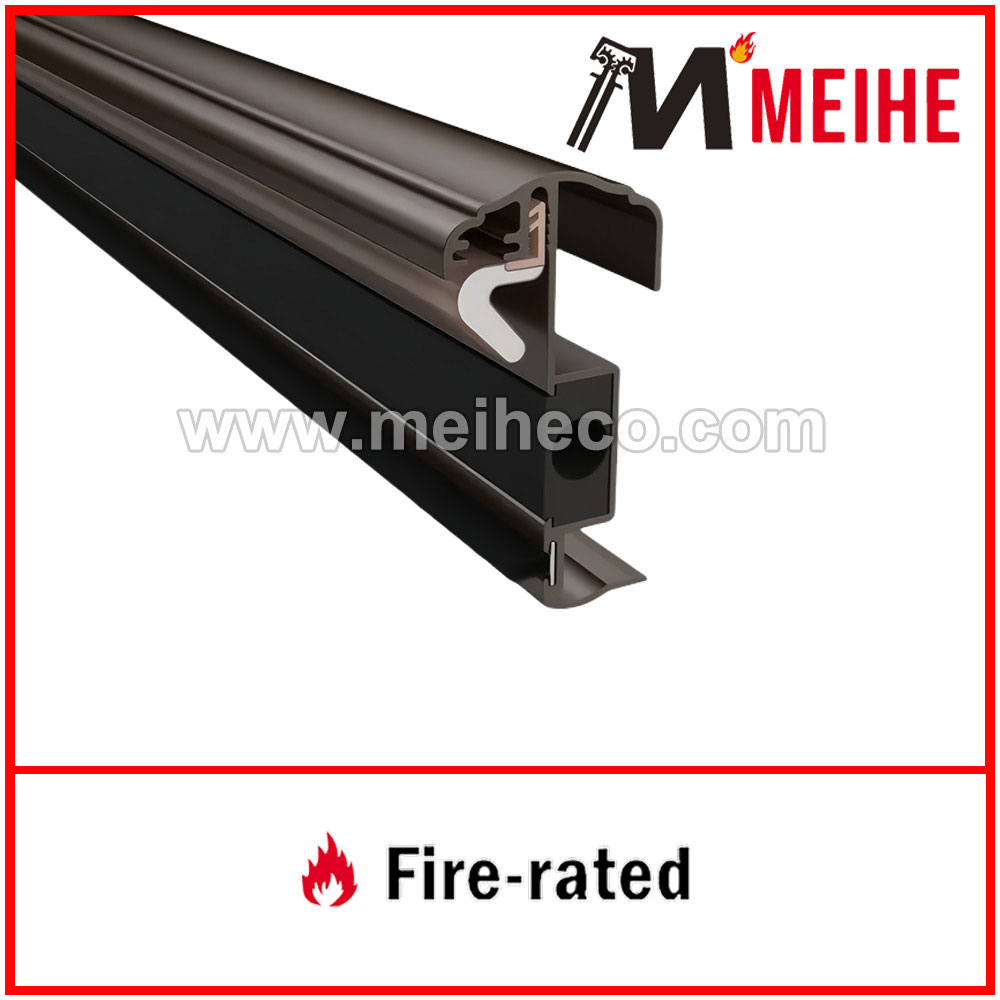

The YDW601 Colonial Style Locking Astragal with Slide Bolt is perfect for 1-3/4" inswing doors. It’s available with Kerf-In Foam inserts and effectively seals the midline gap between doors, preventing drafts, sound, and heat transfer. The magnetic Kerf-in seal and slide bolts provide added security and insulation. Custom cut to size.

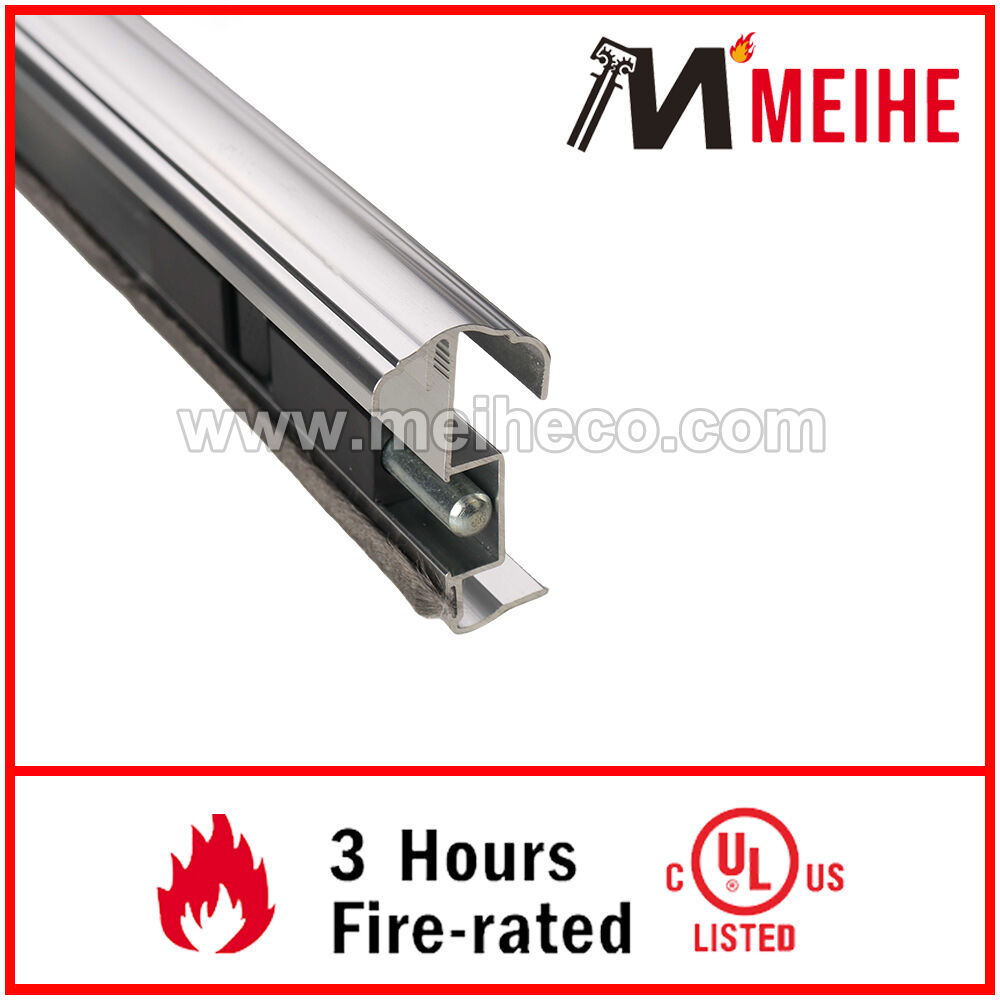

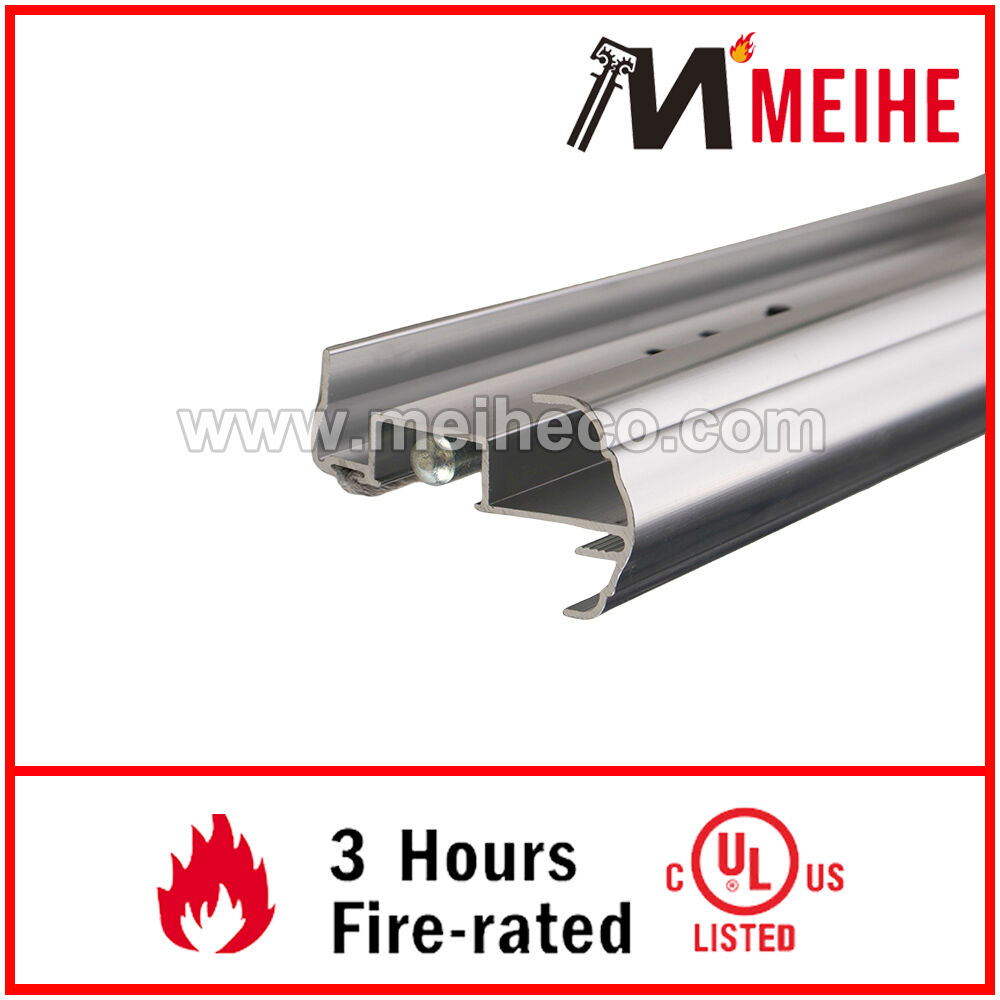

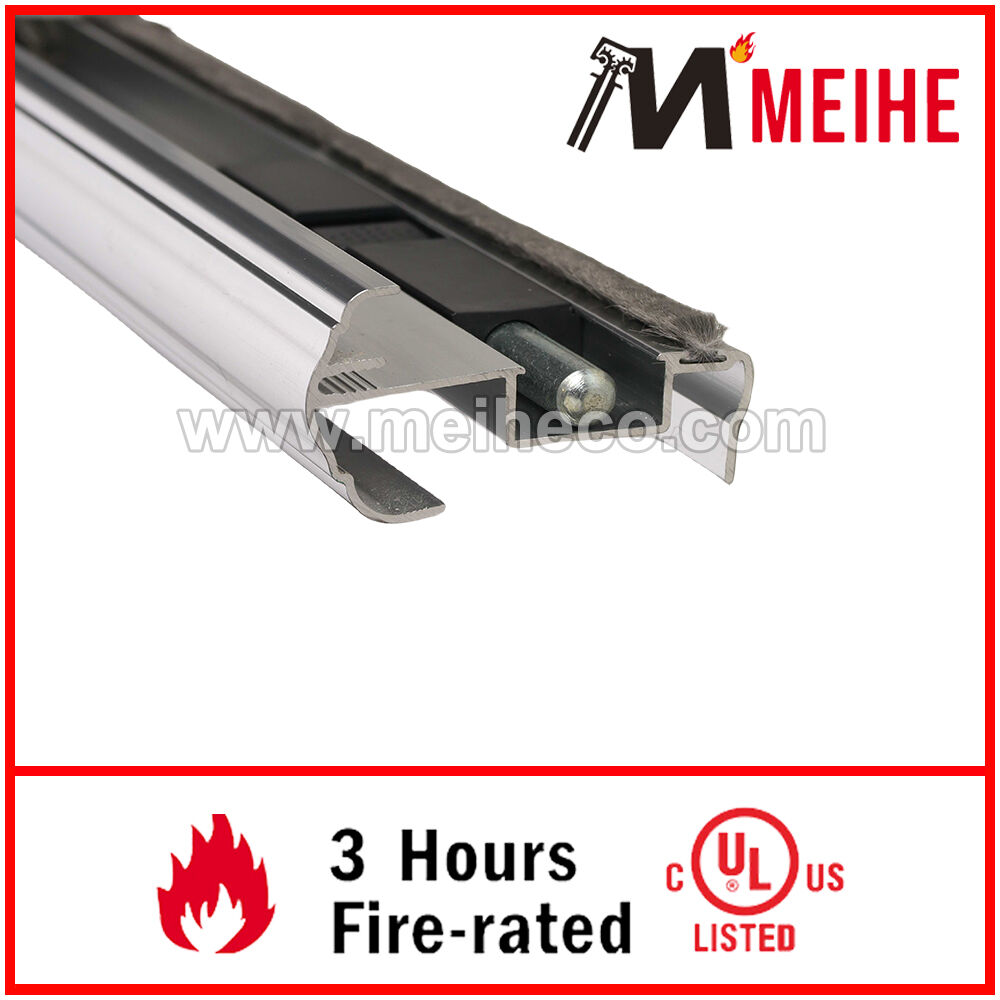

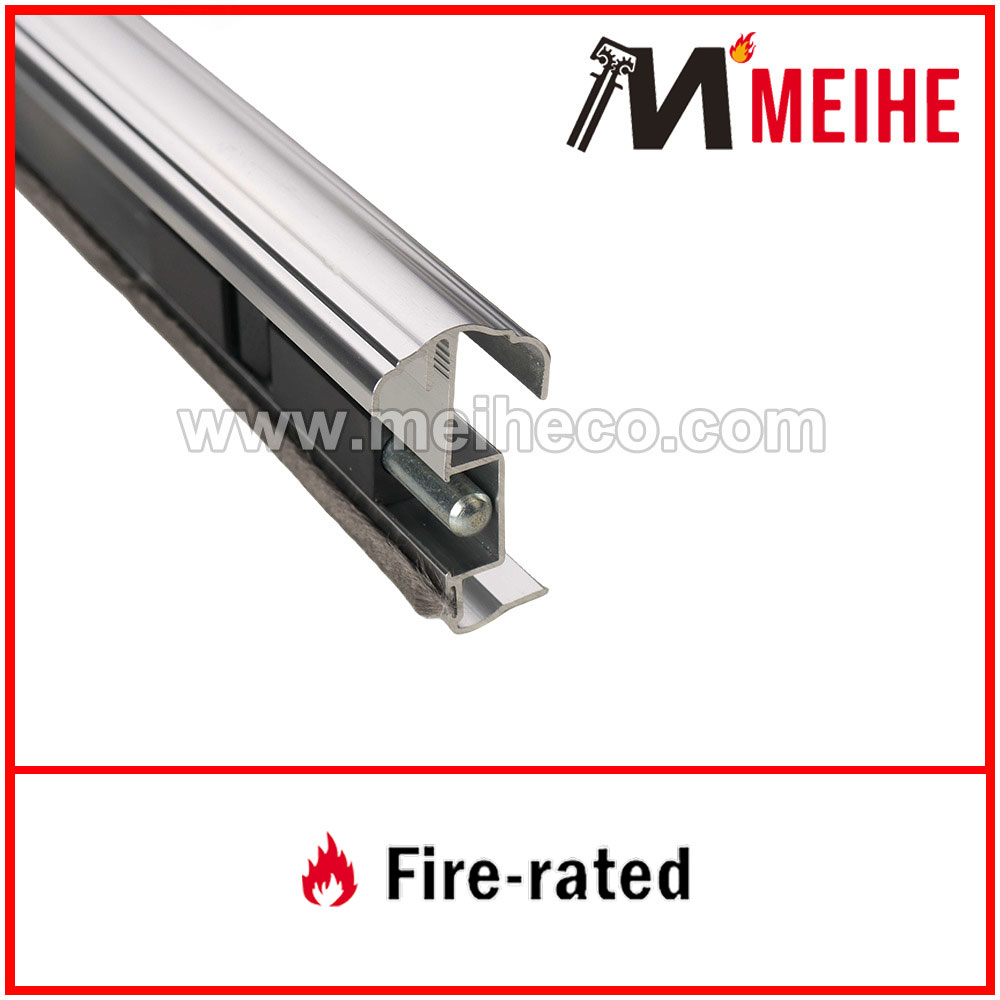

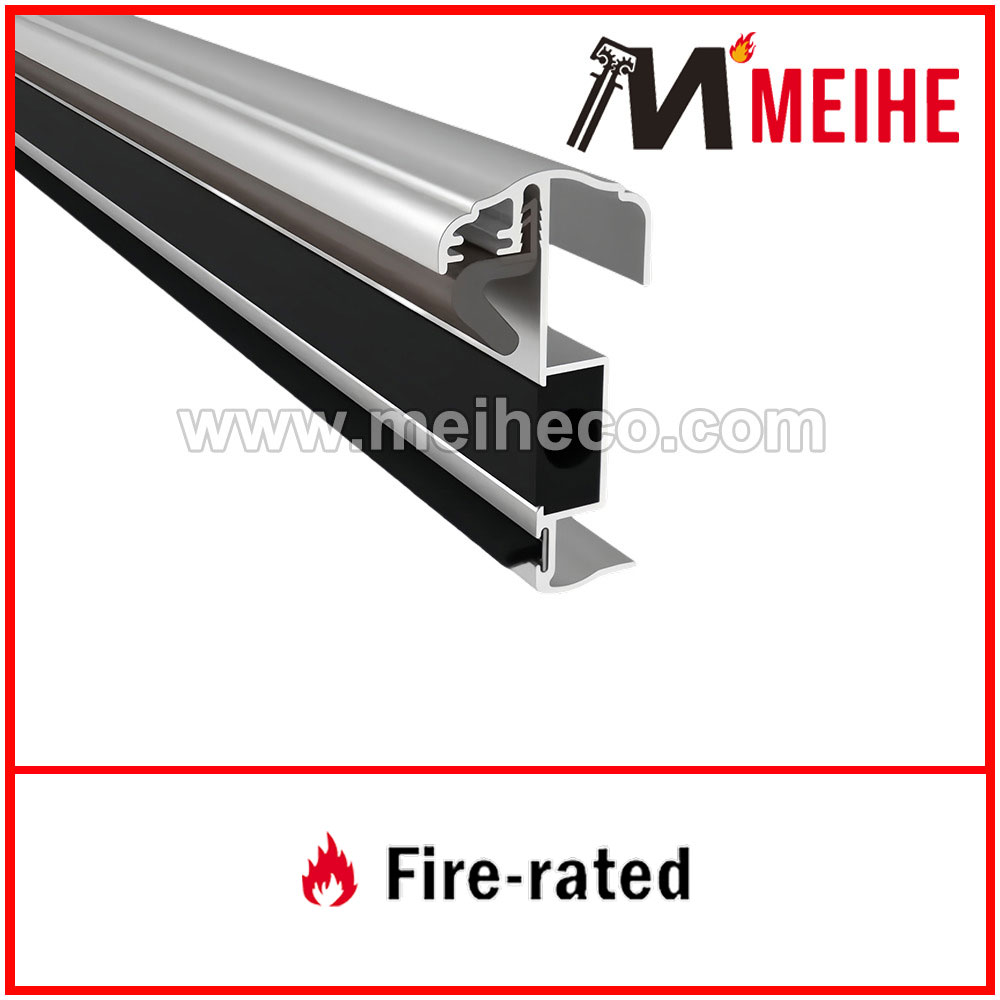

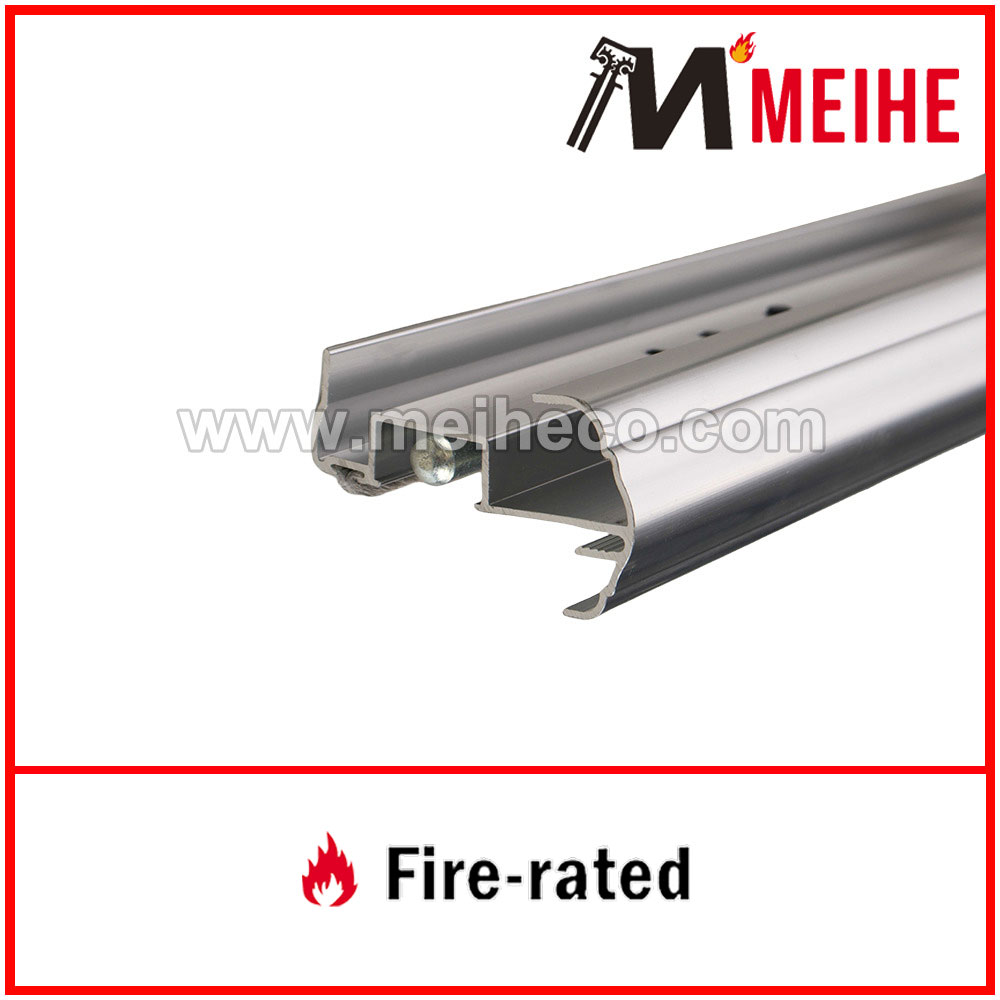

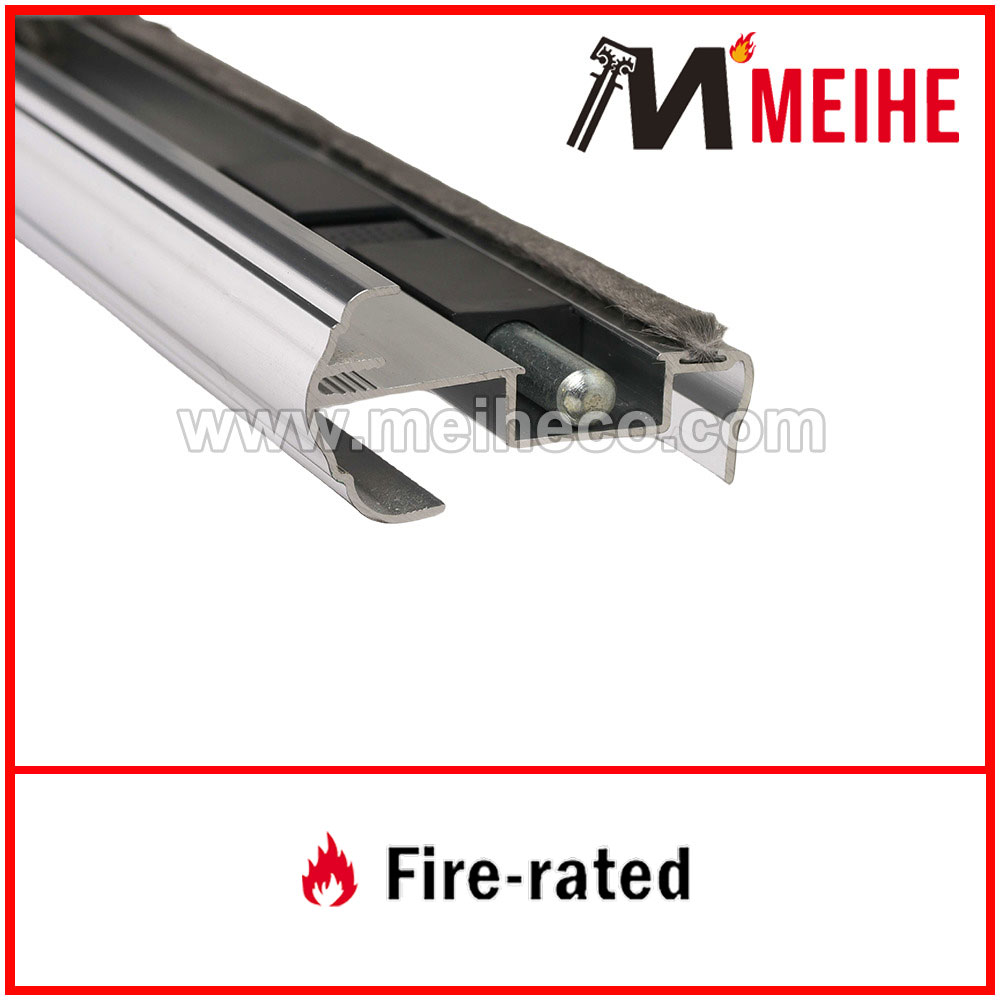

- Aluminum astragal/meeting stile with locking slide bolt
- Installed along middle gap of doors

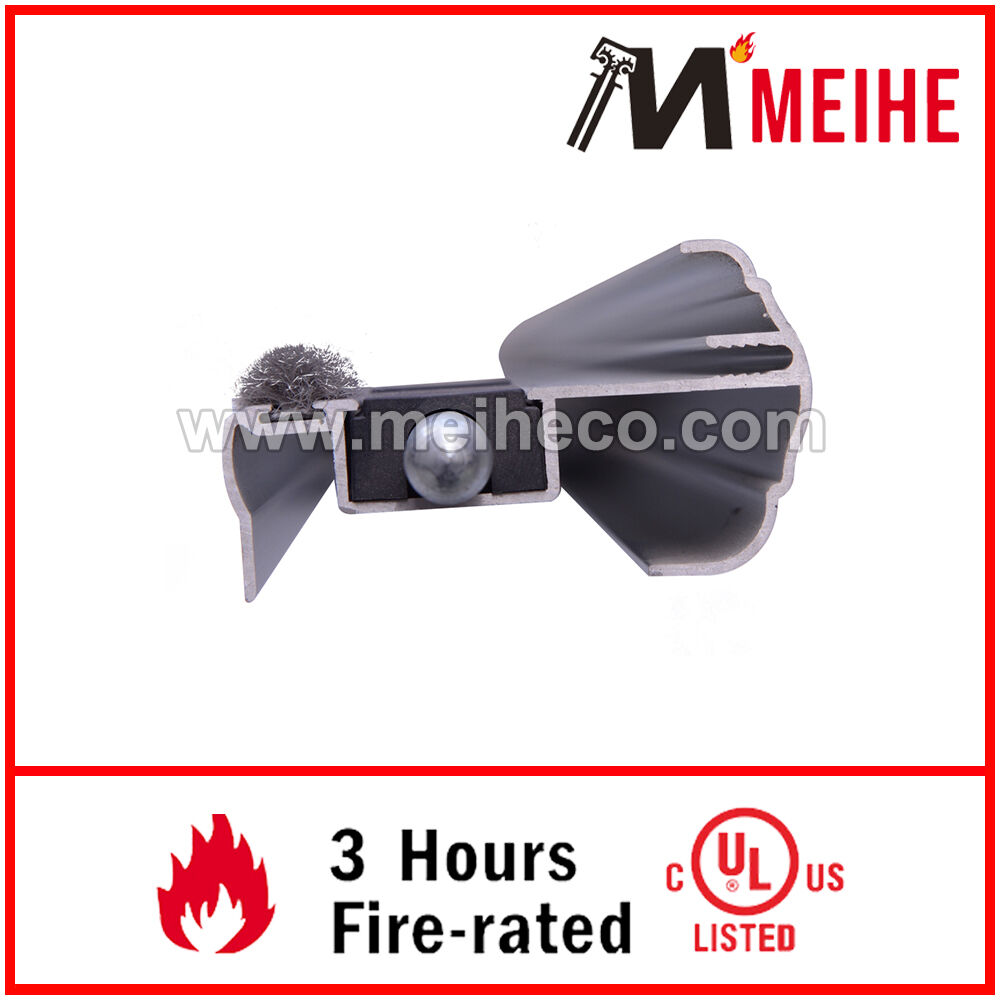

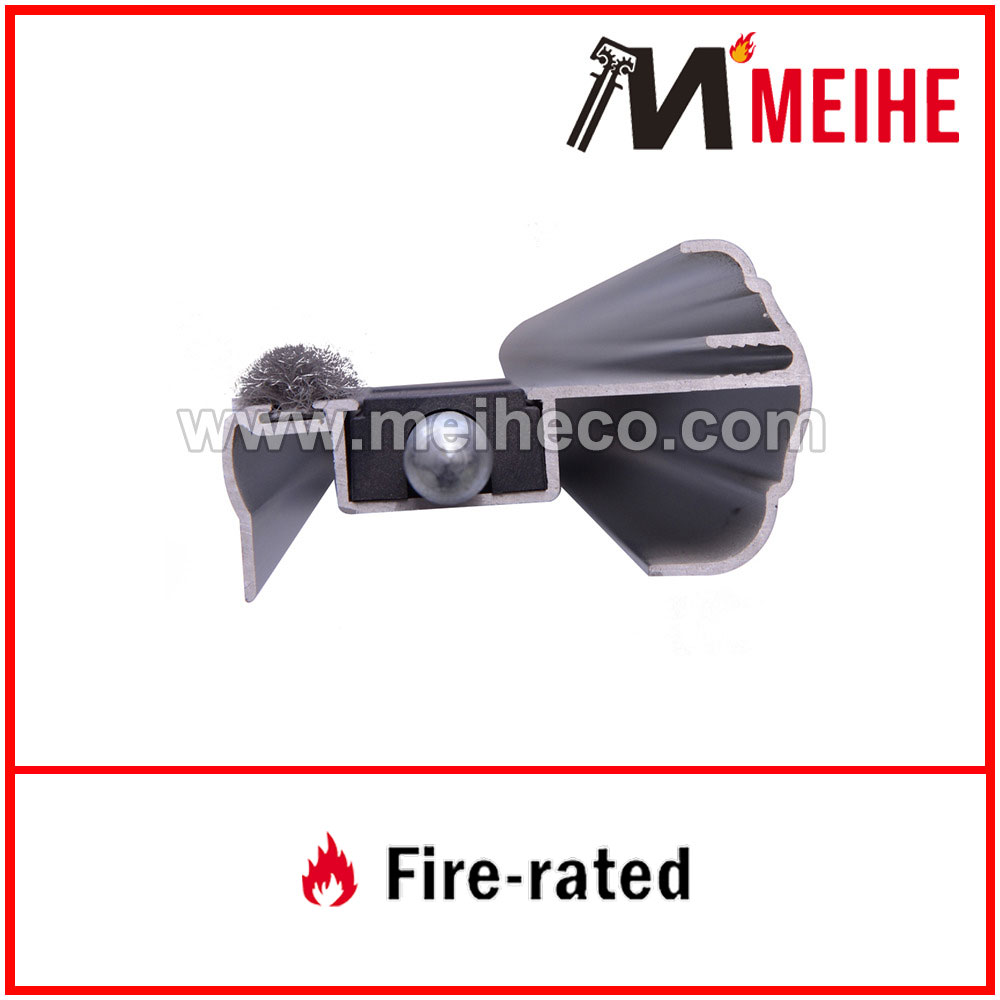

- Meeting stile has two seals - magnetic kerf-in seal and a pile brush seal
- For metal doors, select the aluminum locking slide bolt with the magnetic
- Aluminum locking slide bolt with foam Kerf-in seal for inswing doors

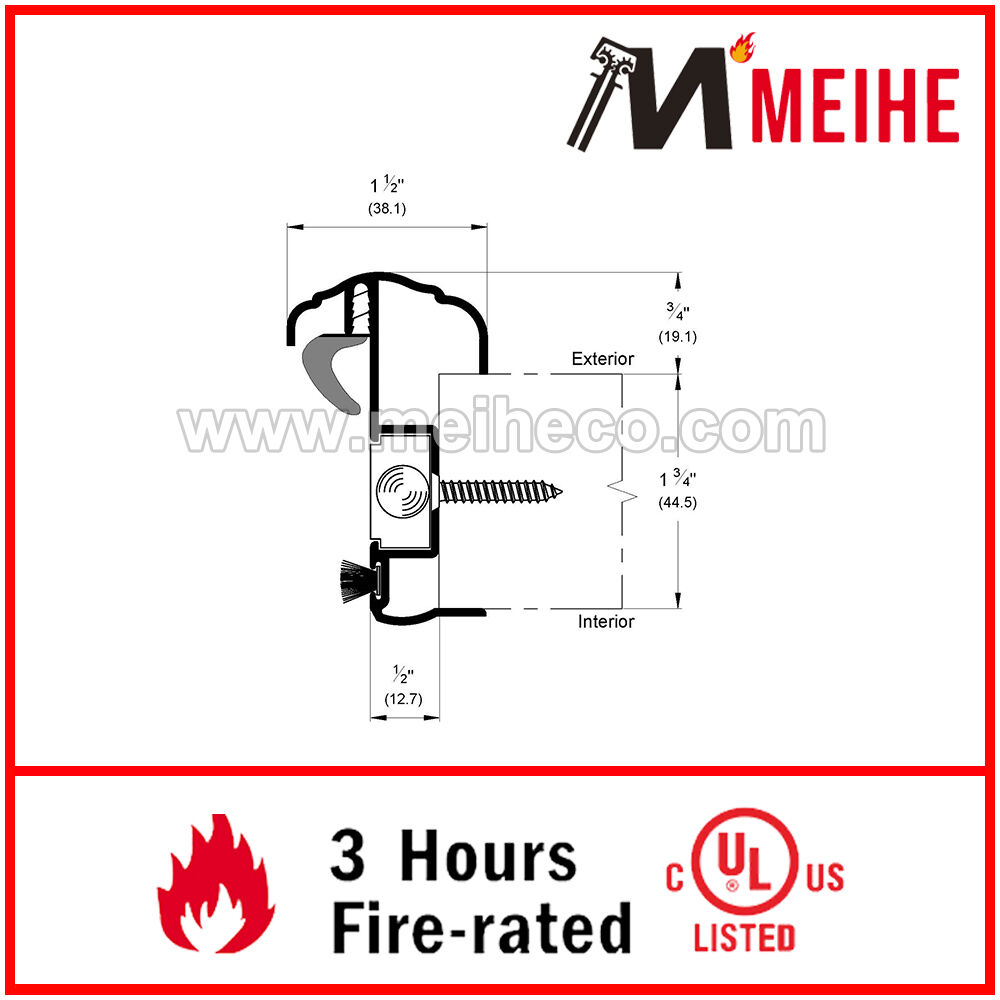

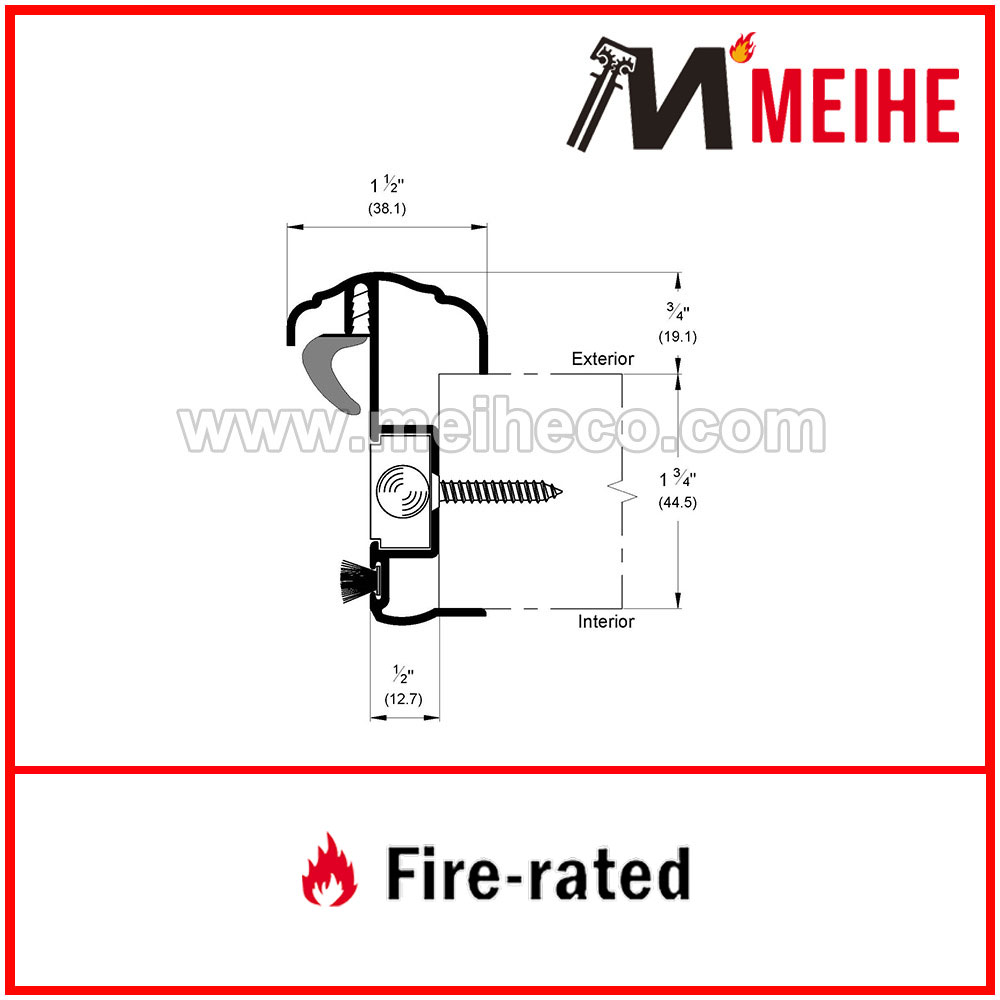

- For 1-3/4" thick single active, double in-swing doors with midline gap sealing and slide bolts for locking one door in place
- Available with Standard 4" throw bolt, or Easy Access 18" throw bolt
- Midline gap must exceed 1/2" for surface mounted installation

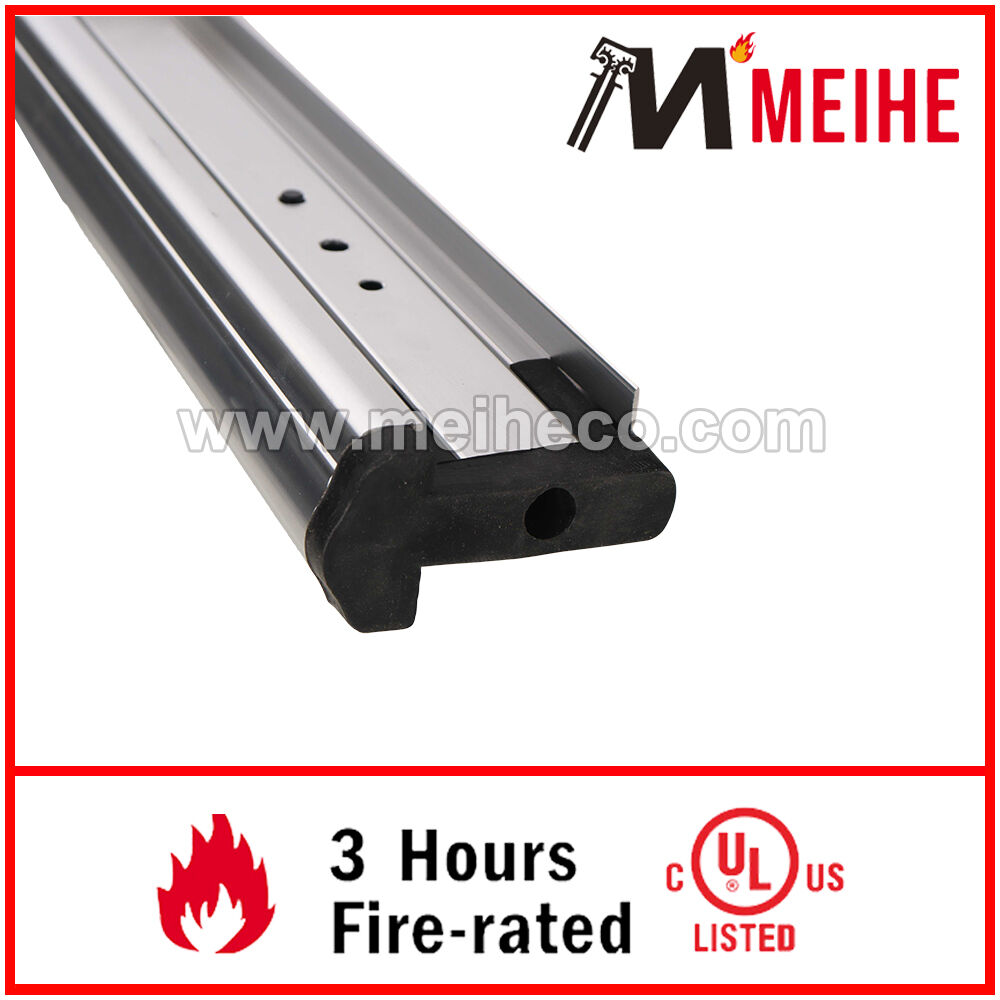

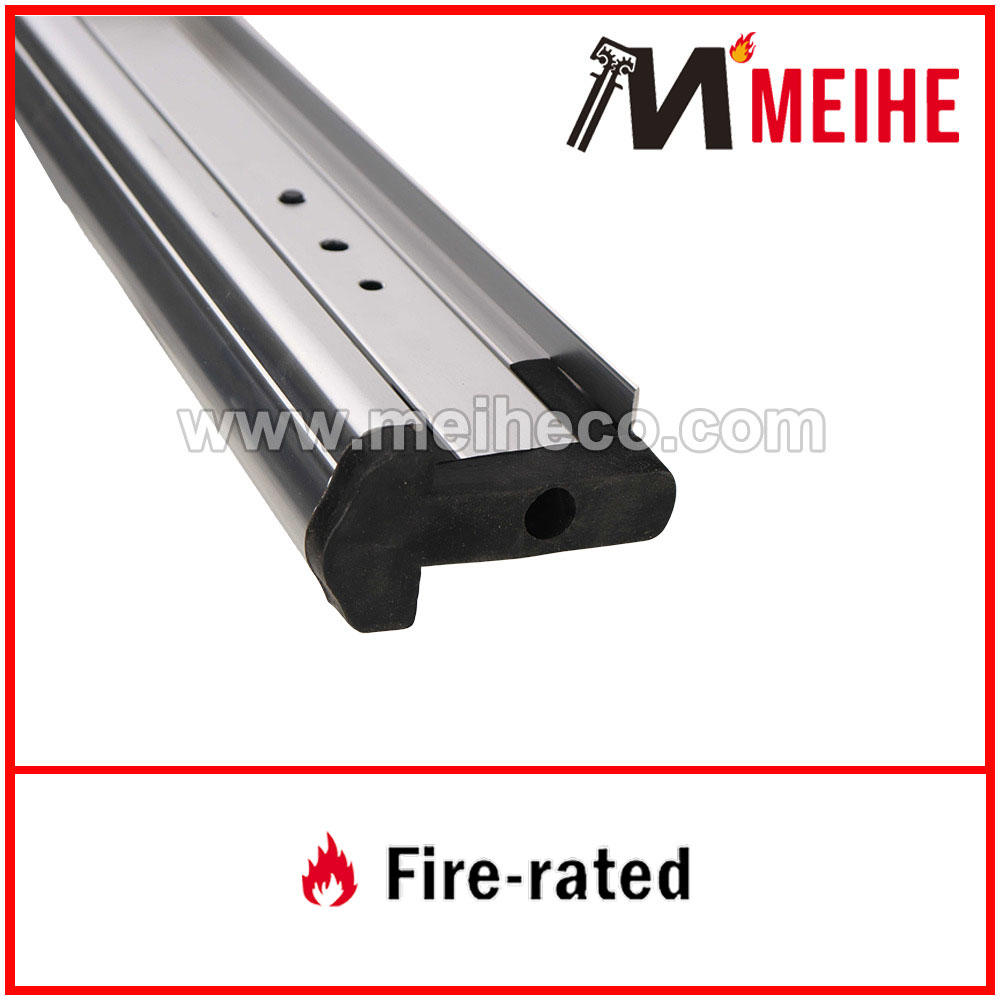

- Supplied with molded sponge neoprene bottom seal
- Base Material: Aluminum
- Door Edge: Square
- Fasteners: Sheet Metal Screw #8 x 1"
- Maximum Length: 120"
- Minimum Length: 24"
- Overall Height: 2 1/2"
