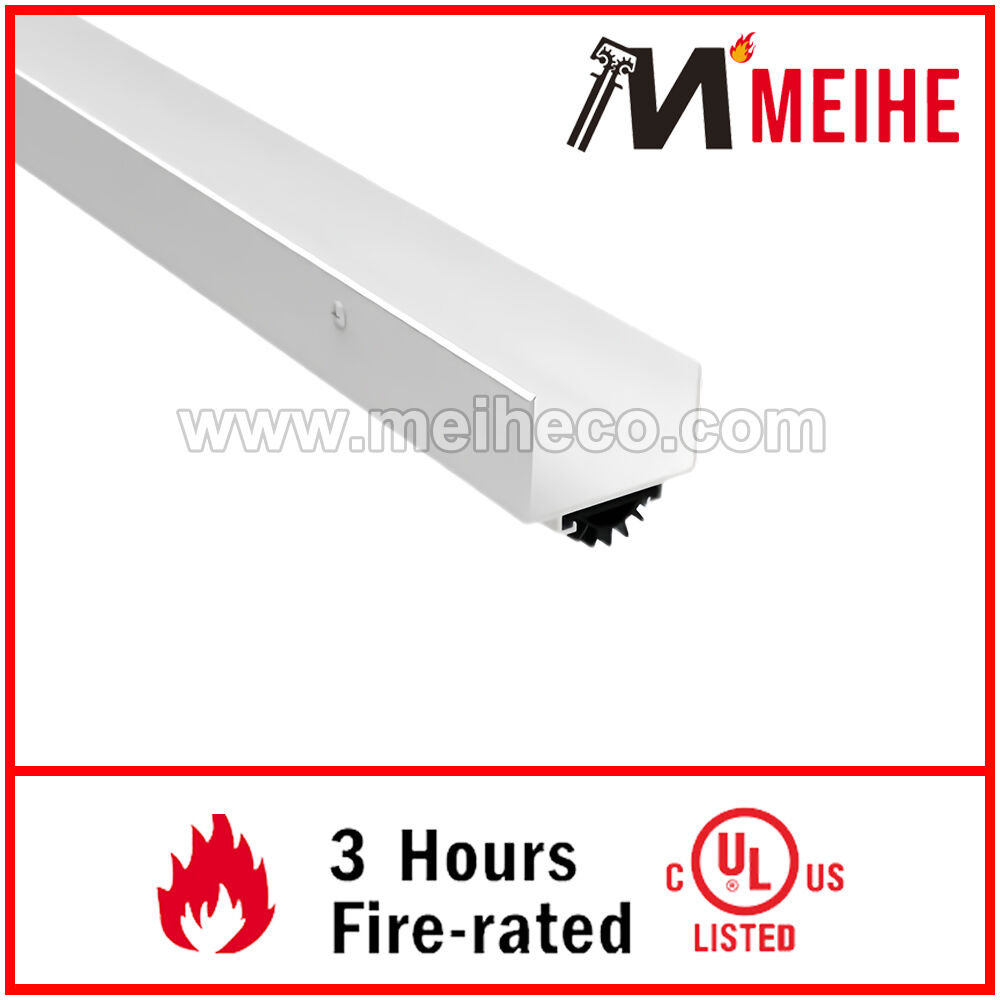

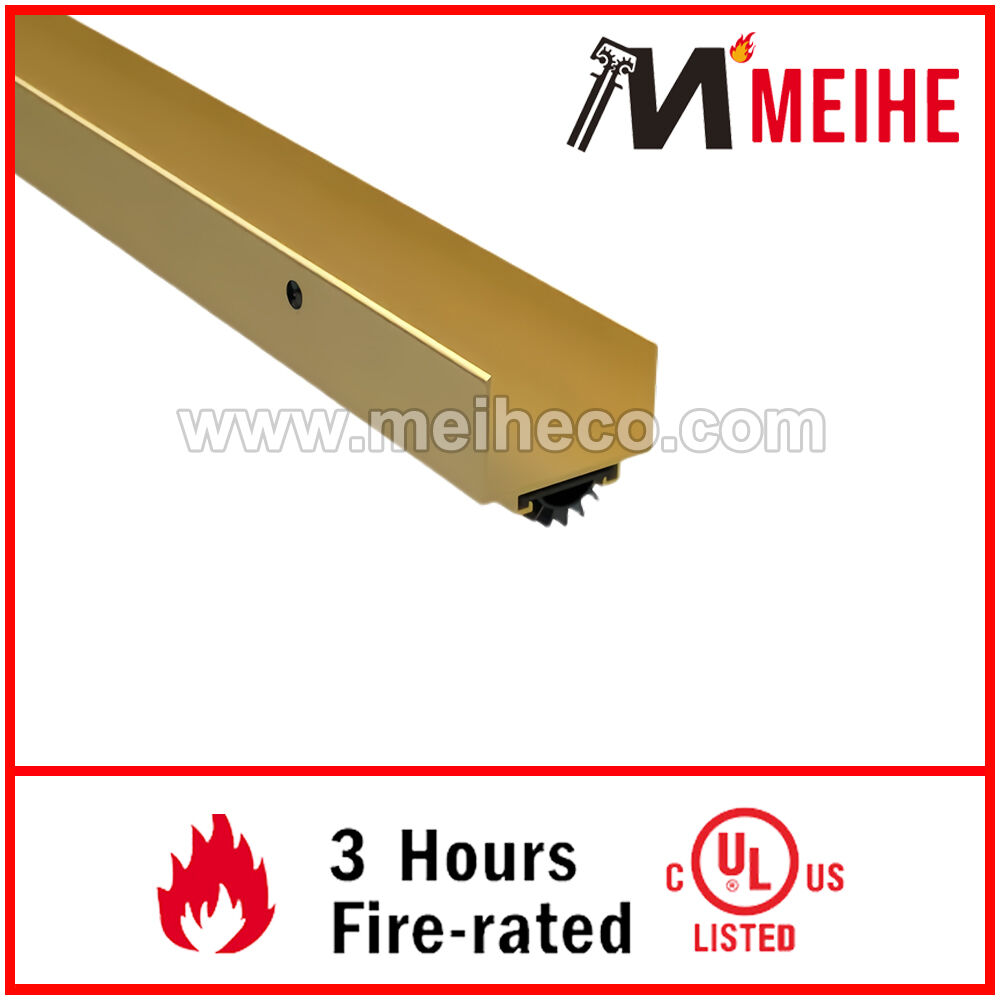

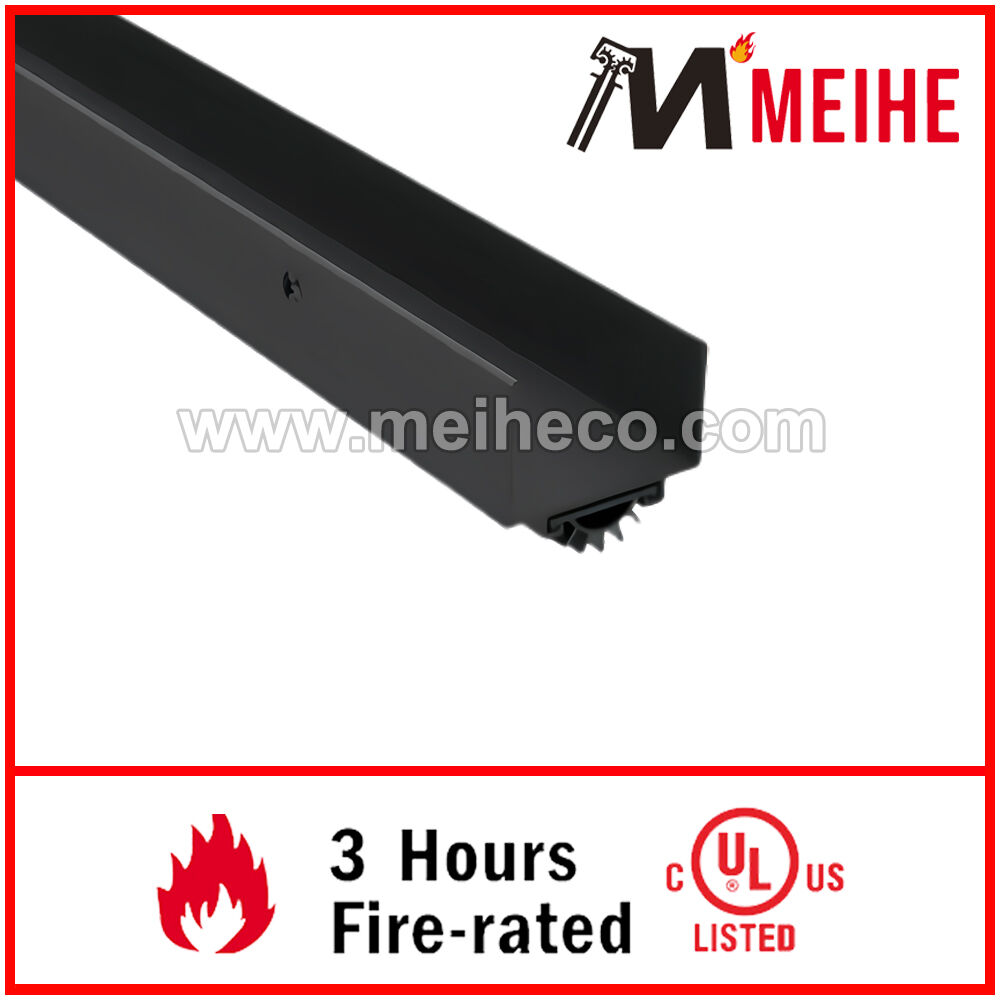

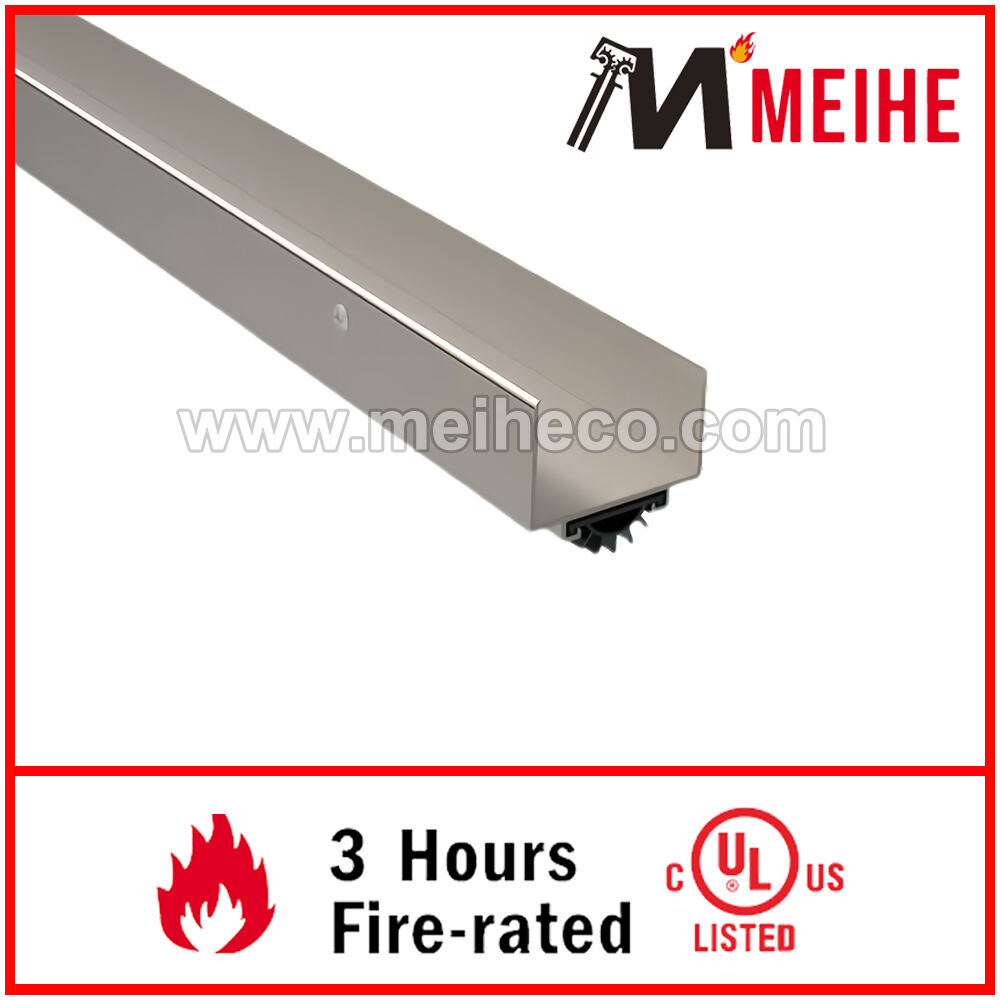

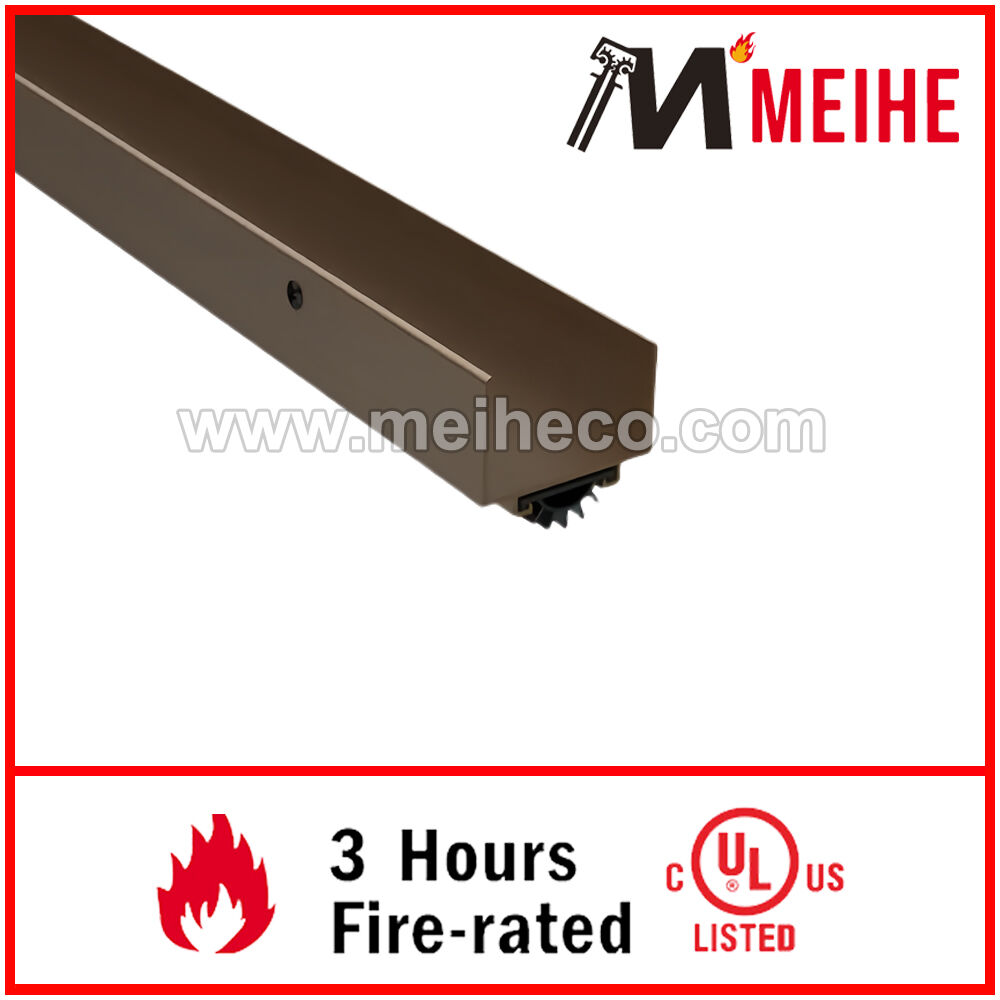

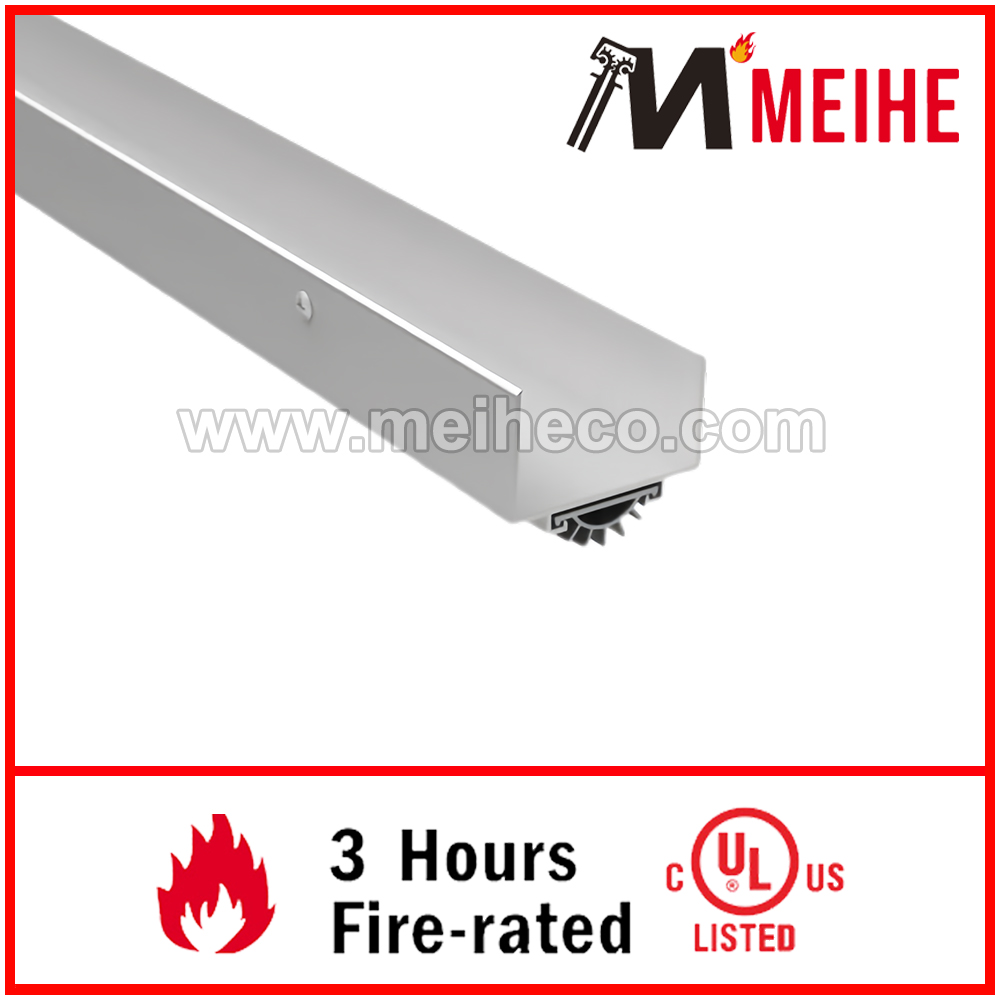

YDS100 Modern Design Aluminum U-Type Closet Door Shoe Storage Hardware with Gray Vinyl Insert Aluminum Door Bottom Shoes
Door Shoes
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

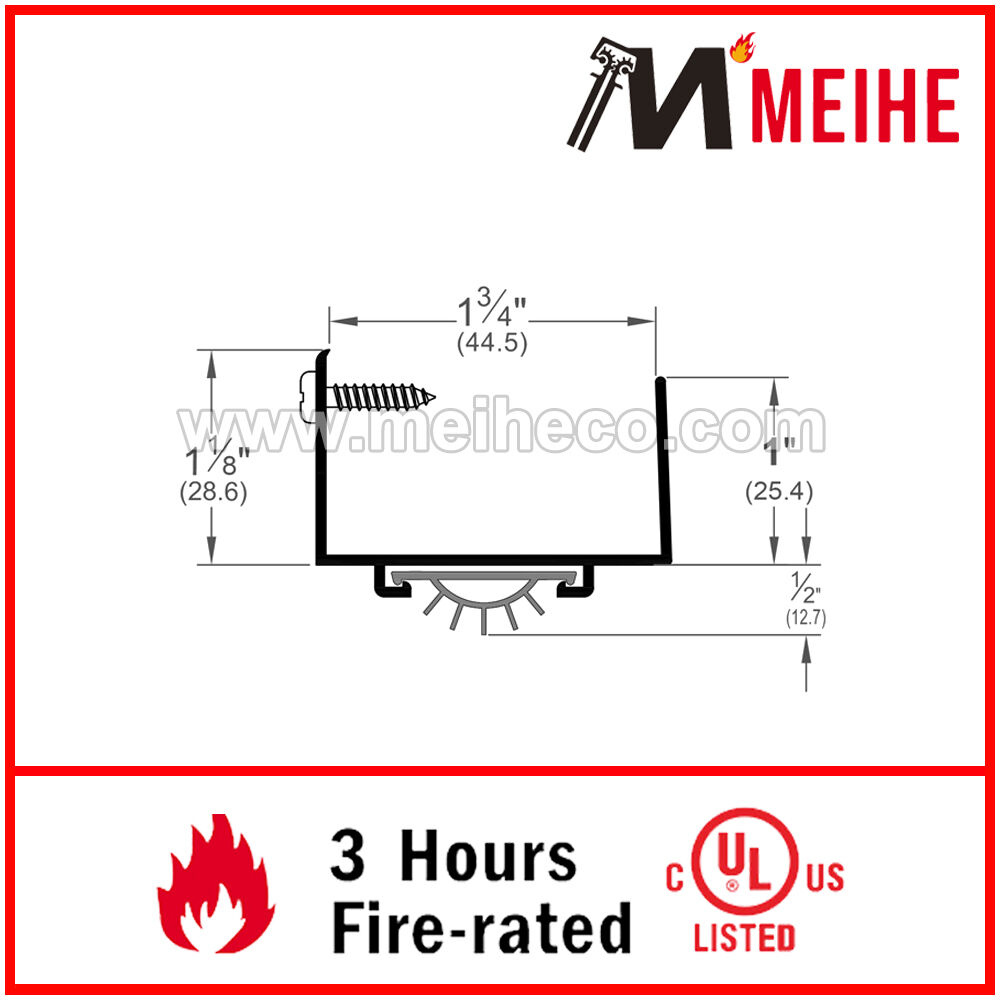

- Width: 1-3/4” (44.5 mm)
- Profile Height 1: 1-1/8” (28.6 mm)
- Profile Height 2: 1” (25.4 mm)
- Total Height With Insert: 1-5/8” (41.3 mm)
- Function:Dustproof Insectproof Soundproof
- Feature:Easy installation
Certificate:
- UL
- Overview
- Recommended Products
This door shoe is ideal for protecting the bottom of doors and sealing the gap up to half an inch at your door bottom from sound and light. This door shoe sweep covers the bottom of the door while barely affecting its overall appearance. It is fire and smoke rated and can be applied to doors 1.75" thick. Available in choice of finishes, and inserts and is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
1/2" Height |
Total Height |
1-5/8" Height |
Additional Dimensions |
Door seal is 1-3/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #217_V; NGP #36EV
|
