YDS114 Modern Design Aluminum Door Bottom Shoes with Vinyl Insert Door Shoe Storage Seal Made in China Hardware
Door Shoes

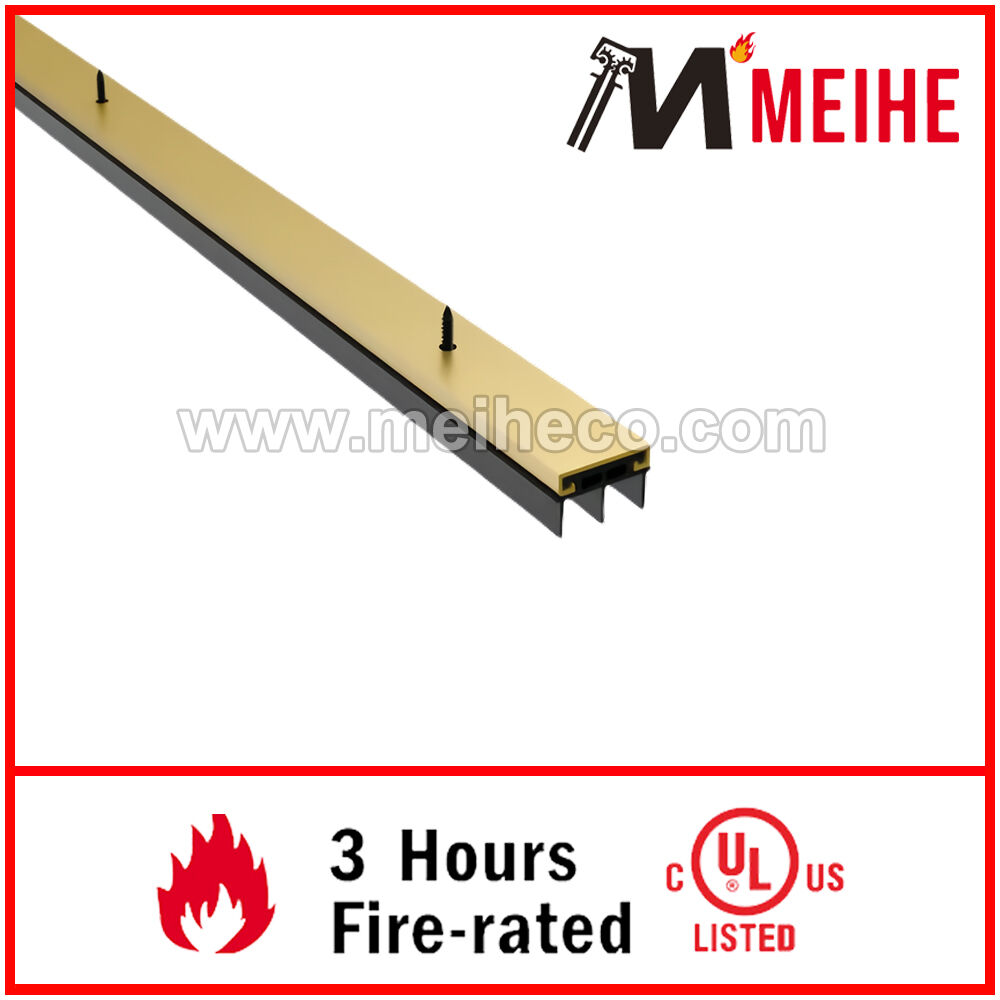

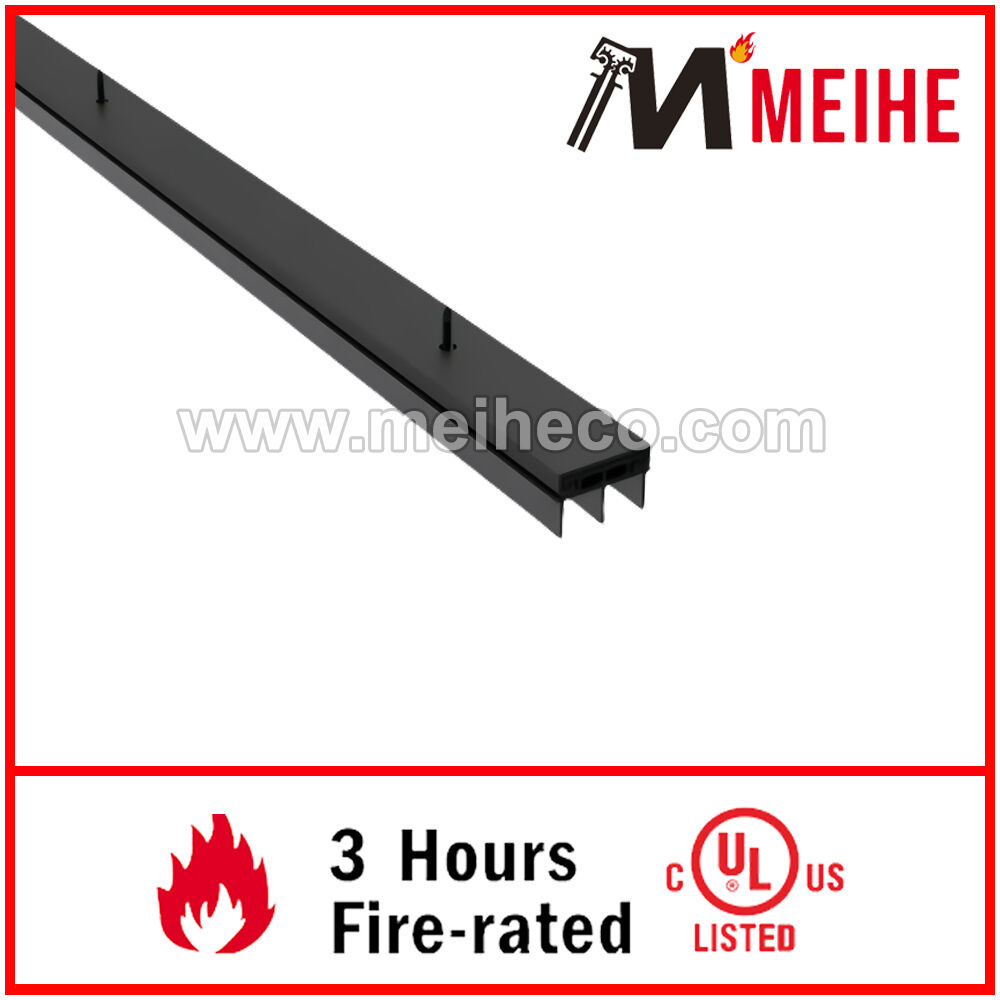

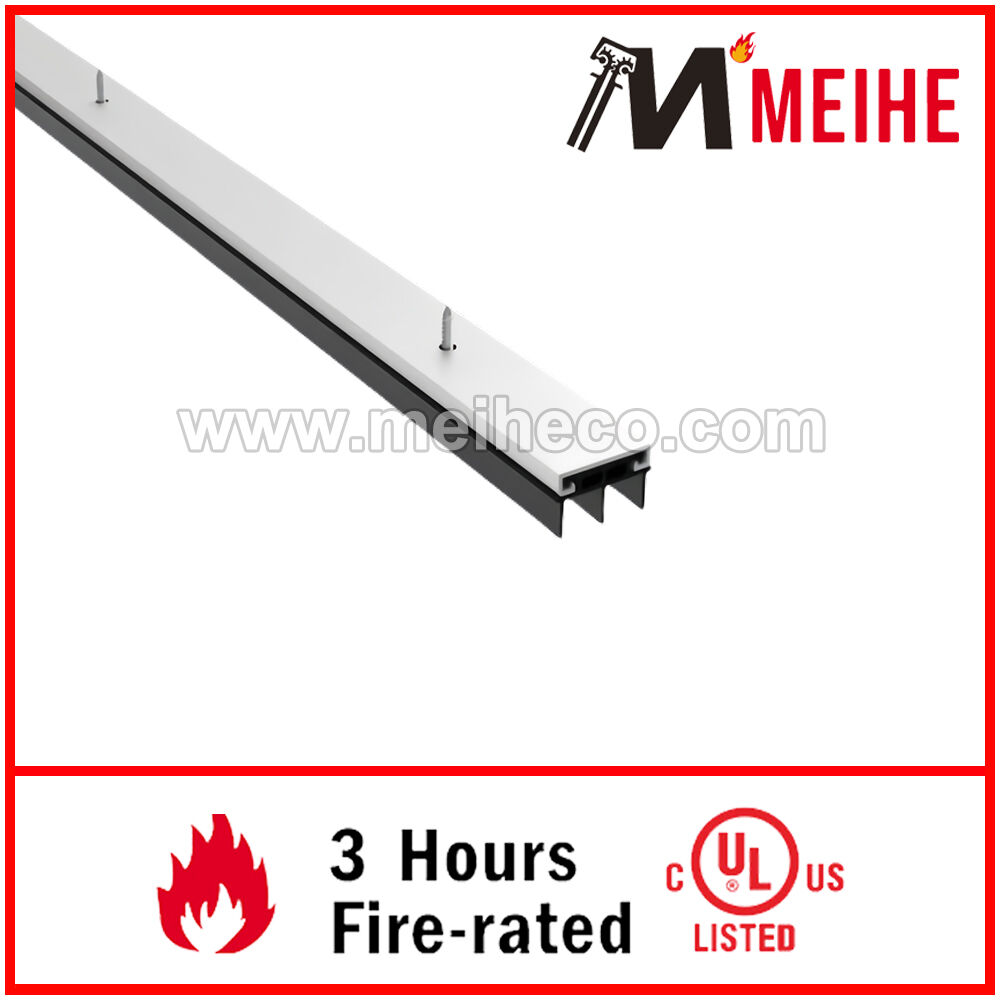

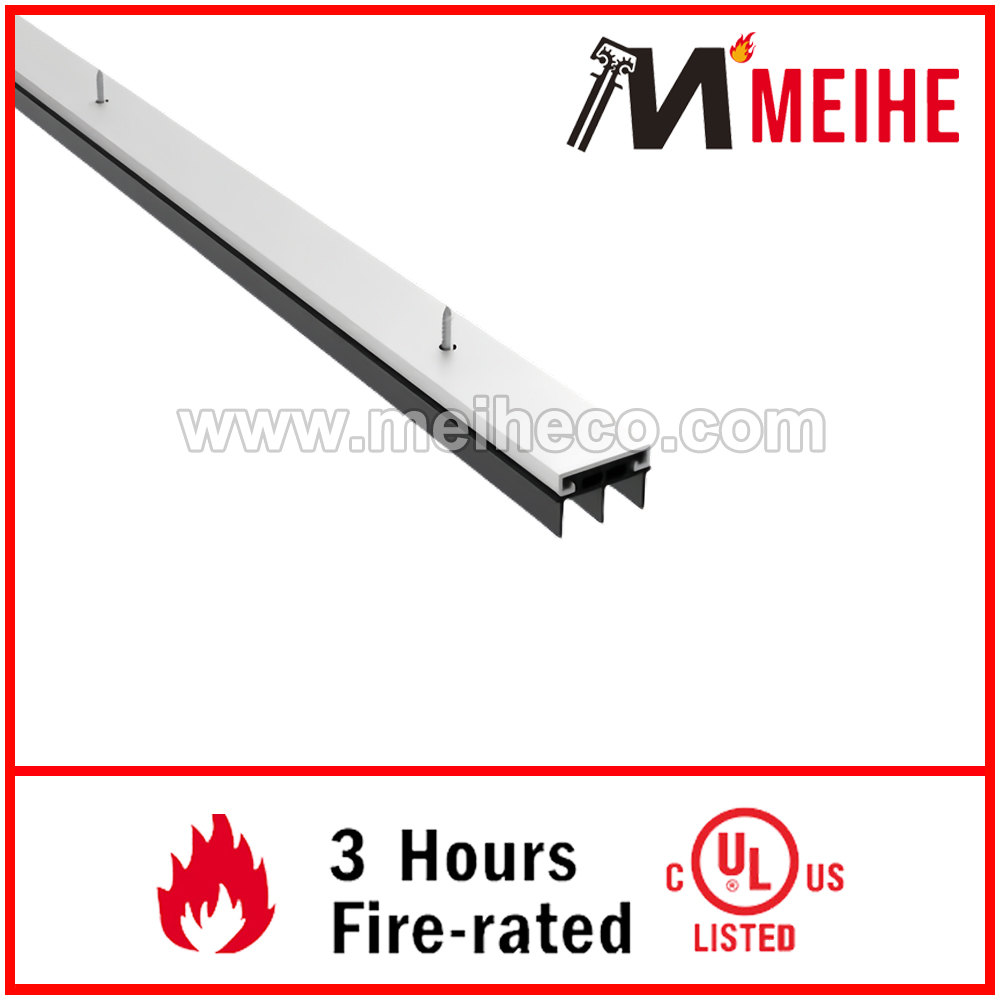

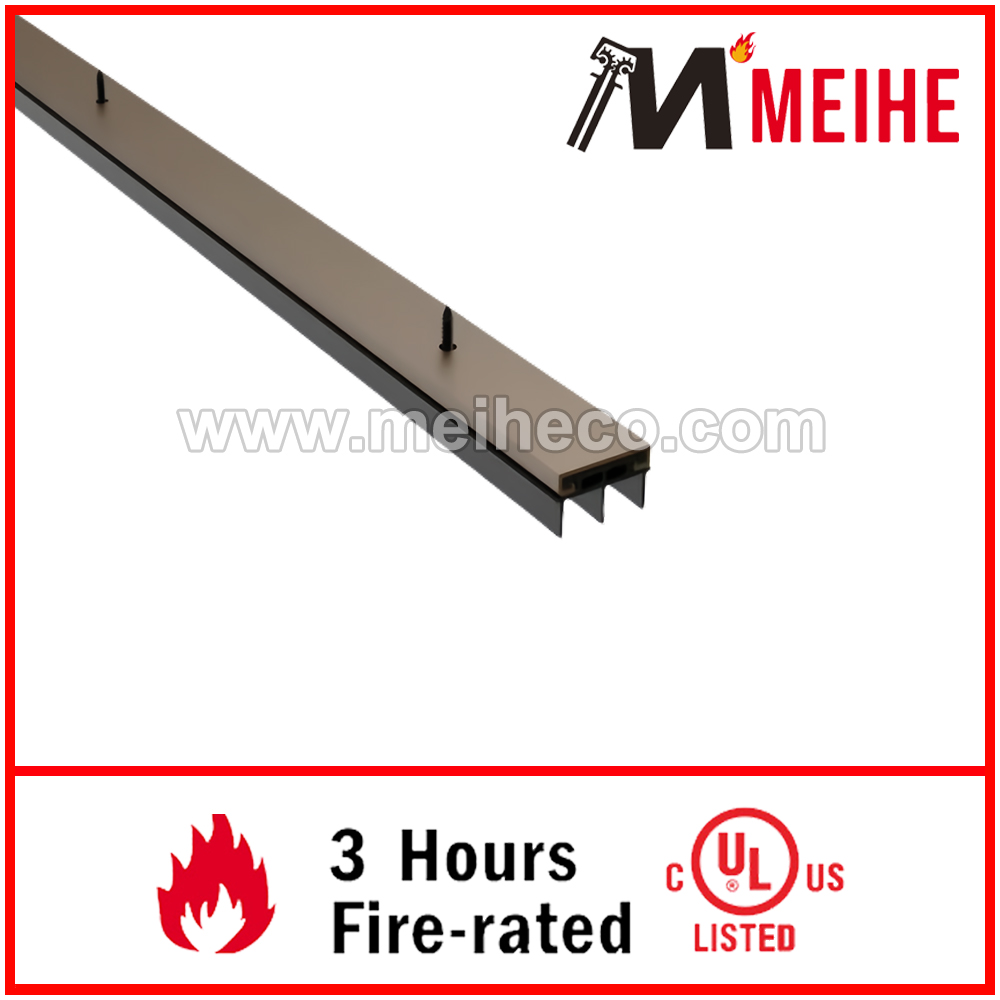

- Available Finishes: A, C, BL, DB, G, PB, LB, PW

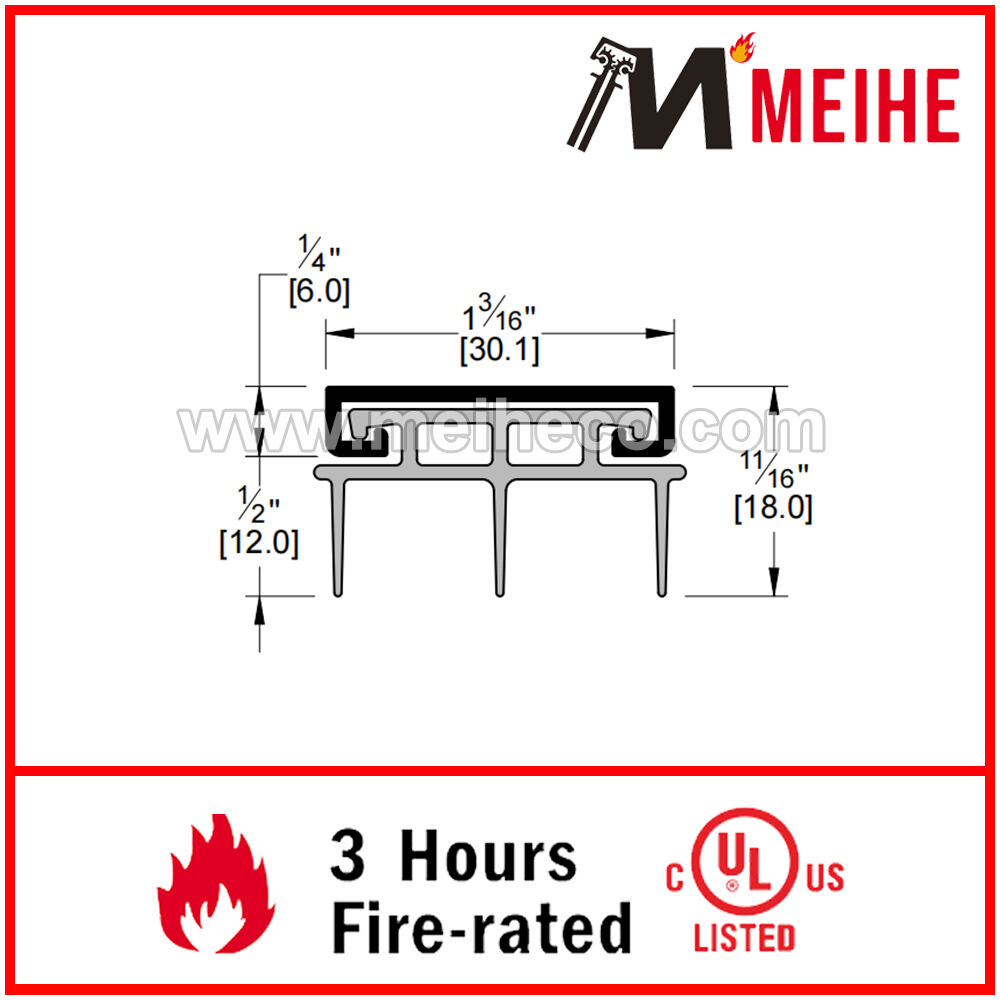

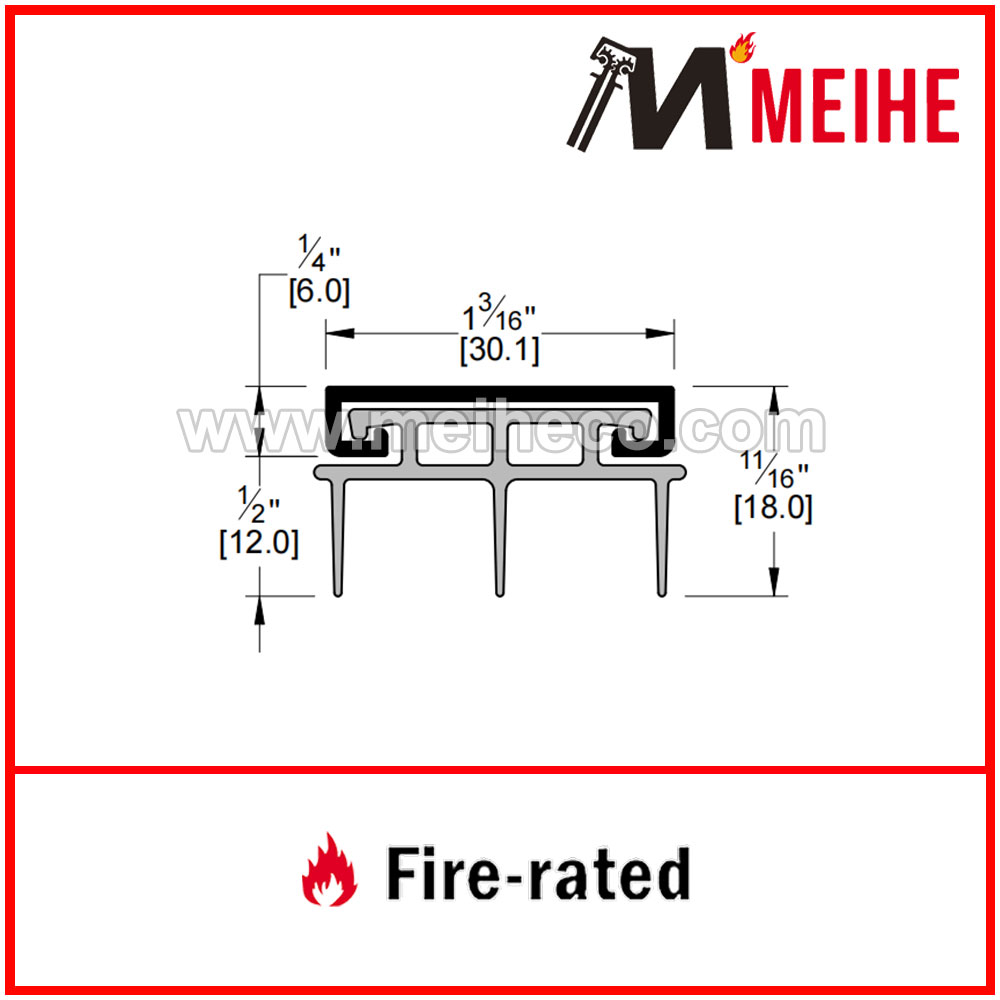

- Width: 1-3/16” (29.8 mm)
- Heightt: 11/16” (17.5 mm)
- Certificate:UL Certified
- Overview
- Recommended Products

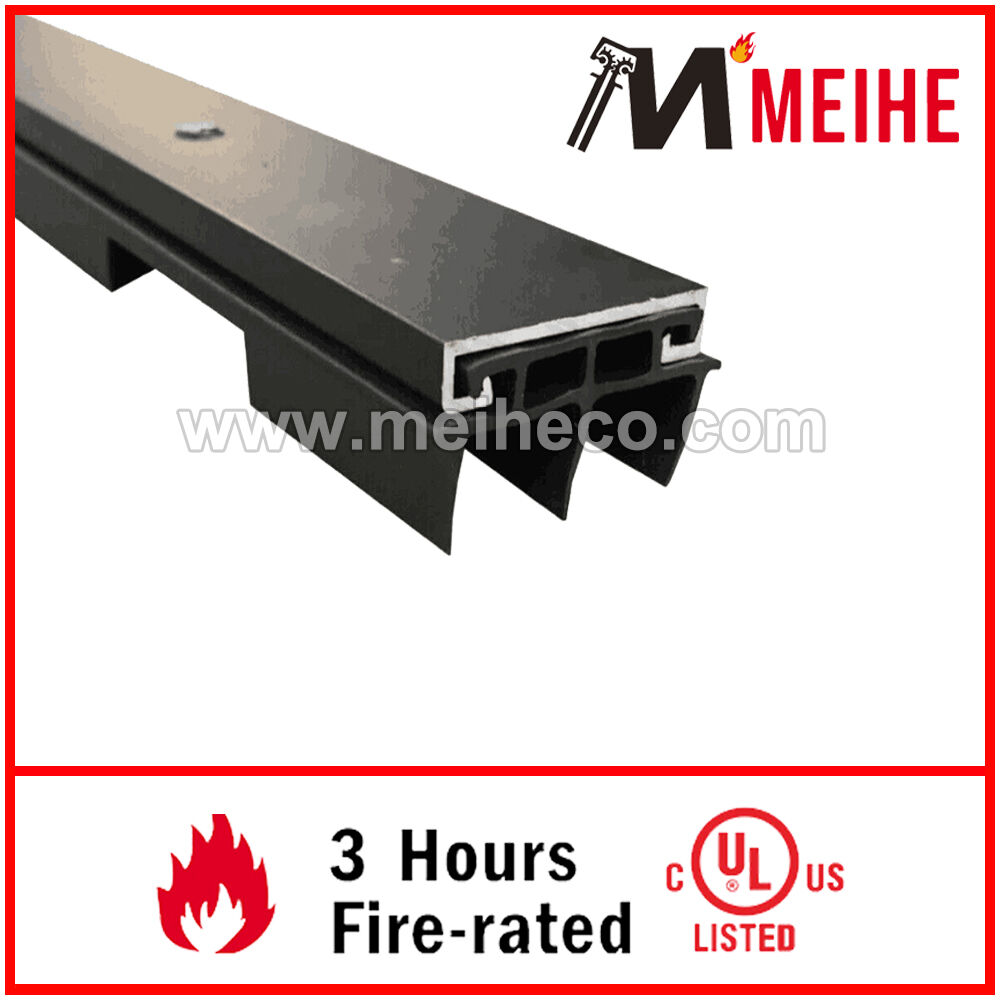

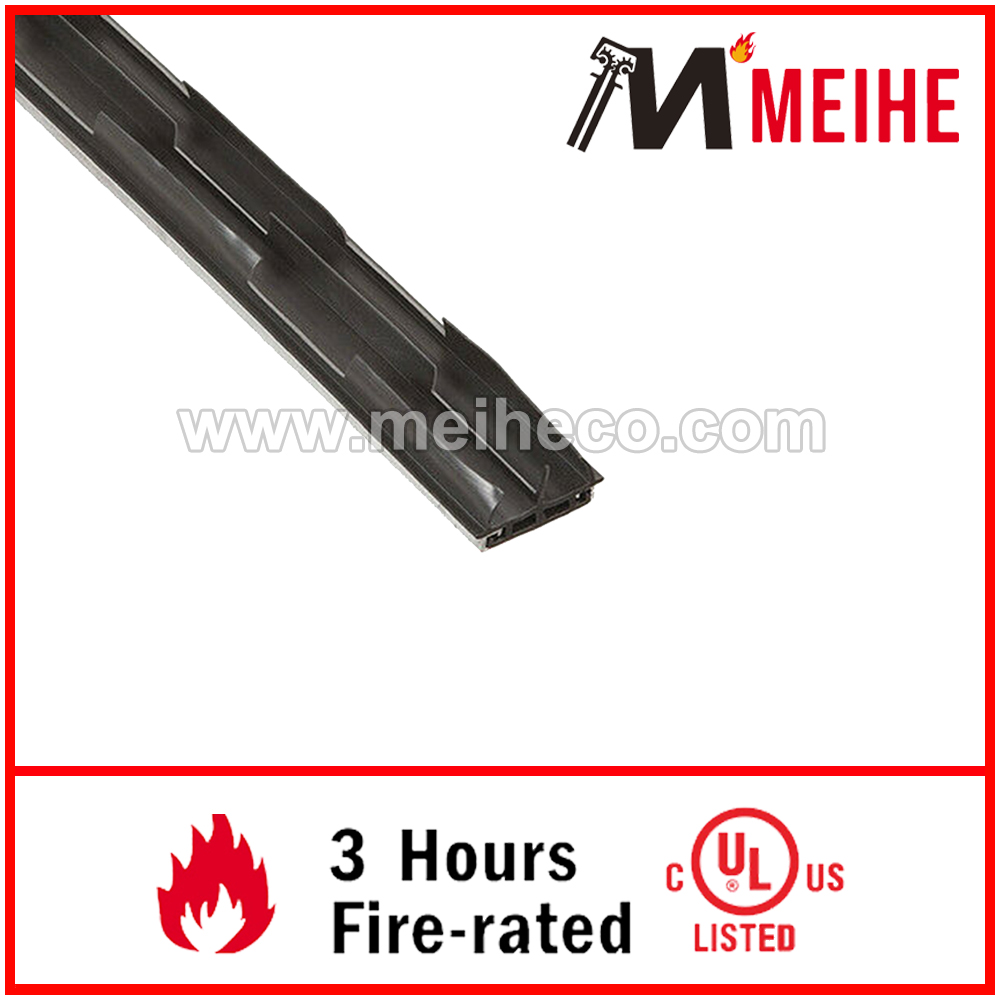

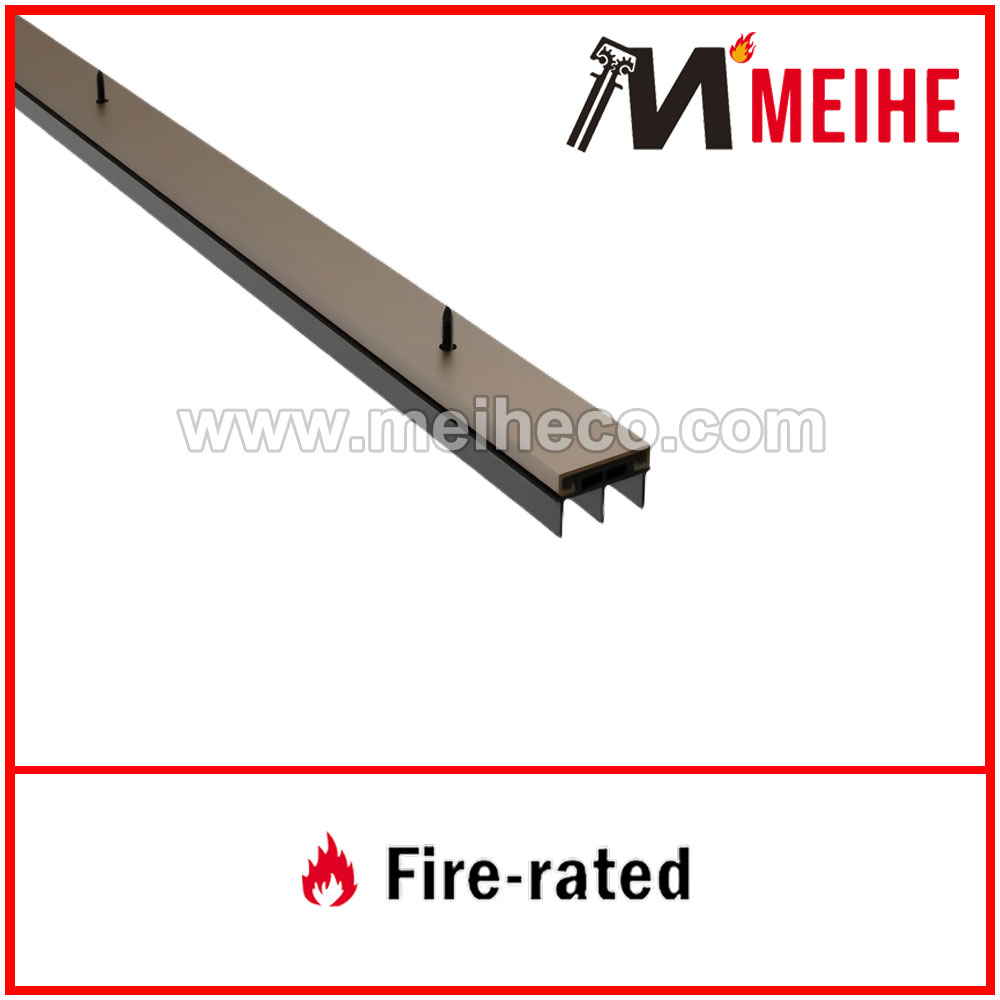

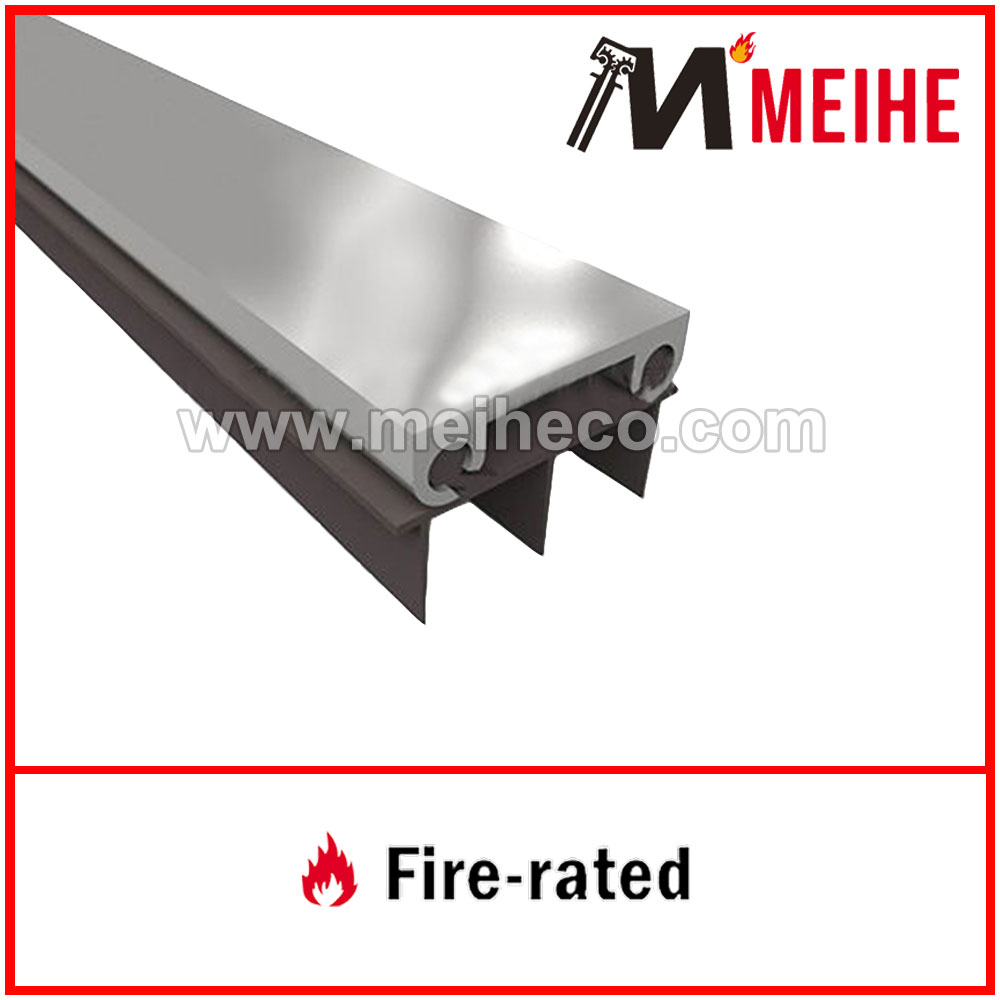

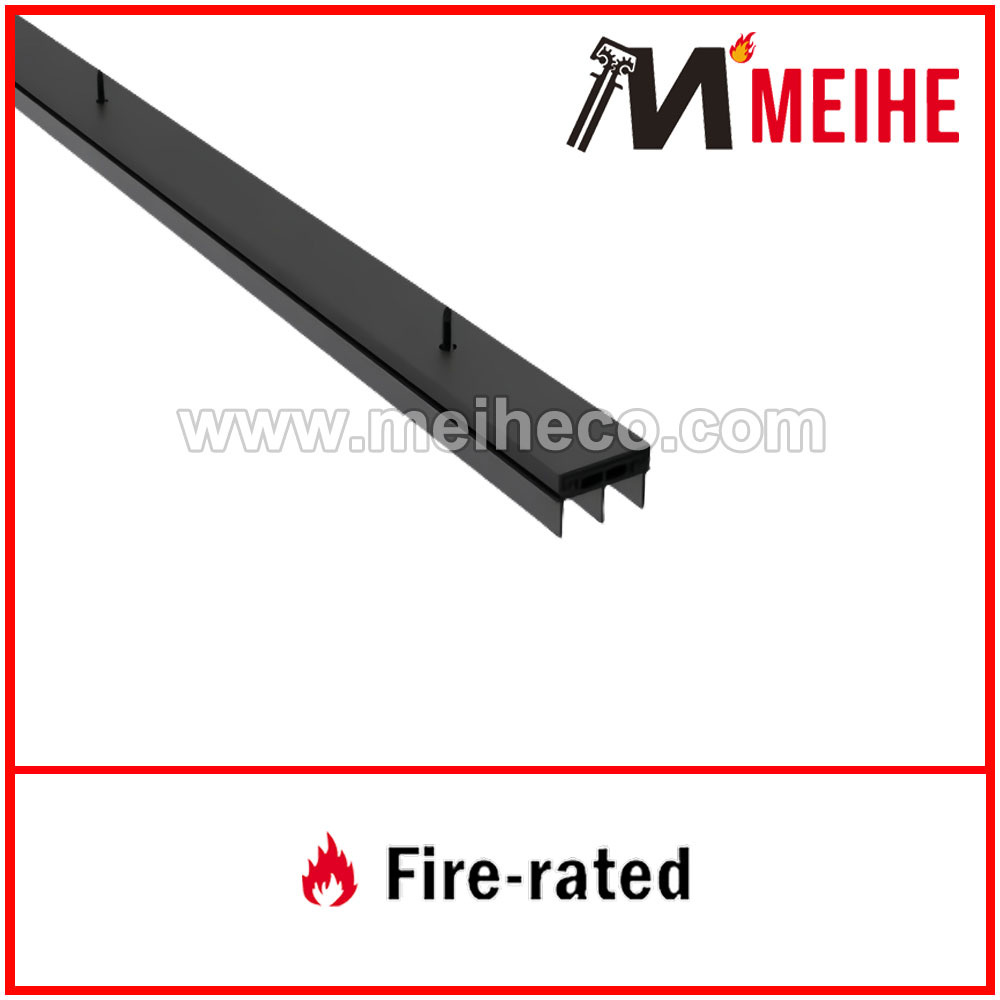

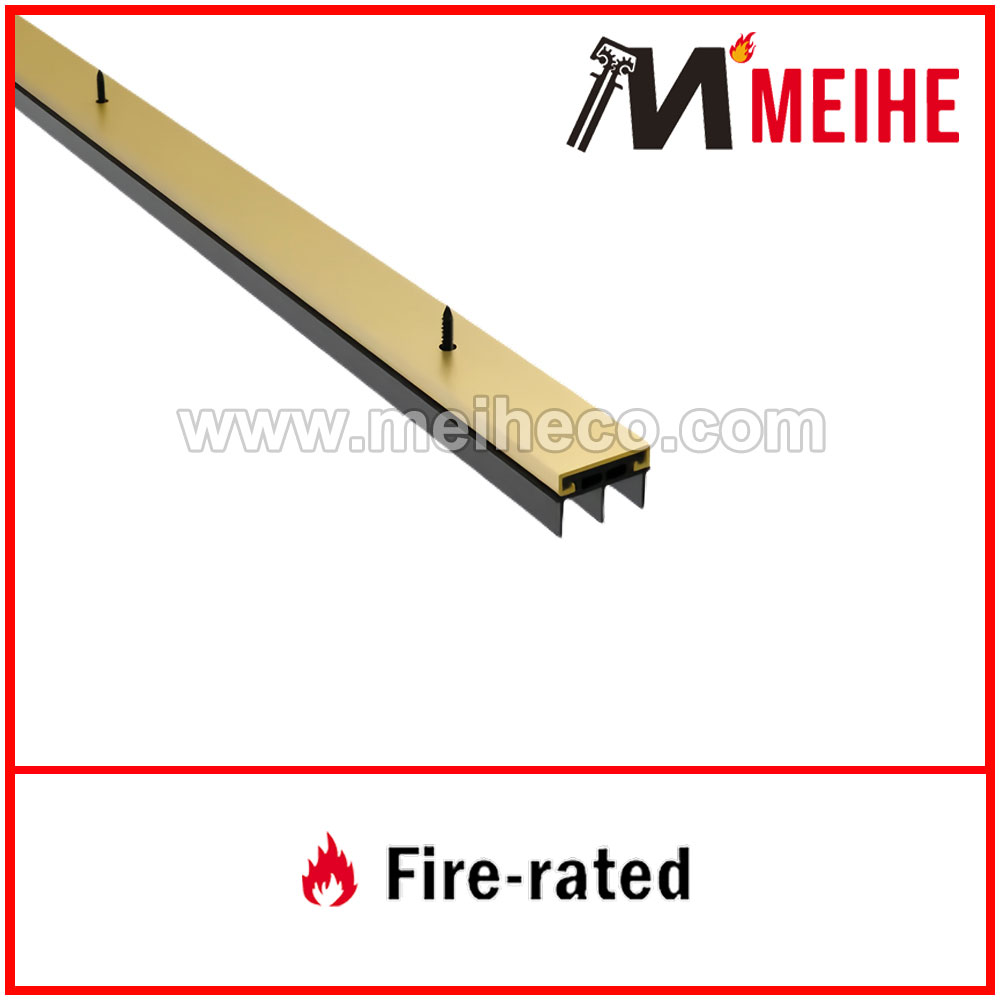

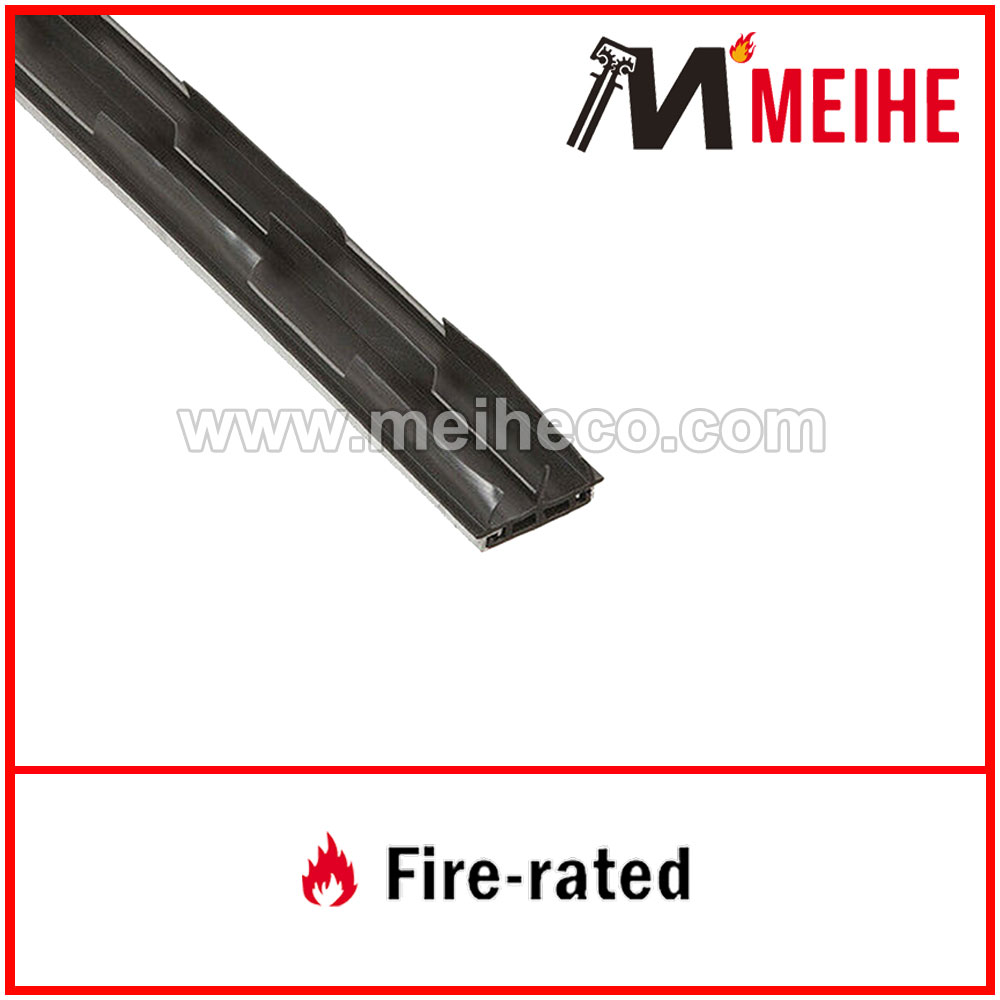

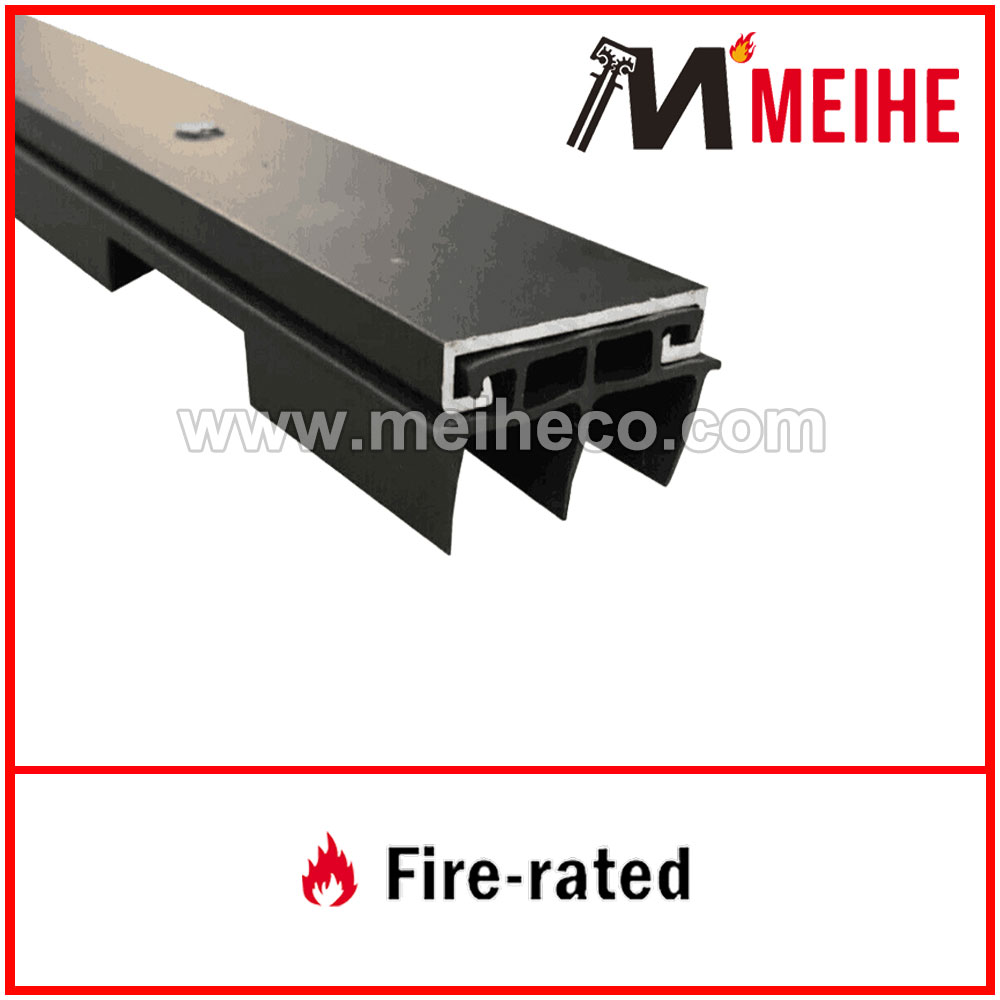

This kind of door bottom shoes is mounted to the underside of the door to provide a solid seal, while not affecting the appearance of the face of the door. It can be applied to doors greater than 1.18" thick. It is fitted with a black, pliable Vinyl notched or standard triple fin seal, see below for details. Available in various aluminum finishes and available in stock sizes.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Door Shoe Mount |
Seal Height |
11/16" Height |
Additional Dimensions |
Door seal is 1-3/16" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #2343_V; NGP #12TNF
|
