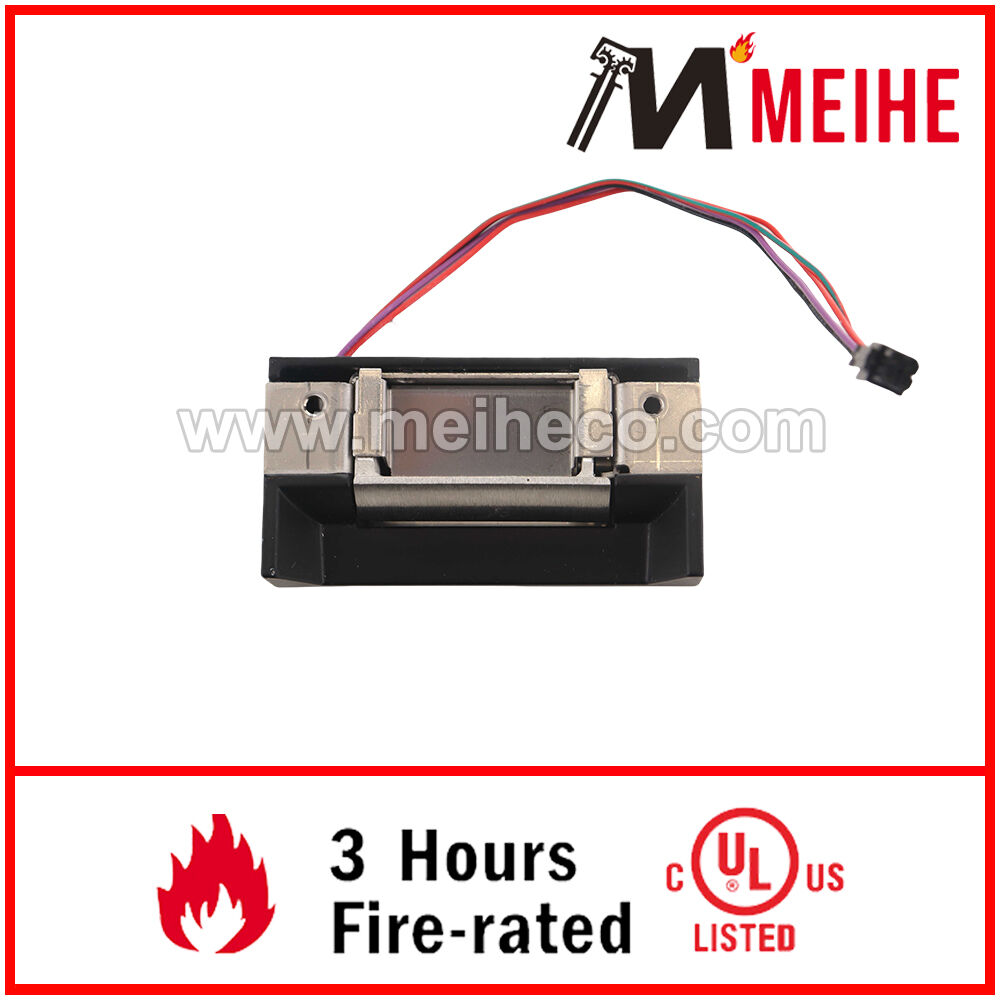

ES007 Series Compact Electric Strike High Performance Lock Cylinders for Low Profile Openings
Electric Strike
-Material：Stainless Steel
-Voltage：12VDC
-OEM：Available
- Overview
- Recommended Products
Electric strikes are one of several kinds of electrically operated locking devices used to secure both inside and outside doors. Electro mechanical by nature, they provide a cost-effective way to control foot traffic from one side of a door to the other.
The ES007 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the ES007 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Voltage |
DC 12V/DC 24V |
Suitable for |
Wooden doors, Metal doors, PVC doors |
Application
- Adjustability : None
- Surface Mounting : Cutting required
- Frame Material : Metal|Wood
- Shim Type : NA
- Latchbolt Accommodation : 1/2" - 5/8"
Electrical
- Voltage : 12/24
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt Monitoring
Strength & Durability
- Endurance (cycles) : 1,000,000
- Dynamic Strength (ft-lbs) : 70
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
- Grade : Grade 1
General Specifications
- Warranty : SecuriCare five-year, no fault, no questions asked warranty
- Lock Type : Cylindrical Lock

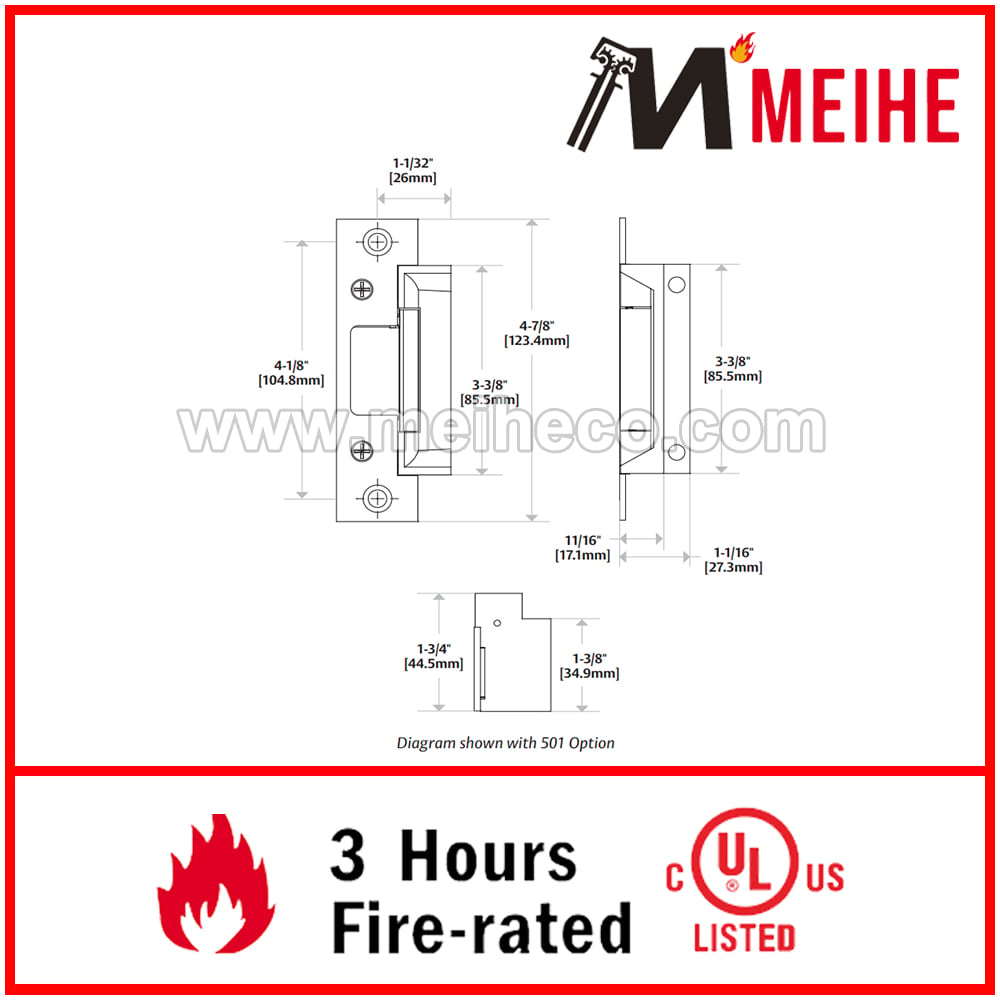

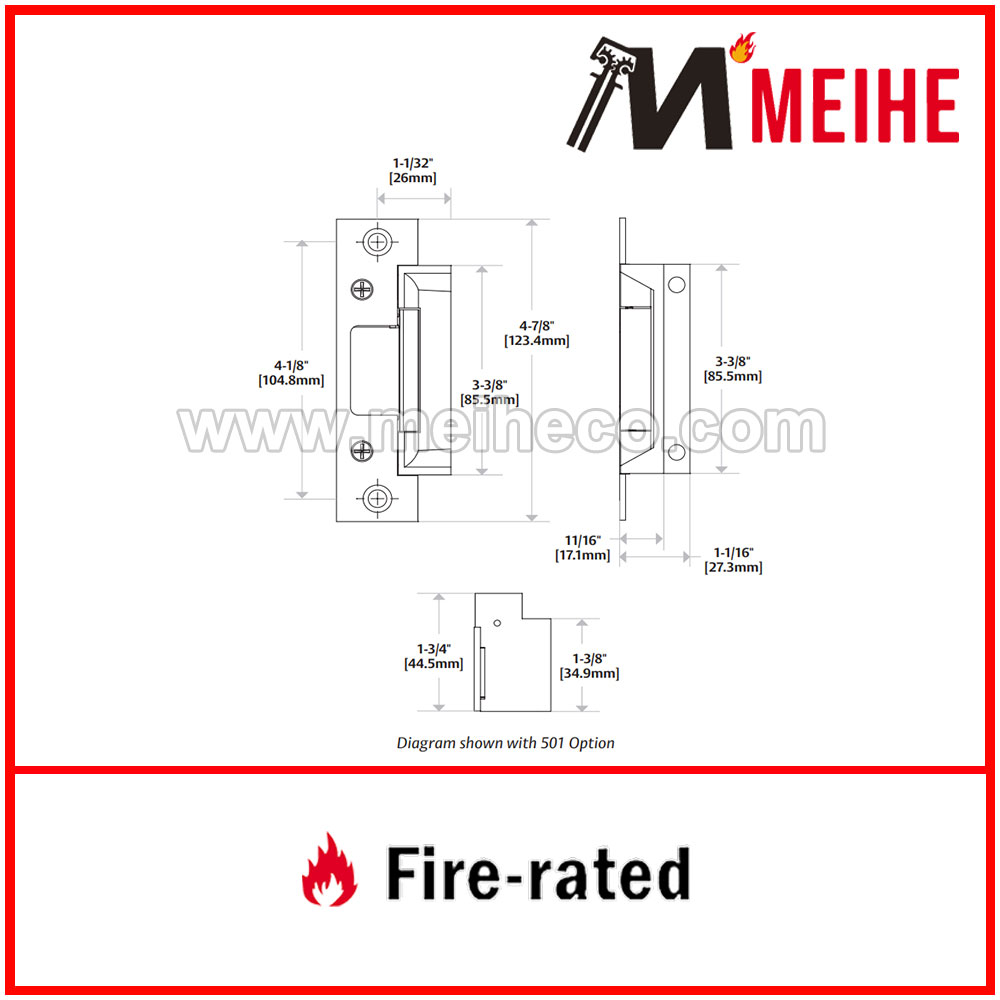

Weights & Dimensions
- Strike Body Depth (in) : 1-11/16"
- Strike Body Height (in) : 4-7/8"
