YDB106 Aluminum Door Top Weatherstrip Modern Design Overhead Rain Drip with Slotted Holes Low Price Chinese Hardware
Door Top Weatherstrip
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

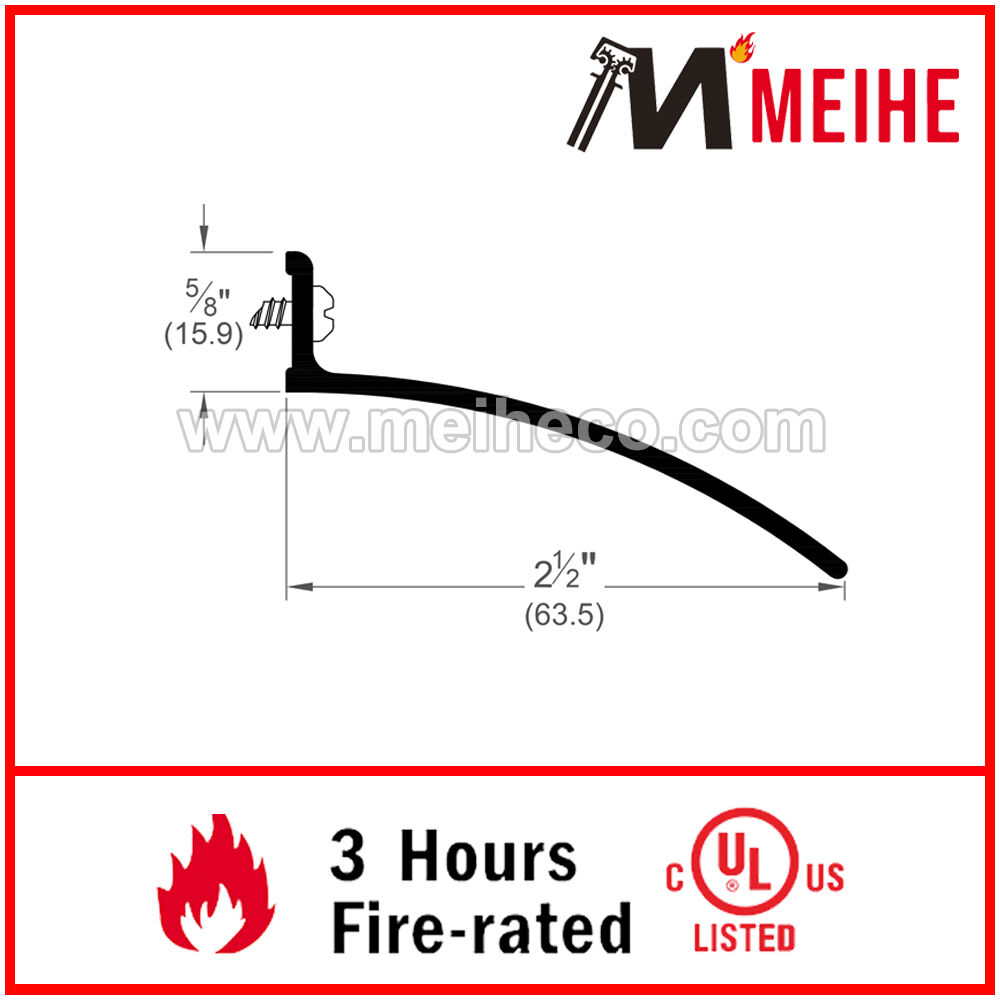

- Width: 2-1/2” (63.5 mm)
- Height: 5/8” (15.9 mm)
Certificate:
- UL
- Overview
- Recommended Products
This Rain Drip Projection Strip is a simple way to deflect water from the gap at the top or bottom of doors. It is fire rated and crafted from high quality aluminum to ensure long lasting usage. Available in three aluminum finishes and is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Mounting |
Surface Mounted |
Seal Height |
1-2/5" Height |
Additional Dimensions |
Door seal is 2-1/2" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Cross Reference |
PEMKO #346_; NGP #16 |
Certificate |
Fire Rated - UL 10B/10C |
