YDB309 Heavy Duty Aluminum Automatic Door Sweeping Rubber Strip Door Bottom Drop Down Bottom Seals Strips
Automatic Door Bottoms
- Available Finishes: A, C, BL, DB, G, PB, LB
- Width: 19/32” (14.9 mm)
- Height: 1-3/8” (34.9 mm)
Certificate:
- UL
- Overview
- Recommended Products

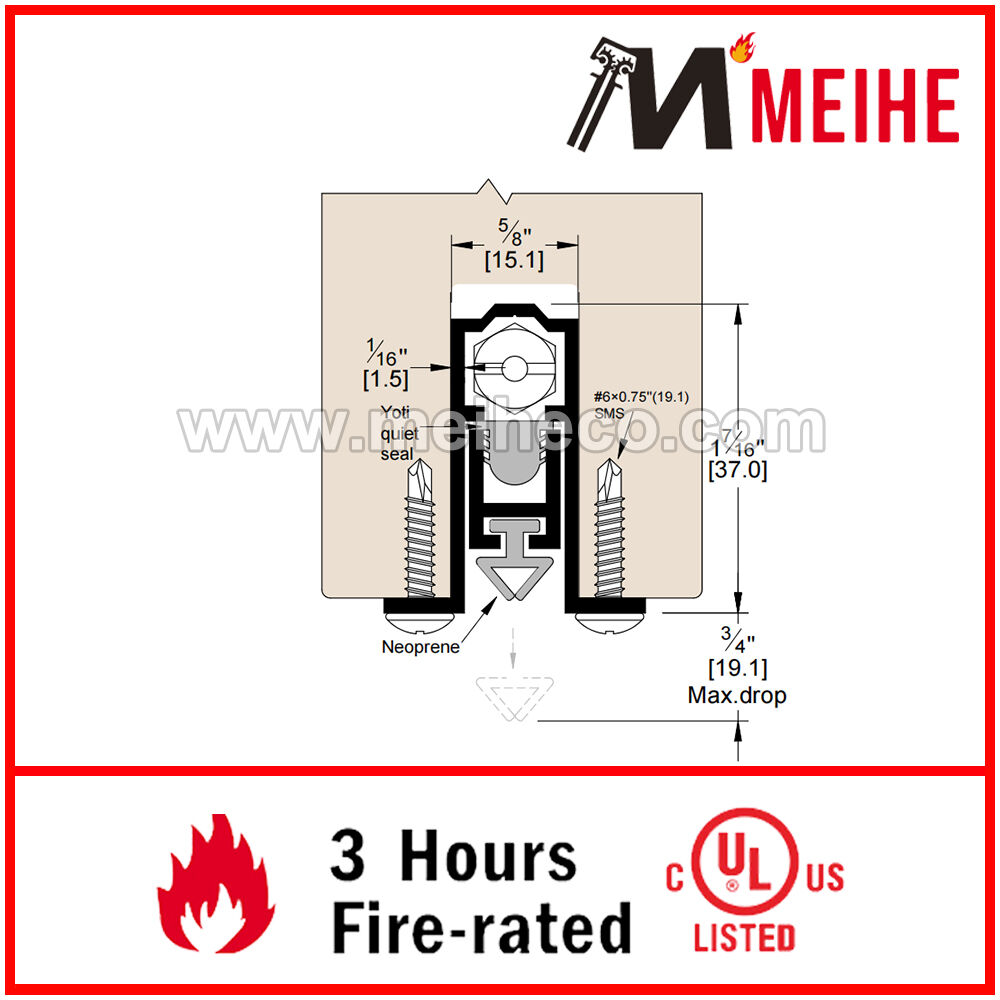

These Automatic Door Bottoms ensure an efficient seal with an adjustable plunger that is compressed against the frame as the door is closed, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion. The seal compresses on either even or uneven surfaces and retracts automatically when the door is opened.
YDB309 fully mortised, standard duty Automatic Door Bottom creates a tight seal at the bottom of door to prevent infiltration of light, sound, drafts and more. It is fitted with a solid neoprene extrusion with a high quality mechanism that has been successfully tested through 5 million cycles! Can fill gaps up to 0.75" and is fire rated.
Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some models available as engineering special order.
Retainer Material |
Aluminum |
Finish |
Mill Finish/Clear Anodized/Dark Bronze Anodized |
Door Type |
Wooden Door |
Seal Type |
Vinyl Rubber Seal |
Mounting Type |
Fully Mortised |
Maximum Drop Size |
0.75"(19.05mm) |
Door Thickness |
1-3/4"(44.45mm)/1-1/2"(38.1mm) |
Functions |
Blocking penetration by: Sound,Air,Smoke,Flames |
Length |
Standard 36", 48"; Maximum 60" |
Accessories |
End Caps and Screws are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
ZERO#320 |
