YDB104 Door Bottom Sweep Metal Door Bottom Sweep Weather Seal Strip Lowes/ Bottom Door Seal Replacement
Door Sweeps
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

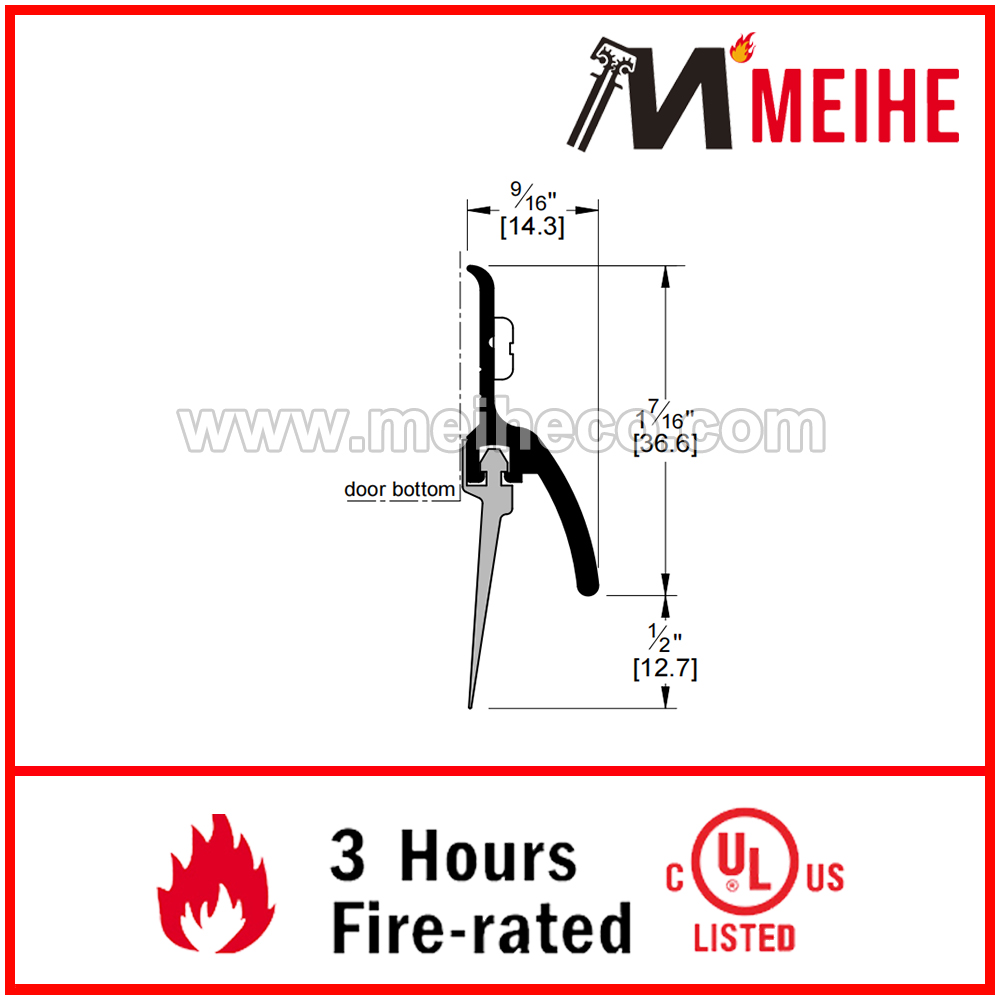

- Width: 9/16” (14.3 mm)
- Height: 2” (50.8 mm)
- Function：Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products

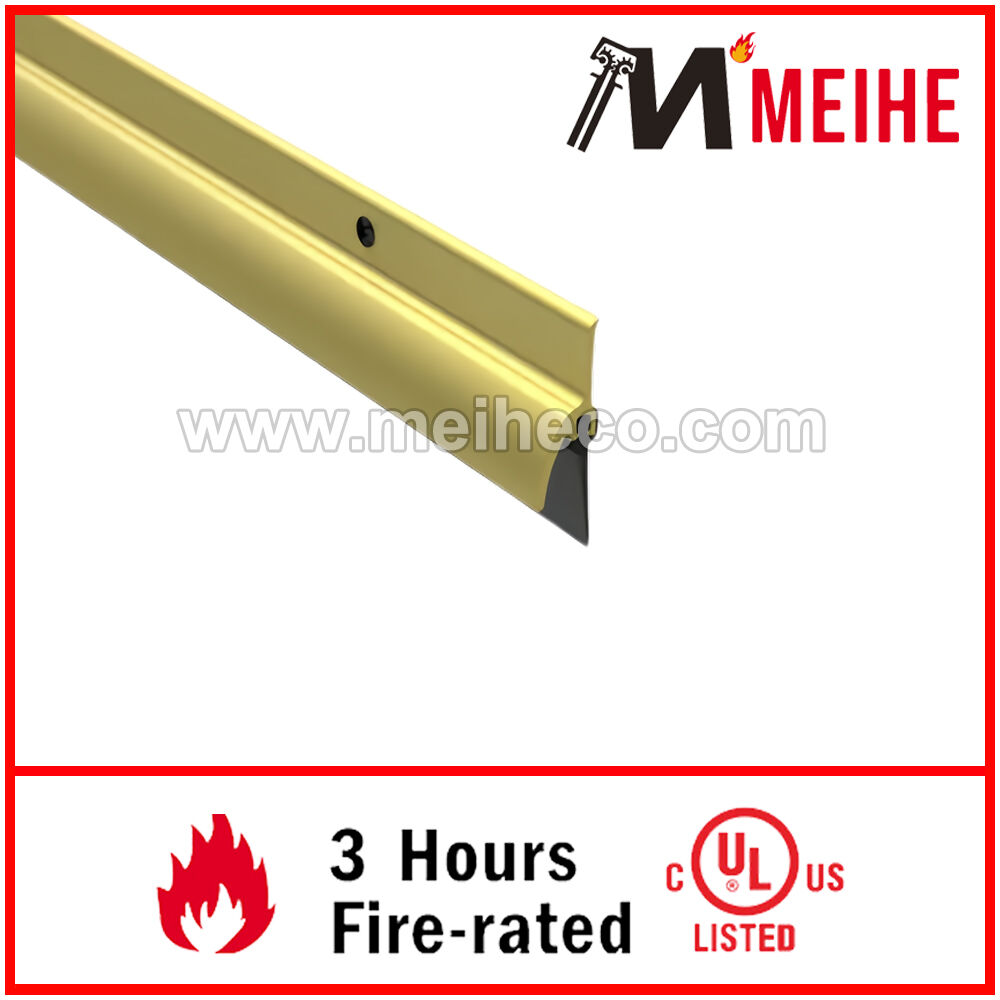

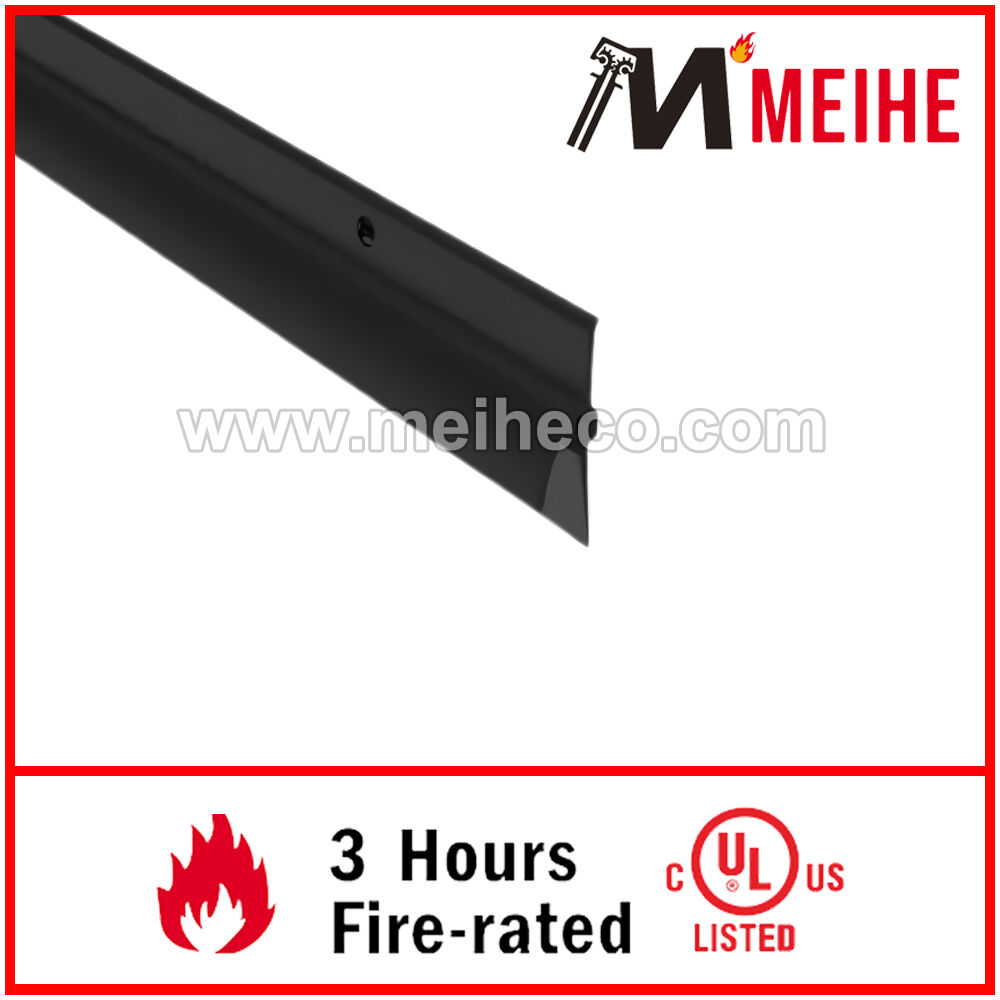

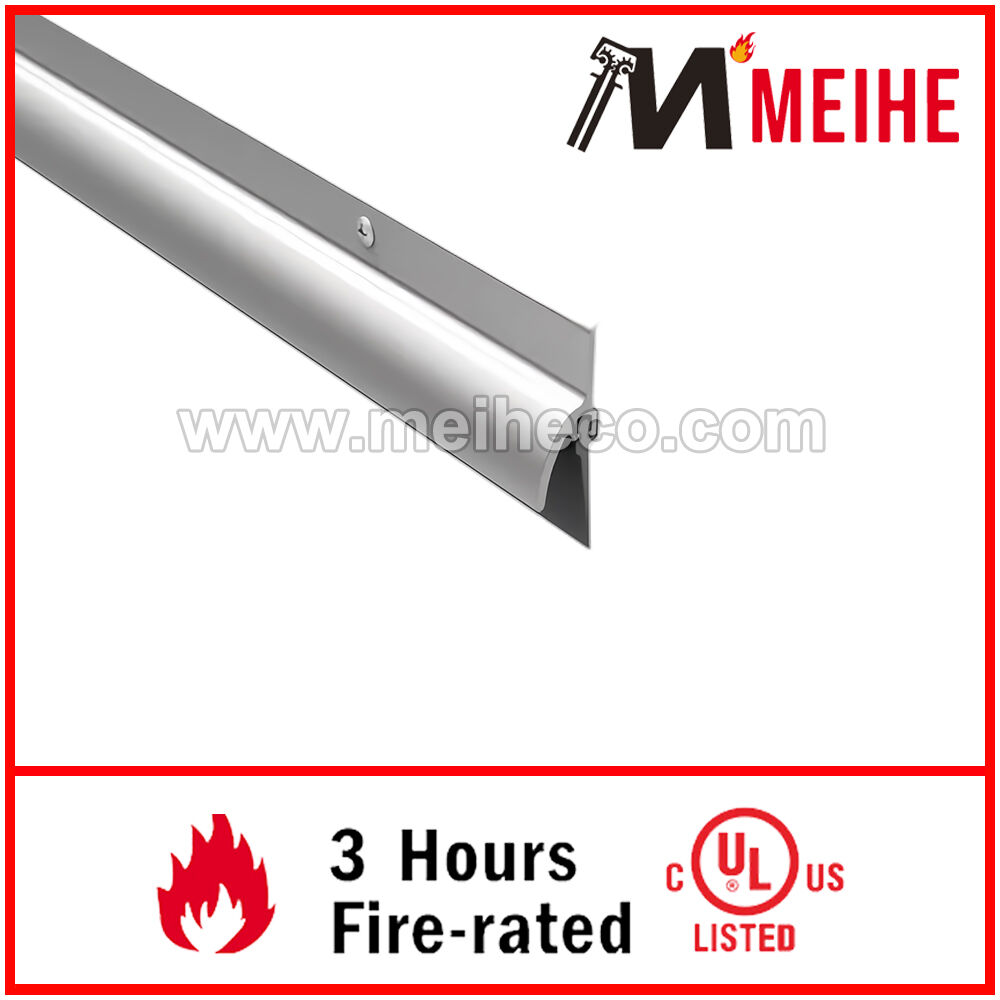

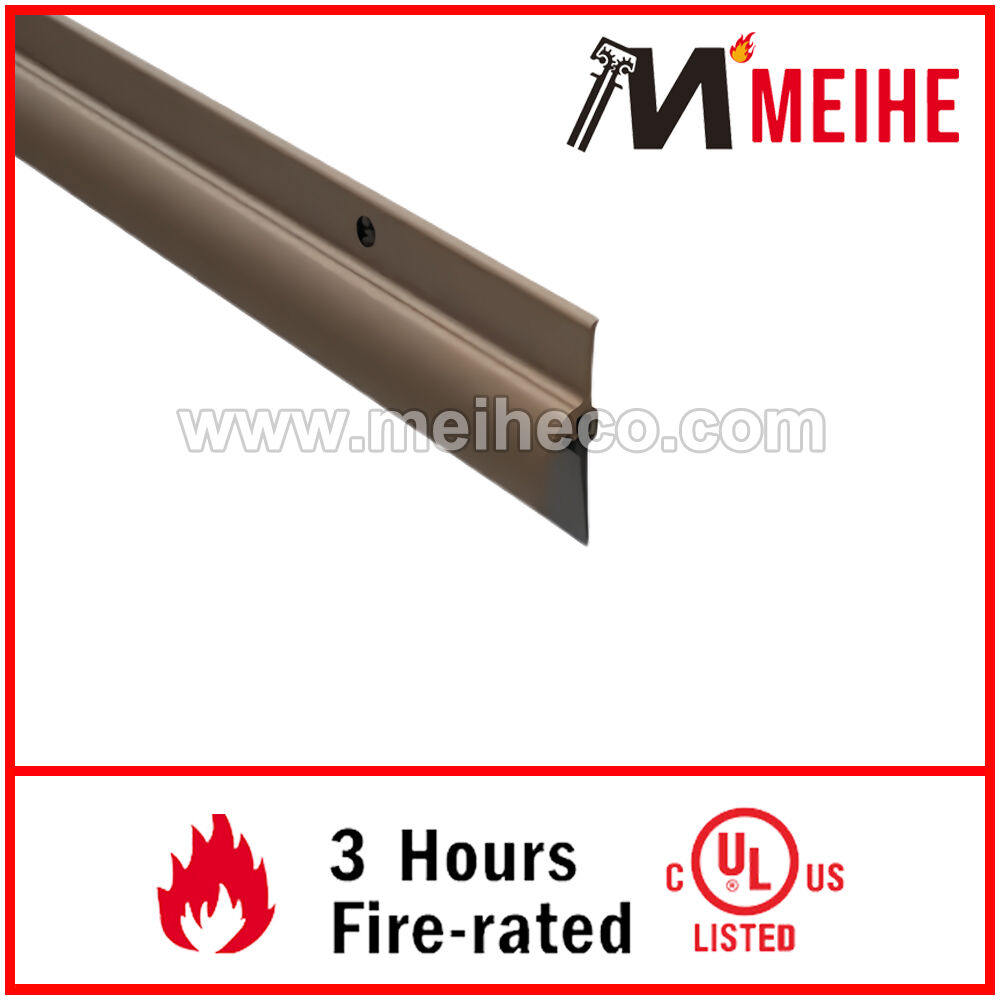

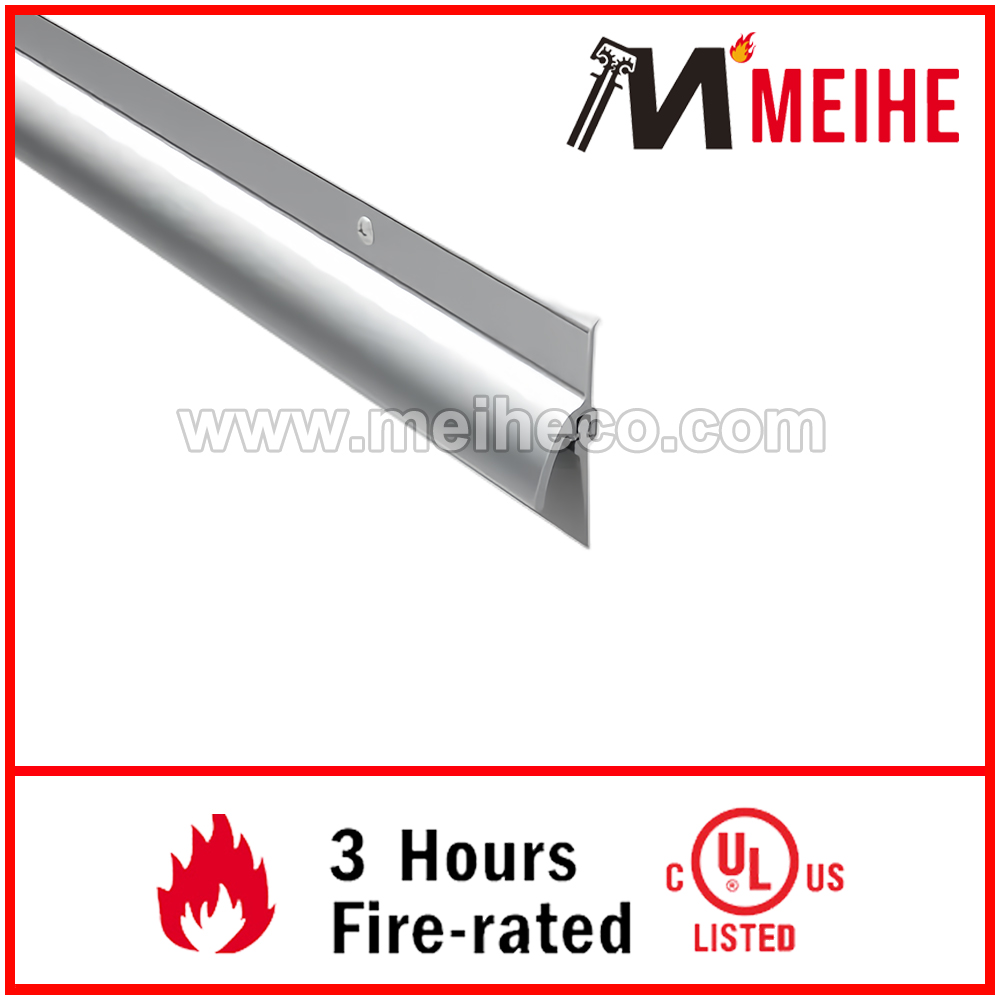

This door bottom sweep is a great addition to seal exterior doors, or to protect the edges of interior doors. The high quality aluminum casing has a Rain Drip Cap which deflects water to prevents seepage through the gap under doors and protect the door from abuse. It is fitted with an Vinyl Fin Seal which reduces infiltration of fire, smoke drafts, moisture, air and dust.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting |
Surface Mounted |
Seal Height |
9/16" Height |
Total Height |
2" Height |
Additional Dimensions |
Door seal is 9/16" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Cross Reference |
PEMKO #345V; NGP #101V |
Certificate |
Fire Rated - UL 10B/10C
|
