YDB311 Full Mortised Style Automatic Door Seal Gasket Concealed Door Bottom Seal Strip Drop Seal
Automatic Door Bottoms
- Available Finishes: A, C, BL, DB, G, PB, LB
- Width: 1-3/8” (34.9 mm)
- Height: 1” (25.4 mm)
Certificate:
- UL
- Overview
- Recommended Products
These Automatic Door Bottoms ensure an efficient seal with an adjustable plunger that is compressed against the frame as the door is closed, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion. The seal compresses on either even or uneven surfaces and retracts automatically when the door is opened.

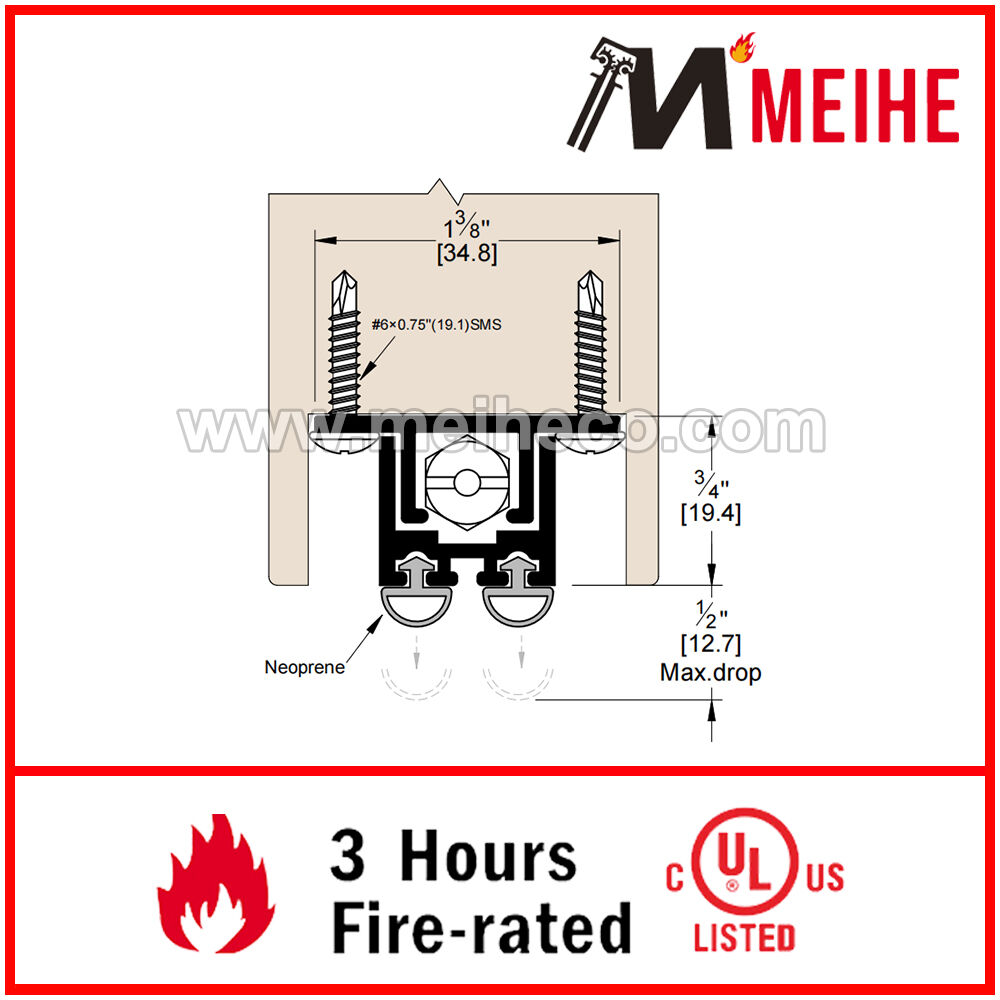

YDB311 Automatic door bottom is designed to be fully mortised into hollow metal doors. It is crafted from high quality material that will ensure smooth operation. It is fitted with a two Vinyl bulbs to ensure a quality seal. Seal drops up to 0.5" and is fire rated. Product is non-handed and custom cut to size.
Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some models available as engineering special order.
Retainer Material |
Aluminum |
Finish |
Mill Finish/Clear Anodized/Dark Bronze Anodized |
Door Type |
Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting Type |
Full Mortised |
Maximum Drop Size |
0.5"(12.7mm) |
Minimum Door Thickness |
1-3/4"(44.45mm) |
Functions |
Blocking penetration by: Sound,Air,Smoke,Flames |
Length |
Standard 36", 48"; Maximum 60" |
Accessories |
Screws are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
ZERO#355A-FLO |
