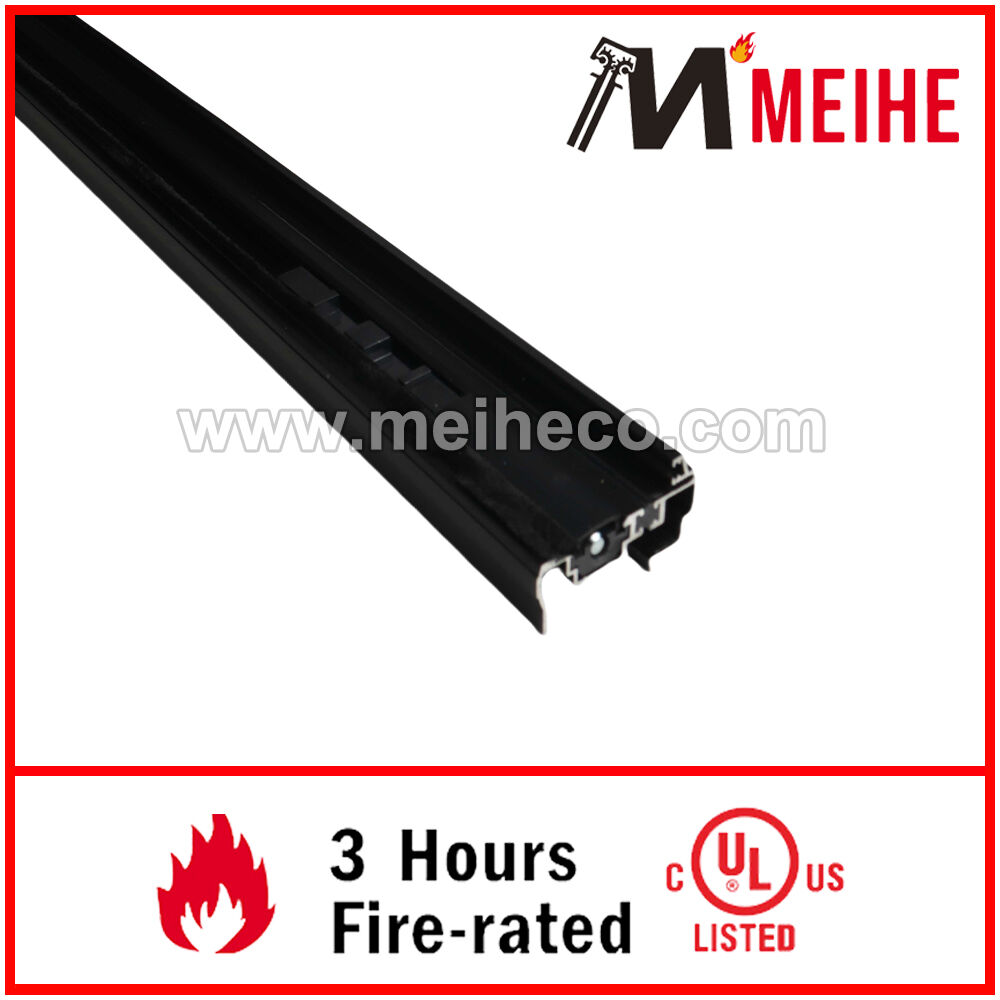

High Quality Commercial YDW604 Door Aluminium Adjustable Astragals Industrial Design Style
-Product Name;Astragals
-Material:Aluminum
-Certificate:ISO9001
-Warranty：1 Year
- Overview
- Recommended Products

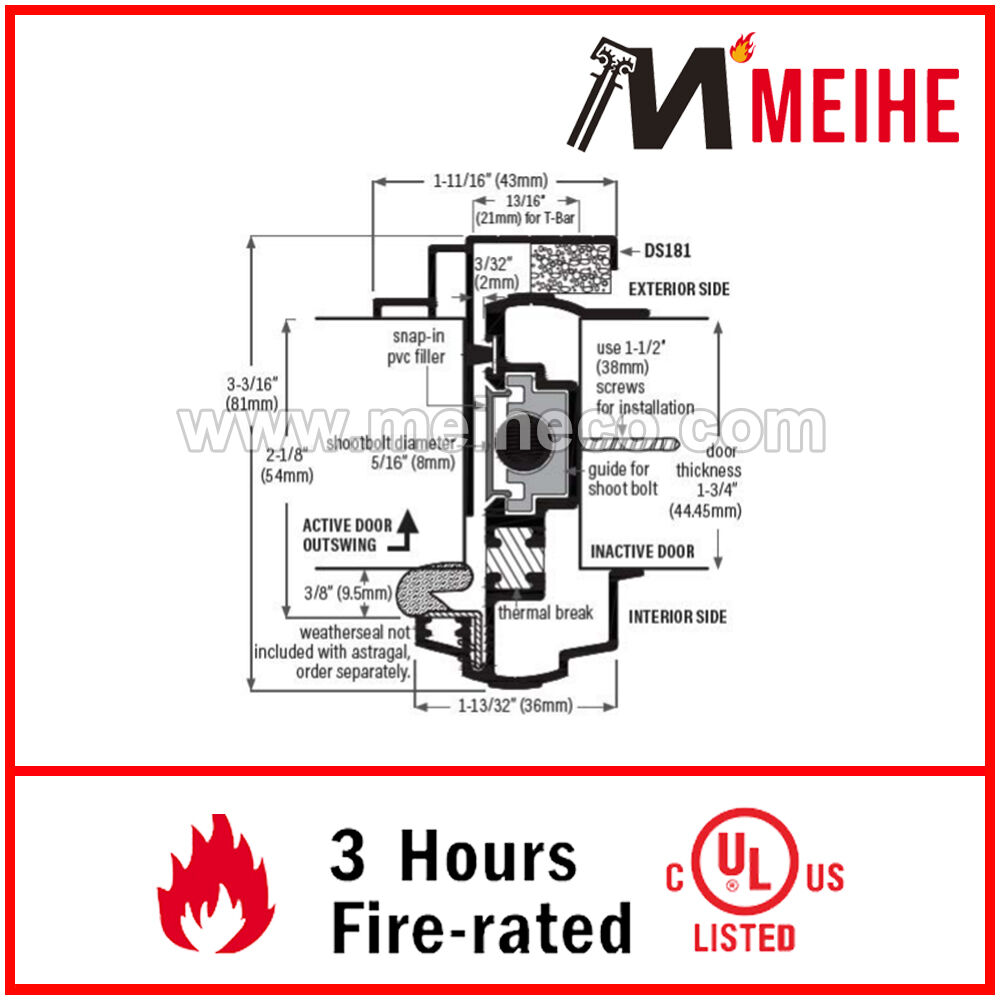

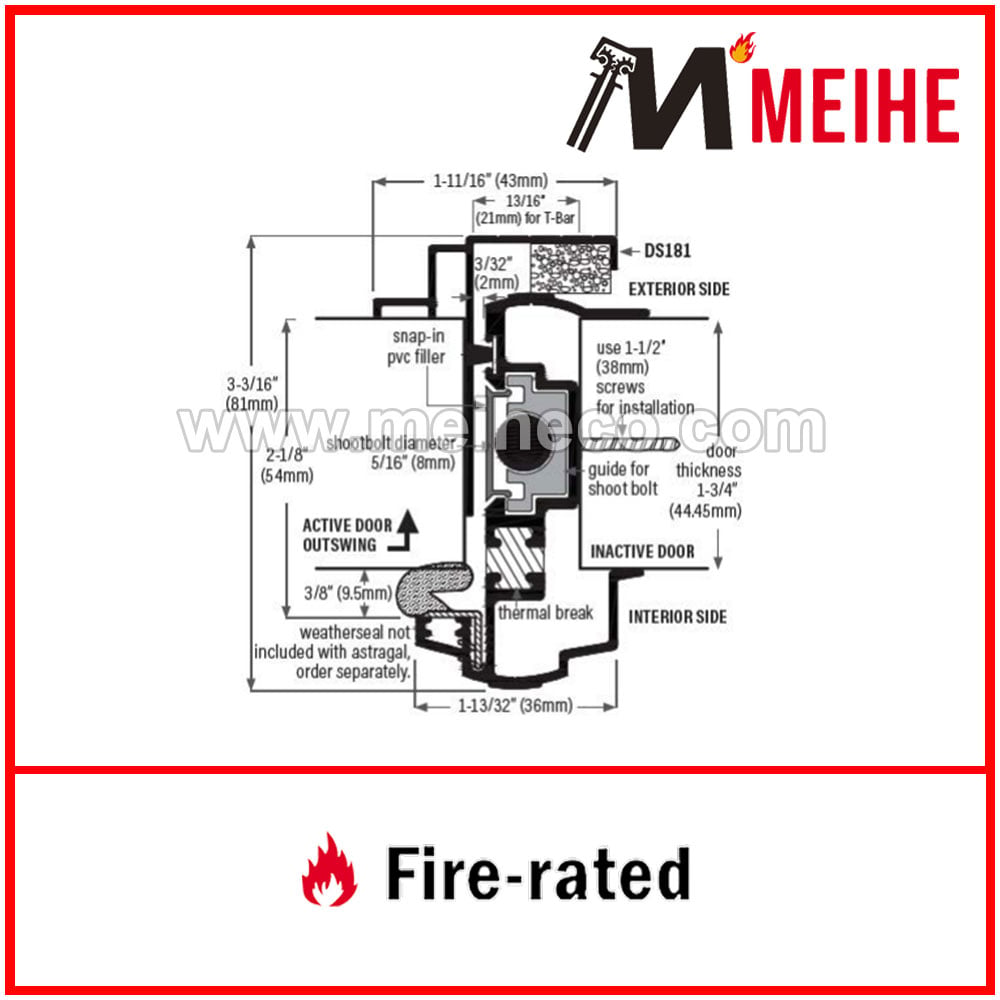

An astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active). It provides an excellent acoustic, smoke, light, dust and weather seThis seal has proven smoke and acoustic performance, sealing on two faces of the door surface. The thin fixing leg allows this seal to be face fixed to the door (no rebating required where sufficient gap allows). This leg can also be checked to make way for locks and latches.
Gap size
- Min. 2.5mm / max. 6mm
Standard lengths
- 2250mm
- 3000mm
- Also available in:250mm increments from 2000mm to 3500mm
Standard colours:
- Silver anodised aluminium with black sealing blades
Fixing
- A door sequence selector should be considered unless one leaf is intended to be fixed
