C 1106 Modern Design Black Extruded Aluminum Lock for Patio Doors Surface with Clamp Latch for Hotels
Sliding Door Handle
-Material: Aluminum
-Finish: Painted
-Color: Black
-Hole Center to Center: 4-15/16"
-Latch Style: Clamp Style
-Handle Type: Surface Mounted
-Warranty：1 Year
- Overview
- Recommended Products

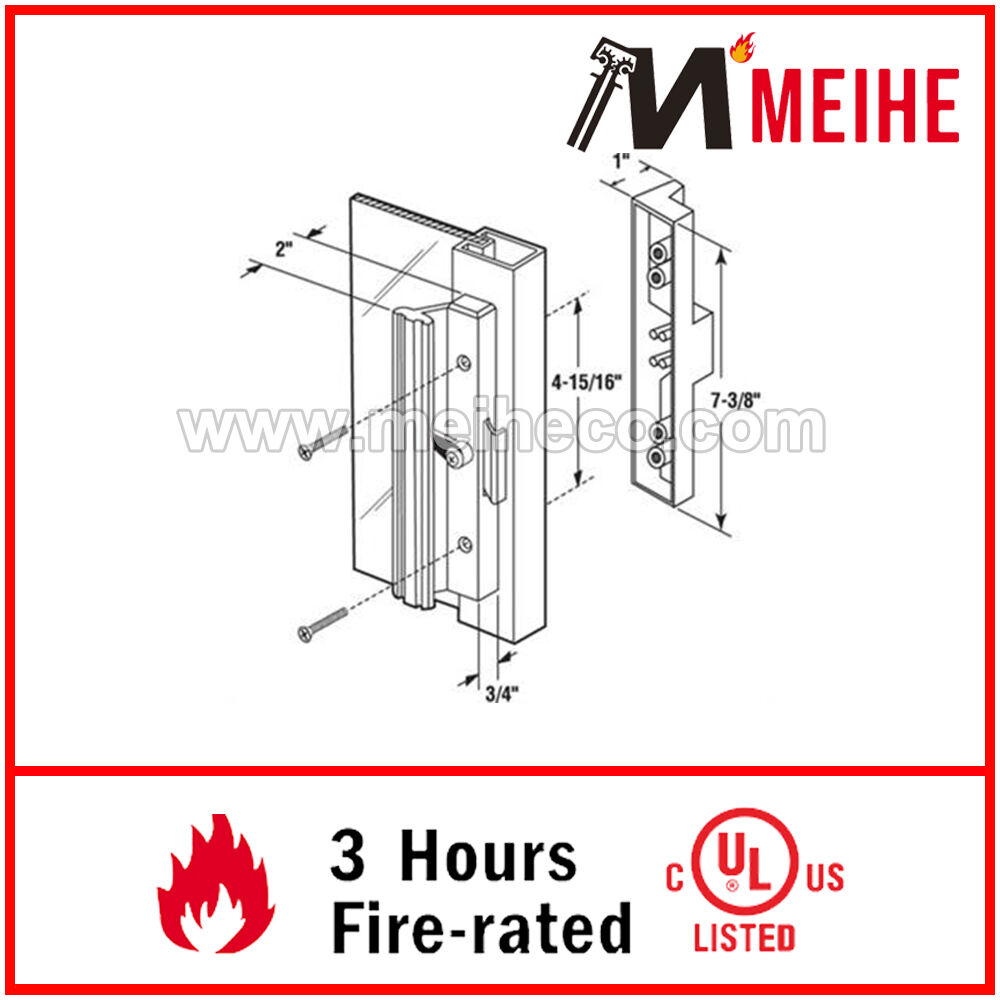

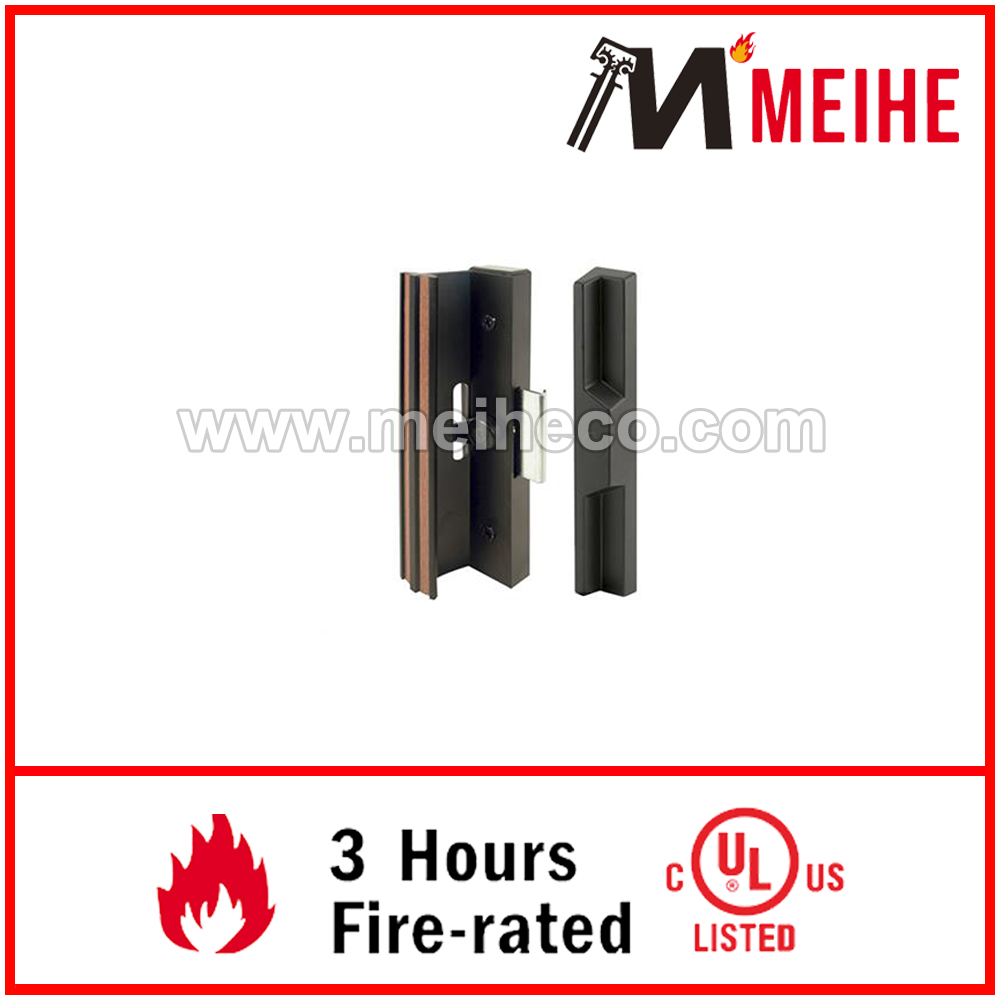

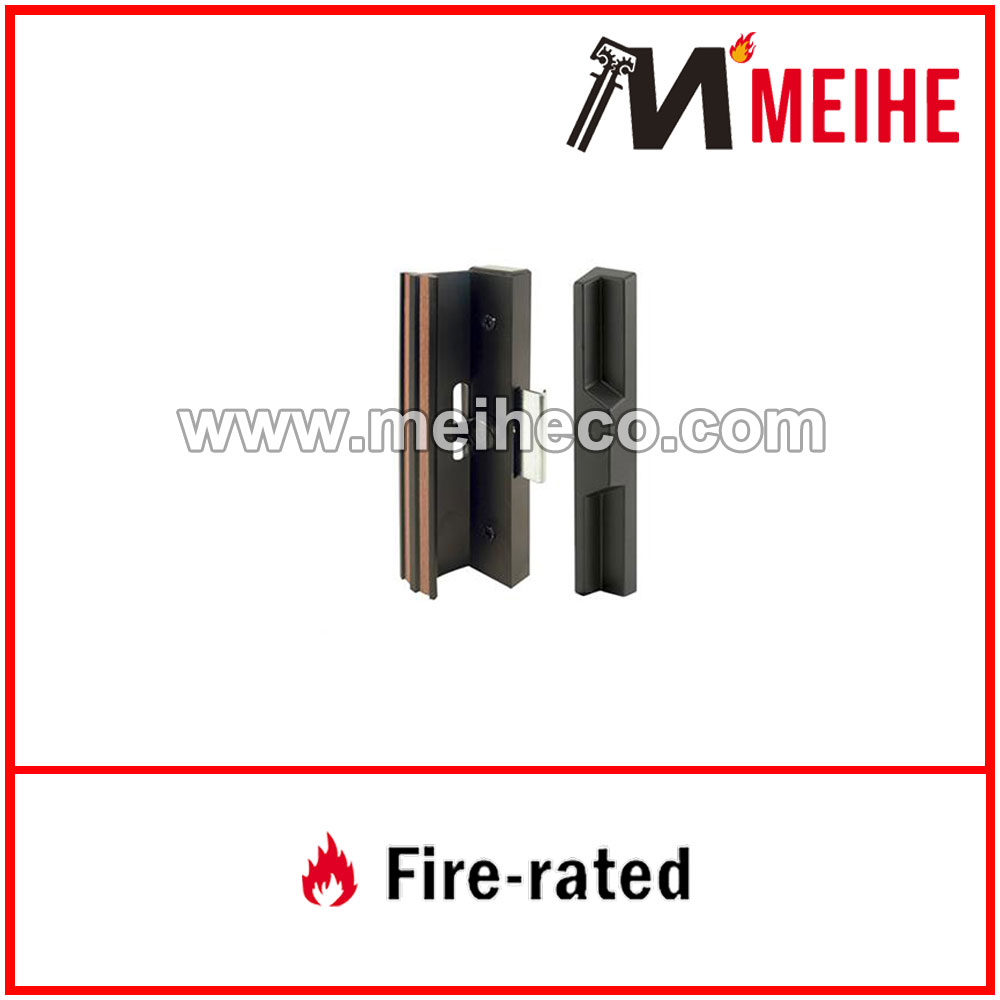

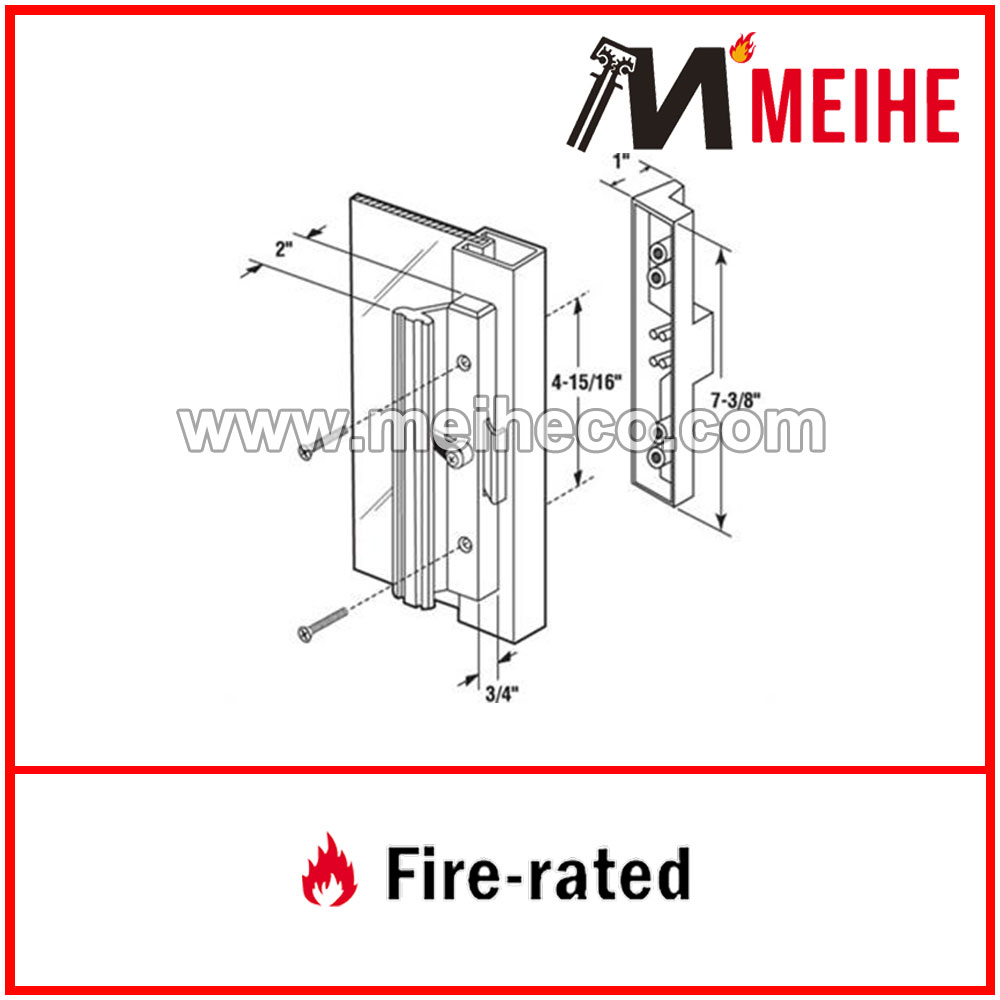

This black patio door handle is a surface with clamp latch style. Often found on older style patio doors,it is mounted on the door's inside frame and the clamp latch latches onto an extrusion (astragal) on thejamb. It has 2 inch high extruded aluminum inside handle. The clamp has a 1/4 inch profile and 1/2 inch projection when in locked position. The outside handle is a black diecast non-keyed handle. To key this unit order the E 2000 lock cylinder.
- Inside Handle is Black Extruded Aluminum.
- Inside Handle Height is 2 inches
- Outside handle is Black Diecast
- 4-15/16 inch mounting holes
- Non-Handed
- Non-Keyed (see E 2000 to key this unit)
- Clamp latch has a 1/4 inch profile and 1/2 inch projection
- Used by many Patio Door Manufacturers
