YHG013 Continuous Geared Hinge Hinge Half Modern
Half Surface Continuous Geared Hinges
Application:

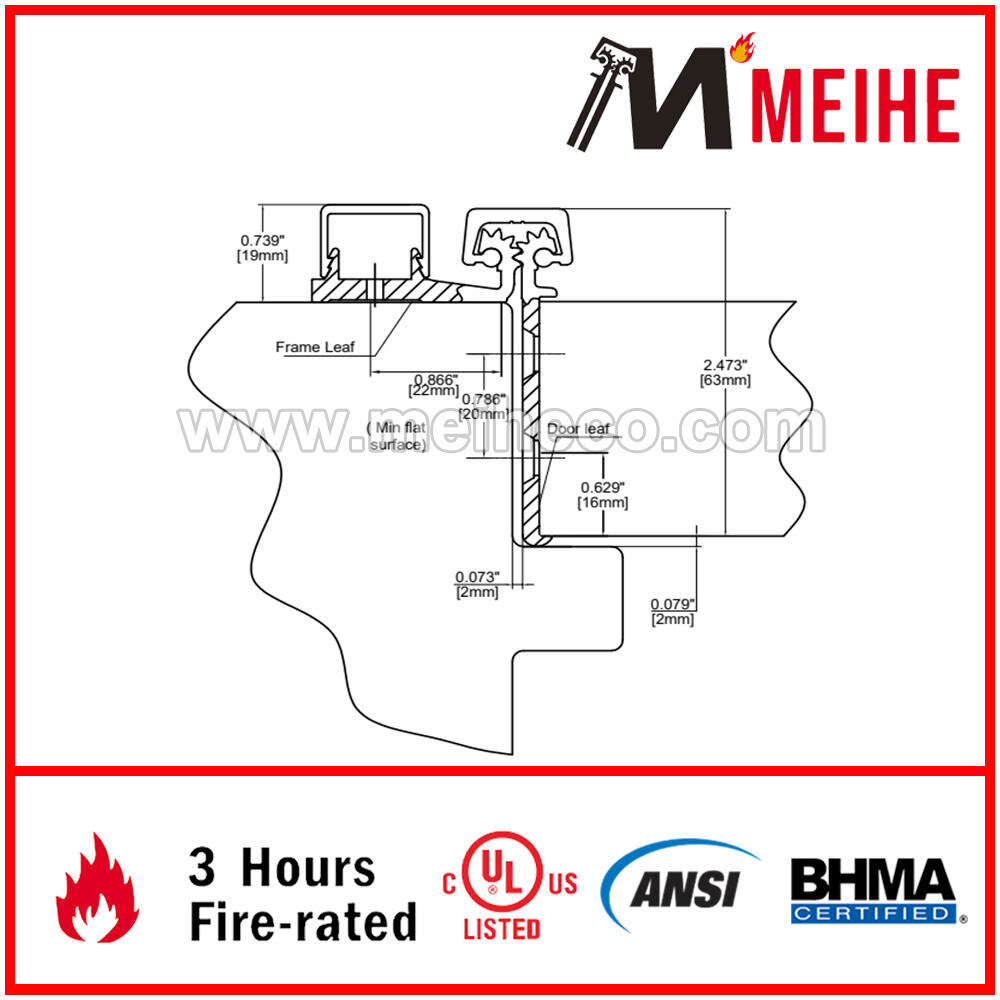

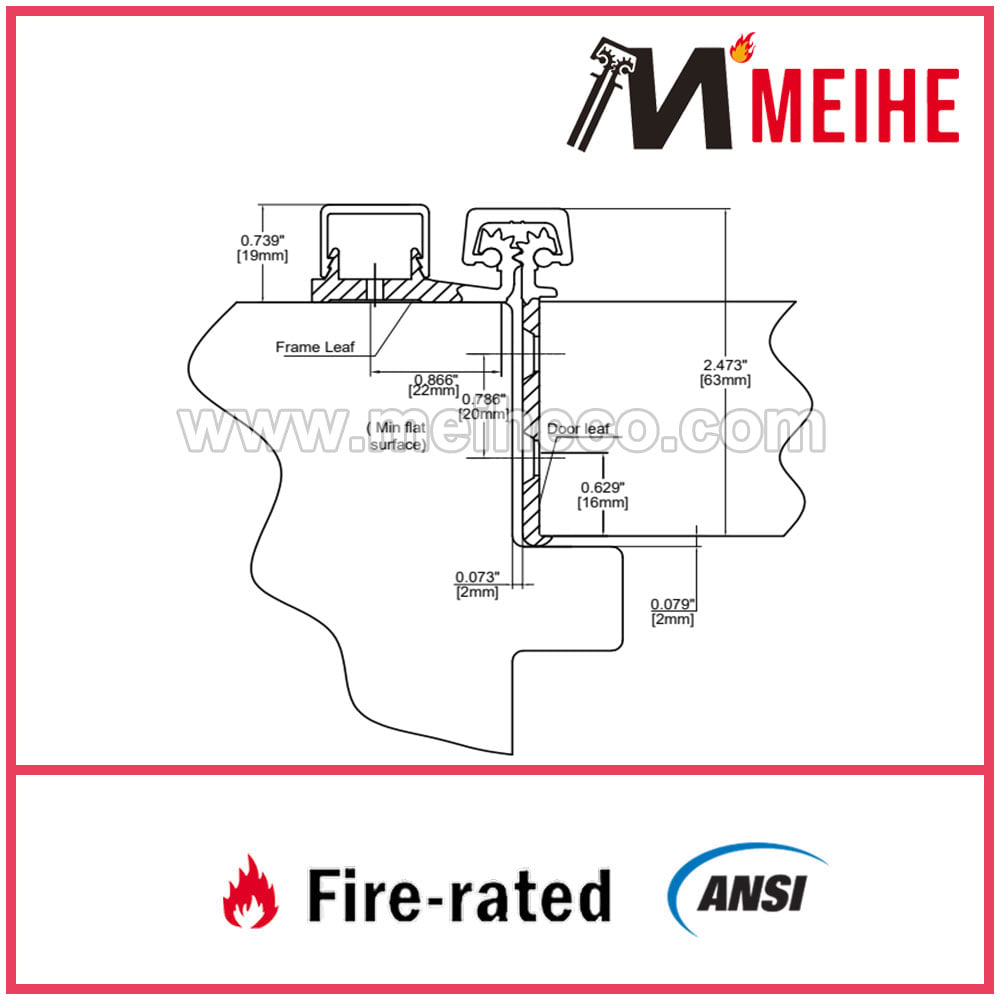

- Frame leaf alignment rib for proper hinge location
- Security moldings
- 1/8" (3 mm) inset
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Sex Bolts (Door) | Pan Head (Door) | Screws (Jamb) |
| 83 | 2108 | 8 | 19 | 19 |
| 95 | 2413 | 10 | 19 | 20 |
| 119 | 3023 | 12 | 23 | 23 |
Clearance:
- 5/32" (4 mm) minimum recommended hinge side
- Plus standard lockside clearance
Fasteners:
- 1/4-20 x 1-1/4" Sexbolt (Screw Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
Length Options:
- 83" & 95" & 119"& Custom
Door Reinforcement:
- None needed
Frame Reinforcement:
- None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
Fire Rating:
- Up to 3-hour metal and 90 minute wood composite
Special Features:
- For new construction
- For renovation with new doors and /or frames
- No mortising of doors or frames required
- Will cover hinge cut outs in frames
- Flush mount no inset
- Frame and door leaf alignment ribs for proper hinge location
Options:
- Hospital Tip
- Electrified Modual
