Surface mounted perimeter seals
* for use on jambs & header and as astragal
* anodised aluminium carrier with silicone insert
* rigid PVC cover cap push fit type

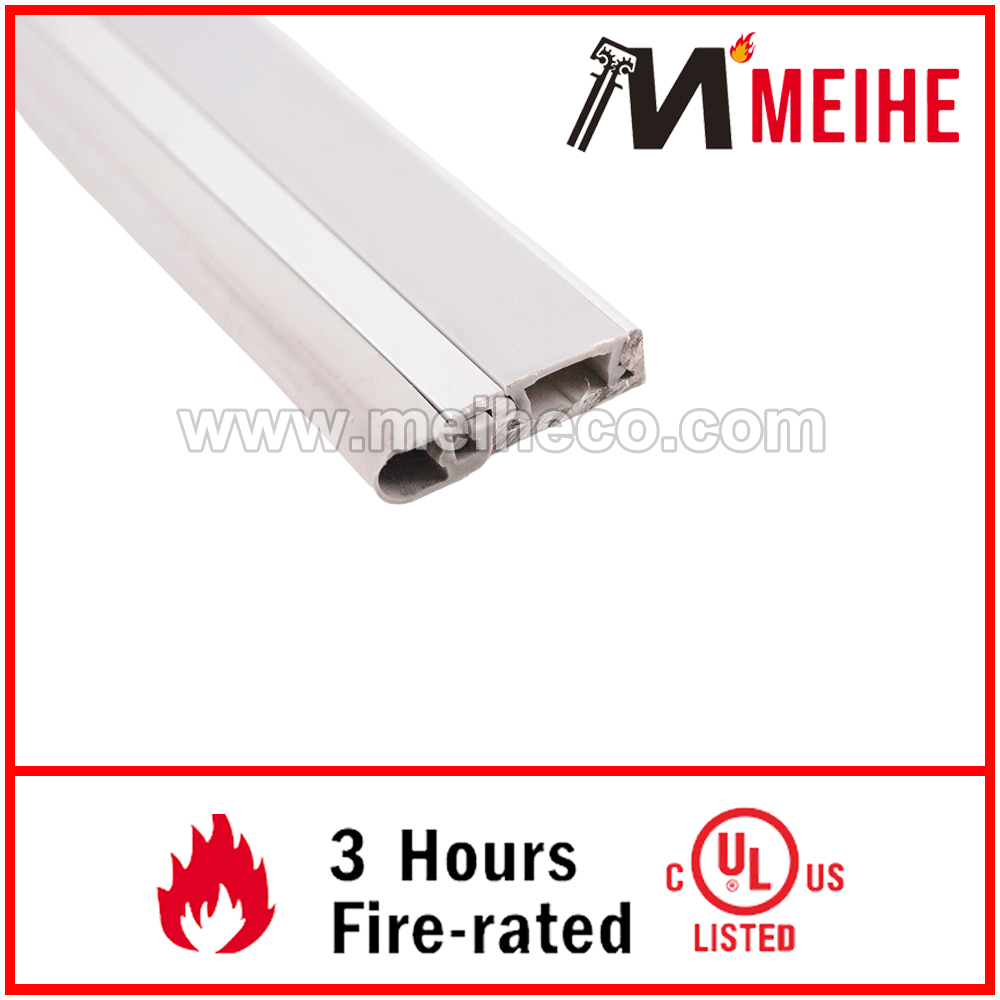

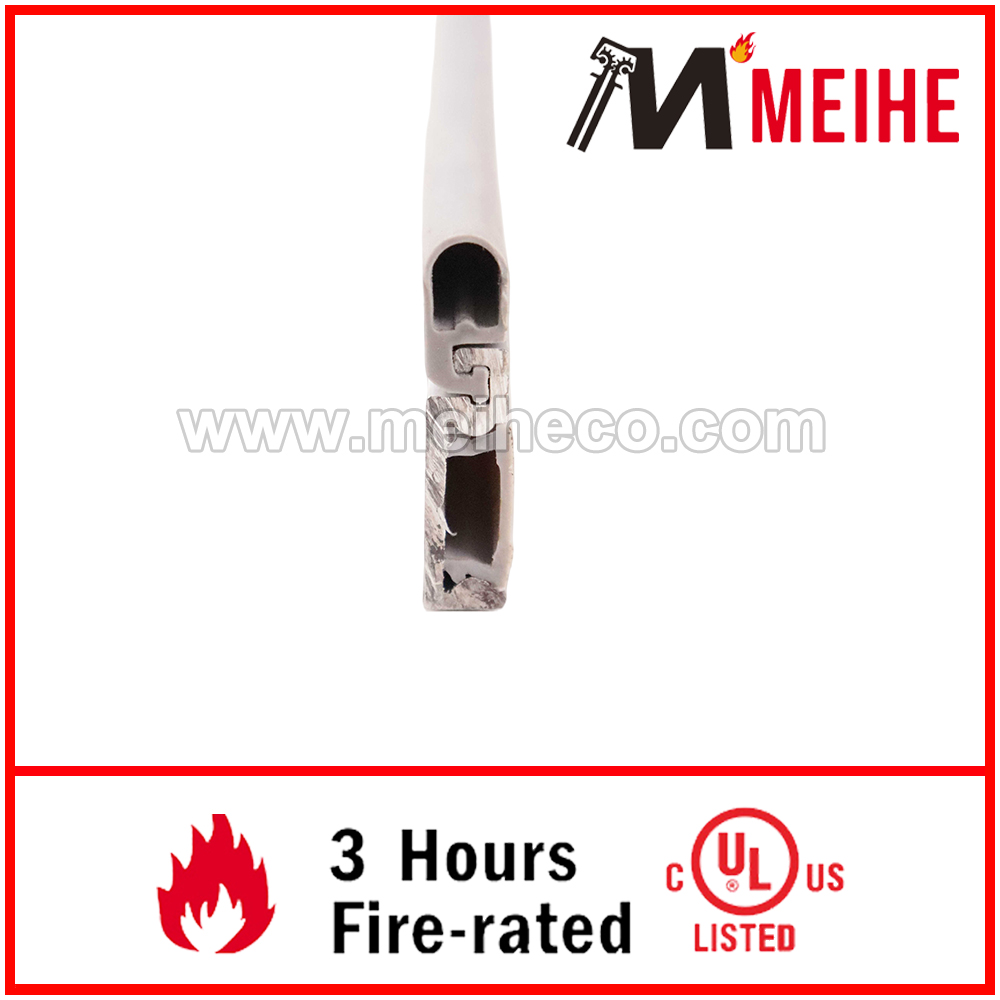

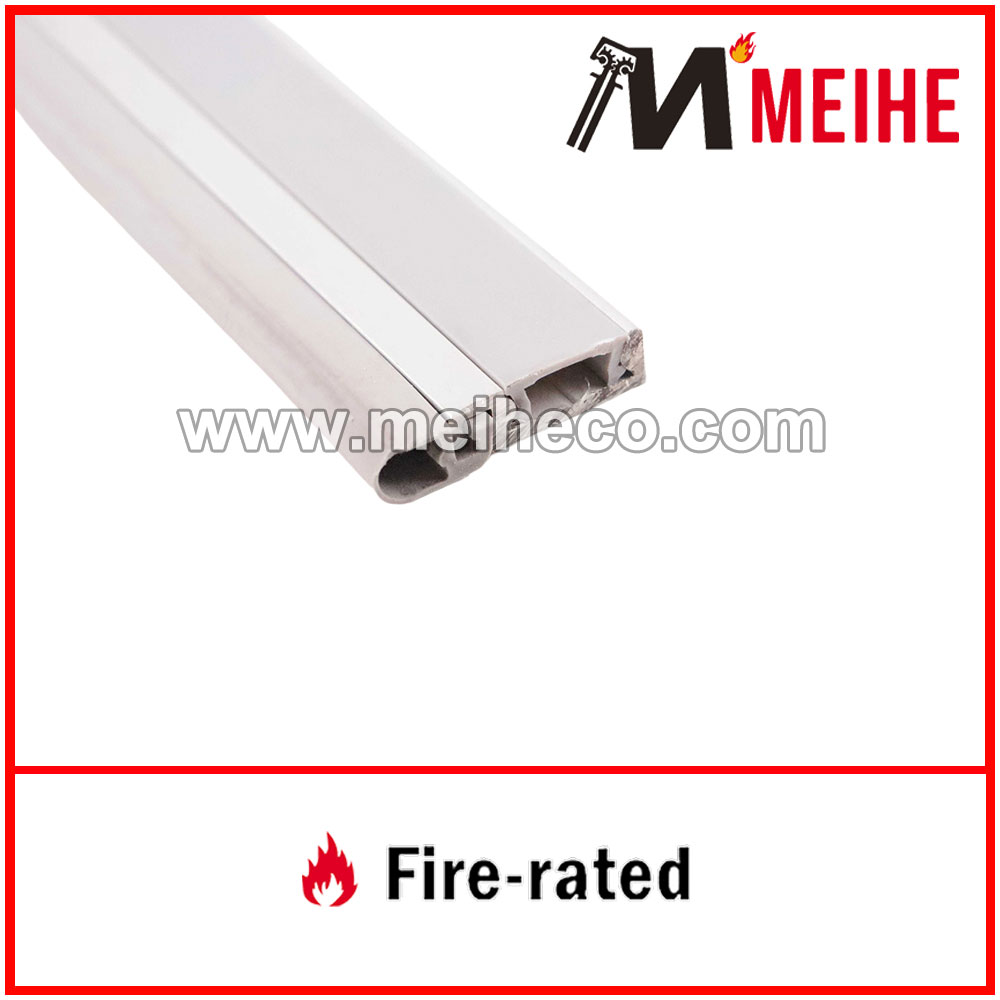

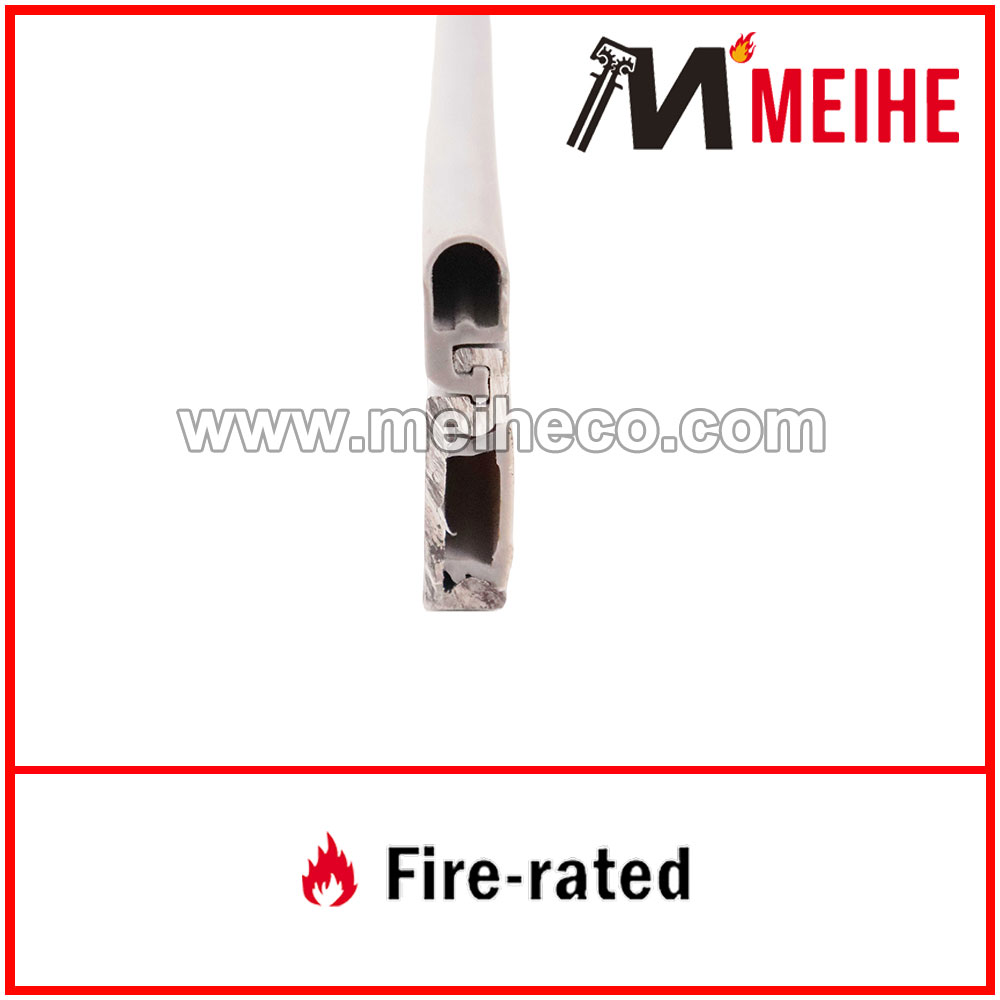

The YDW218 is a surface-mounted acoustic seal designed for sound insulation and smoke sealing. Made from self-extinguishing silicone, it fits into timber and metal frame rebates, offering a reliable seal and soft door closure, even under varyingtemperature conditions.
* for use on jambs & header and as astragal
* anodised aluminium carrier with silicone insert
* rigid PVC cover cap push fit type
The YDW218 is a surface-mounted acoustic seal designed for sound insulation and smoke sealing. Made from self-extinguishing silicone, it fits into timber and metal frame rebates, offering a reliable seal and soft door closure, even under varyingtemperature conditions.
Type |
Weatherstrip/Standard Perimeter Gasketing |
Material |
6063-T5 Aluminum Alloy and Vinyl/Silicone Insert |
Mounting |
Surface Mounted |
Lengths |
Standard 1000mm, 2500mm, 1000mm×2100mm, 1000mm×2750mm, Custom Cut to Size |

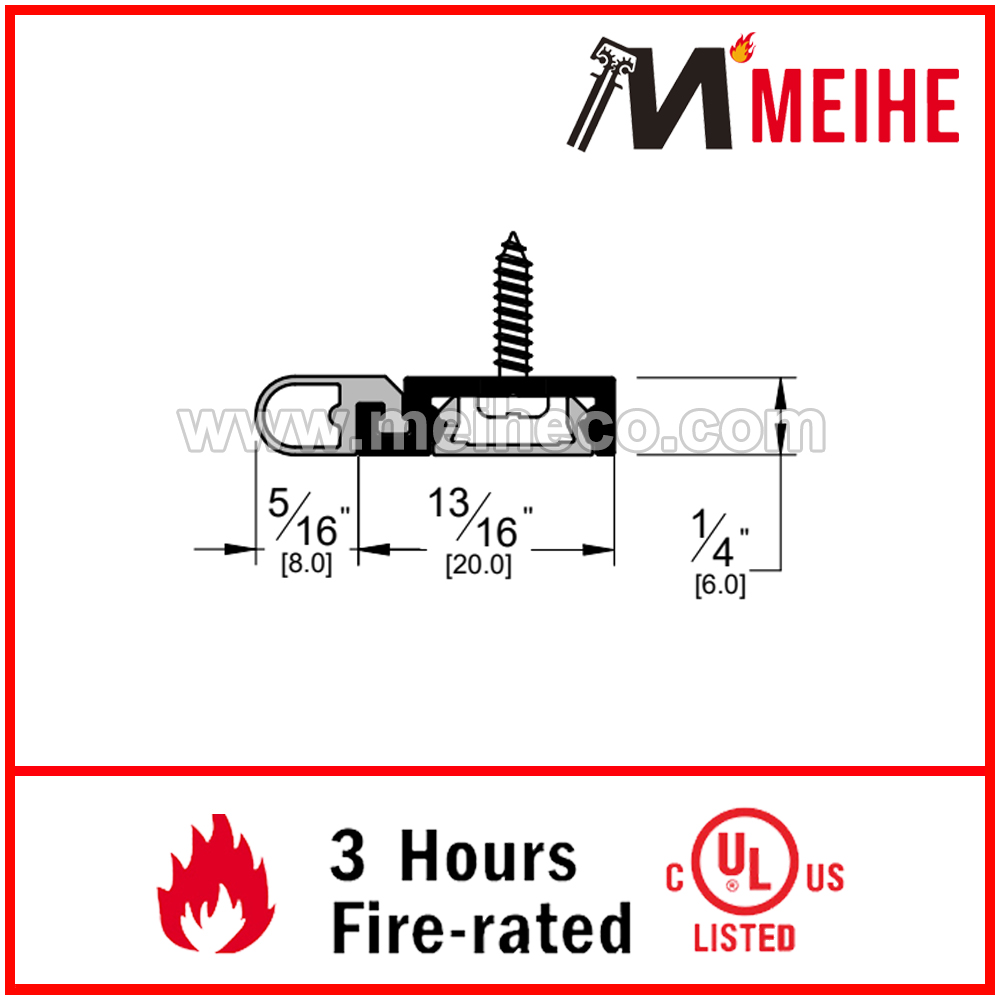

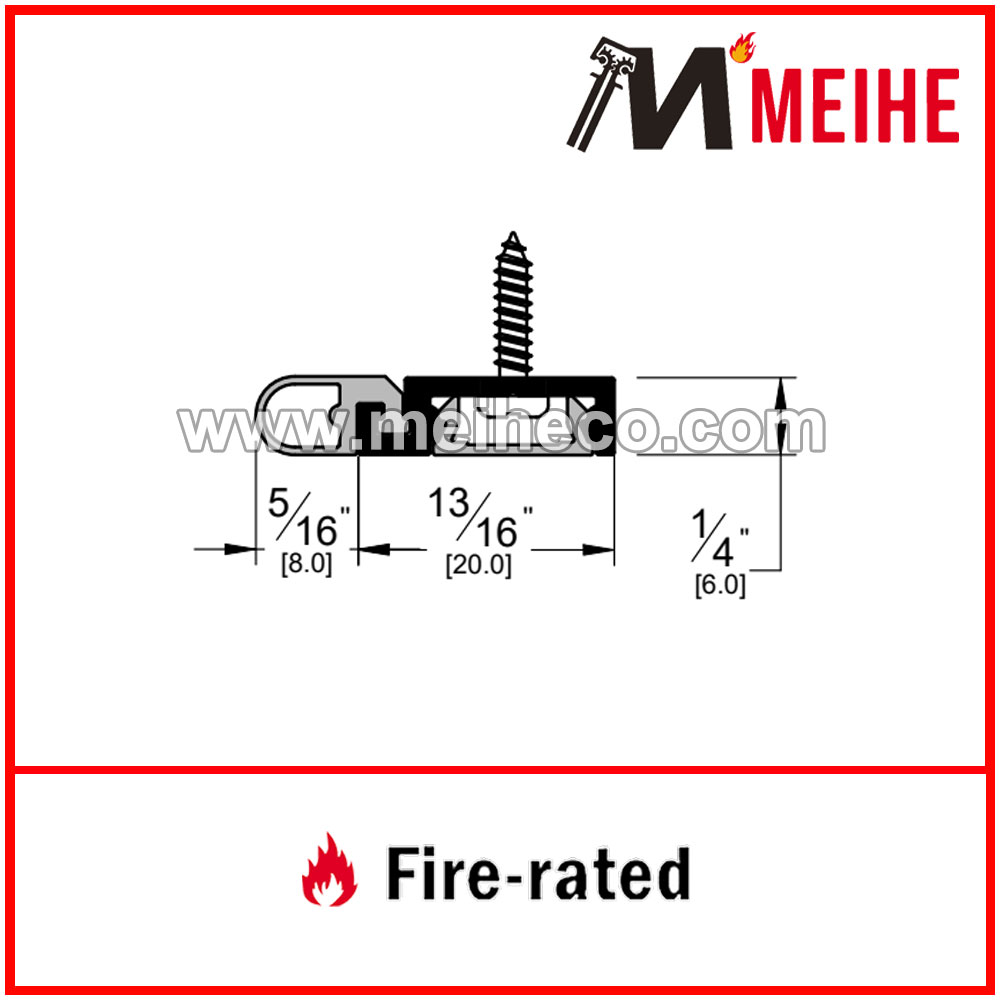

Total Width |
28 mm |
Height |
6 mm |
Finishes |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill holes are provided |
