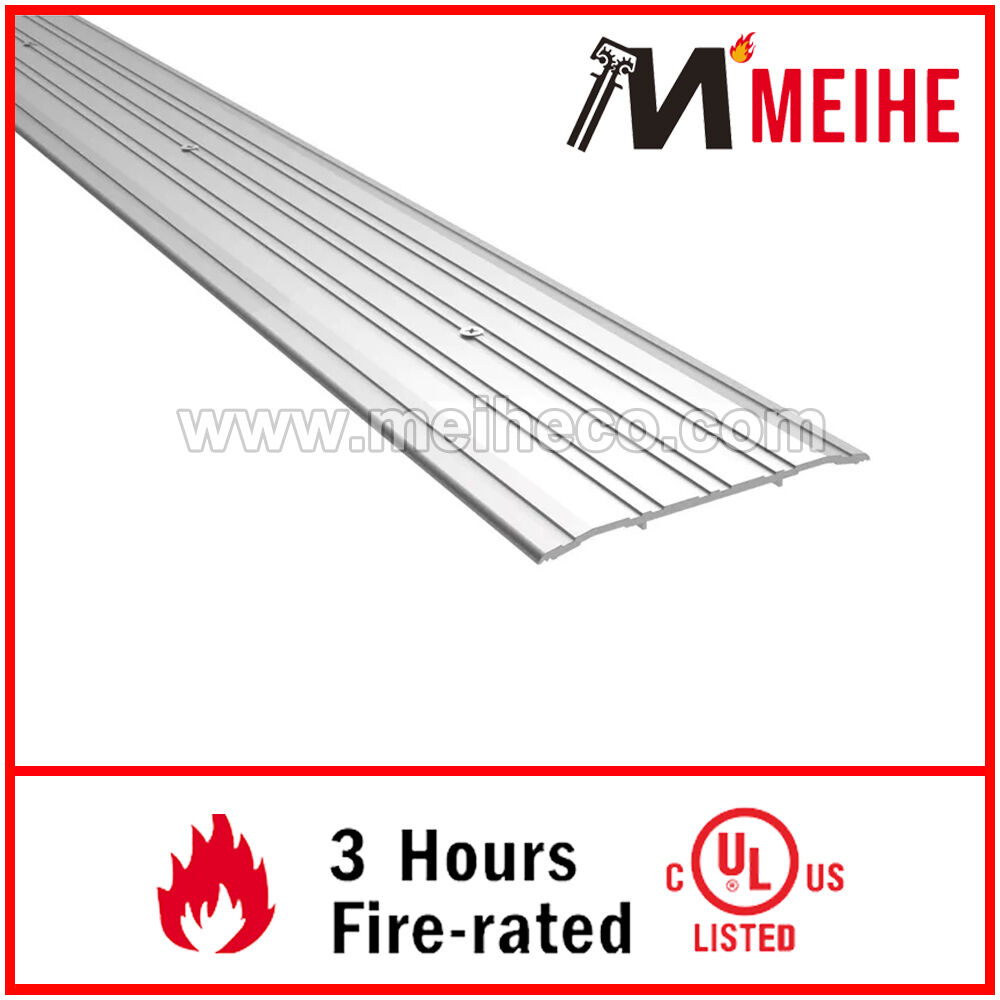

YDT306 Door Threshold Mill Finish Aluminum Saddle
Flat Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB

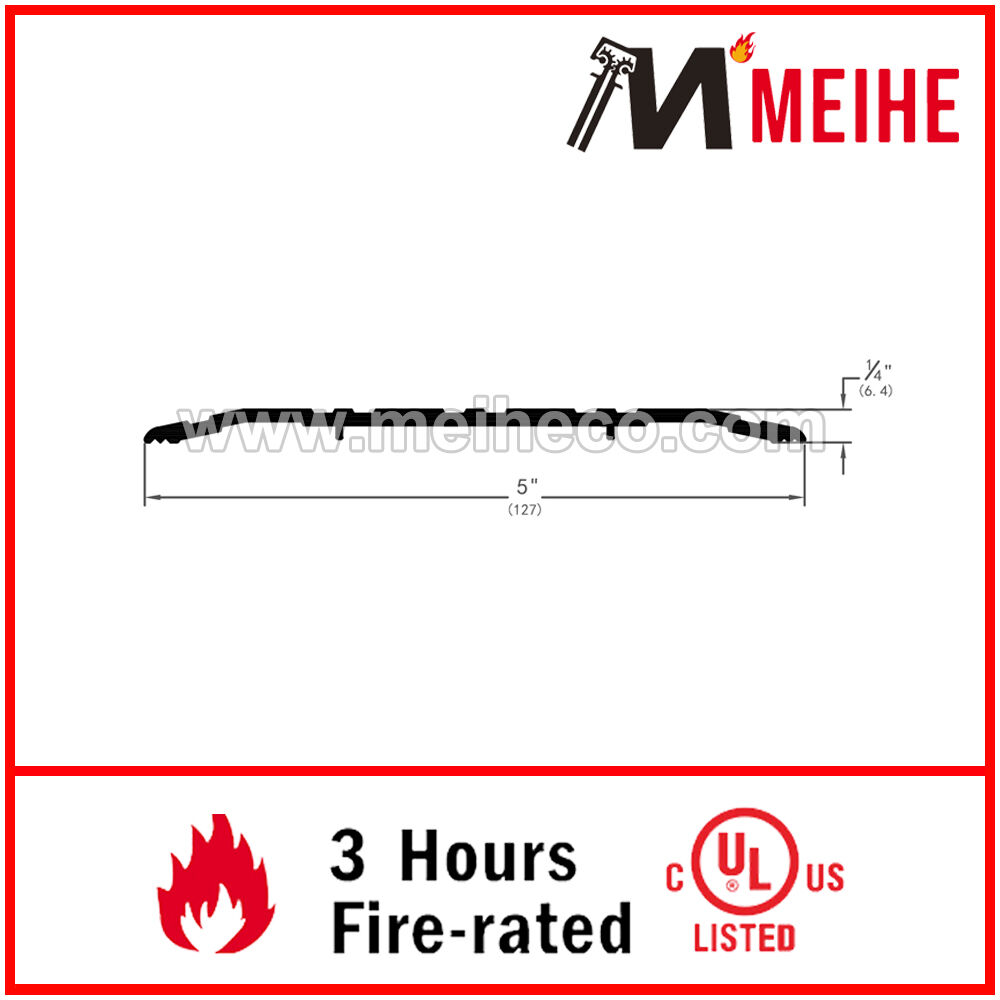

- Width: 5” (127 mm)
- Height: 1/4” (6.4 mm)
- Warranty:1 Year
Certificate:
- UL
- Overview
- Recommended Products
This fire rated and ADA compliant doorway threshold is extruded from high quality metal that will not buckle and lose shape over time. It has a width of 5" and can fill gaps of 0.25" to create a barrier against dirt, dust, drafts and light infiltration. Available in various different finishes and is custom cut to size.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Flat Saddle Design | Fluted (Grooved) Design |
| Threshold Type | Flat Utility Threshold |
| Overall Height | 0.25" Height |
| Overall Width | 5" Width |
| Required Door Clearance | 0.375" Height |
| Length | Standard 36", 48";Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
