YDT107 Latching Panic Saddle Thresholds
Latching Panic Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB
- Width: 4.5” (114.3 mm)
- Height: 1/2” (12.7 mm)
Certificate:
- UL
- Overview
- Recommended Products

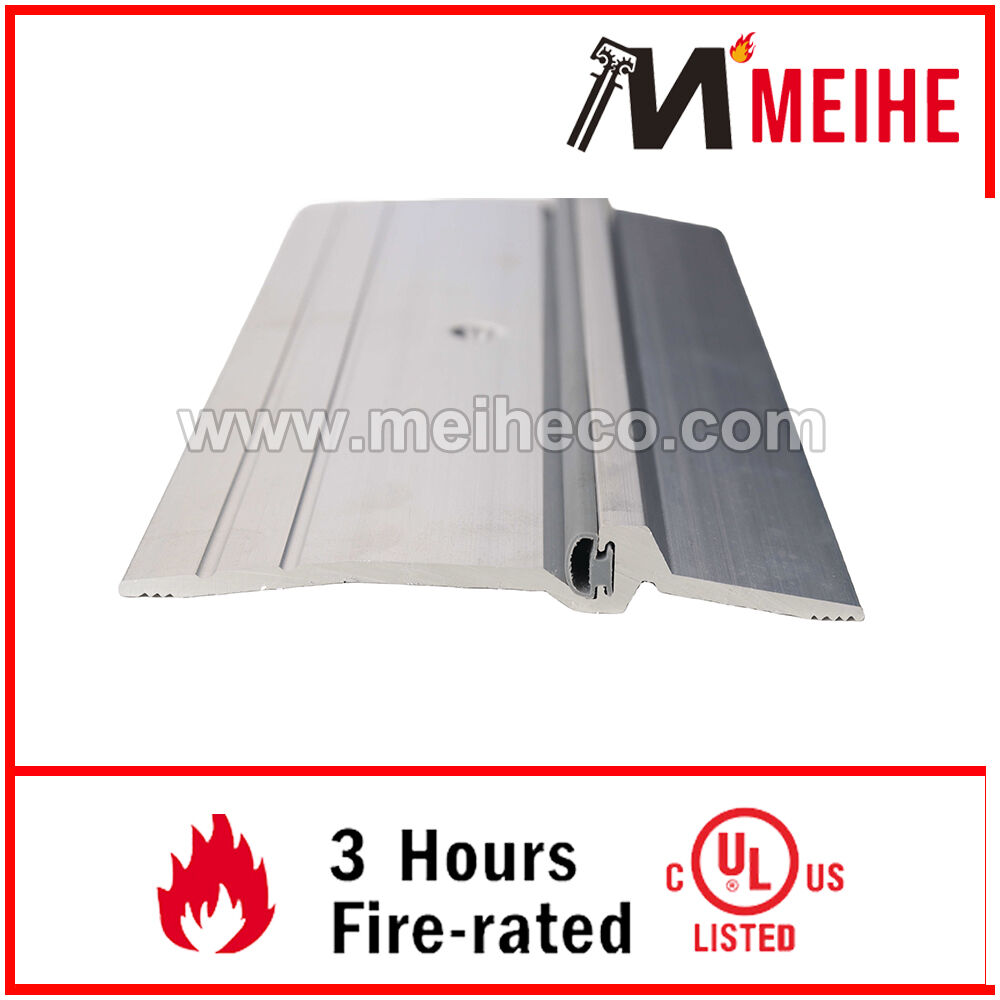

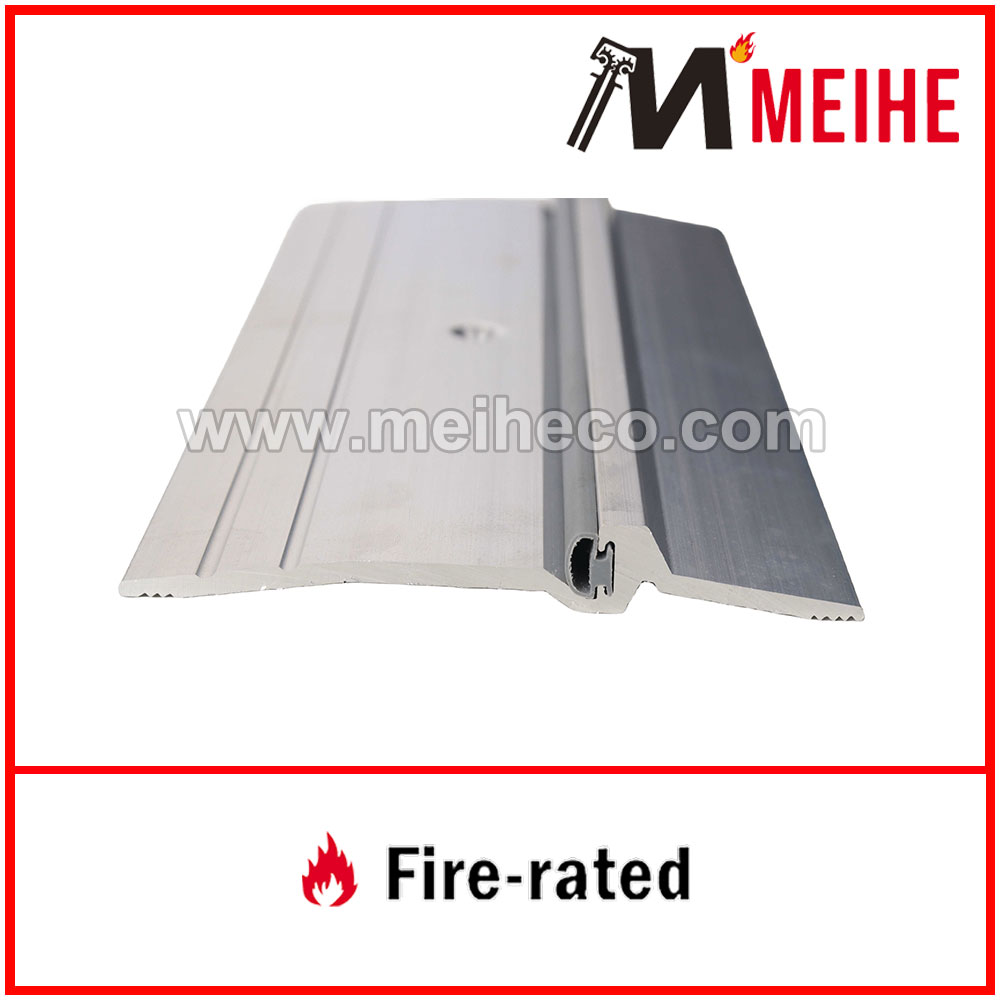

This Latching Panic Exit Saddle is designed to be used with a surface applied vertical rod exit device and as a door stop and rubber seal at the bottom of doors. It is made of high quality material that will ensure long-lasting usage. Available in various different aluminum, anodized, and Bronze Finishes and is custom cut to size.
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |

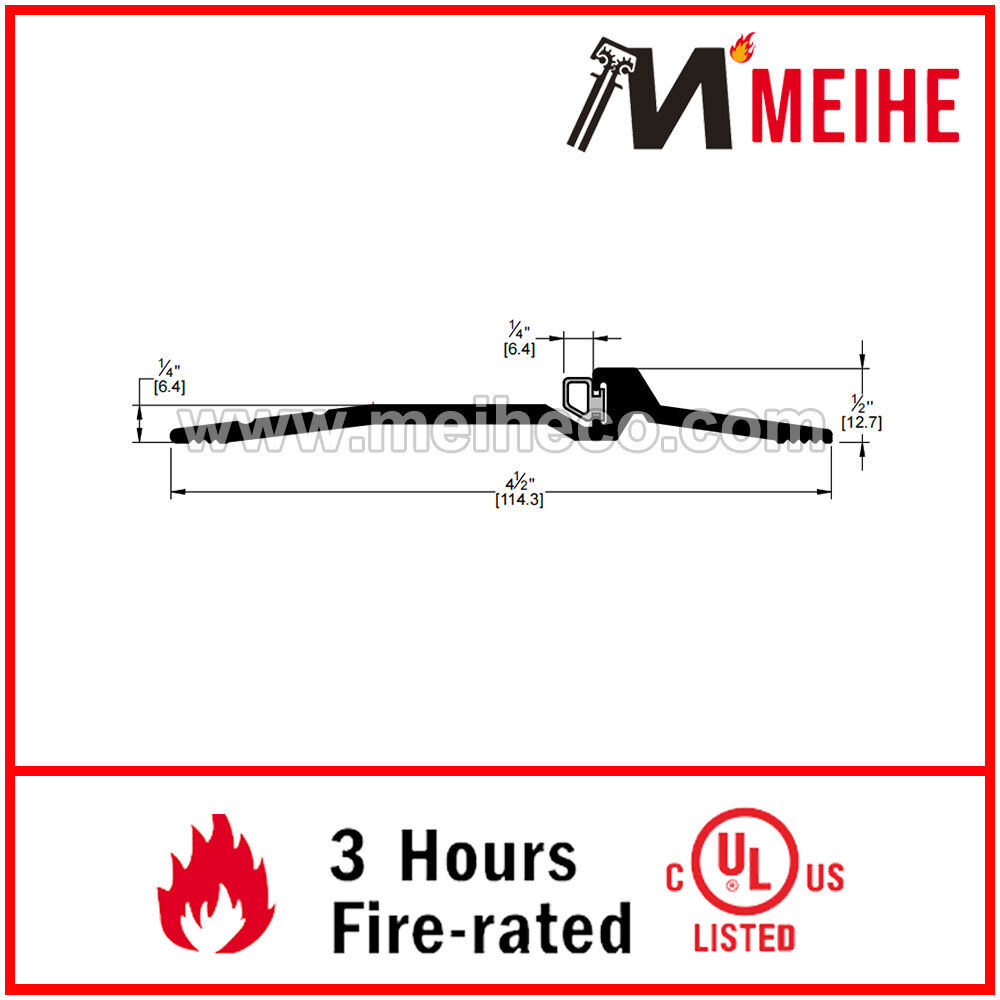

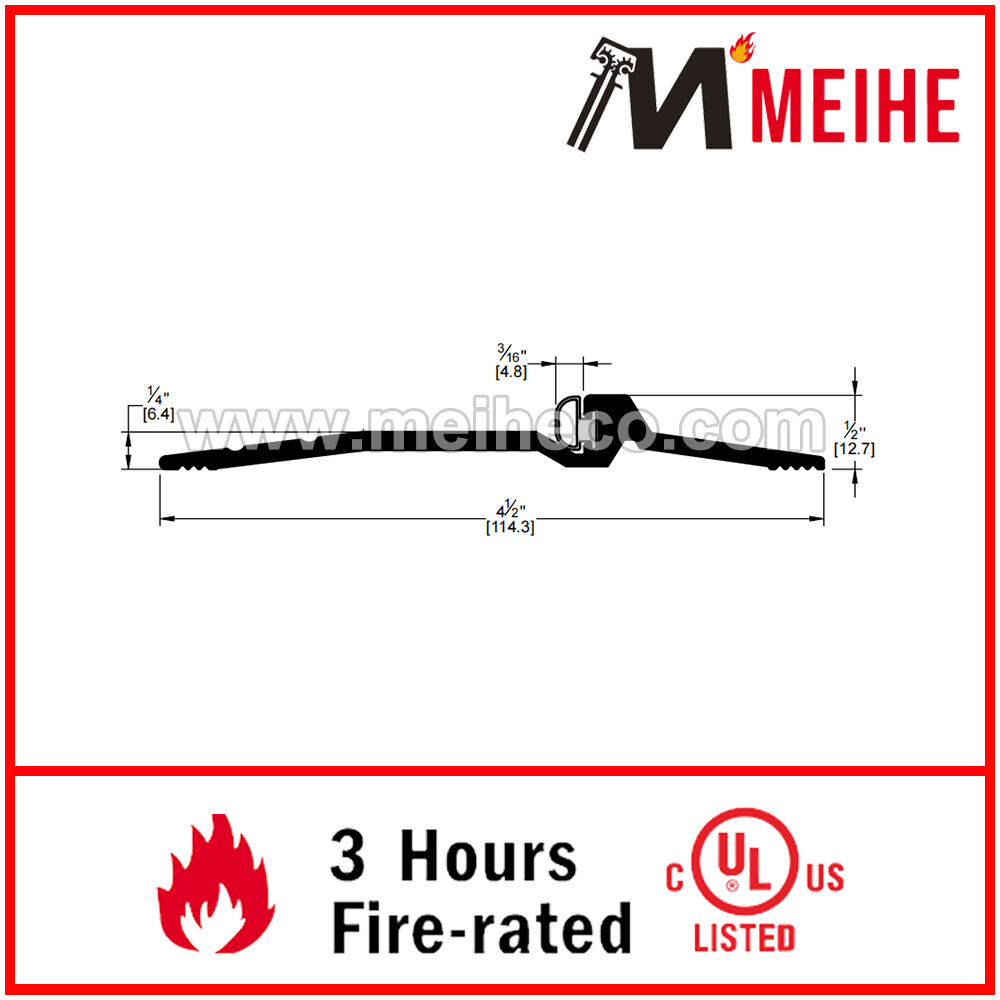

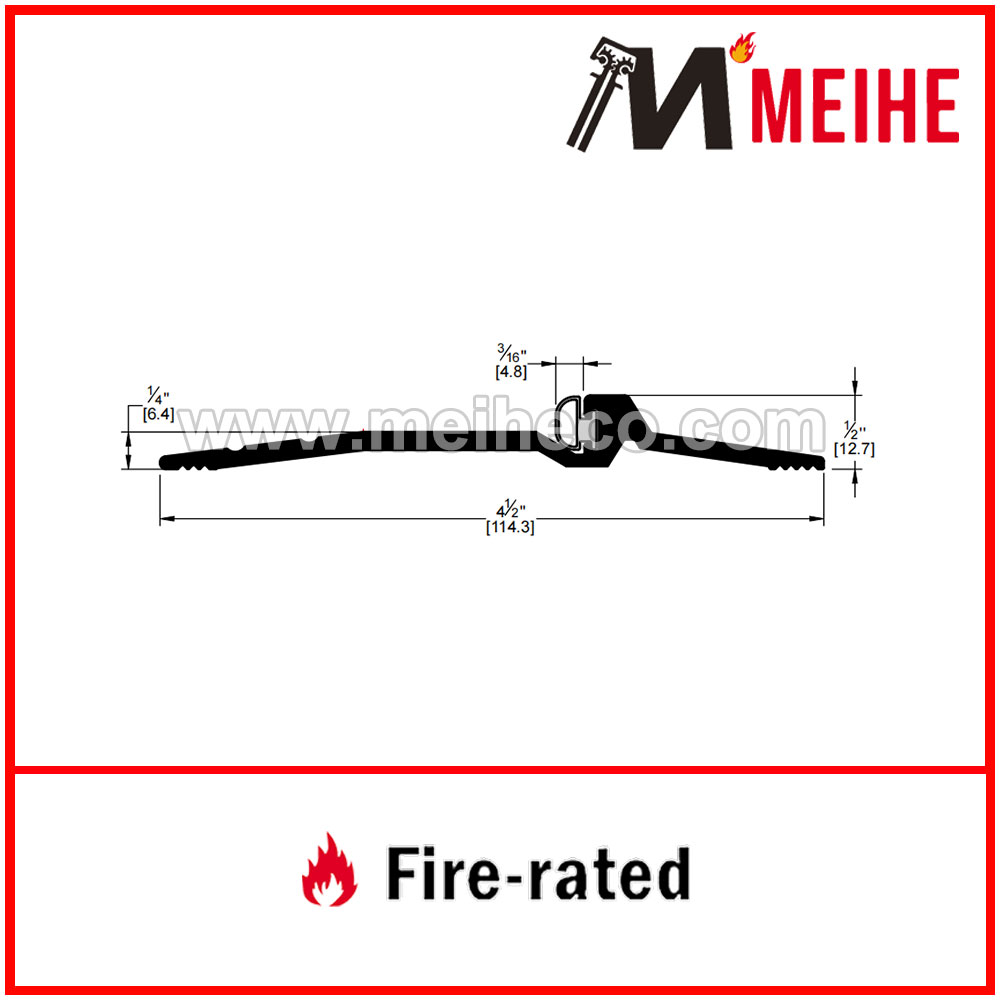

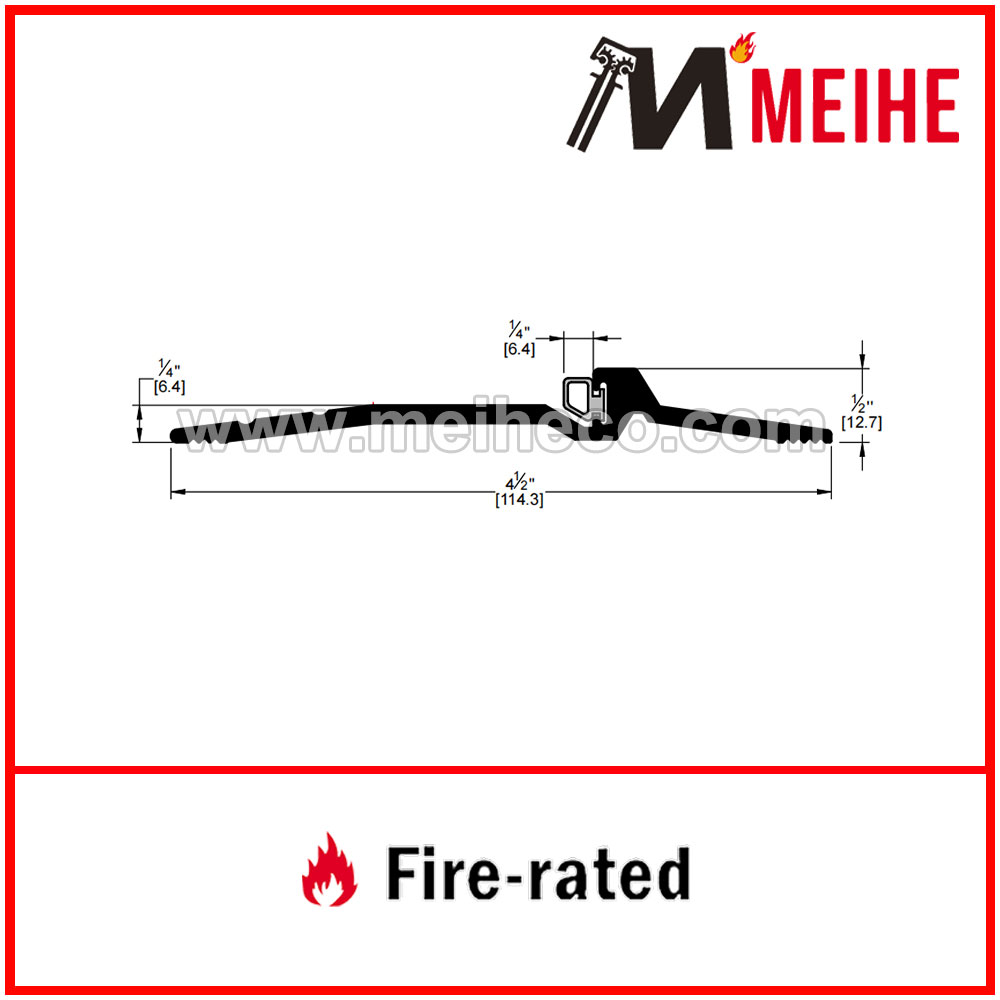

| Flat Saddle Design | Fluted (Grooved) Design |
| Threshold Type | Latching Panic Exit Threshold |
| Overall Height | 0.5" Height |
| Overall Width | 4.5" Width |
| Required Door Clearance | 0.375" Height |
| Length | Standard 36", 48"; Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
