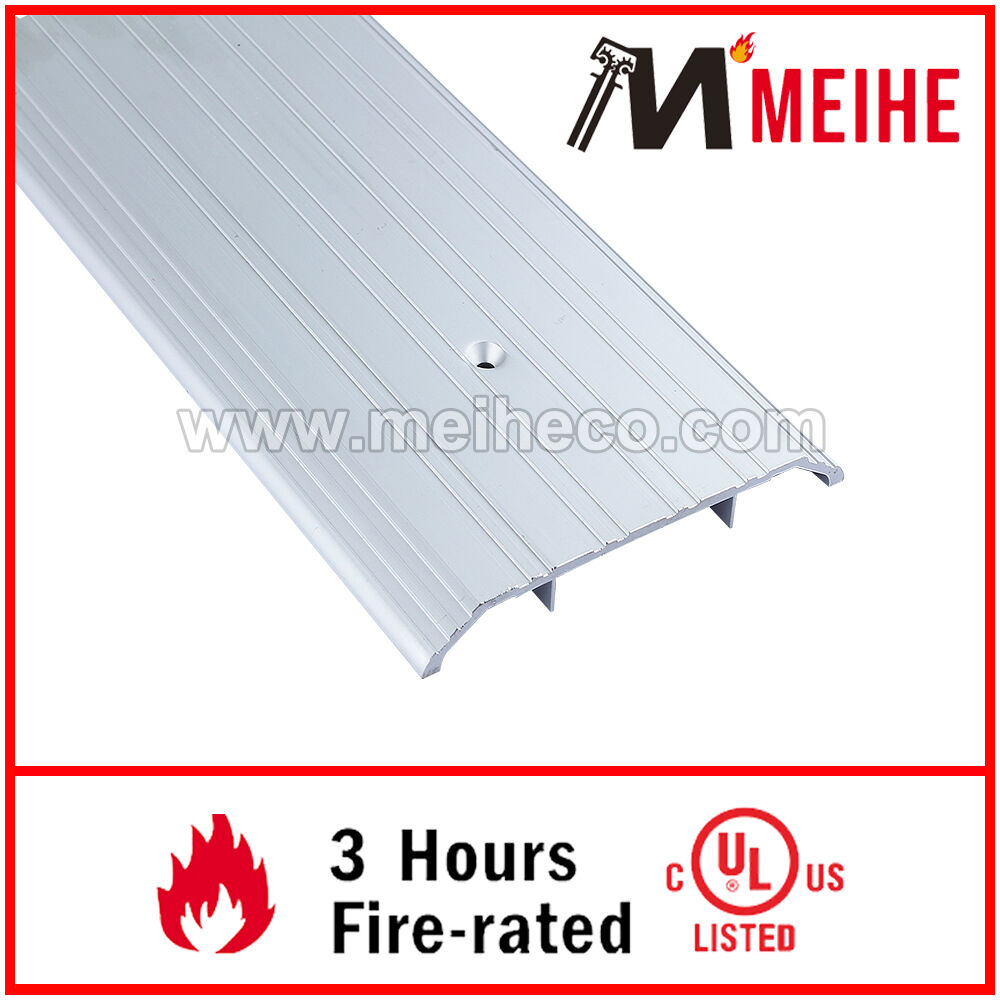

YDT310 Threshold Door Aluminum Extrusion Saddle
Flat Saddle Thresholds
- Available Finishes: A, C, D, BL, G, PB, LB

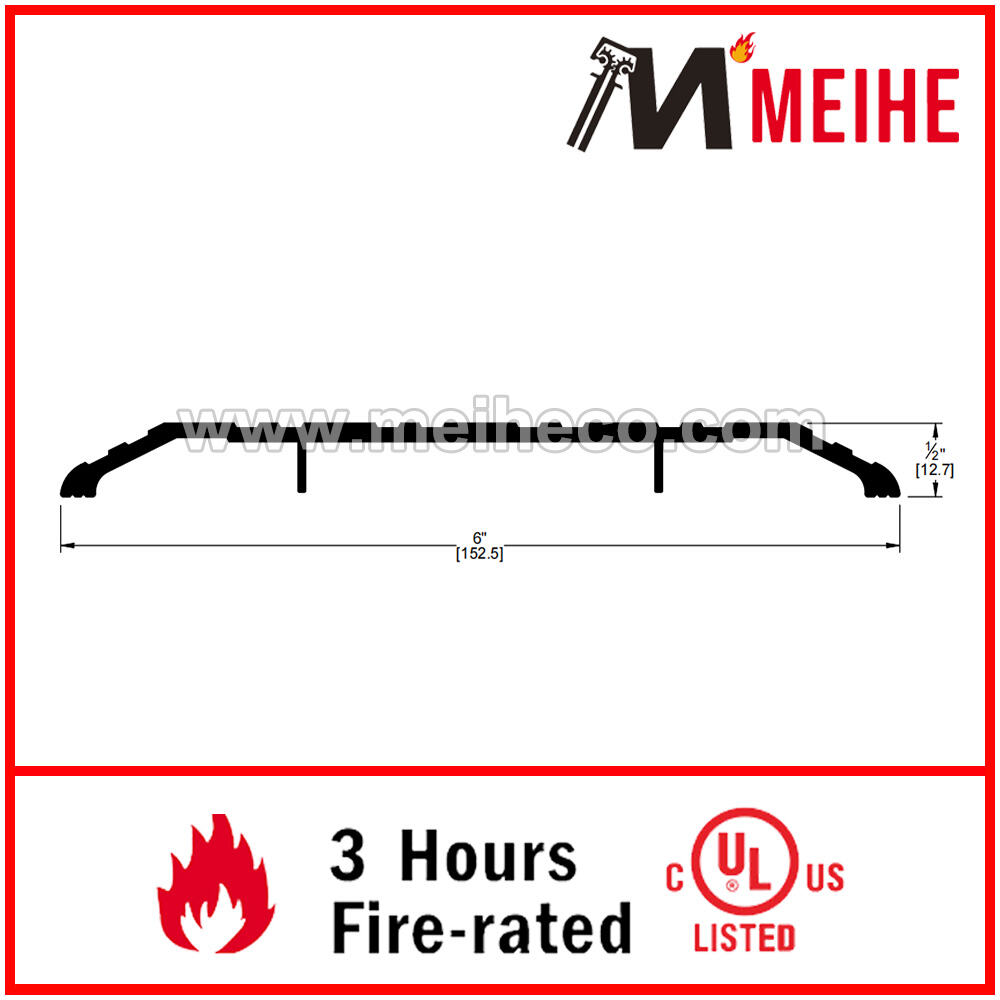

- Width: 6” (152.4 mm)
- Height: 1/2” (12.7 mm)
- Warranty:1 Year
Certificate:
- UL
- Overview
- Recommended Products
The practical & decorative benefits of a threshold plate: A threshold plate is usually fitted to the floor immediately under the door leaf in its closed position. It provides a uniform, level surface, and helps to overcome small differences in surface height, or uneven floors. A ramp can be used instead of a plate where there are larger differences in floor heights. The threshold seal fitted into the door leaf can make contact with the plate or ramp, to help ensure the best possible smoke and acoustic seal. Threshold plates are usually formed from an extruded aluminium or brass profile. Pressed stainless steel threshold plates are also used, particularly in areas of high traffic.
This ADA Compliant / Wheelchair Accessible threshold is built to last! It is crafted from fire rated high quality metal that will not buckle over time. It has a width of 6" and height of 0.5".
| Material | Aluminum |
| Finish |
A - (Mill Finish) C - (Clear Anodized) DB- (Dark Bronze Anodized) G - (Gold Anodized) BL - (Black Anodized) PB - (Polished Chrom) LB - (Light Bronze Anodized) |
| Threshold Type | Flat Utility Threshold |
| Overall Height | 0.5" Height |
| Overall Width | 6" Width |
| Required Door Clearance | 0.625" Height |
| Length | Standard 36", 48"; Custom Cut to Size |
| Installation | Drilling holes and Fasteners are provided |
| Certificate | Fire Rated - UL 10B/10C |
