product ydb119 modern design aluminum door bottom sweep neoprene strip quality door seal replacement-0

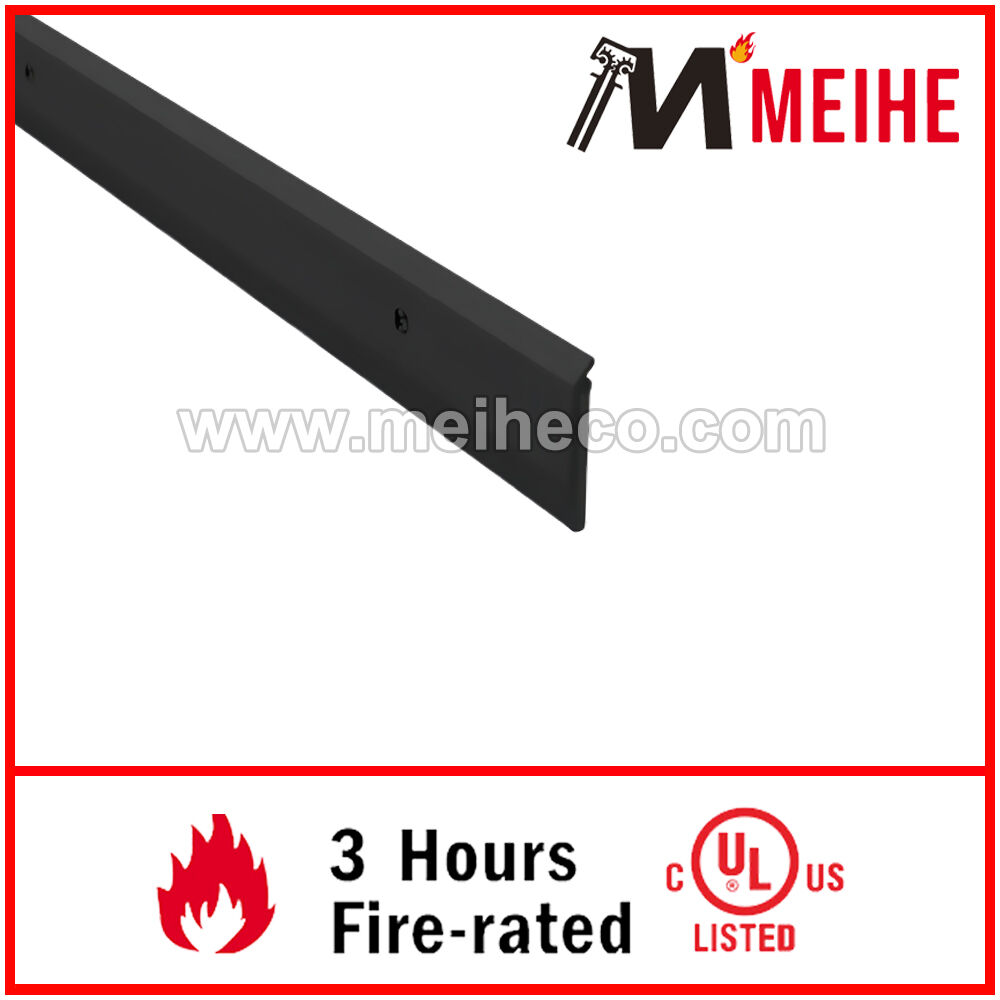

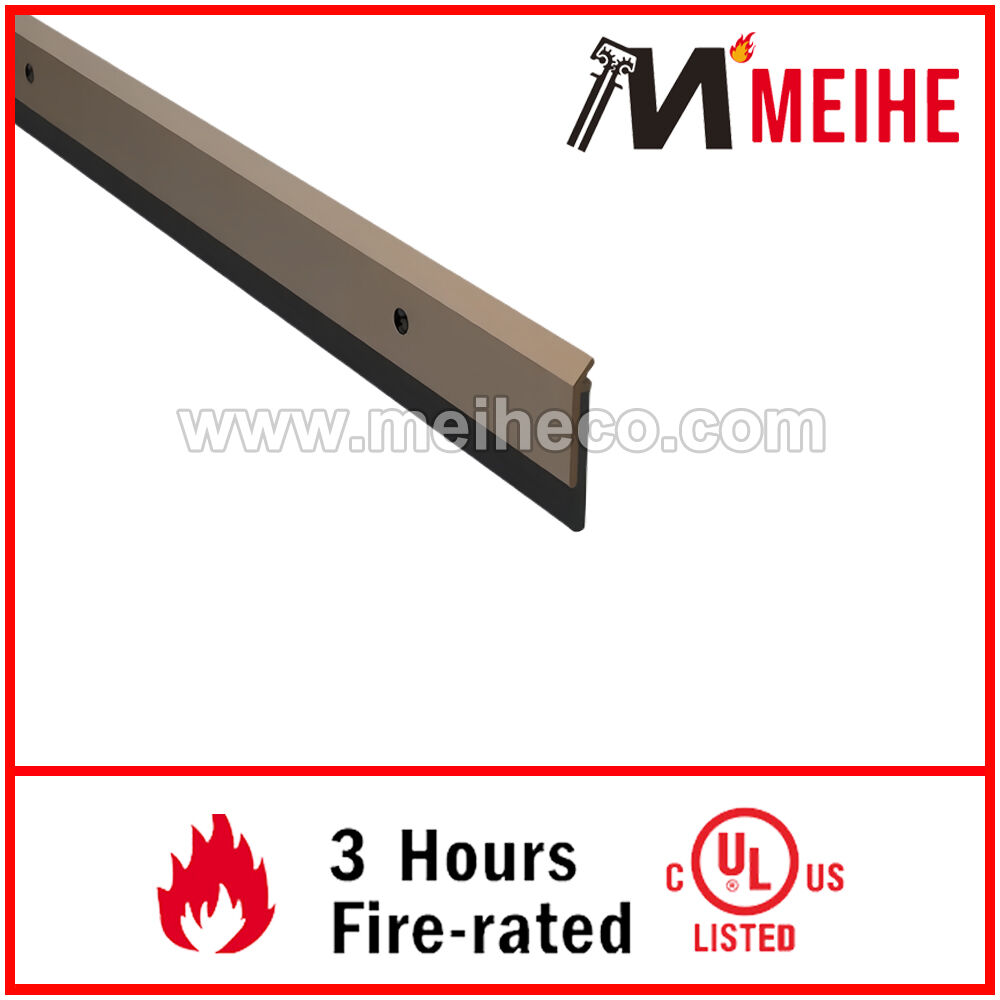

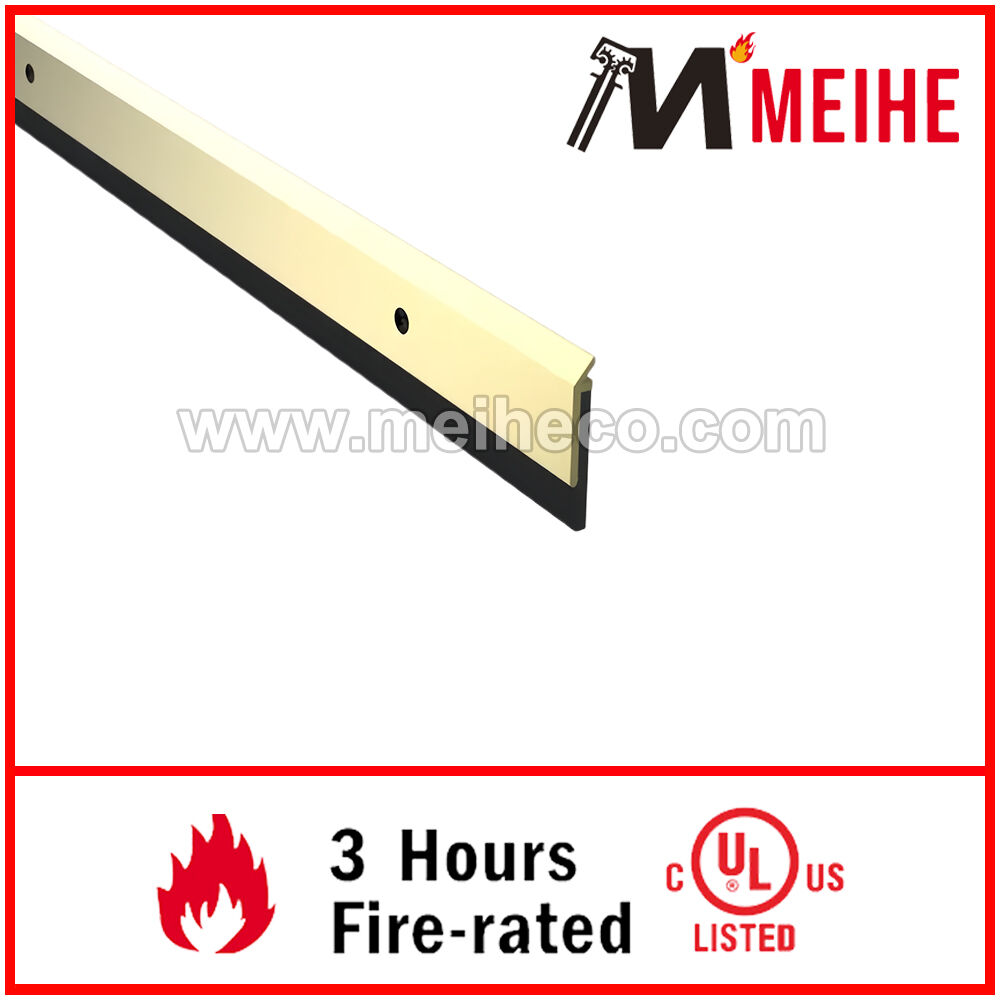

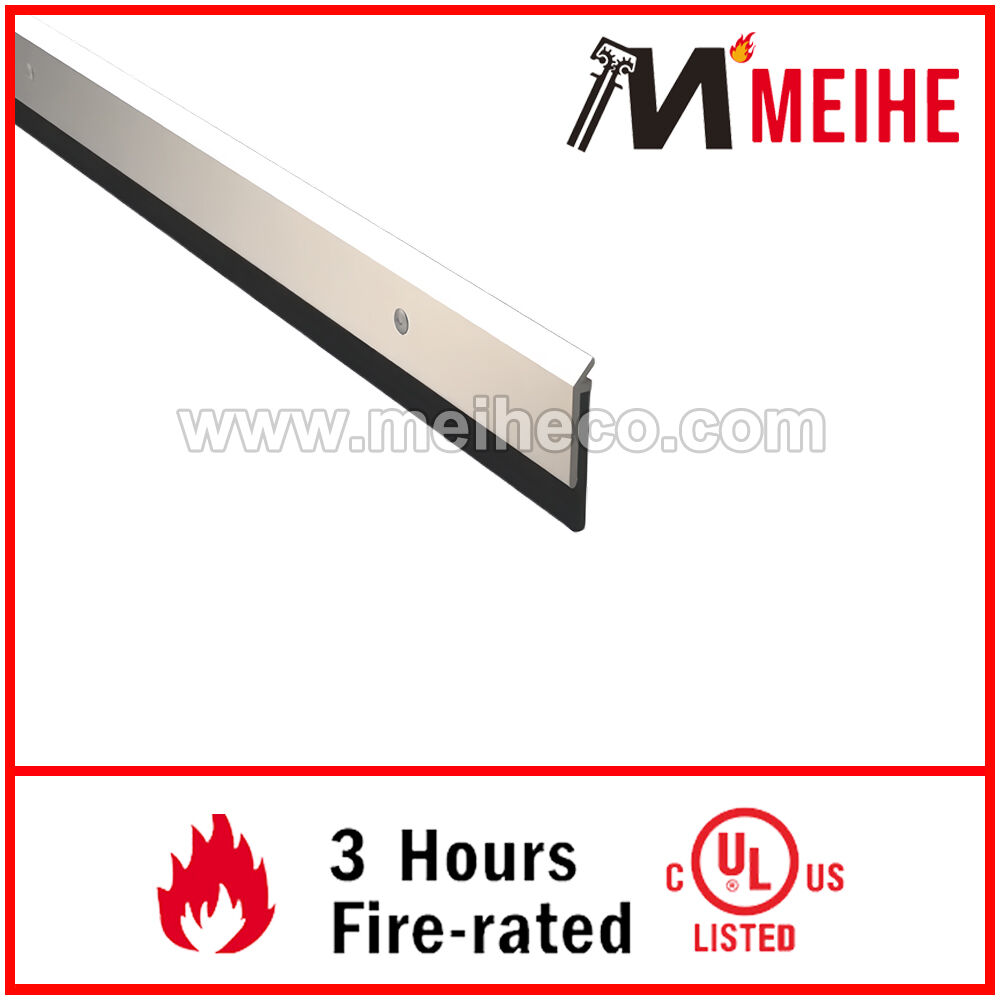

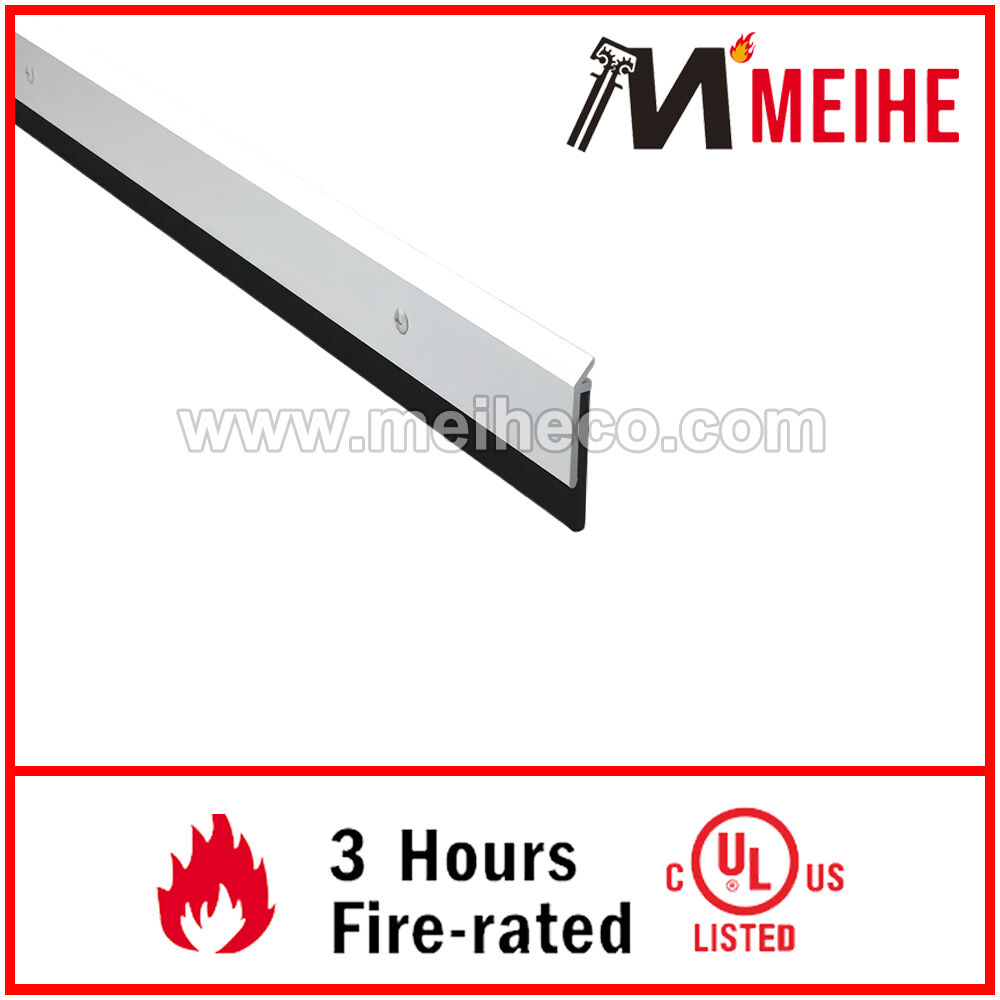

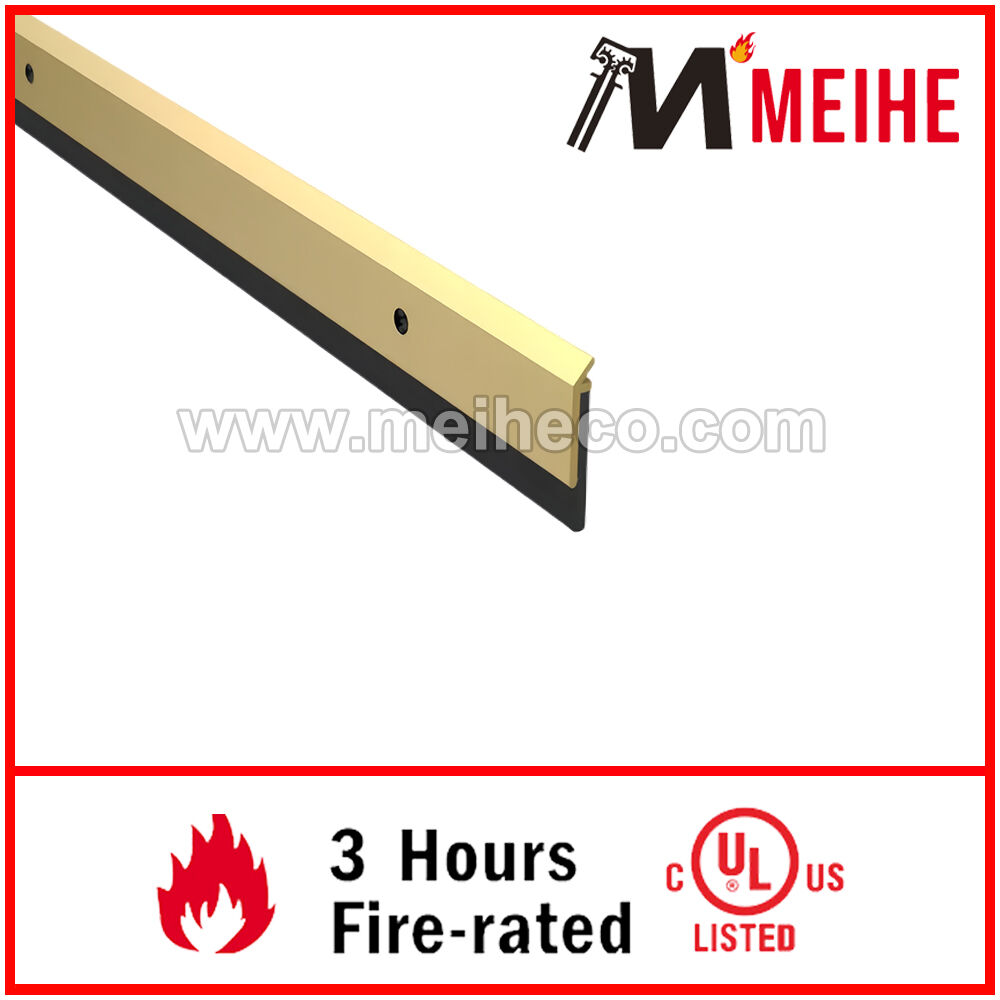

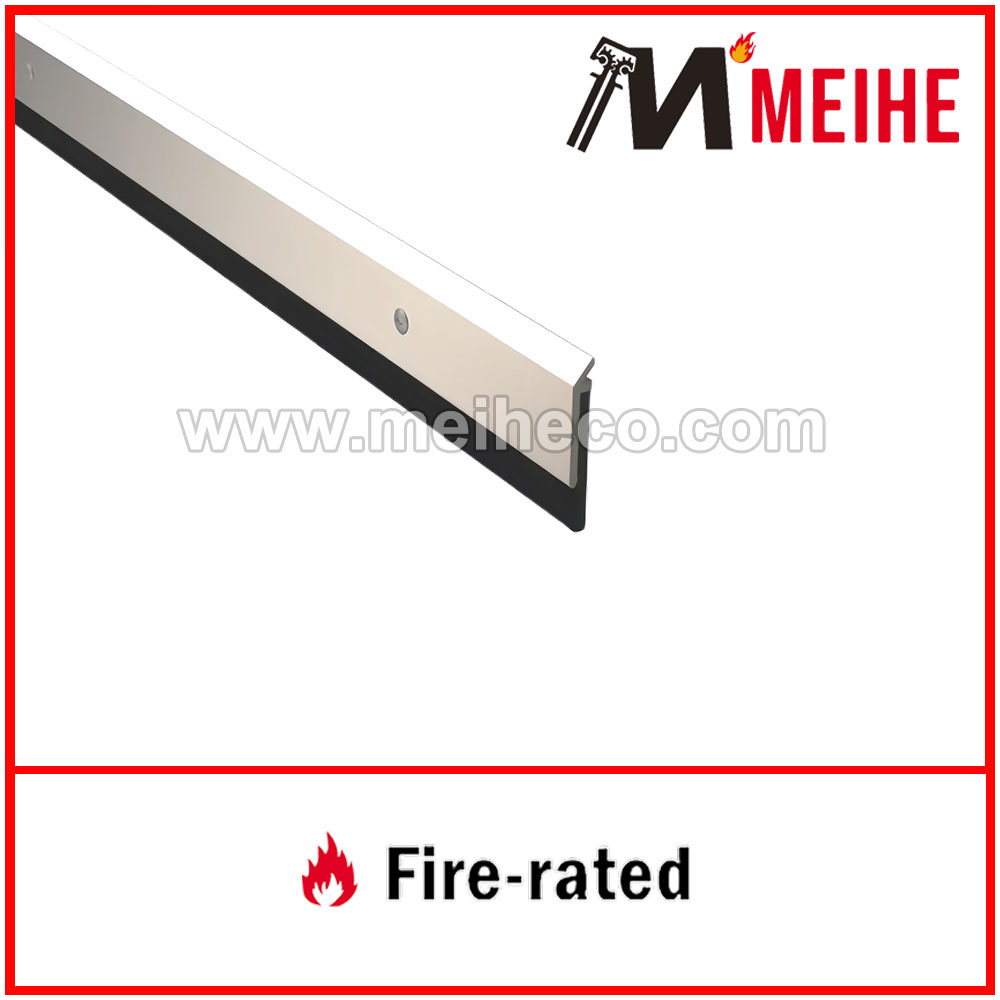

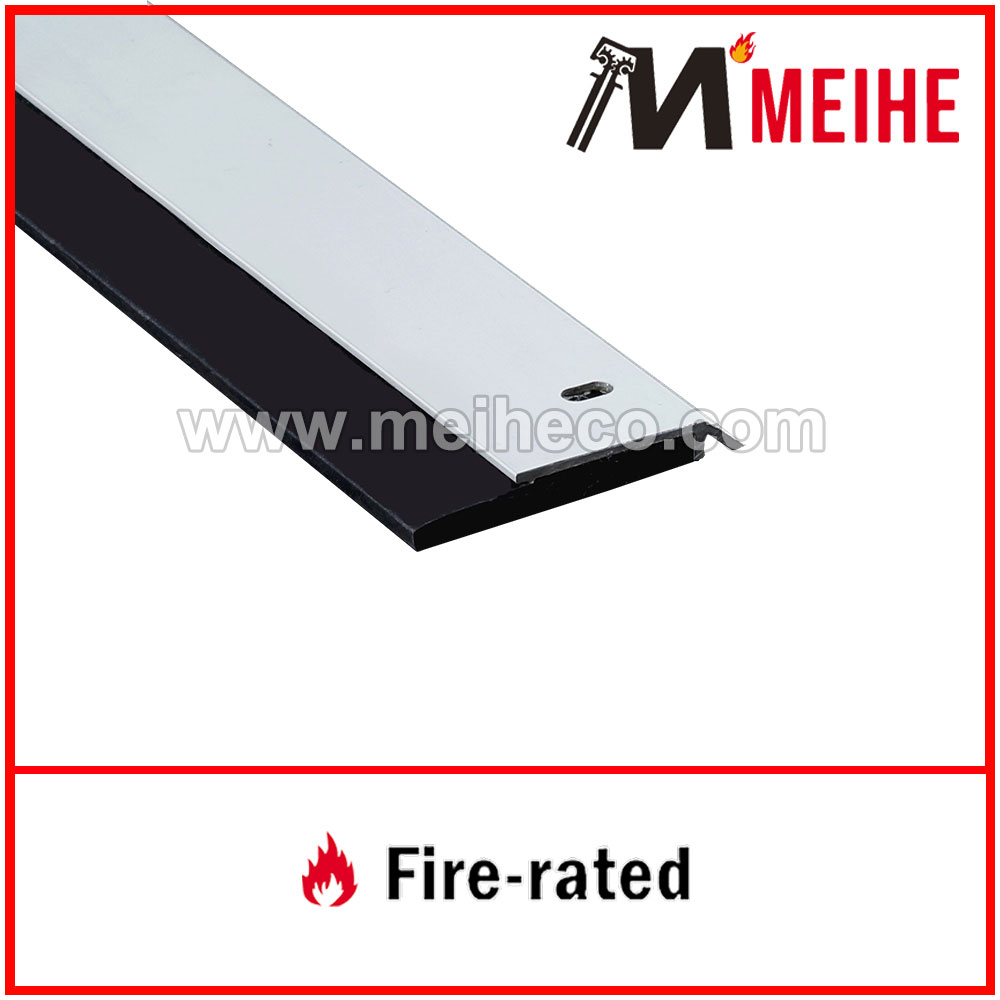

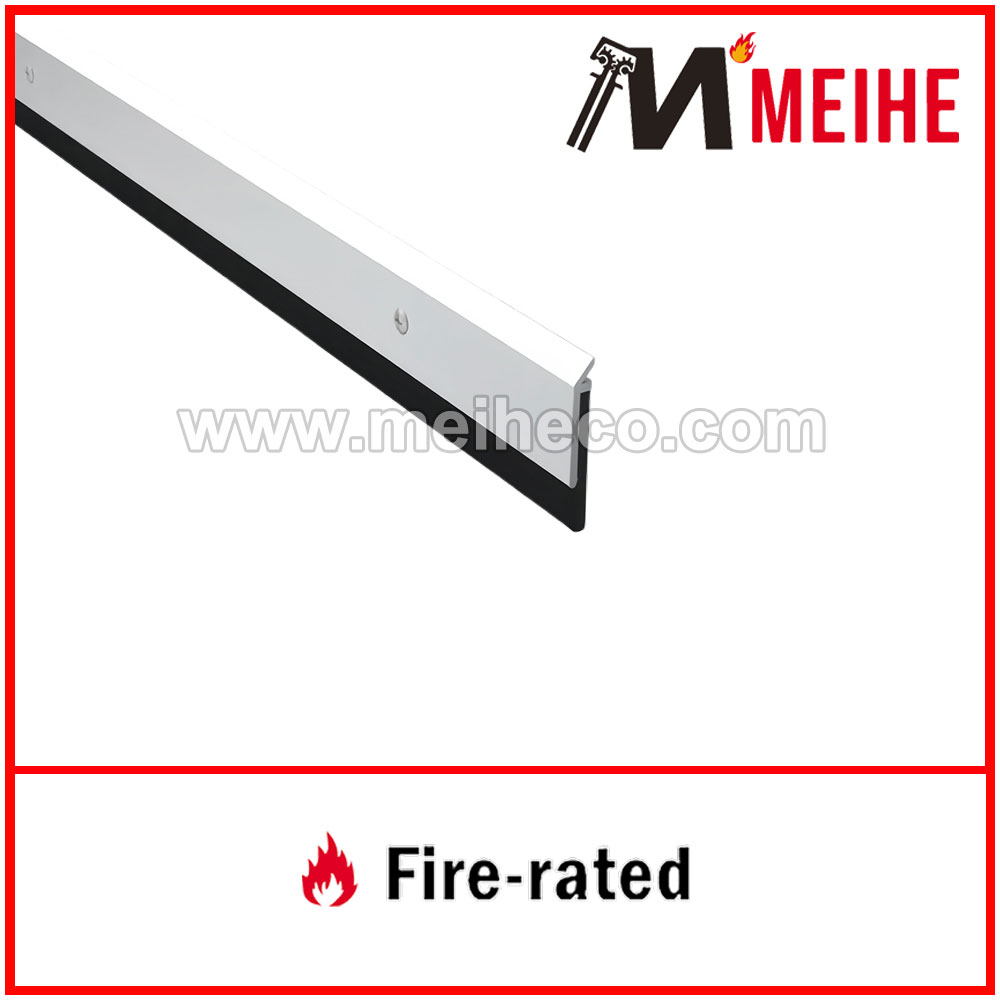

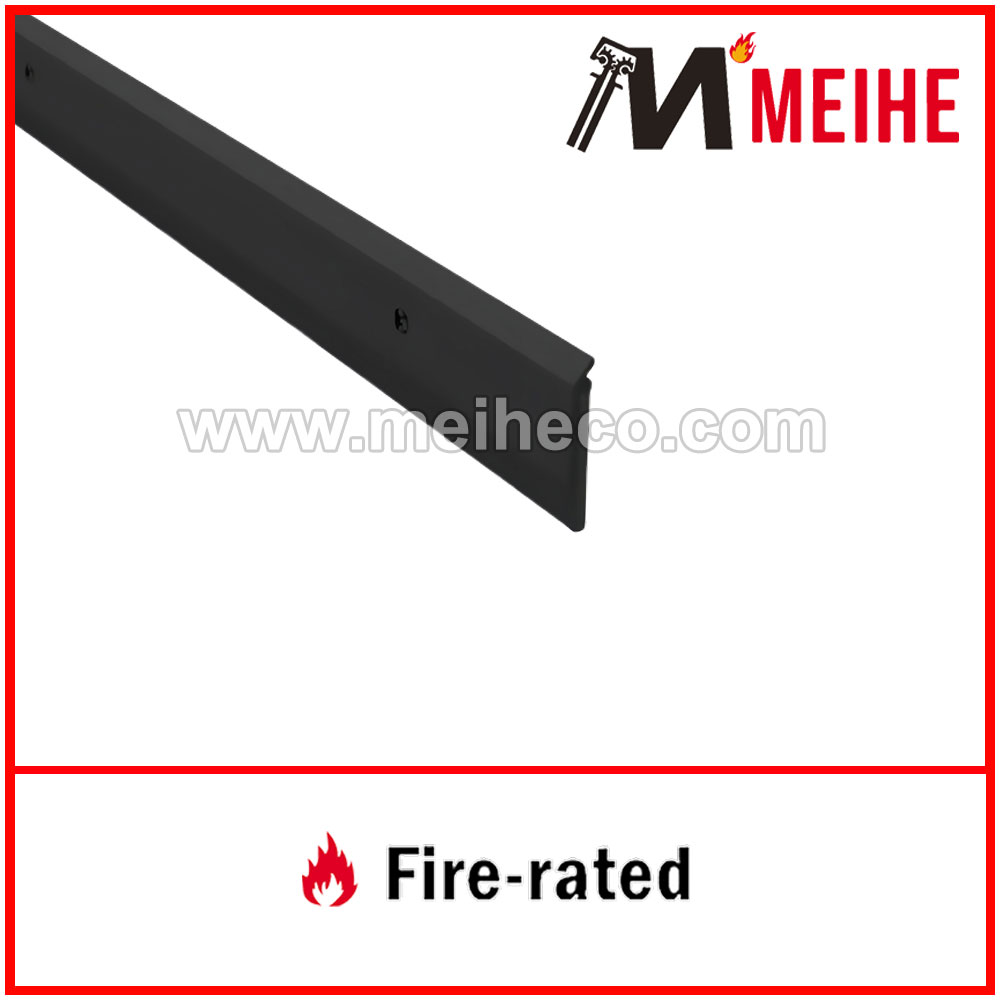

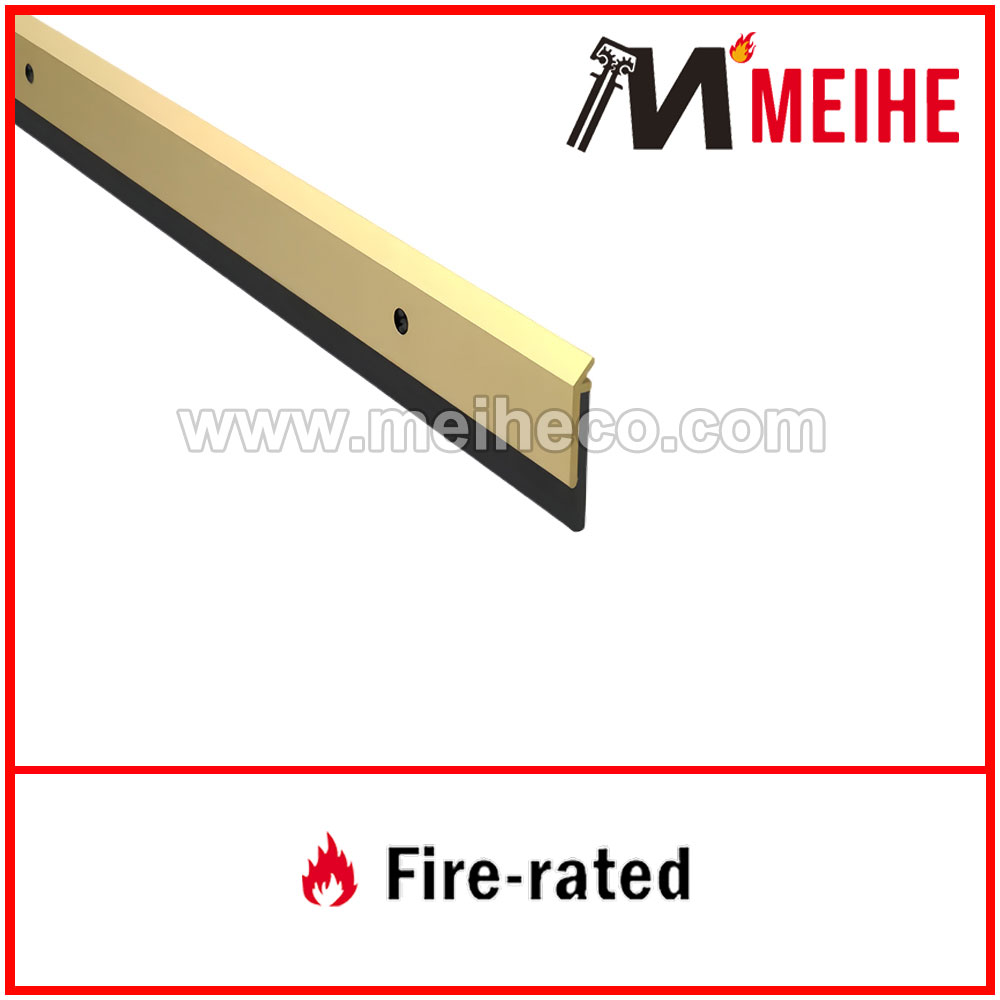

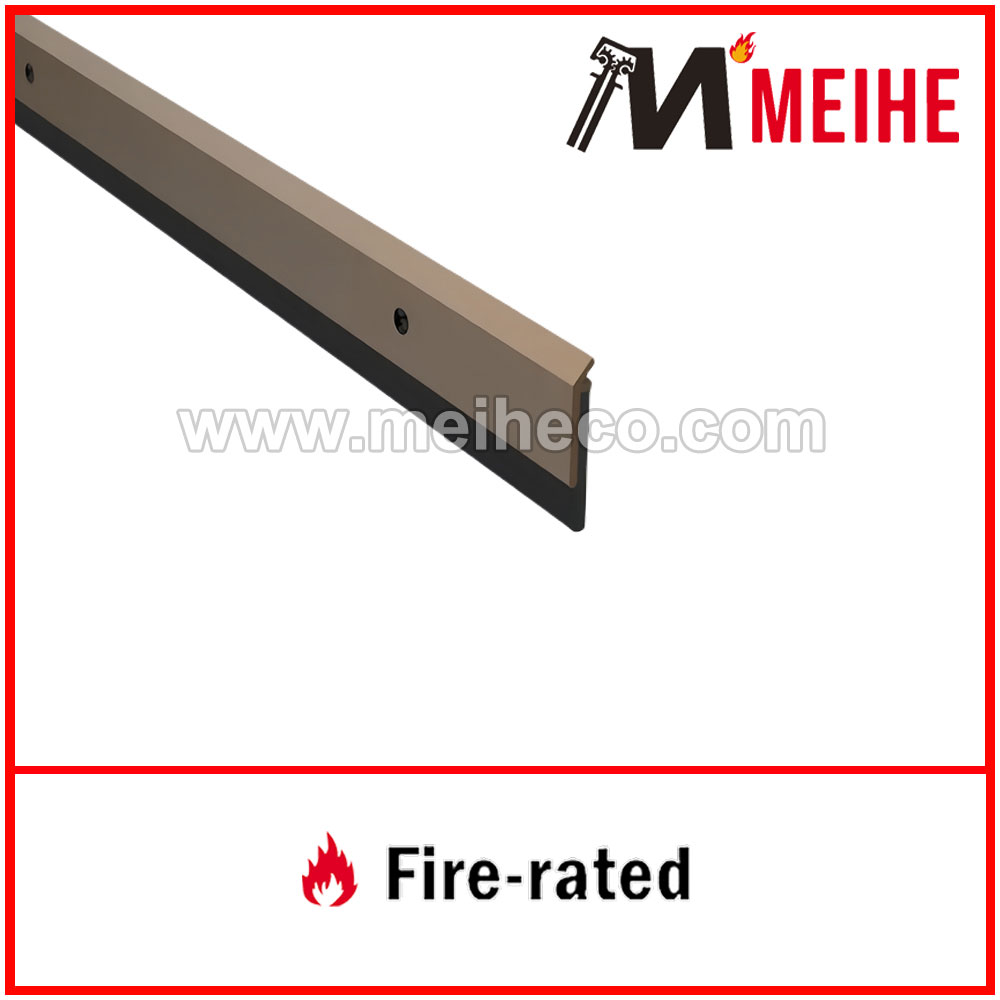

YDB119 Modern Design Aluminum Door Bottom Sweep Neoprene Strip Quality Door Seal Replacement

Door Sweeps

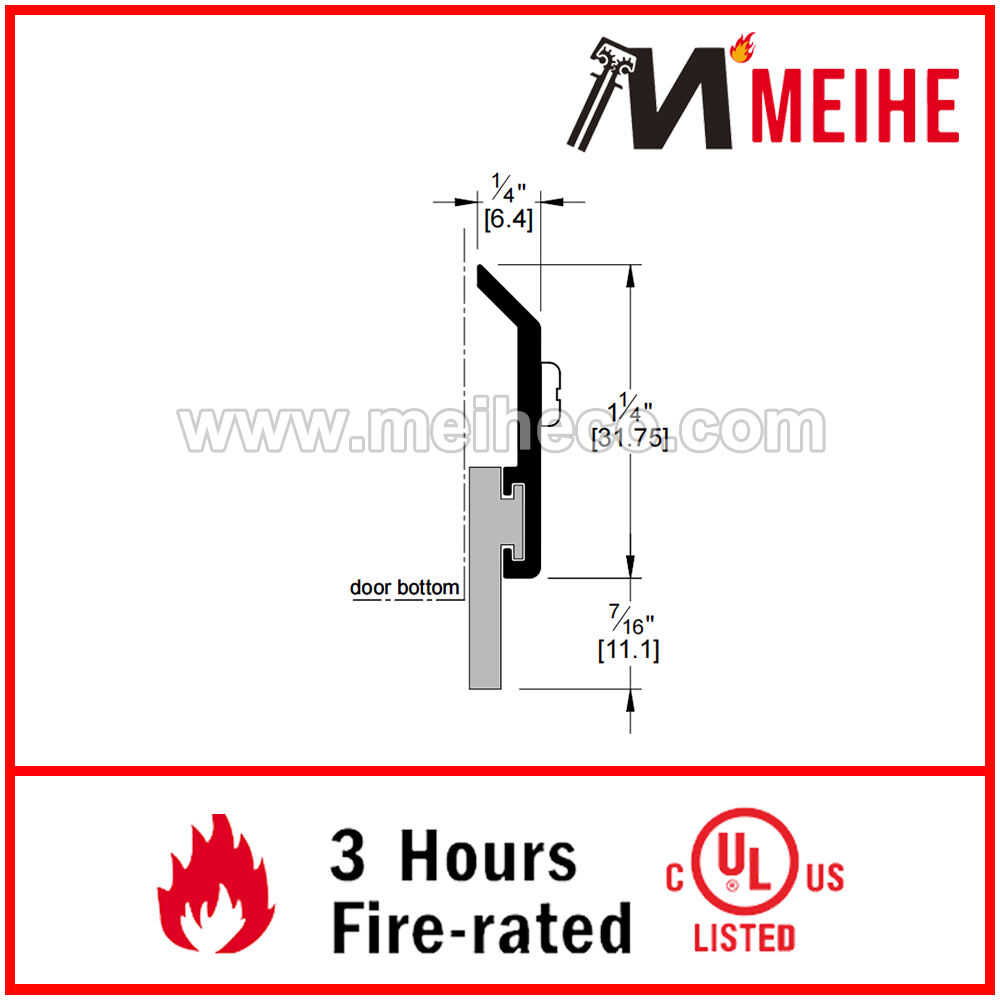

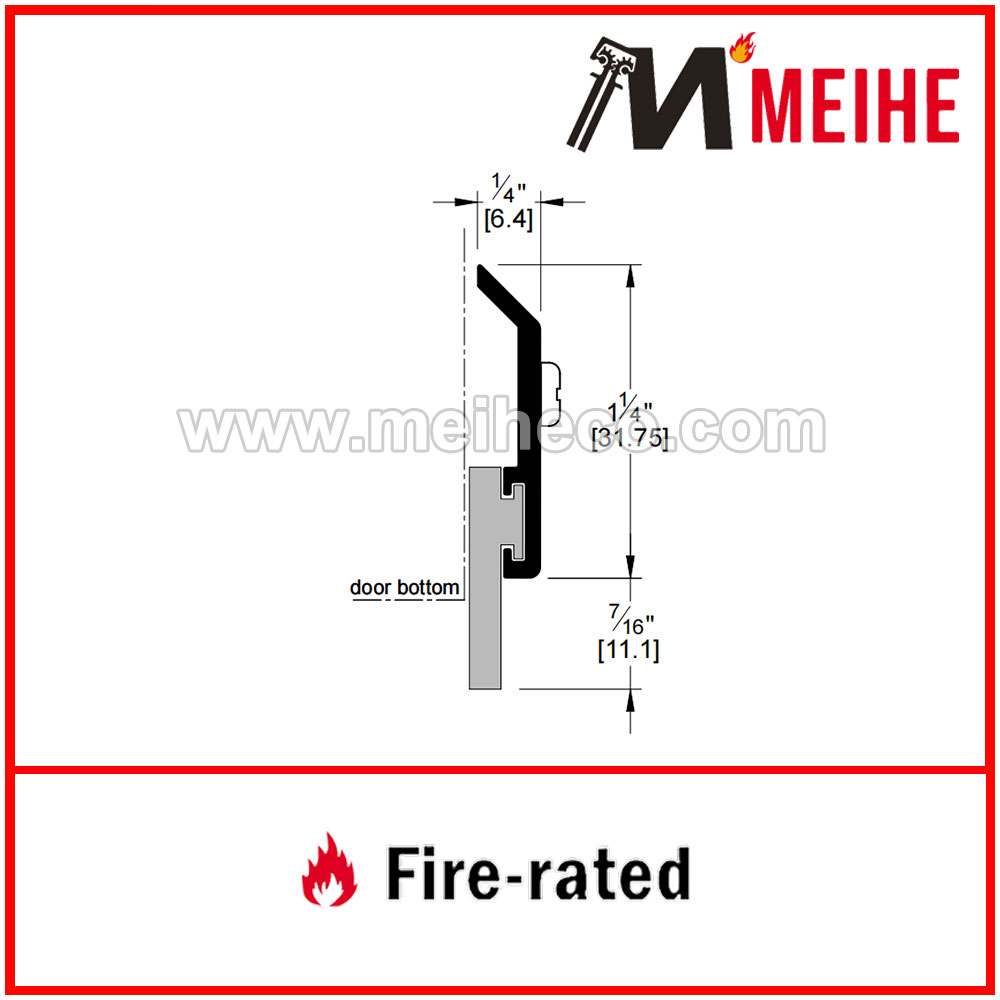

- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- WIDTH: 1/4” (6.4 mm)
- HEIGHT: 1-11/16” (42.9 mm)
- Function:Dustproof Insectproof Soundproof

Certificate:
- UL

  • Overview
  • Recommended Products
This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Bronze and various anodized aluminum variations. It is custom cut to size.
Retainer Material
Aluminum
Temperature Range
-4°F to +122°F
Door Type
Wooden Door, Metal Door
Seal Type
Neoprene Rubber Seal
Mounting
Surface Mounted
Seal Height
7/16" Height
Total Height
1-11/16" Height
Additional Dimensions
Door seal is 1/4" thick
Length
Standard 36",48";Custom Cut to Size
Installation
Drill holes are provided
Certificate
Fire Rated - UL 10B/10C
Cross Reference
PEMKO #315_N; NGP #200_N
