STC301 Industrial Durable Fully Mortised Aluminium Acoustic Automatic Door Bottom Soundproofing Screw Drop Seal
Spu:
1601756312324
- Overview
- Recommended Products

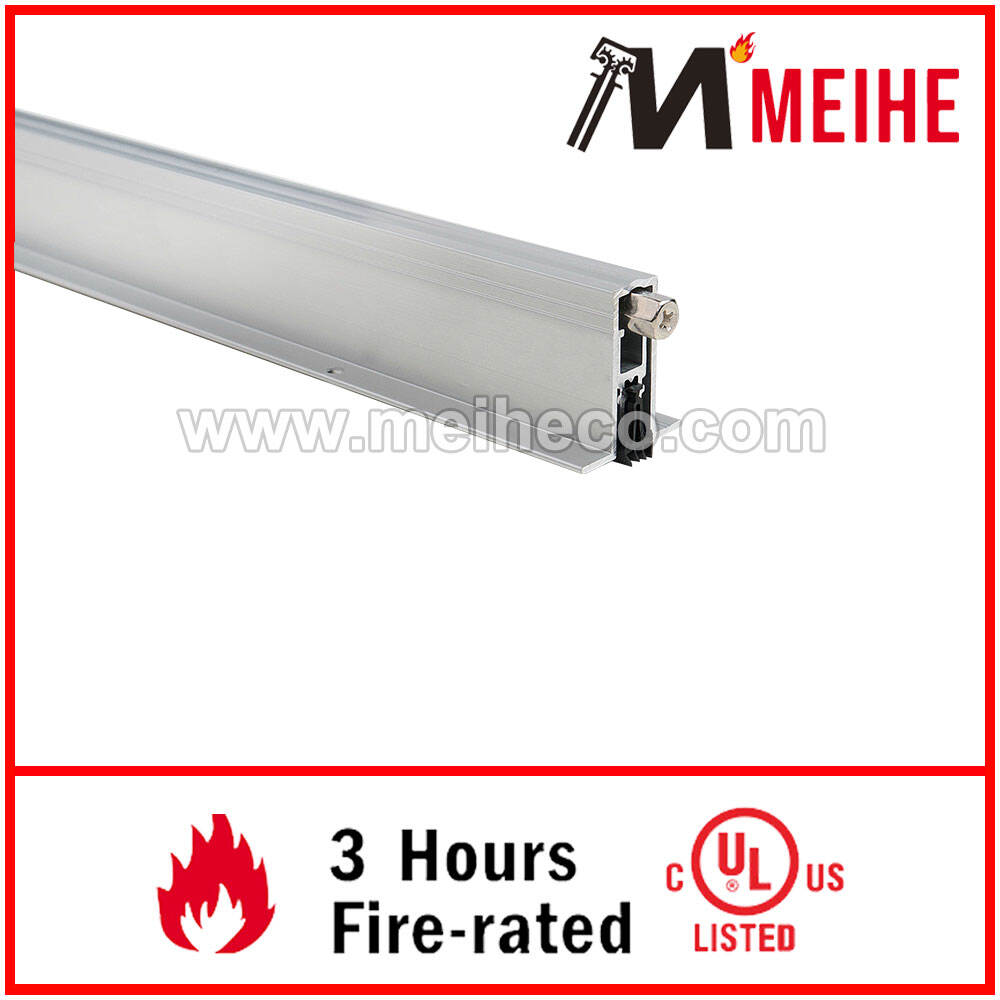

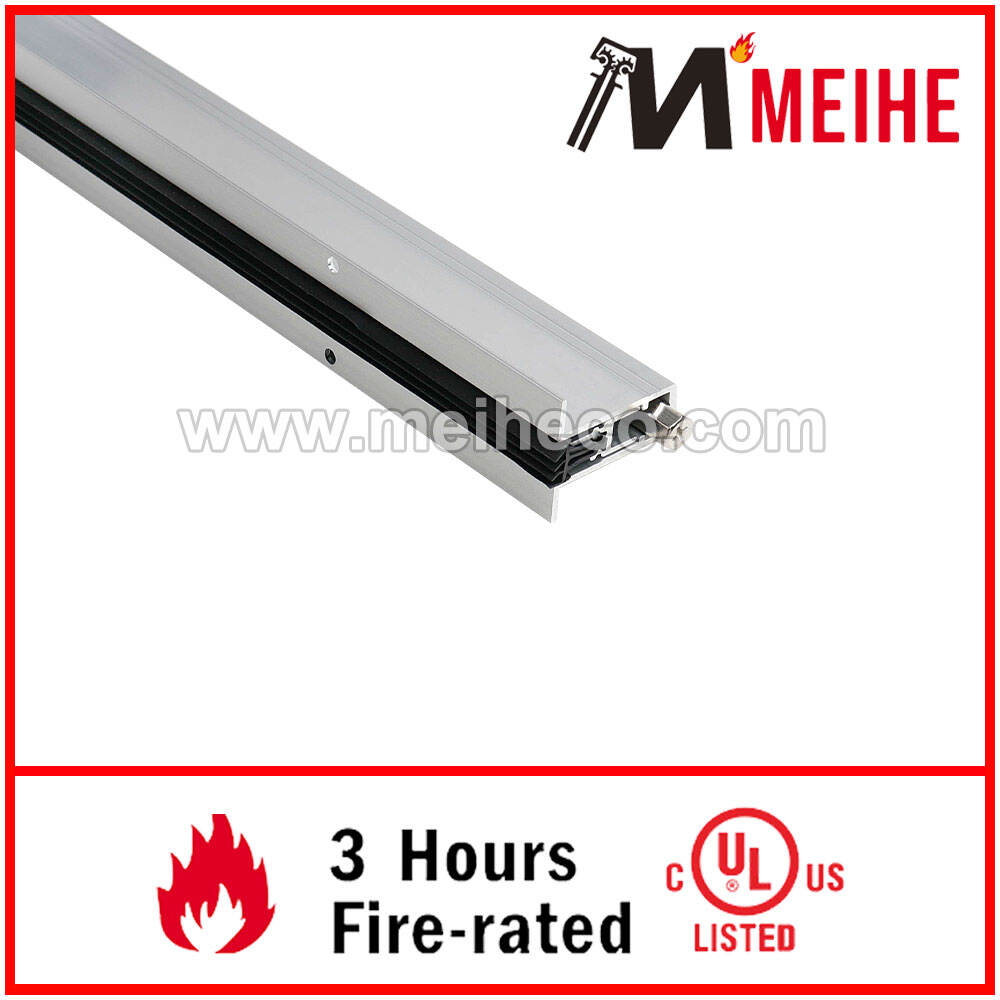

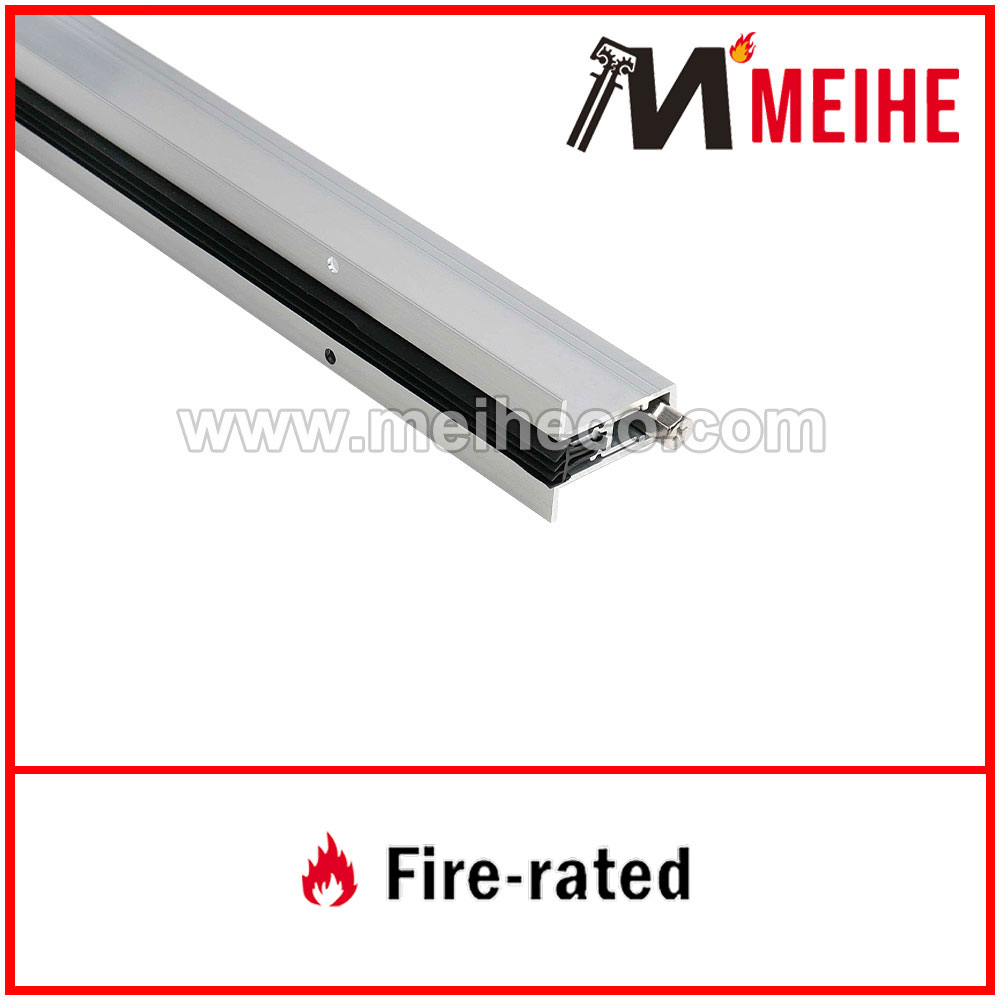

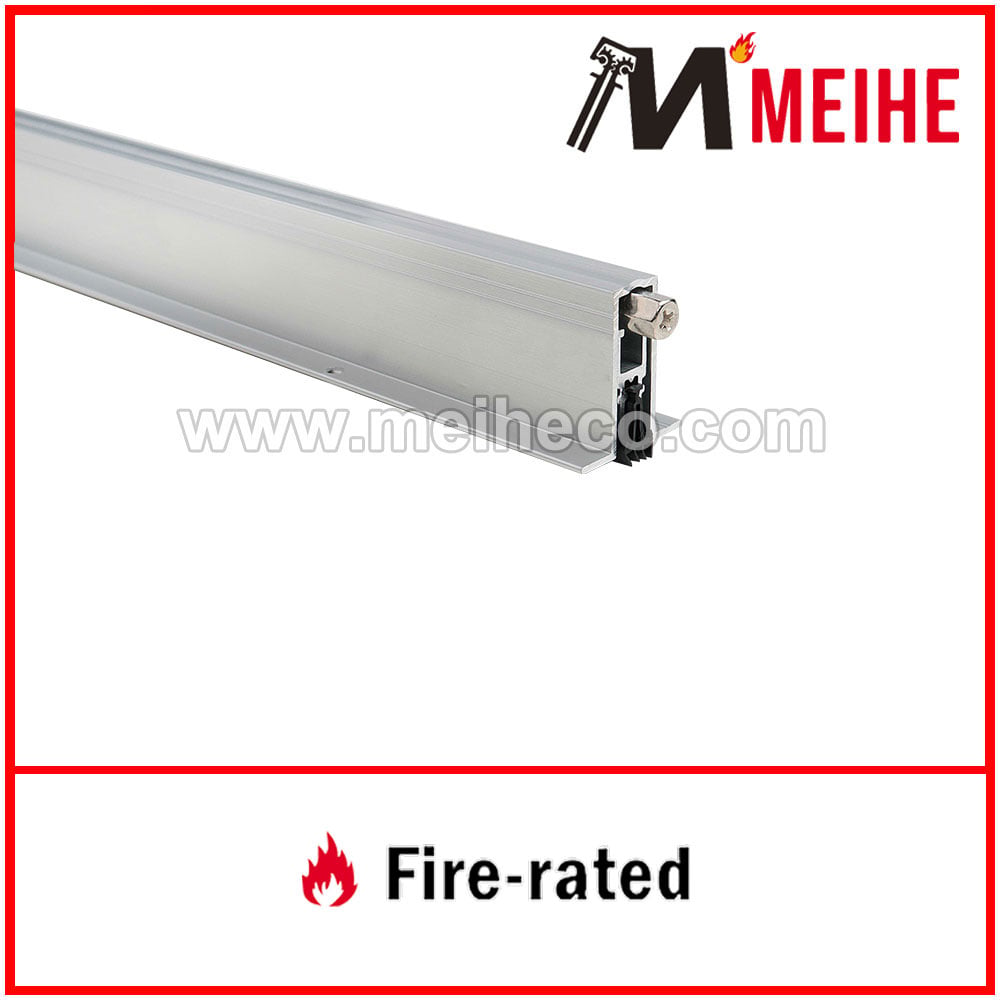

These Acoustic Full Mortise Automatic Door Bottom is designed for soundproofing doors. It automatically lowers a drop bar seal when the door is closed, providing a "sealed-in-place" performance. Made of aluminum, it can be fully mortised and works on both right and left handed doors. Custom sizes are available. Perfect for commercial buildings, hotels, and decorative doors.
Retainer Material |
Aluminum |
Finish |
Mill Finish/Clear Anodized/Dark Bronze Anodized |
Door Type |
Wood Door/Metal Door |
Seal Type |
Vinyl Rubber Seal |
Mounting Type |
Fully Mortised |
Maximum Drop Size |
0.75"(19.05mm) |
Door Thickness |
1-3/4"(44.45mm), 1-22/50"(36.5mm) |
Functions |
Blocking penetration by: Sound,Air,Smoke,Flames |
Length |
Standard 36", 48"; Minimum 12", Maximum 72" |
Accessories |
End Caps and Screws are provided |
Cross Reference |
Pemko#STC411_ |
