YDT514 Adjustable Door & Window Thresholds Manufacturer's Aluminum/Wood Sills
Wood Sills
- Available Finishes: A, C, D
- Width: 4-5/8"
- Height: 3/4"
- Certificate: ISO9001
- Overview
- Recommended Products

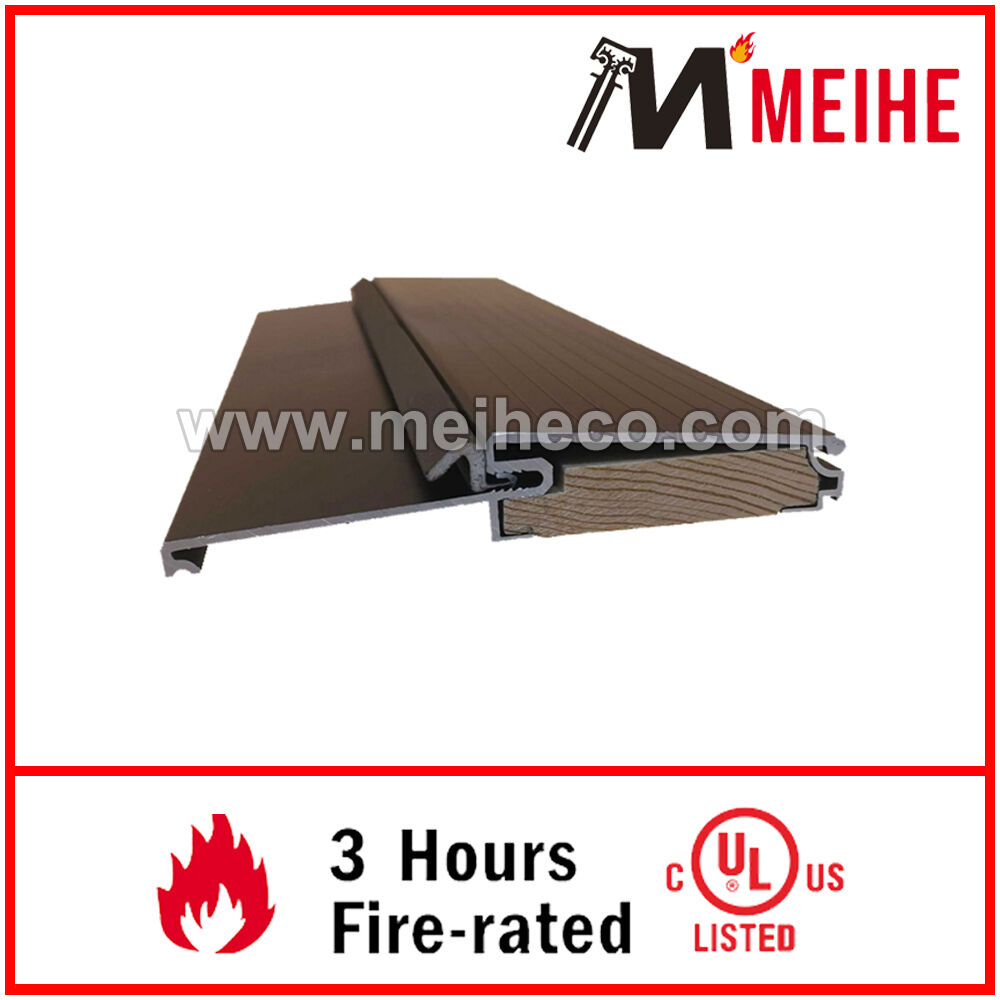

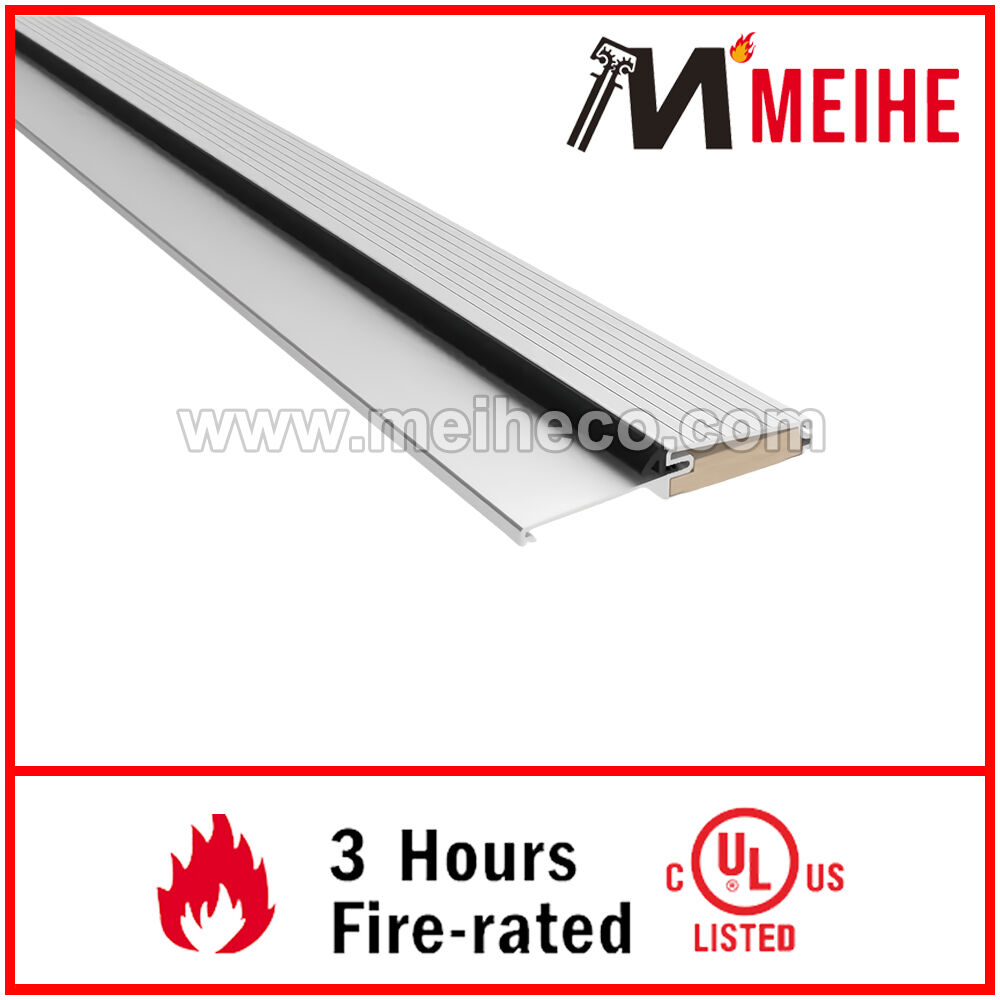

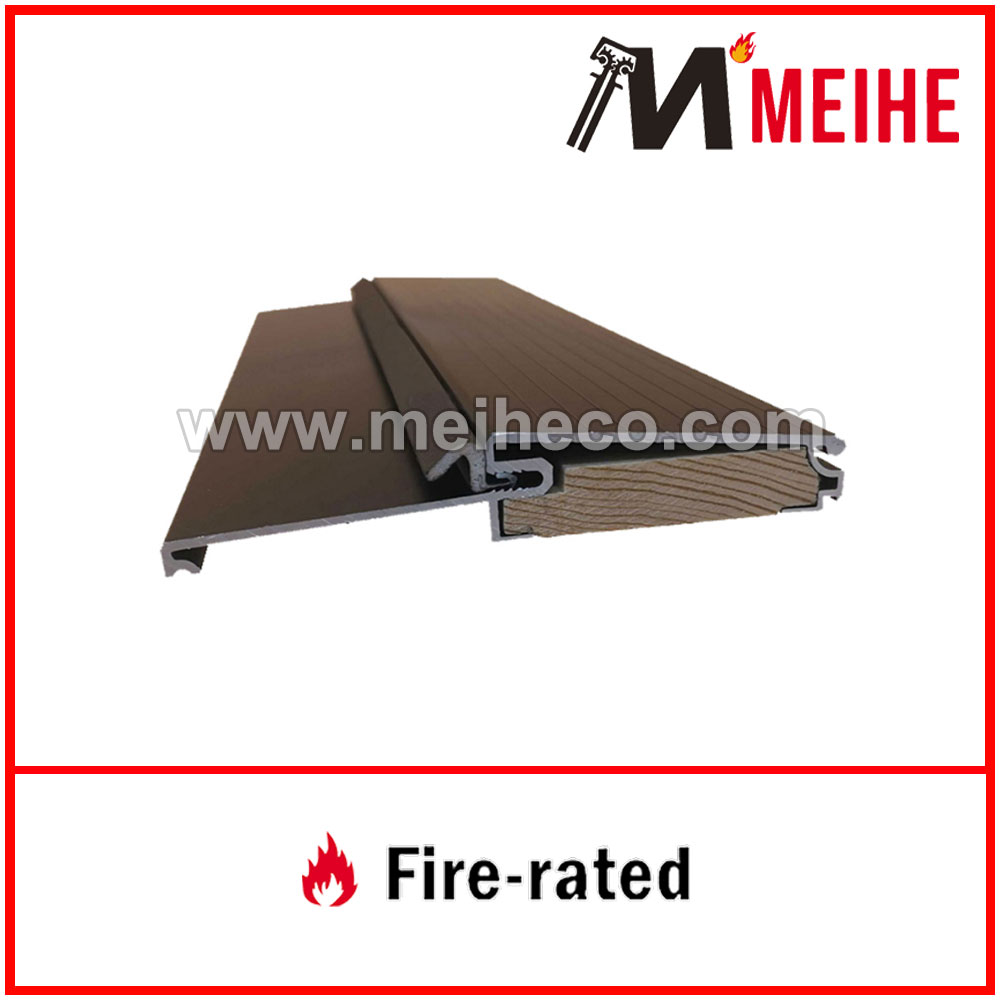

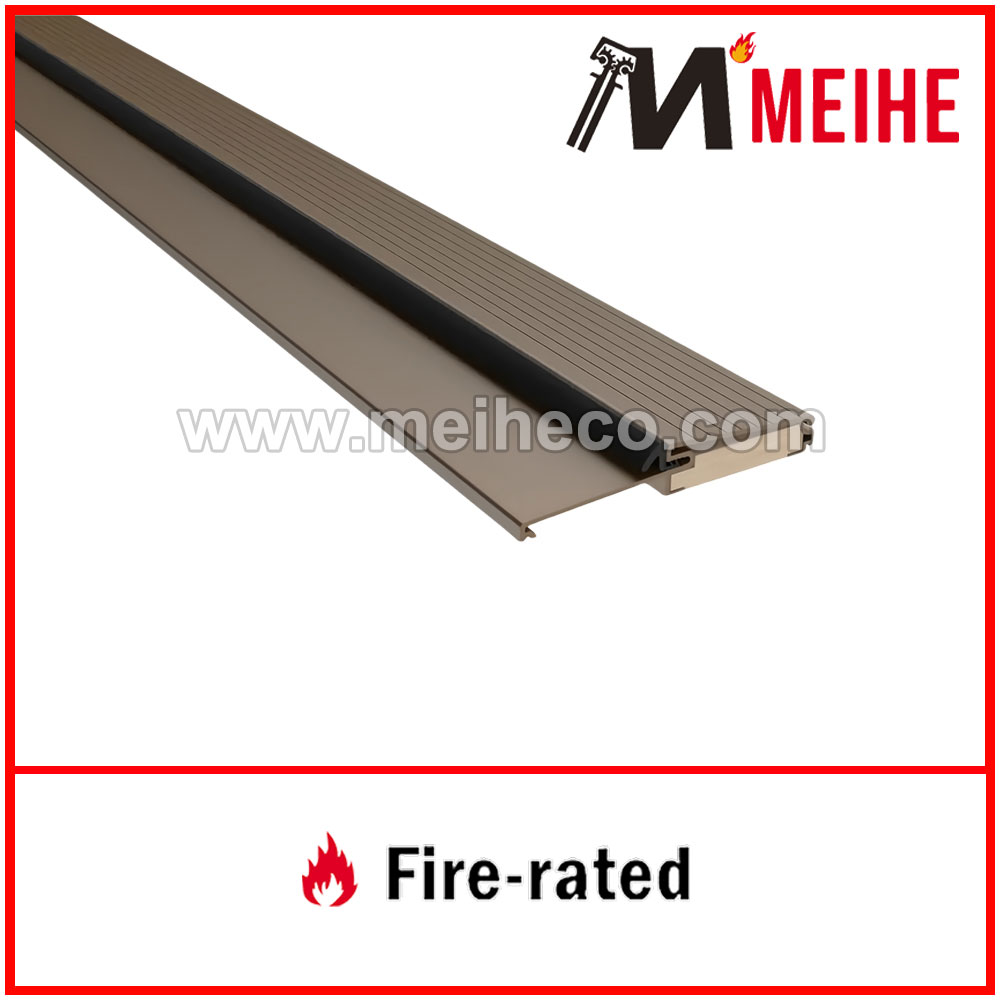

This fixed height threshold for outswing doors has a wood base with an aluminum slope, making this is a low-maintenance sill with no exposed wood. The high dam design restricts water intrusion utilizing a V-shaped, Kerf-in Foam seal (see product specs) where the bottom of the door meets the threshold. This foam seal eliminates the need for door sweeps or door shoes. Aluminum slope provides superior stability and long-lasting reliability. Sloped aluminum extrusion is grooved to prevent slipping.
Key Features of this Product:

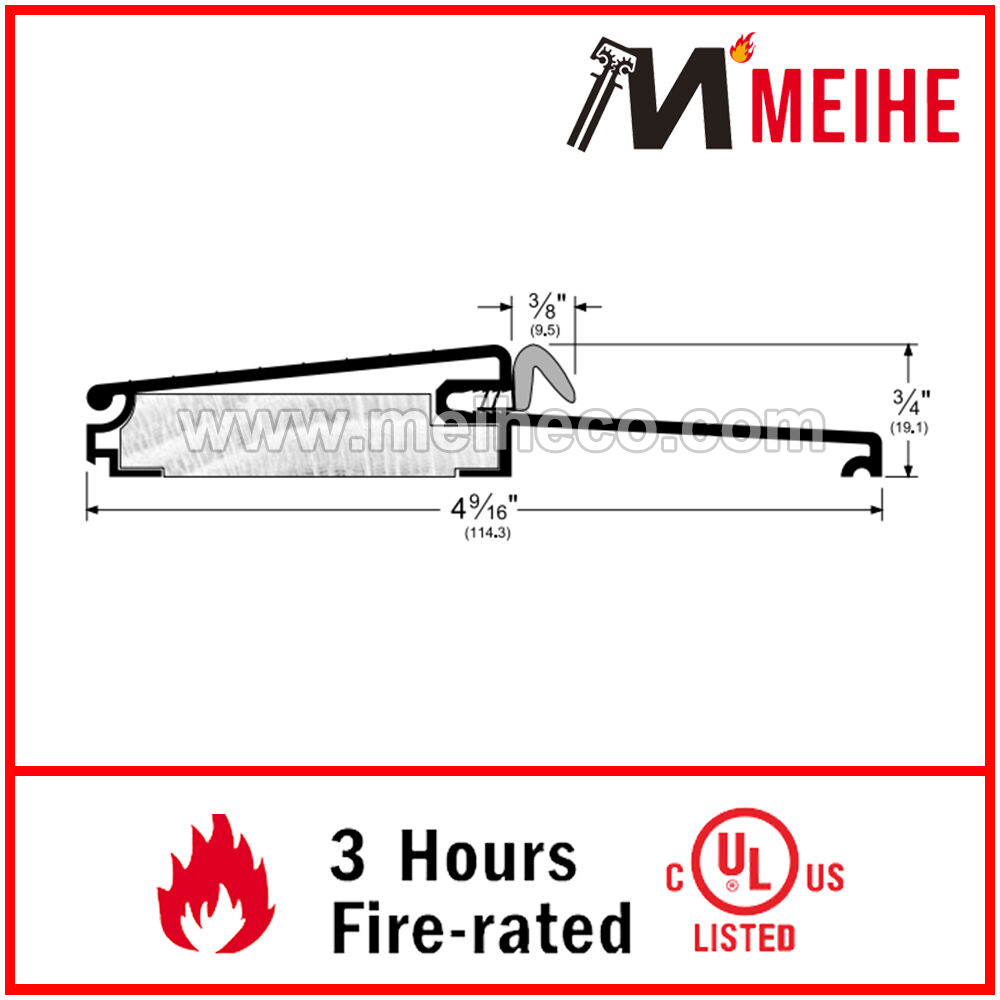

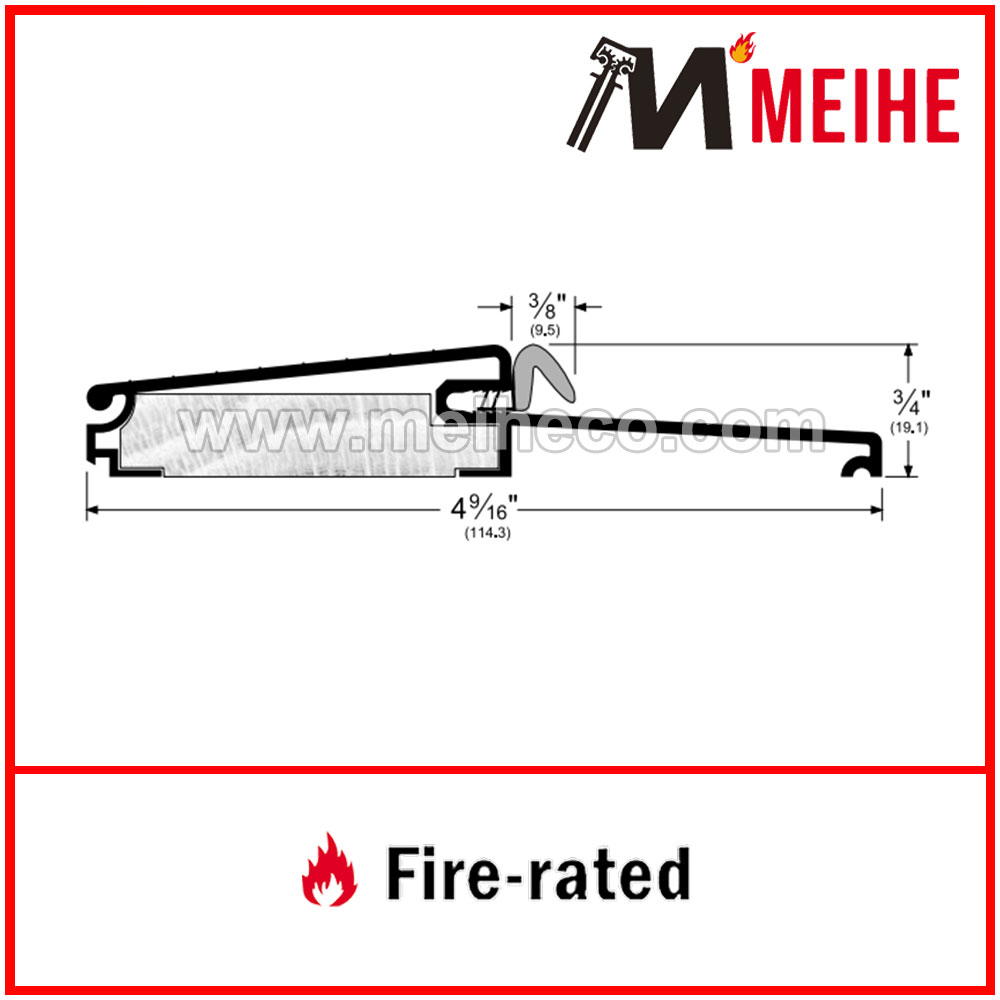

Dimensions:0.75" in height and 4.625" in width. Slope has a 5˚ bevel.
Extendable to interior by attaching our Threshold Width Extenders, Aluminum, 2”, 3", and 3/4" W, for Thresholds.
Compatibility: Residential Sills are designed specifically for the pre-hung door market. Can be used for standard door applications as well.
Finishes/ Materials: Available in aluminum mill finish, dark bronze anodized, and clear anodized aluminum.
Installation: Threshold is furnished un-drilled and without screws or nails. If threshold is being drilled into concrete, an Expansion Anchor is recommended.
Available Lengths: This product can be custom cut to size.
- Fixed Height Threshold for Outswing Doors
- Wood base with aluminum upper
- A Kerf-in Foam seal closes the gap beneath the door
- 0.75" H, 4.625" W
- Compatible with pre-hung door applications
- Ridged to prevent slipping
Material |
Aluminum |
Finish |
Mill Finish/Clear Anodized/Dark Bronze Anodized |
Flat Saddle Design |
Fluted (Grooved) Design |
Threshold Type |
Rubber Seal / Bumper Threshold |
Overall Height |
0.75" Height |
Overall Width |
4-9/16" Width |
Length |
Standard 36", 48"; Custom Cut to Size |
Cross Reference |
PEMKO #8452-Q |
