YHG016 Concealed Leaf Aluminum BHMA Hinges Ligature Resistant
-Certificate：UL
- Feature: Adjustable、Easy Installation

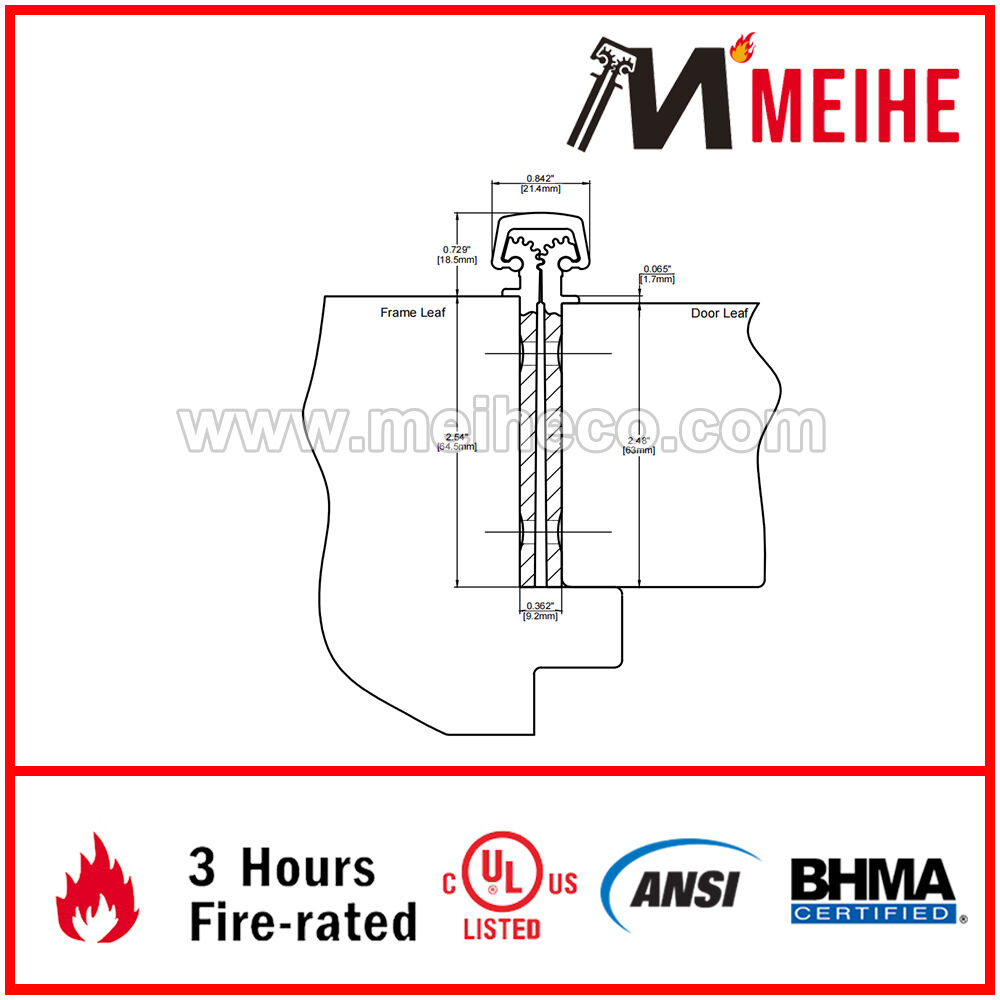

-The X25M Series Continuous Geared Hinge is, designed specifically for 2-1/2" thick doors, and features thicker leaves than a traditional continuous hinge. This versatile hinge is ideal for new door installations with electrical modifications as it allows for a deeper cavity for electrical wires.
- Overview
- Recommended Products
This Full Mortised, X-Series Continuous Hinge for Thick Doors with 1/16" Inset Leaf is designed for, though not limited to, new door applications with electrical modifications. It has wider hinge leaves to accomodate doors of 2.5" thick. X-Series Hinges have extra duty, thicker leaves than traditional continuous geared hinges and requires no additional clearance. Available with various options, two anodized finishes and is custom cut to size.
| Length (inches) | Length (mm) | Hole Count (Door) | Hole Count (Jamb) |
| 83 | 2108 | 26 | 26 |
| 95 | 2413 | 28 | 28 |
| 119 | 3023 | 33 | 33 |
Features
- Extra heavy duty
- Designed for door applications with electrical modifications
- For use with 2-1/2" thick doors
- Applied to conceal both leaves for safety and security
- Custom lengths available
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance
- Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
- Distributes door weight evenly, extending life of door
- Makes the door operate smoothly
- Electrical wiring is concealed to prevent tampering
- Hollow metal door and frame manufacturers’ standard is acceptable
- Special hinge reinforcements are not required
Specifications
- Bearing Spacing: 1 1/2"
- Grade: Grade 1
- Hinge Material: Aluminum
- Hinge Mounting Type: Full Mortise
- Hinge Strength: Heavy Weight
- Handing: Non-handed
- Fastener: Teks
- Fastener Type: Self Drilling
- Maximum Door Thickness: 2 1/2"
- Minimum Door Thickness: 2 1/2"
- Maximum Door Width: 4'
- Maximum Hinge Length: 120"
- Minimum Hinge Length: 79"
- Maximum Swing: 180°
- Minimum Hinge Clearance: 3/8"
- Weight: 1.25lbs. per foot
