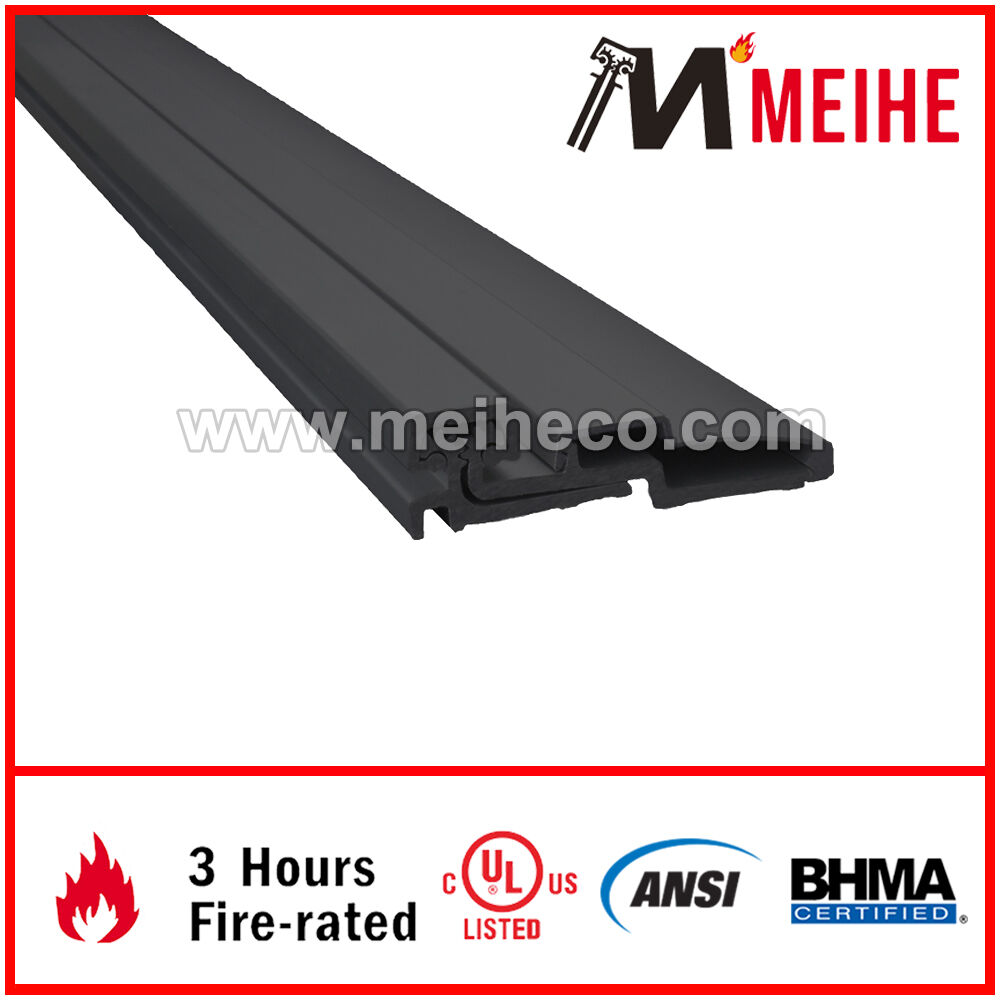

YHG002 ANSI/BHMA Compliant Geared Hinge For Door Use
Full Surface Continuous Geared Hinges
Application:
- Can be used with any door and frame material
- Security moldings
- 1/32" (1 mm) inset
- Size：83"/95"/119"/Customized
Certificate:
- BHMA & UL
- Overview
- Recommended Products
Meihe Hinges are unique, geared hinges developed to outperform most other entrance components because of the weight of the door is distributed along the full length of the door frame. It has been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction. It is designed for superior performance.
| Length (inches) | Length (mm) | Sex Bolts (Door) | Pan Head (Door) | Screws (Jamb) |
| 83 | 2108 | 8 | 19 | 19 |
| 95 | 2413 | 9 | 19 | 19 |
| 119 | 3023 | 10 | 23 | 23 |

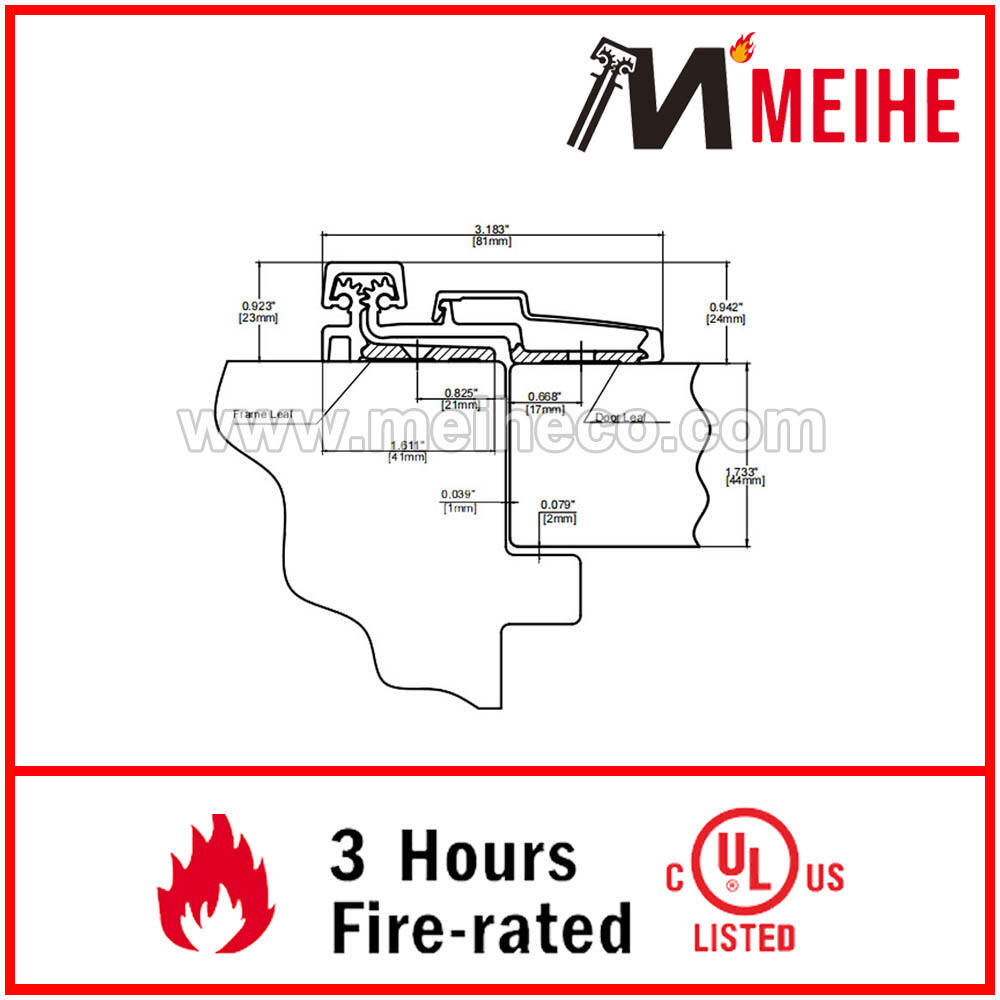

Clearance:
- 1/32" (1 mm) minimum recommended for hinge side
- Plus standard lockside clearance
- 1-5/8" (41 mm) minimum frame face required plus
3/16"(5 mm) rotational clearance
Fasteners:
- 1/4-20 x 1-1/4" Sexbolt (Screw Post)
- #12-24 X 11/16" Flat Head Self-Drill Screws
Finish Options:
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
Length Options:
- 83" & 95" & 119" & Custom
Door Reinforcement:
- None needed
Frame Reinforcement:
- None needed to 200 lbs.
- Use 16 gauge channel over 200 lbs
Fire Rating:
- Up to 3-hour metal and 90 minute wood composite
Special Features:
- Replacement for existing doors and frames
- 7/8" minimum frame
- 1/16" inset
Options:
- Hospital Tip
- Electrified Modual
