YDS604 Door Bottom Brush Sweeps Aluminum Door Seal Brush Strip Brush
Brush Weatherstripping
- Certificate：UL Certified
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

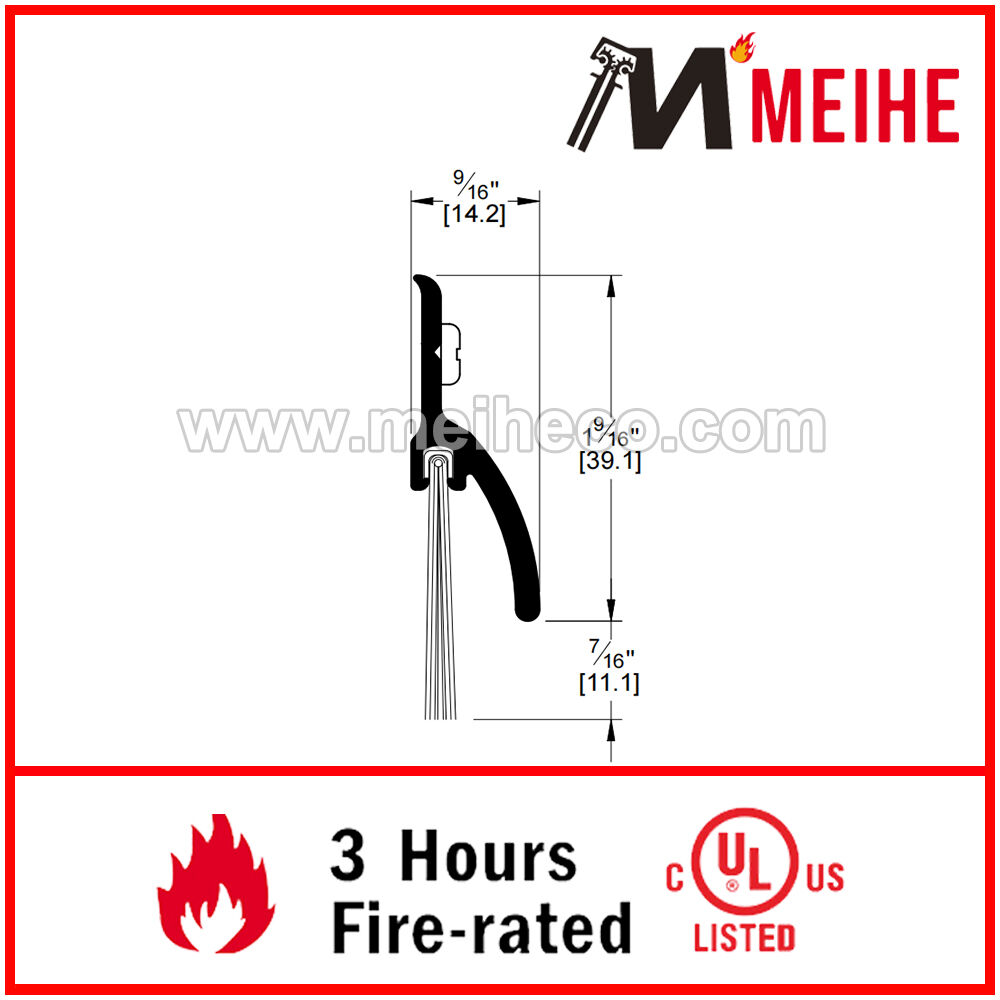

- Width: 9/16” (14.3 mm)
- Profile Height: 1-1/2” (38.1 mm)
- Height Including Brush: 2-5/14” (49.2 mm)
- Overview
- Recommended Products
This door bottom sweep is great for the outdoors. The high quality aluminum casing has a rain drip design which deflects water and prevents seepages through the gap under doors. It has a nylon brush seal which reduces infiltration of drafts, moisture, air and dust. Available in many finishes and is custom cut to size.
Door Brush Retainer Material |
Aluminum |
Temperature Range |
Seals remain flexible between -40° F and over 400° F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Nylon Brush Seal |
Mounting |
Surface Mounted |
Seal Height |
7/16" Height |
Total Height |
1-15/16" Height |
Additional Dimensions |
Door seal is 9/16" thick |
Length |
Standard 36",48";Custom Cut to Size |
Finish |
A(Mill Finish),C(Clear Anodized),D(Dark Bronze Anodized) |
Installation |
Drill Holes Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
PEMKO #345_NB; NGP #C627 |
