YDB307 Surface Mounted Automatic Door Bottoms Seal Automatic Drop Down Door Seals Bottom Seals Under Door
Automatic Door Bottoms
- Available Finishes: A, C, BL, DB, G, PB, LB
- Width: 1” (25.4 mm)
- Height: 1-29/32” (48.4 mm)
Certificate:
- UL
- Overview
- Recommended Products

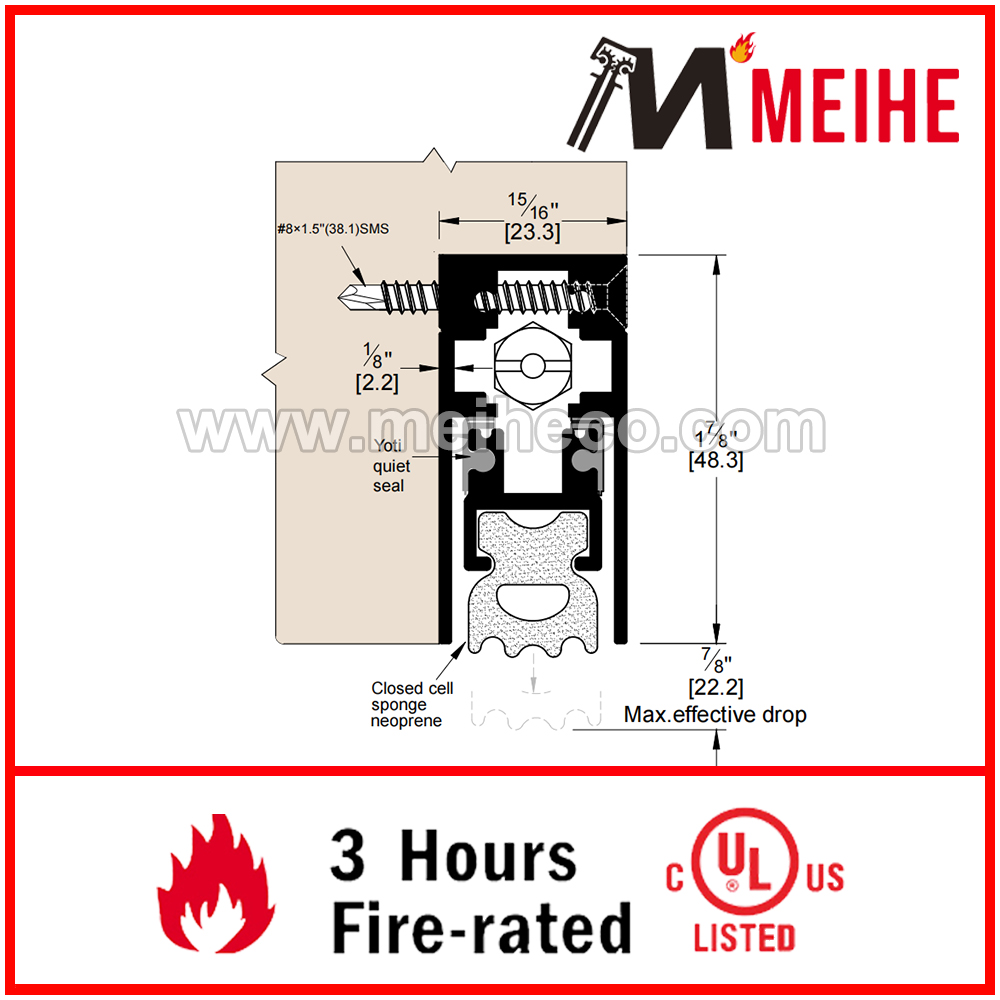

These Automatic Door Bottoms ensure an efficient seal with an adjustable plunger that is compressed against the frame as the door is closed, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion. The seal compresses on either even or uneven surfaces and retracts automatically when the door is opened.
YDB307 Semi Mortised, Heavy Duty, Sound Rated Automatic Door Bottom provides the best sound seal possible for normal sound levels and will prevent infiltration of light, drafts and more. Fitted with a high quality sponge neoprene seal and high quality mechanism that has been successfully tested through 5 million cycles. Rated for fire, smoke and sound. Available in various anodized finishes and is custom cut to size.
Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some models available as engineering special order.
Retainer Material |
Aluminum |
Finish |
Mill Finish/Clear Anodized/Dark Bronze Anodized |
Door Type |
Wooden Door |
Seal Type |
Neoprene Rubber Seal |
Mounting Type |
Semi-Mortised, Surface Mounted |
Maximum Drop Size |
0.875"(22.23mm) |
Door Thickness |
1-3/4"(44.45mm) |
Functions |
Blocking penetration by: Sound,Air,Smoke,Flames |
Length |
Standard 36", 48"; Maximum 60" |
Accessories |
End Caps and Screws are provided |
Certificate |
Fire Rated - UL 10B/10C |
Cross Reference |
ZERO#362 |
