YDB110 Heavy Duty Aluminum Door Seal Modern Design Bottom Sweep with Neoprene Strip
Door Sweeps
- Available Finishes: A, C, BL, DB, G, PB, LB, PW
- Width: 13/64” (5.1 mm)
- Height: 1-21/32” (42.1 mm)
- Function：Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products

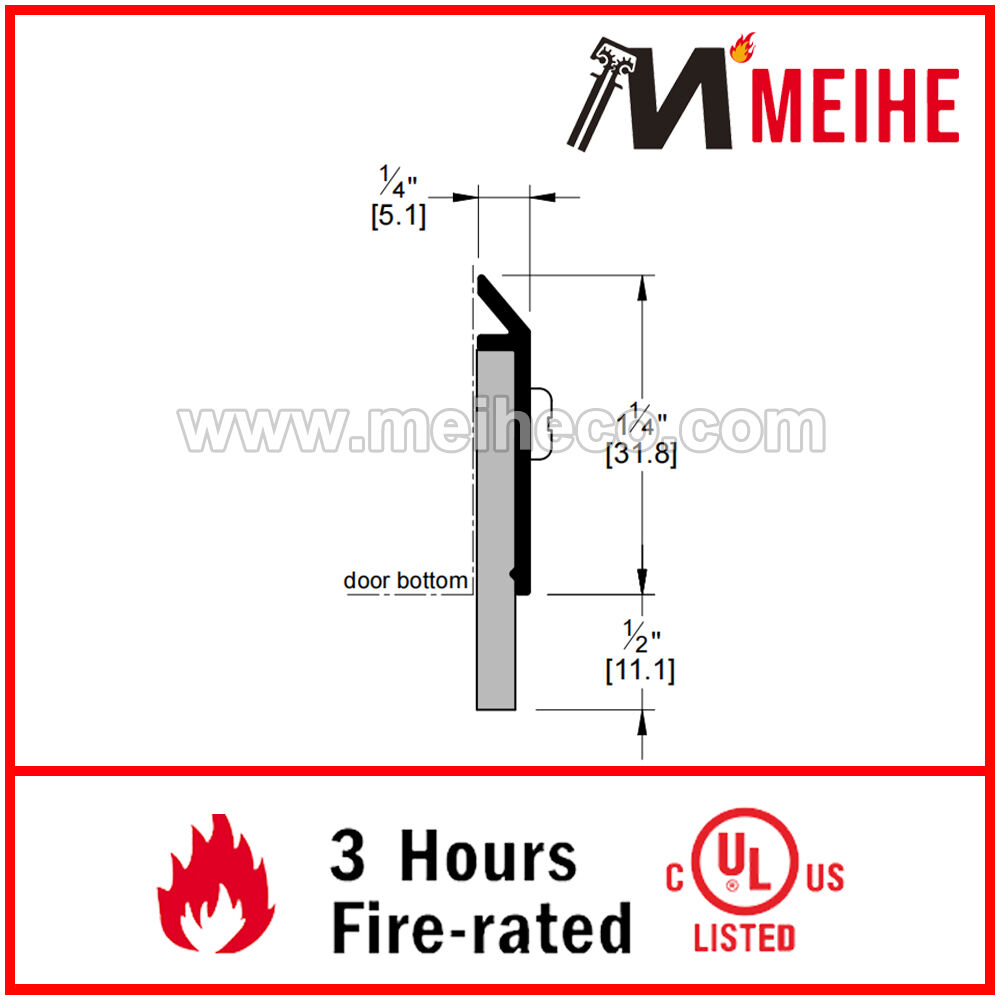

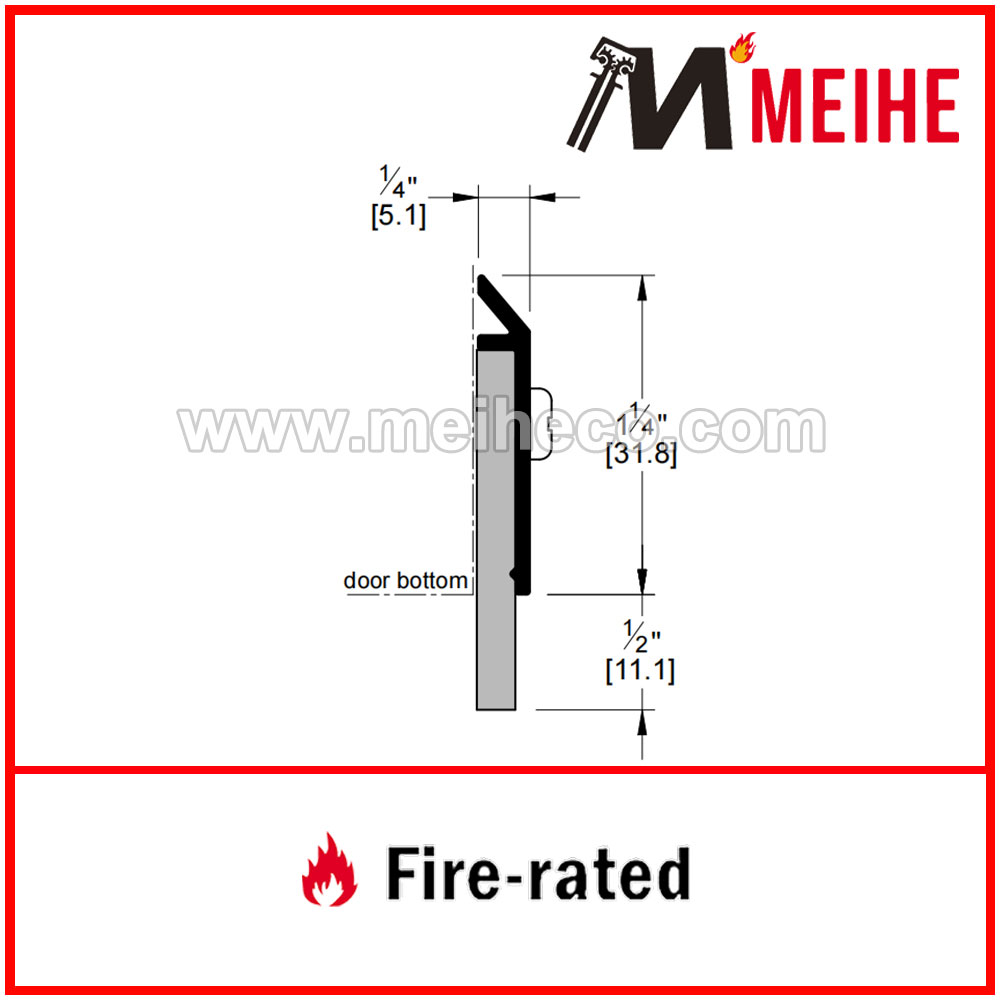

This door bottom, with a 1.25" sleek aluminum casing is fitted with a neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface. Available in Bronze and various anodized aluminum variations. It is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Neoprene Rubber Seal |
Mounting |
Surface Mounted |
Seal Height |
13/32" Height |
Total Height |
1-21/32" Height |
Additional Dimensions |
Door seal is 13/64" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill holes are provided |
Certificate |
Fire Rated - UL 10B/10C
|
